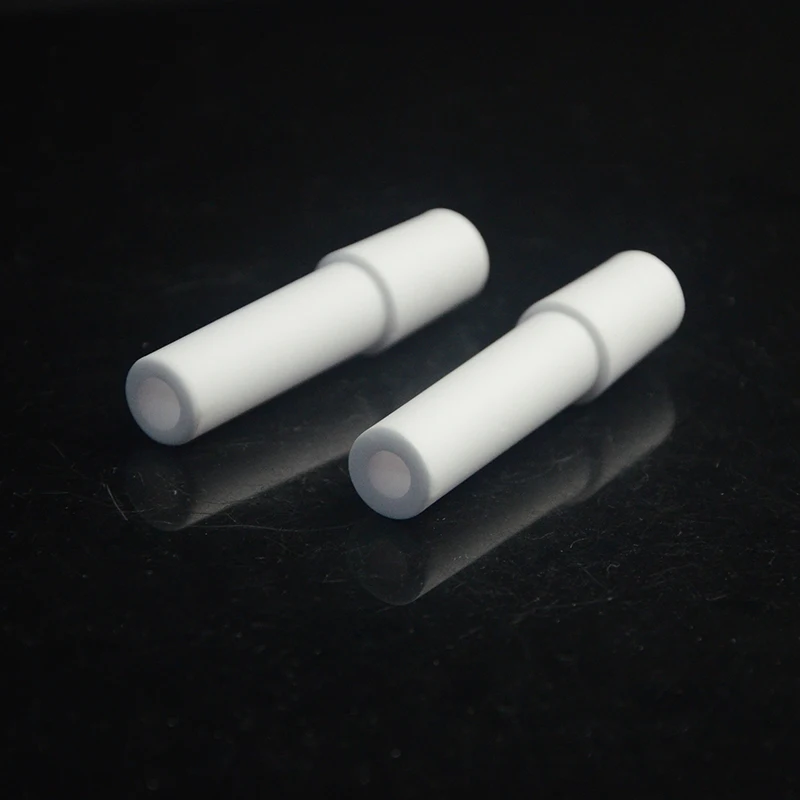

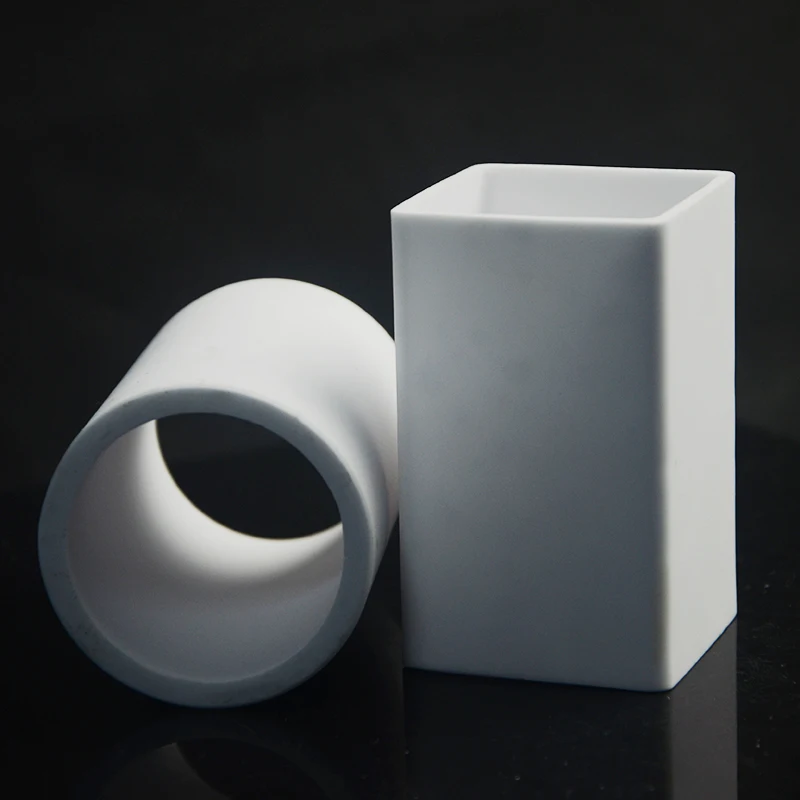

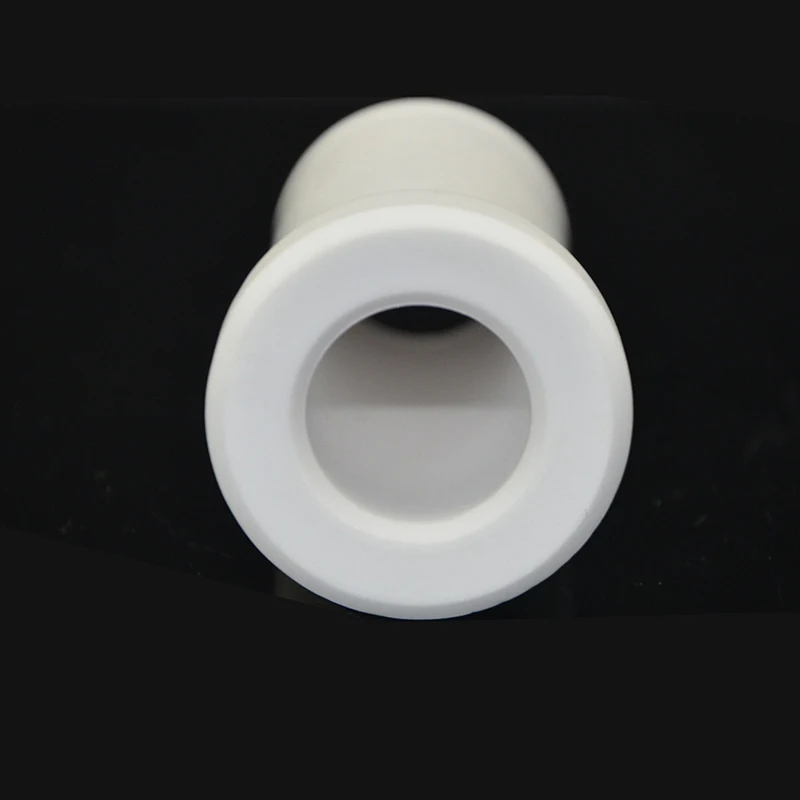

Heat Resistant Ceramic 95 Alumina Tube
- Category: >>>
- Supplier: JSK INDUSTRIAL SUPPLY
Share on (10000001681602):
Product Overview
Description
Product Overview
Ceramic Tube
Alumina Ceramic
Alumina ceramic is the most mature of the engineering ceramics, offering excellent electrical insulation properties together with high hardness and good wear resistance, but relatively low strength and fracture toughness. Alumina ceramic is generally white but may also be pink or ivory. The color is derived from either the sintering additives or impurities in the raw materials.
Alumina ceramic is the most mature of the engineering ceramics, offering excellent electrical insulation properties together with high hardness and good wear resistance, but relatively low strength and fracture toughness. Alumina ceramic is generally white but may also be pink or ivory. The color is derived from either the sintering additives or impurities in the raw materials.
Main Features
1) High hardness.
2) High heat resistance : Alumina ceramic has execellent themal stability,which means that it is widely used in areas where resistance to high temperatures is essential.
3) Good wear resistance : Alumina ceramic is the material of choice for alumina wear parts.
4) High electrical resistivity : Alumina is an electrically insulating material.
5) High corrosion resistance : It is insoluble in water and only slightly soluble in strong acid and alkaline solutions. Good chemical stability of alumina leads to high corrosion resistance.
1) High hardness.
2) High heat resistance : Alumina ceramic has execellent themal stability,which means that it is widely used in areas where resistance to high temperatures is essential.
3) Good wear resistance : Alumina ceramic is the material of choice for alumina wear parts.
4) High electrical resistivity : Alumina is an electrically insulating material.
5) High corrosion resistance : It is insoluble in water and only slightly soluble in strong acid and alkaline solutions. Good chemical stability of alumina leads to high corrosion resistance.
Properties | Unit | Steatite ceramic | 95% Al2O3 | 99% Al2O3 | Zirconia Ceramic |
Density | g/cm³ | 2.7 | 3.6 | 3.8 | 5.6 |
Flexural strength | Mpa | 145 | 300 | 300 | 354 |
Hardness | Gpa | 5.7 | 7 | 10.7 | 12.3 |
Elastic modulus | Gpa | 120 | 275 | 320 | 205 |
Poissons ratio | - | 0.21 | 0.22 | 0.22 | 0.30 |
Linear expansion coefficient | x 10-6/℃ | 7.9 | 7.1 | 7.8 | 9 |
Thermal conductivity | w/(m.k) | 2.5 | 20 | 25 | 2.5 |
Specific Heat | *10-3J/(kg*K) | 0.75 | 0.78 | 0.78 | 0.4 |
Physical properties
AI997 | AI960 | Zirconia | ||
% Alumina | % | 99.7 | 96 | |
Density | g/cm3 | 3.9 | 3.6 | |
Porosity | % | 0 | 0 | |
Firing Temp | °C | 1700 | 1680 | |
Hardness | HV | 1700 | 1500 | |
Flexural Strength | Kgf/cm2 | 3500 | 3000 | |
Compressive Strength | Kgf/cm2 | 30000 | 25000 | |
Fracture Toughness | MPa/m | 4 | 3-4 | |
Max Operating Temp | °C | 1500 | 1450 | |
Coefficient Thermal Expansion | cm/cm/ °C (RT to 700°C) | 8 | 8 | |
Thermal Conductivity | 25°C- 300°C | W/m°K | 27 | 22 |
Volume Resistivity | 20°C | ohm ・ cm | 1012 | 1012 |
100°C | 1012-1013 | 1012-1013 | ||
300°C | 1012 | 1010 | ||
Dielectric Strength | Volts/mil | 220 | 210 |
