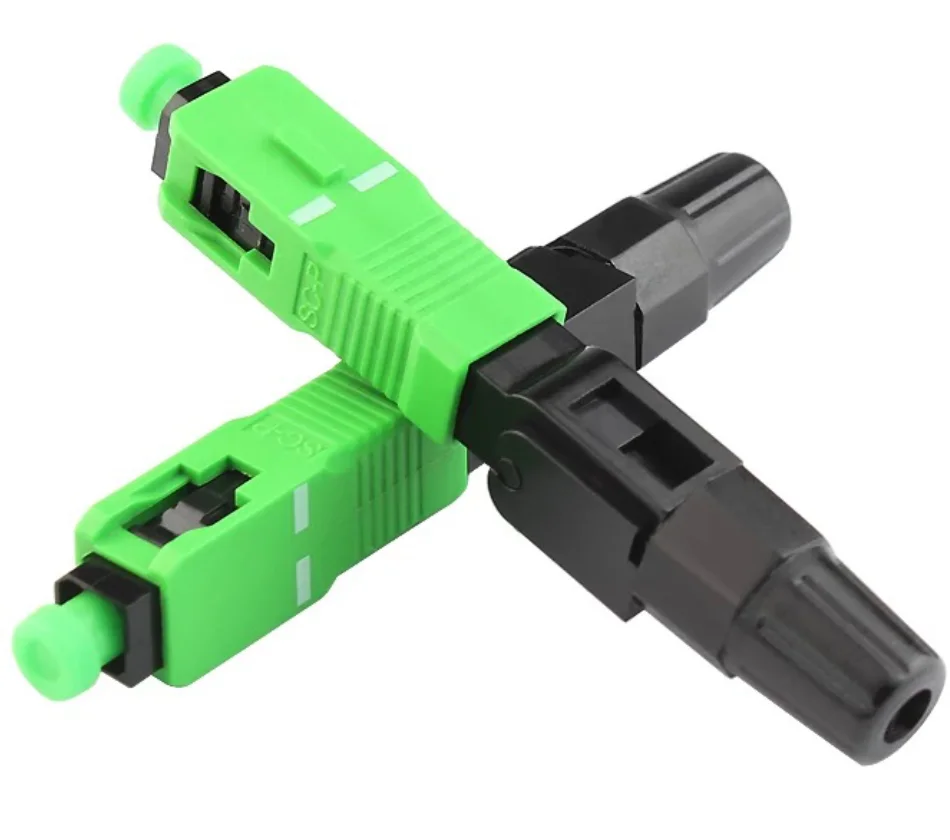

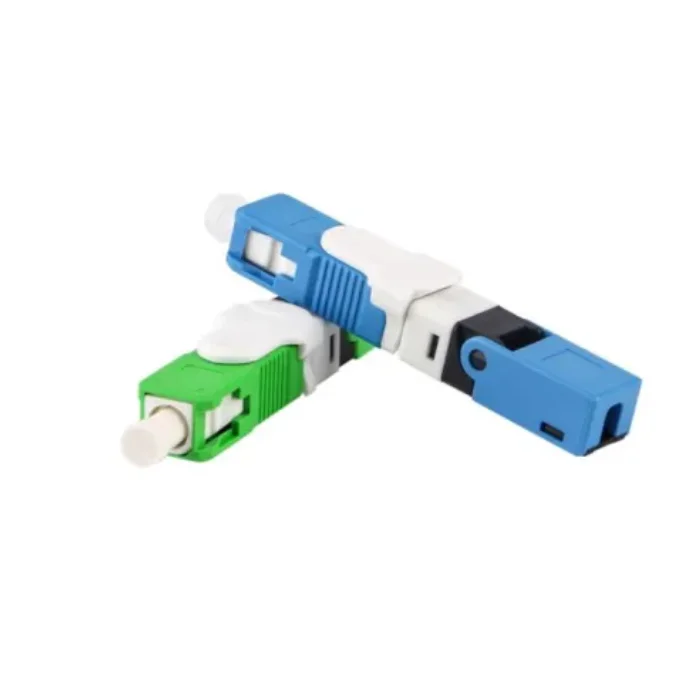

FTTH SC/APC Fiber Optic Fast Connector for Fiber field assembly optical fast connector
- Category: Fiber Optic Connectors >>>
- Supplier: Ningbo Huitong Communication Co. Ltd.
Share on (10000001690218):
Product Overview
Description
Product Description

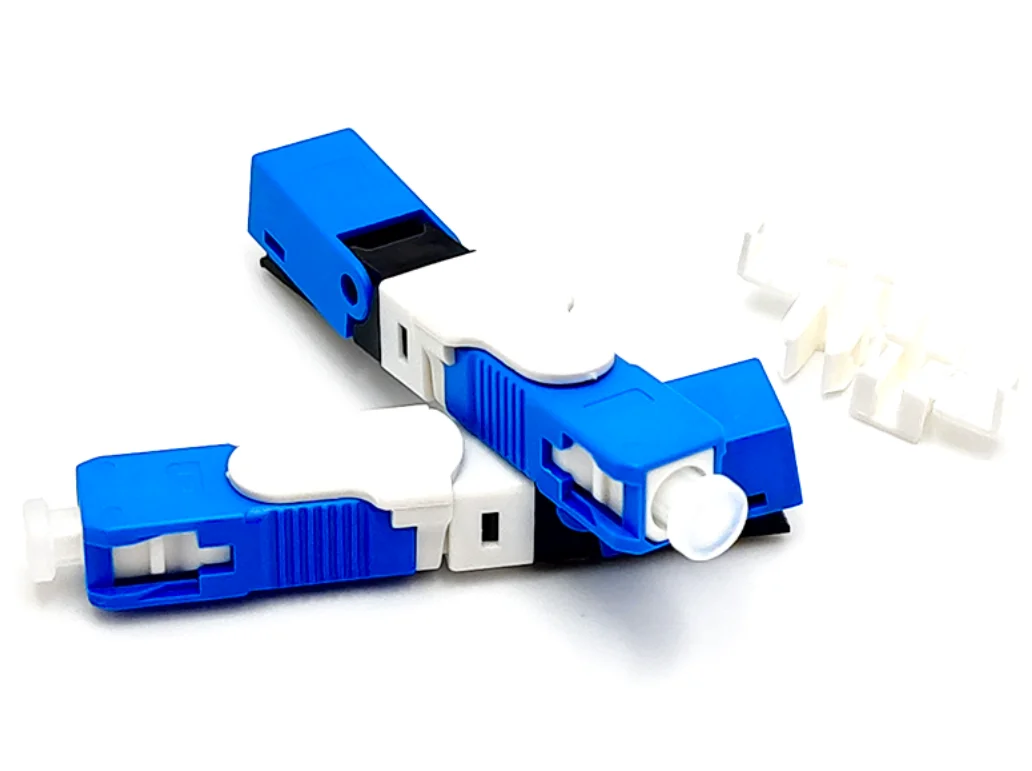

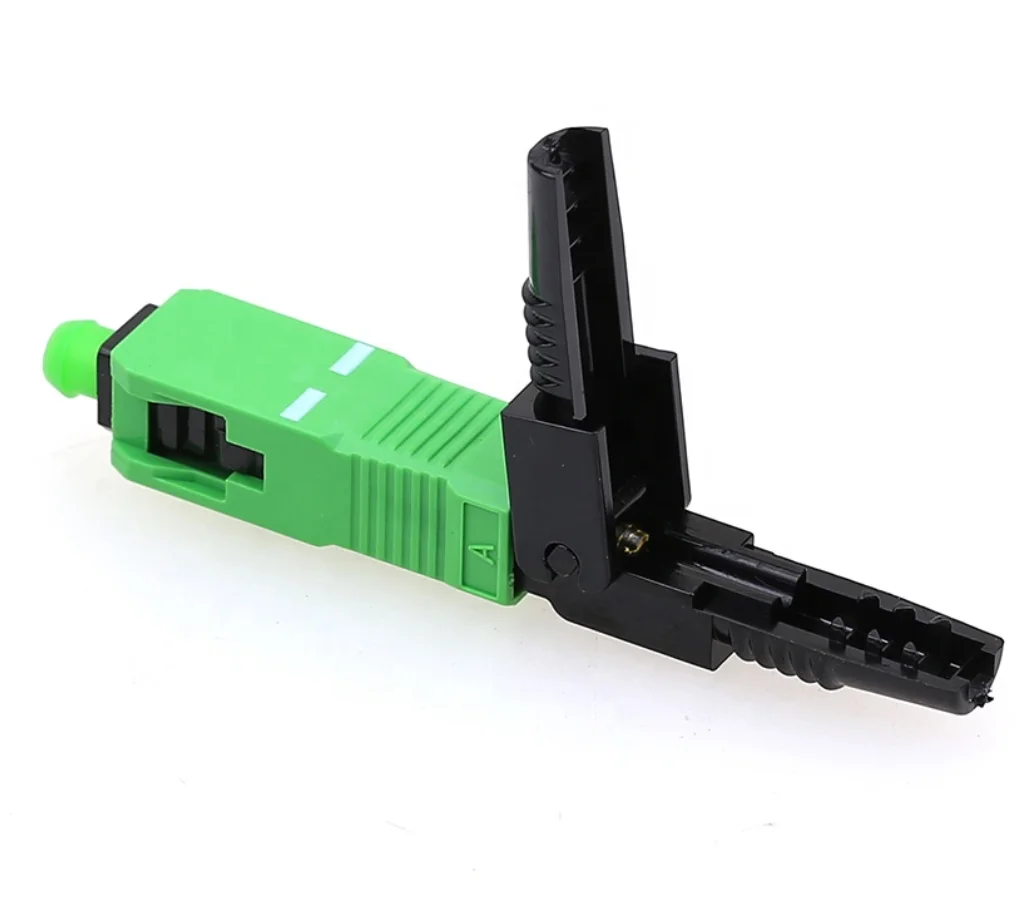

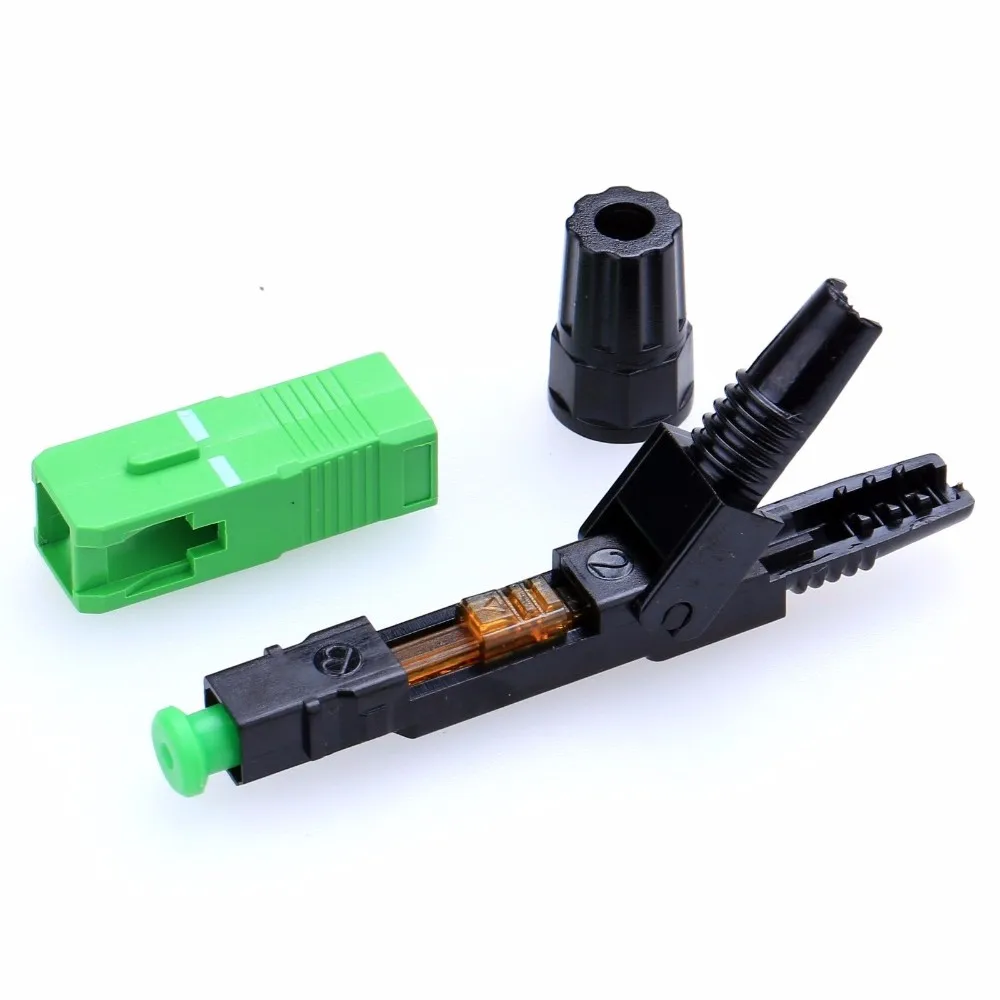

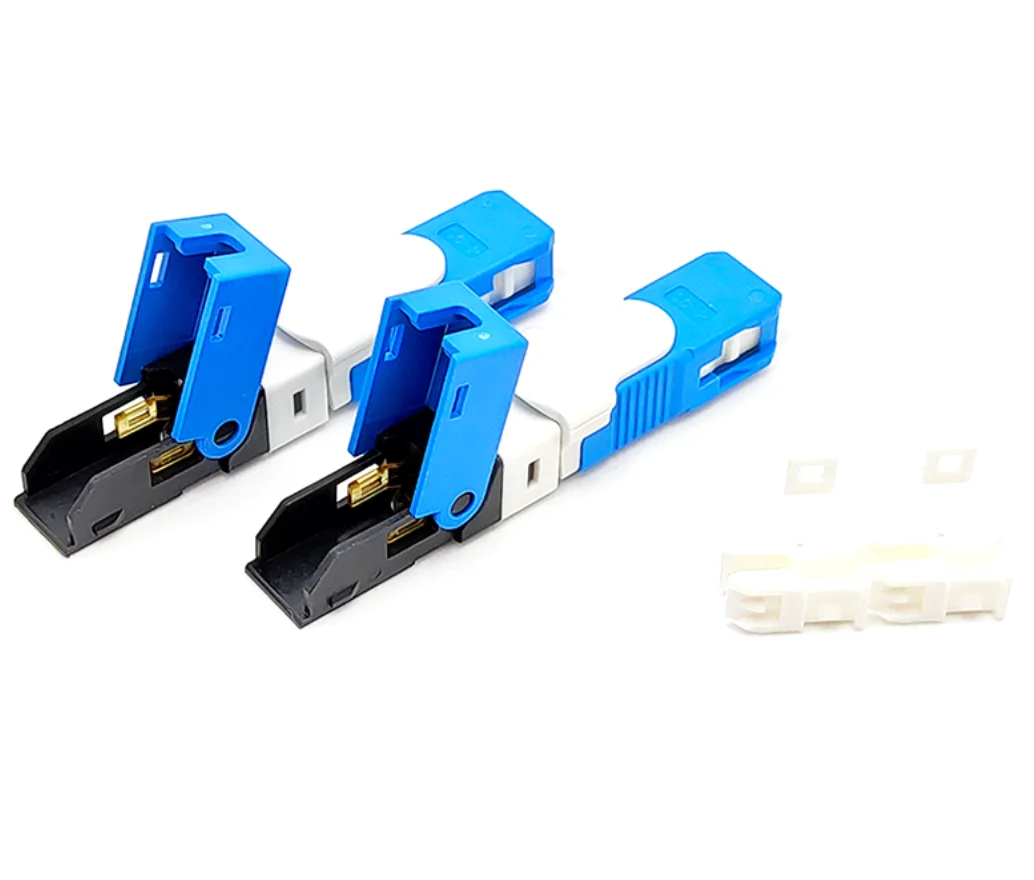

FTTH Fiber Optic Quick Connector FTTH SC/APC SM Fast Connector
FTTH SC APC UPC esc250d assembly fast single mode fiber optic fast connector
Features:
-FTTH project usable
-Field installable
-with low Insert loss less than 0.3dB

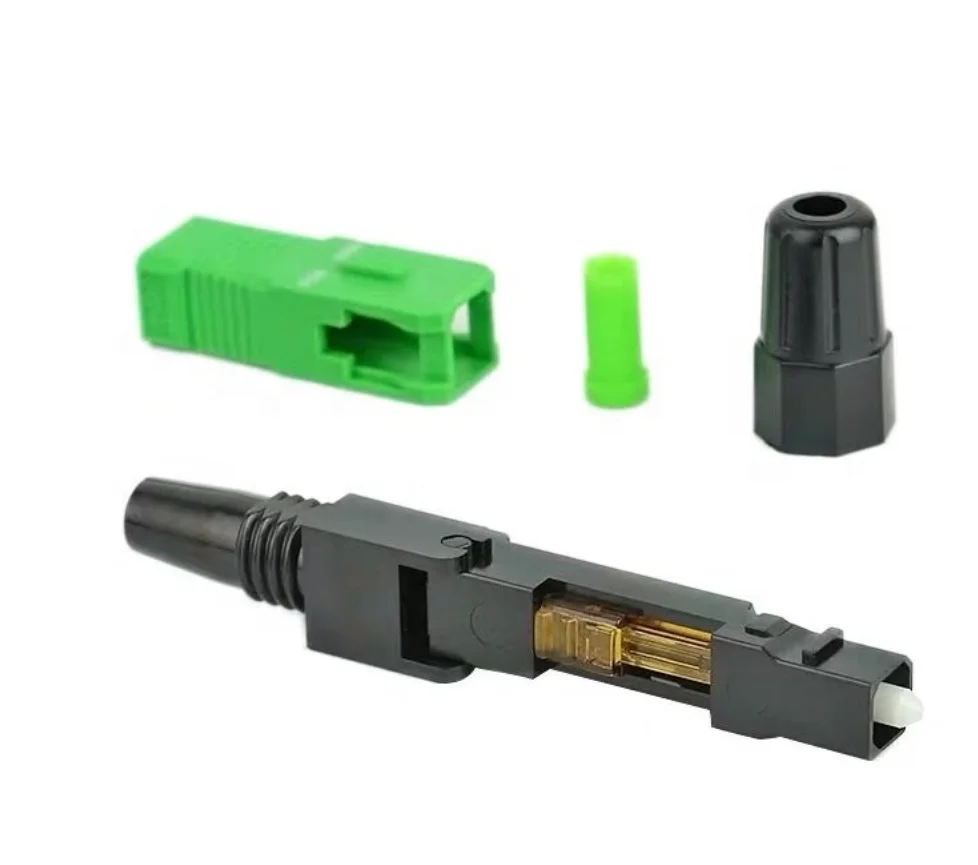

-Metal V-shape cavity work well in high and low temperature
- Installation less than 1 minutes
-Reliable and superior optical performance
-Cable Tensile test complies with Telcordia GR-326-CORE
High return loss, 40dB, 45dB, 50dB, customer optional
Applications:
Datacom telecom measurement equipment single-mode lasers ONU FTTH projects
SpecificationS:
| Item | Parameter |
| Model | SC/APCHT1807;SC/UPCHT1807 |
| Dimension(mm) | 50*8.9*7.3 |
| Ferrule Hole Sizes | 125.0+1/-0um |
| Concertricity | ≤1.0um |
| Cable Scope | 3.0 x 2.0 mm Bow-type Drop Cable |
| Fiber Diameter | 125μm ( 652 & 657 ) |
| Coating Diameter | 250μm |
| Mode | SM |
| Insertion Loss | ≤ 0.25dB(1310nm & 1550nm) |
| Return Loss | UPC≥45db;APC ≥55db |
| Operation Time | about 15s(exclude fiber presetting) |
| Tensile Strength | >4N |
| Tighten Strength of Coating | >20N |
| Drop Test(1.5m concrete floor, once each direction,8 times total) | IL ≤ 0.5dB |
| Temperature | -40~+85°C |
| packing | 1pcs/bag,10pcs/skinbag |
| Carton size(mm) | 340*330*210 |
| Weight | 5.5KG/ctn/1000pcs |
