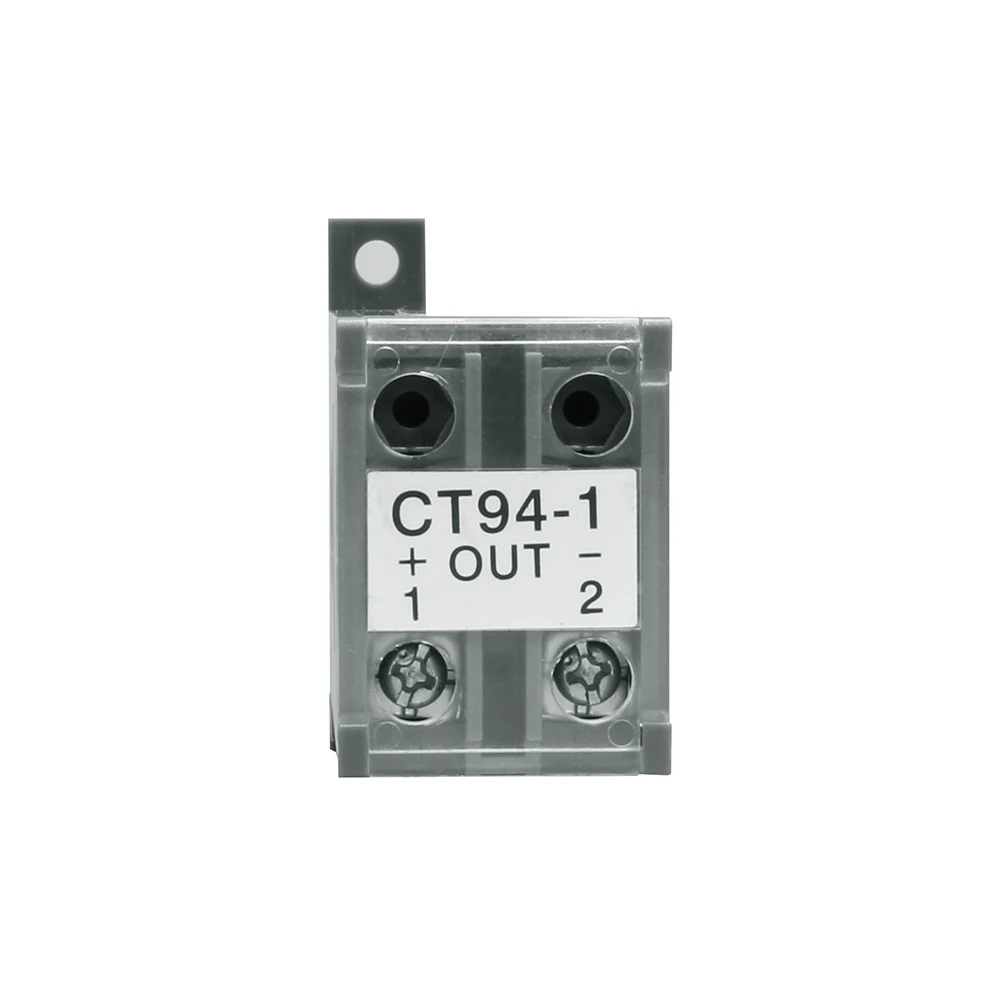

Current Transformer CT94 1
- Category: >>>
- Supplier: BRAINCHILD ELECTRONIC CO. LTD.
Share on (10000001710691):
Product Overview
Description
Accuracy | ±2%of reading ±0.2A |
Nominal Current | 0 ~ 50 A |
Peak Current | 70 Aac 1minute |
Output Impedance | 2.7 Kohms |
Frequency Range | 47 ~ 63 Hz, sinewave |
Breakdown Voltage | 2500 Vac, 1 minute |
Isolation Resistance | >500 Mohm vs. 500 Vdc |
Ambient Temperature | 0 ~ 60 C |
Storage Temperature | -20 ~ 80 C |
Mounting Method | DIN rail mount or Wall mount |
Cable Size | 12.5mm diameter maximum |

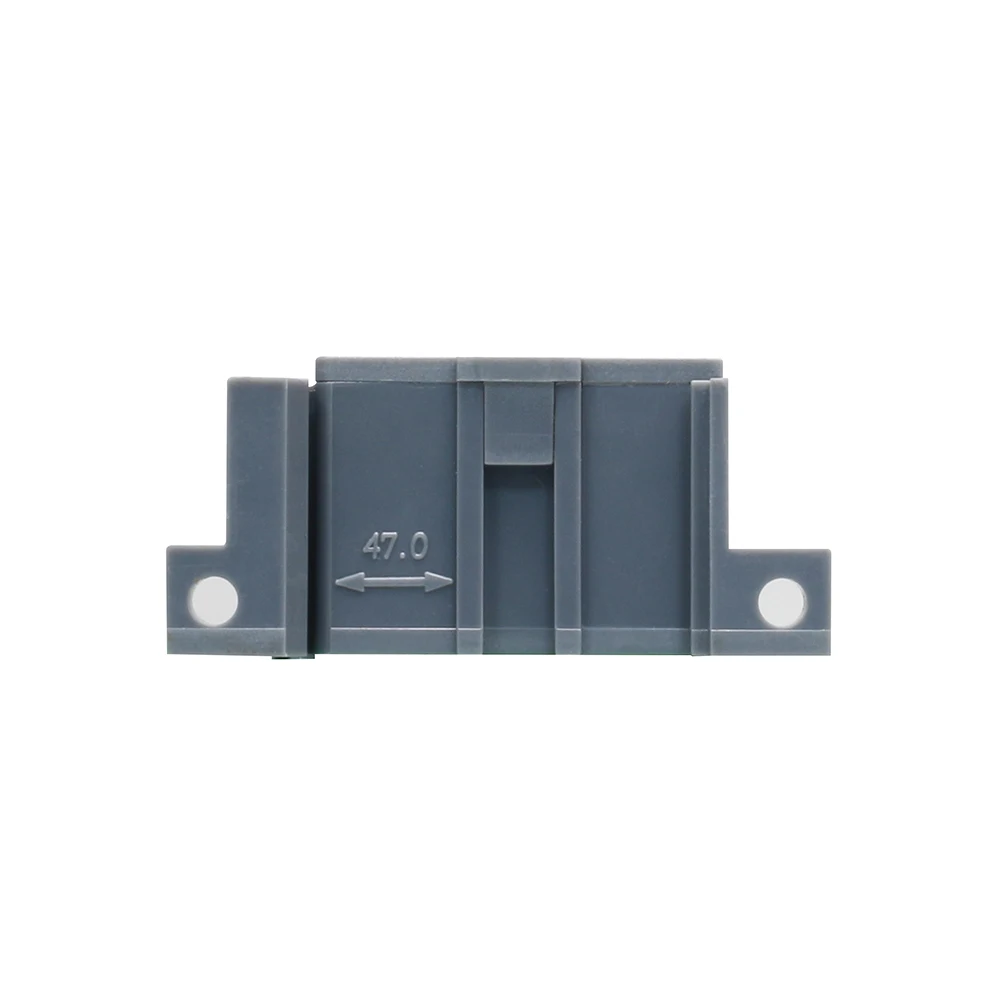

Dimension | 55mm(L) x 25.0mm(W) x 70.6mm(H) |
Weight | 105 grams |
