Power Factor Controller 6 Steps 96X96 Made In Turkey
EUR 60.00-62.00

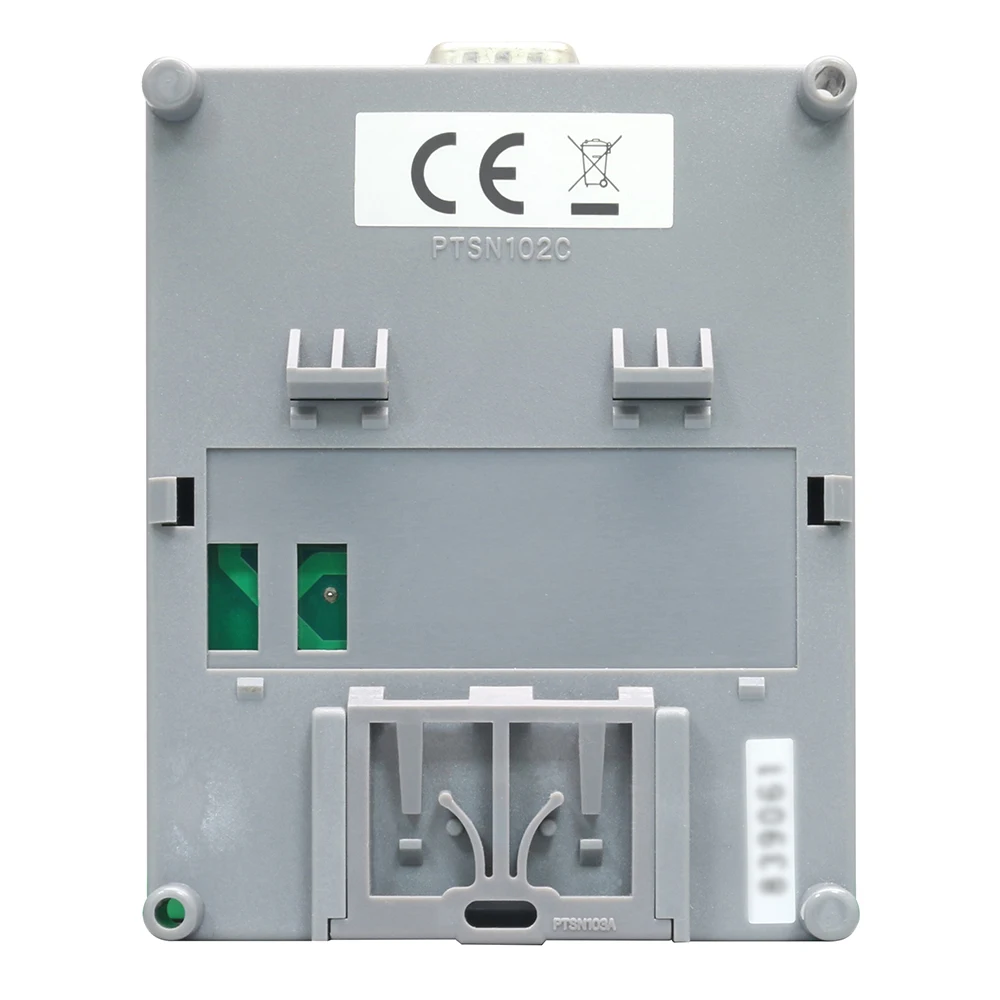

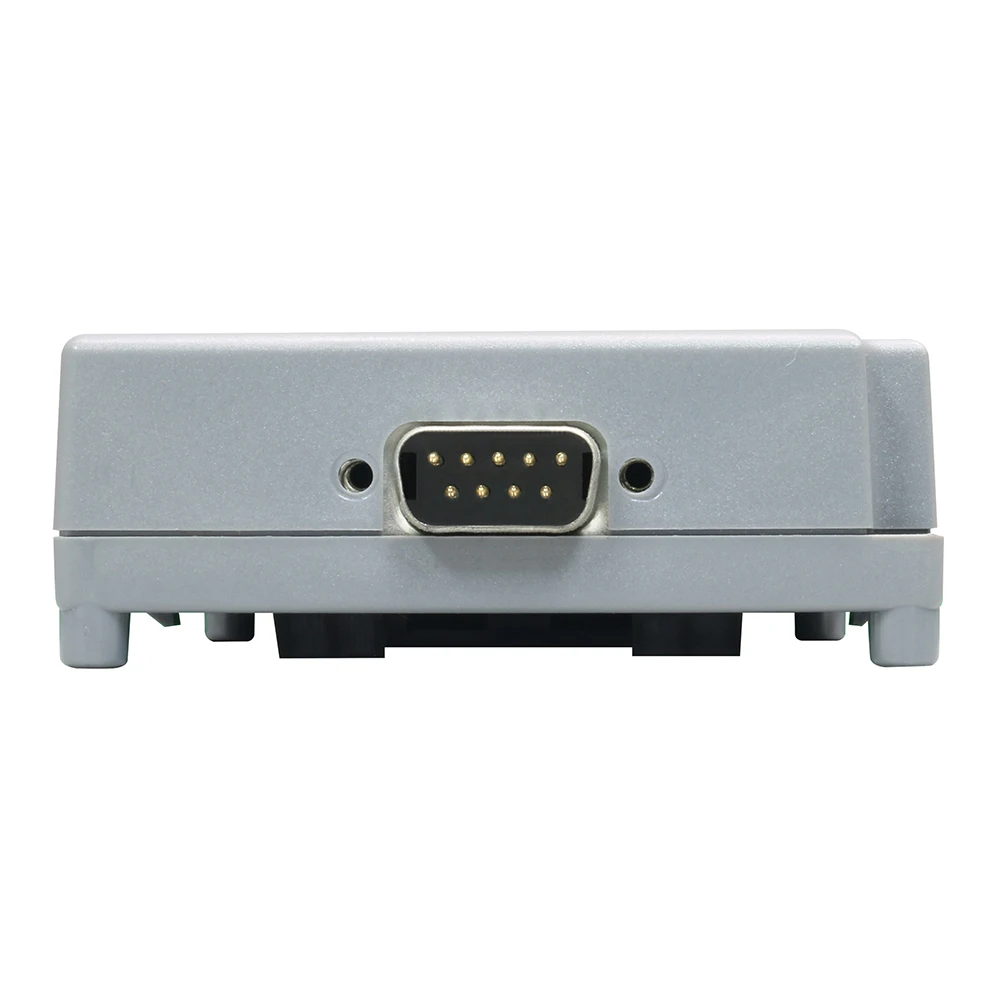

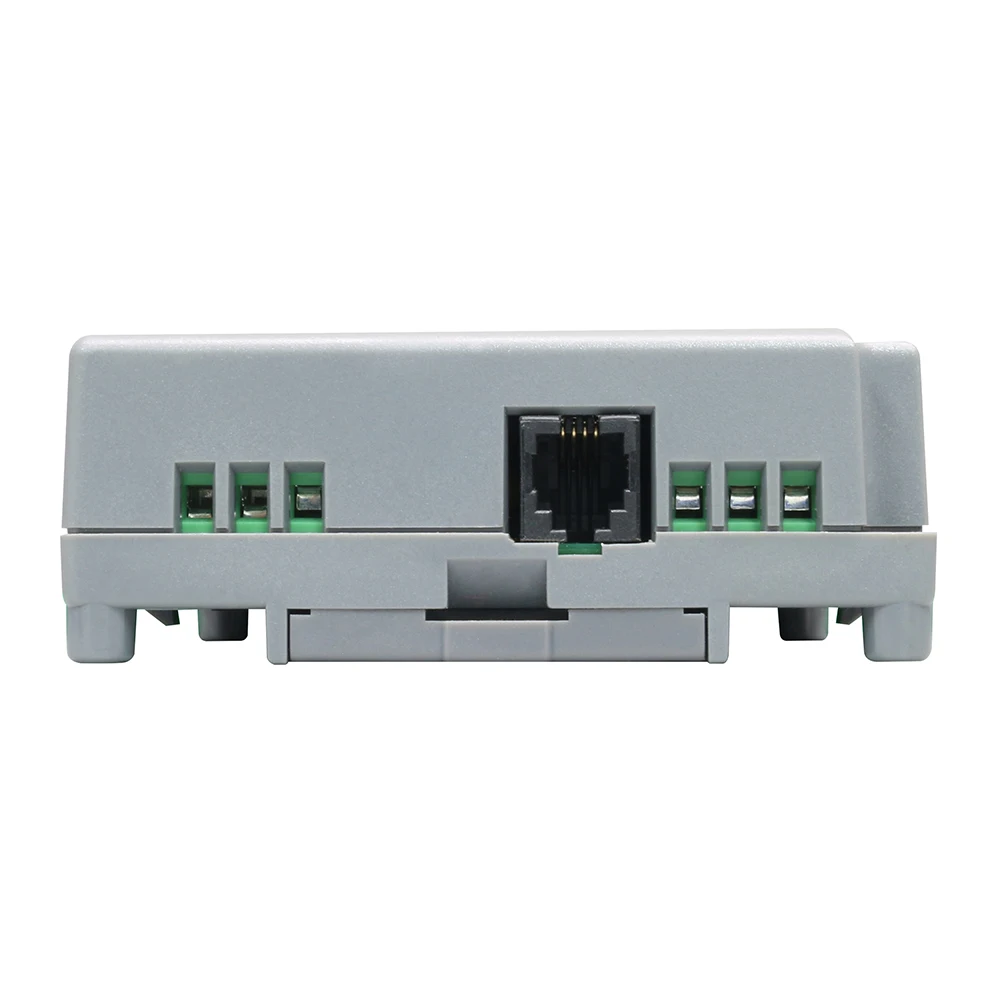

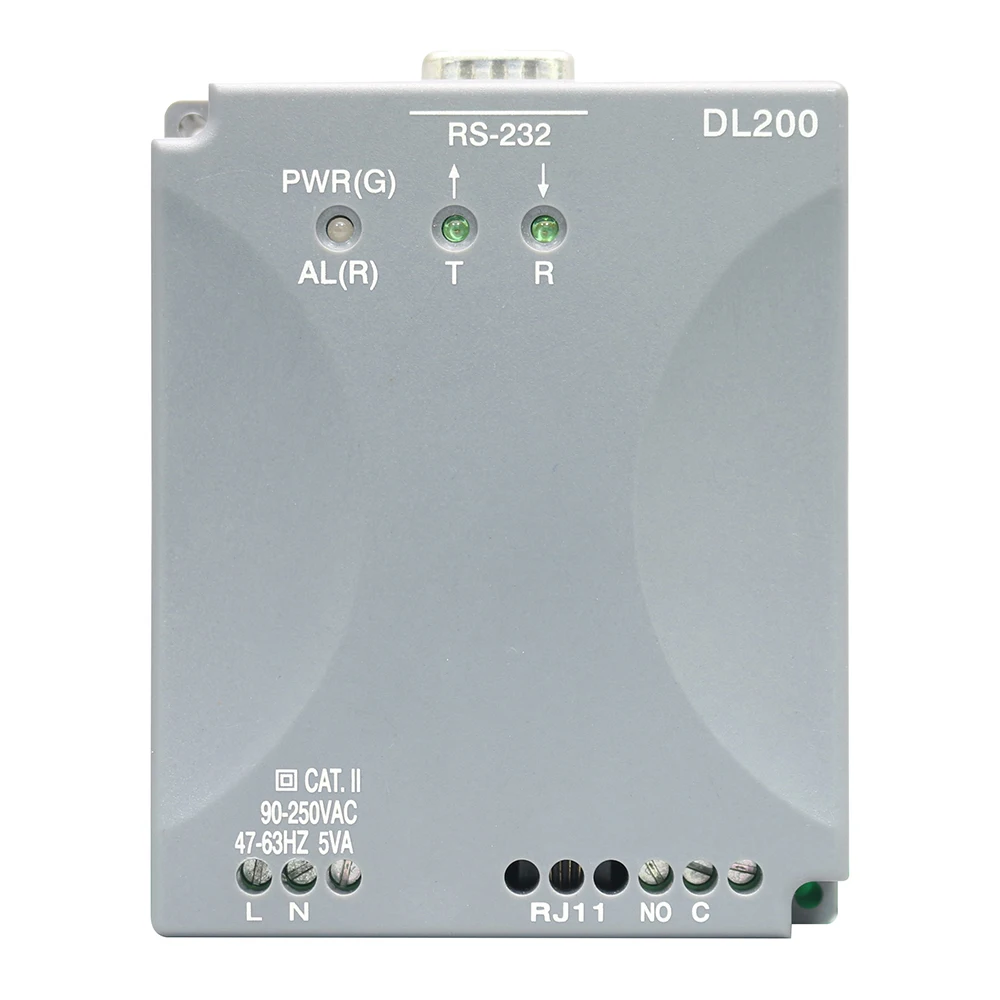

Piping Controller DL200
- Category: Power Factor Controller >>>
- Supplier: BRAINCHILD ELECTRONIC CO. LTD.
Share on (10000001713627):
Product Overview
Description
Thermocouple (T/C) | ||
Interface | RS-232 ( 1 unit ), RS-485 ( up to 247 units ) | |
Protocol | Modbus Protocol RTU mode | |
Address | 1 - 247 | |
Baud Rate | 2.4 ~ 38.4 Kbits/sec | |
Parity Bit | None, Even or Odd | |
Stop Bit | 1 or 2 bits | |
Communication Buffer | 64 bytes | |
Normal Mode Rejection | Action Reverse (heating) | |
PID mode | PB= 1-500 °C TI= 1-900 sec. TD= 0-300 sec. | |
Cycle time | 2 seconds | |
Manual control | 0-100% | |
Auto-tuning | Cold start and warm start | |
Power limit | 0-100% | |
Environmental & Physical | ||
Operating Temperature | -10°C ~ 50°C | |
Storage Temperature | -40°C ~ 60°C | |
Humidity | 0 ~ 90 % RH ( non-condensing ) | |
Altitude | 2000m maximum | |
Insulation Resistance | 20 Mohms min. ( at 500 VDC ) | |
Dielectric Strength | 1350 VAC, 50/60 Hz for 1 minute | |
Vibration Resistance | 10 - 55 Hz, 10 m/s² for 2 hours | |
Shock Resistance | 200 m/s2 ( 20 g ) | |
Dimensions | NC200 --- 50.3(W) x 52.4(L) x 45(H) mm | |
Weight | 112 grams | |
