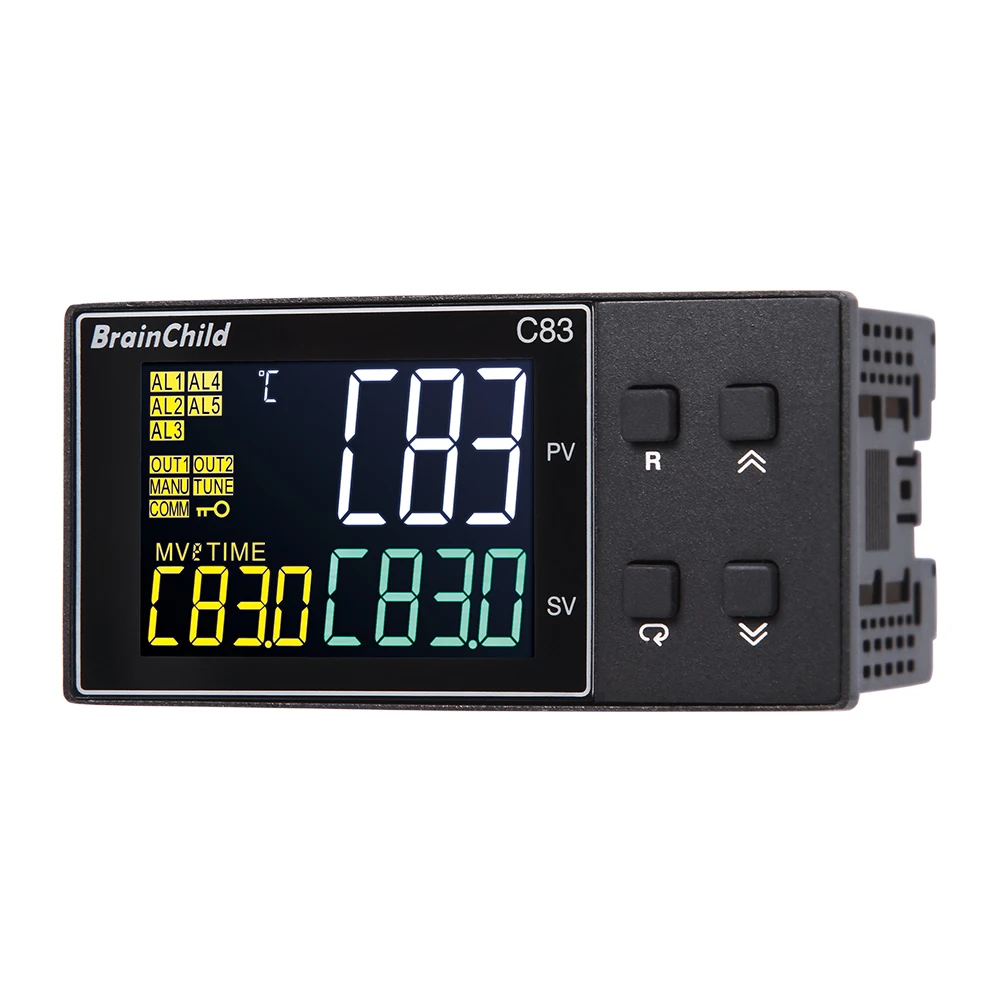

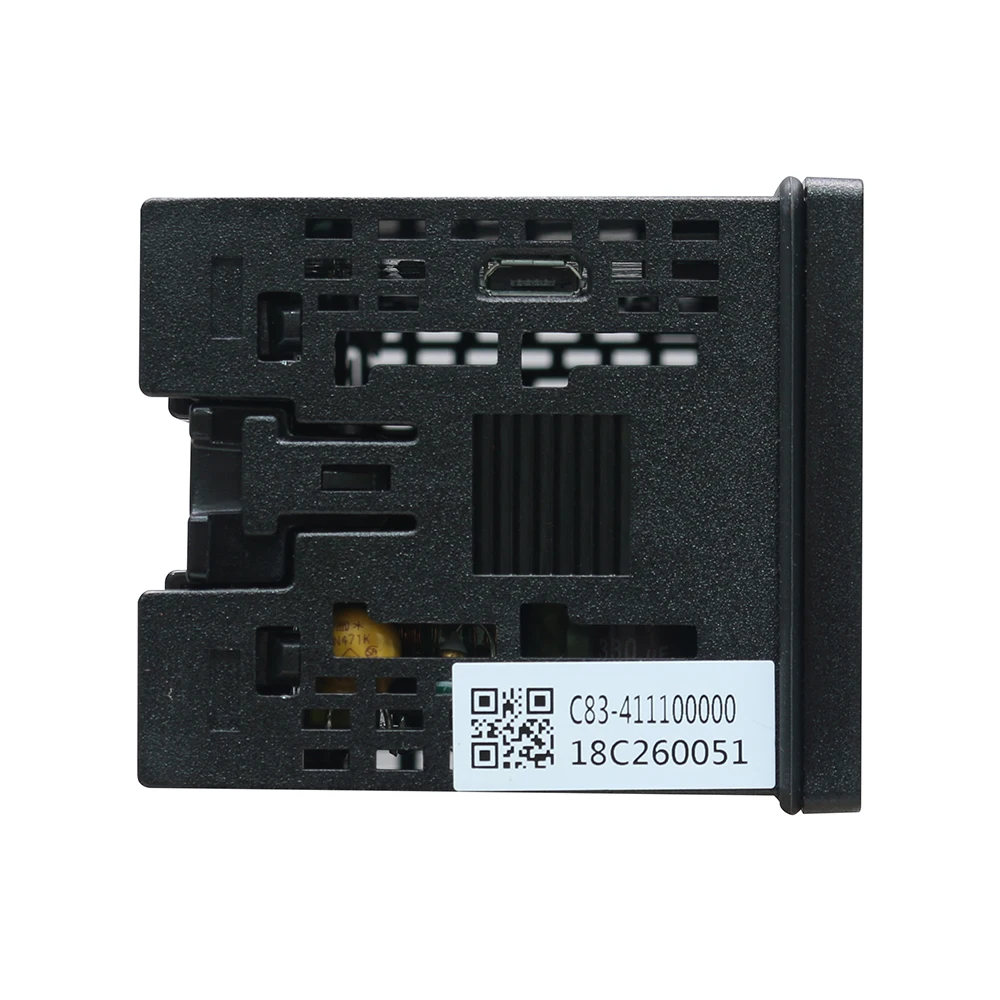

Profiling Controller C83

Price:$63.00 - $100.00

Quantity:

Type	Thermocouple(J,K,T,E,B,R,S,N,L,U,P,C,D),RTD(PT100(DIN),PT100(JIS)), Current(mA),Voltage(Volts)
Temperature Effect	1.5µV /°C for all inputs except mA input, 3.0µV /°C for mA
Sensor Lead Resistance Effect Thermocouple	0.2 µV /Ω; 3-wire RTD: 2.6°C /Ω of Difference of Resistance of two leads 2-wire RTD: 2.6°C /Ω of Sum of Resistance of two leads
Type	Linear Current,Linear Voltage
Range	3mA to 27mA, -1.3V to 11.5V
Remote Set Point	Option Available
Input Impedance Current	2.5Ω
Input Impedance Voltage	1.5MΩ
Sampling Rate	1.66 Times/Second
Current Input	Maximum Rating 280mA maximum
Voltage Input	12VDC maximum
Temperature Effect	±1.5µV/°C for Voltage Input , ±3.0µV/°C for Current Input
Event Input	No. of Event Inputs 6 Logic Low -10V minimum, 0.8V maximum. Logic High 2V minimum, 10V maximum Functions See availability table in user manual
CT Input	CT Type CT98-1
Input Impedance	294Ω
Measurement Range	0 to 50A AC
Output of CT	0 to 5V DC
Sampling Rate	1 Time/Second Output 1 /Output 2
Type Relay	Pulsed Voltage,Linear Voltage and Linear Current
Relay Rating	2A,240V AC,200000 Life Cycles for Resistive Load
