OGI camera VOCs gas leak detector
- Category: >>>
- Supplier: Beijing Radifeel Technology Co. Ltd.
Share on (10000001723926):
Product Overview
Description

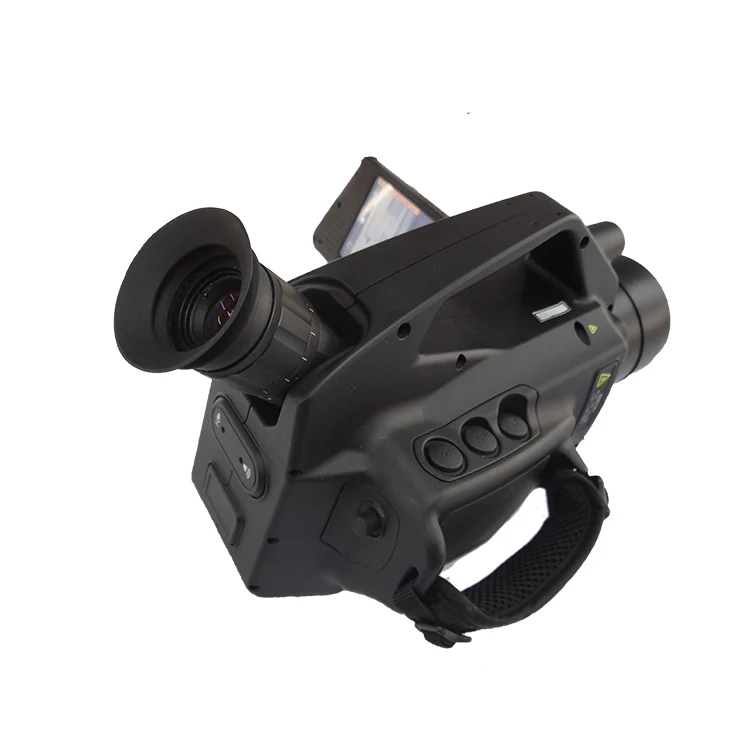

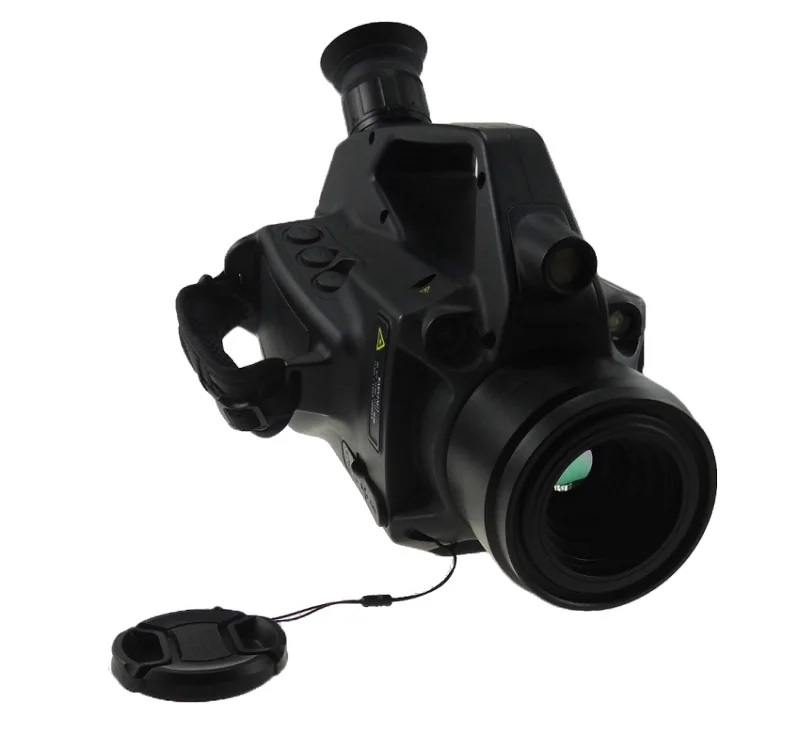

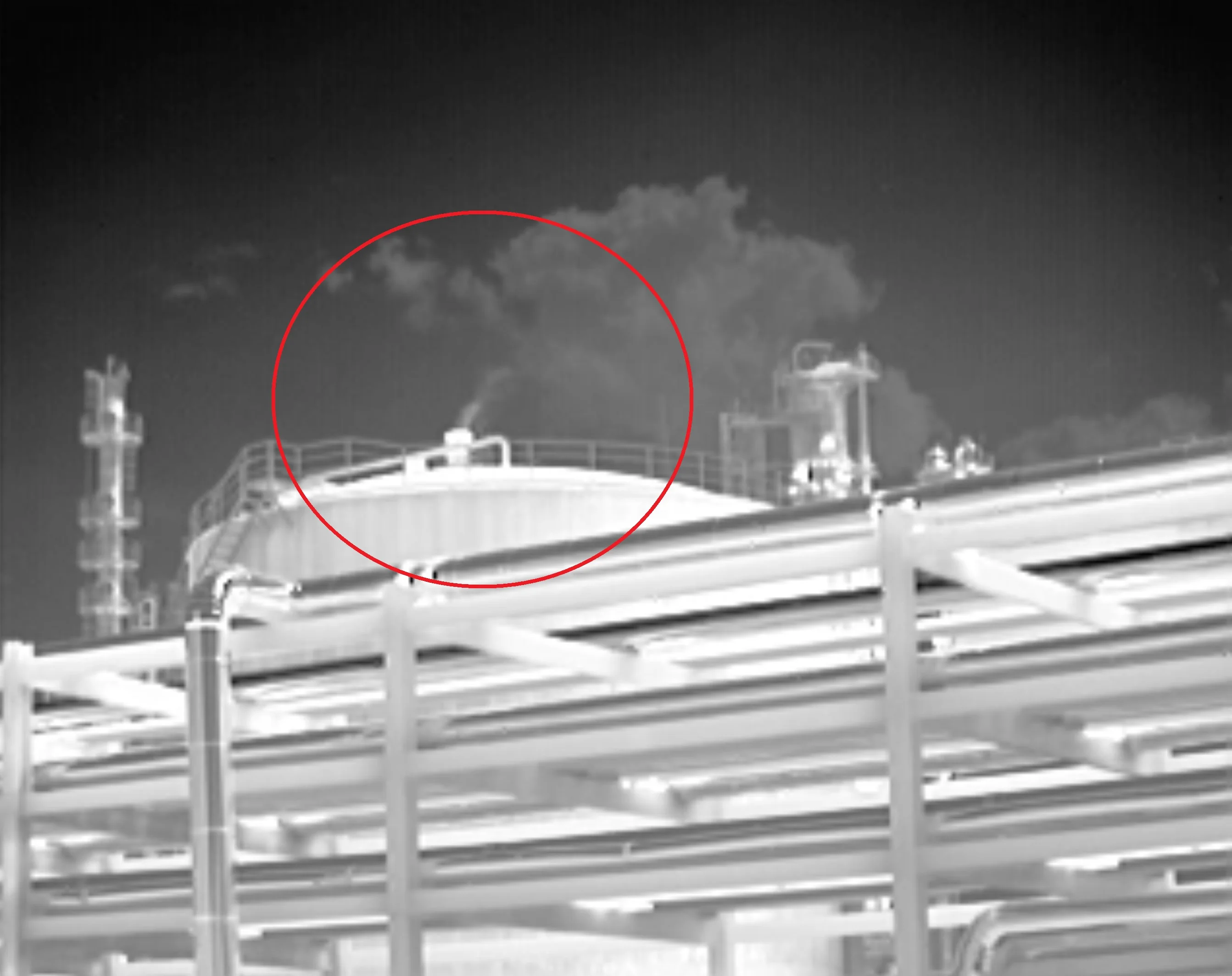

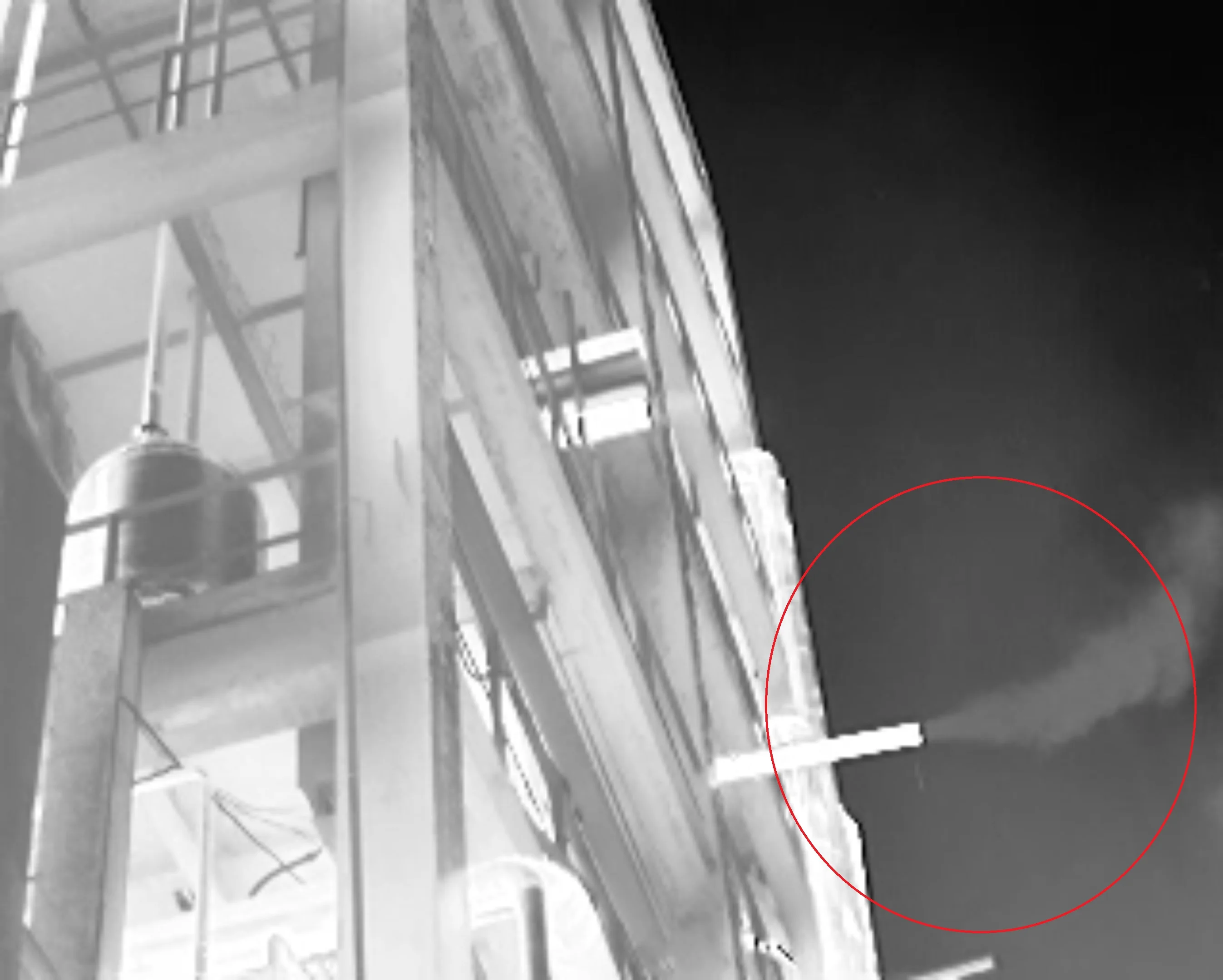

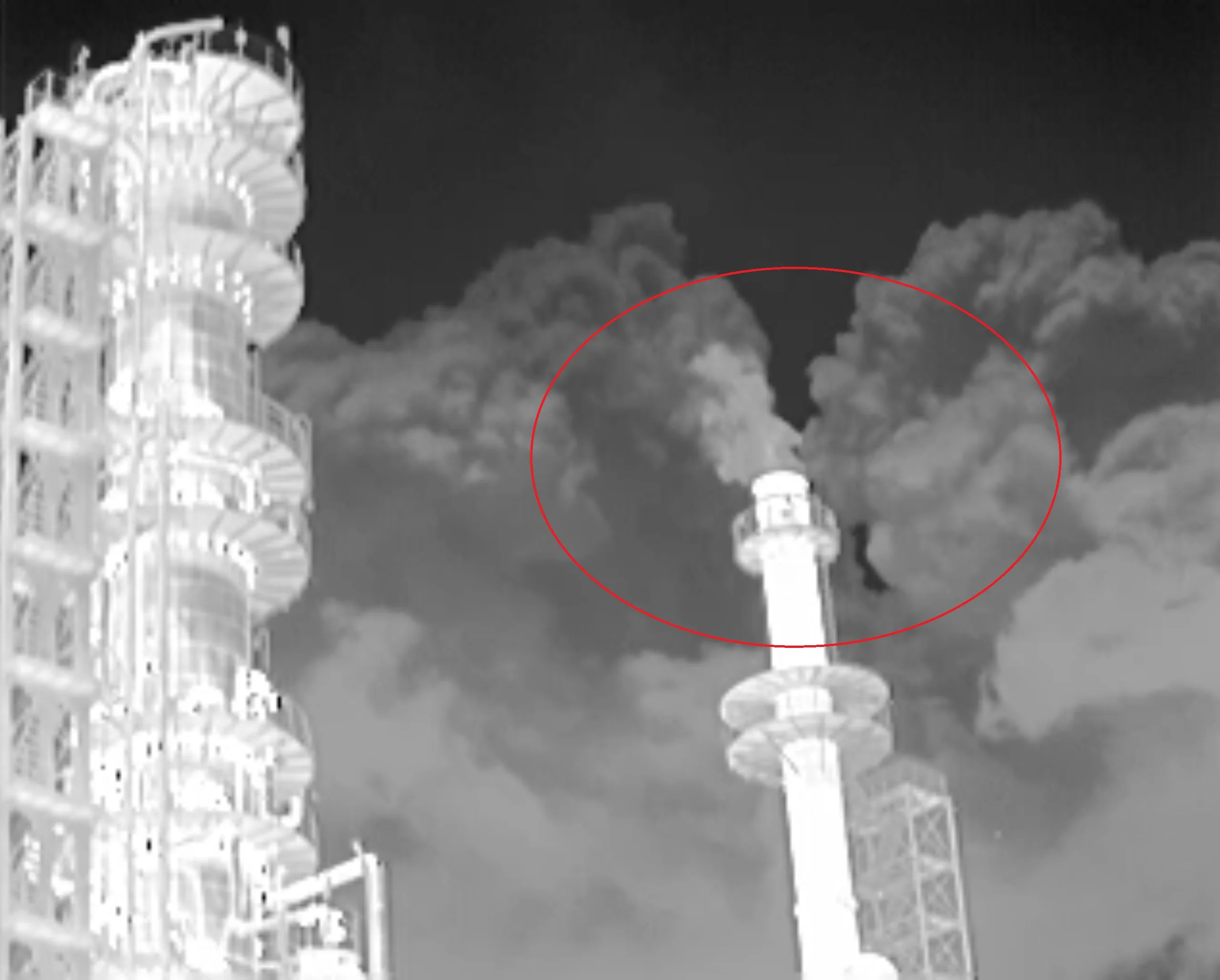

RF630 OGI camera is applicable for VOCs gases leakage inspection in the field of petrochemical industry, chemical industry, environmental protection etc. With 320*256 MWIR cooled detector, fusion of multi-sensor technology, the camera enables the inspector to observe the tiny VOCs gases leakage in the safety distance. By the high efficient inspection with RF630 camera, 99% leakage of VOCs gases can be reduced.
Detector and lens | ||
Resolution | 320×256 | |
Detector pitch | 30μm | |
Thermal sensitivity | ≤15mK@25℃ | |
Spectrum range | 3.2 - 3.5μm | |
Lens | Standard: 24° × 19° / Optional: 14.5°× 11.6° | |
Focus | Auto＆Manual | |
Image display | ||
Display | 5”Touch LCD，1024×600 Pixels | |
Viewfinder | 0.39”OLED，1024×600 Pixels | |
Visual camera | CMOS，Auto focus，One bright LED lamp | |
Color palettes | 10+1 customization | |
Zoom | 1–10×continuous, Digital zoom | |
Image adjustment | Auto/Manual | |
Gas enhancement | High sensitivity mode | |
Detects following gases | Benzene, Ethanol,Ethylbenzene,Heptane, Hexane, Isoprene,Methanol, MEK, MIBK, Octane, Pentane,1-Pentene, Toluene, Xylene, Butane, Ethane,Methane,Propane,Ethylene, Propylene and so on. | |
Temperature measurement | ||
Temperature range | -40℃～+350℃ | |
Temperature accuracy | ±2℃ or ±2% | |
Isotherm | Yes | |
Alarm | Yes | |
Emissivity correction | Variable from 0.01 to 1.0 | |
Measurement corrections | Reflected temperature, distance,atmospheric transmission, humidity, external optics | |
Storage of images | ||
Image format | JEPG | |
Video format | H.264 | |
Voice annotation | 60 seconds voice | |
Storage media | 32G Removable TF memory card, extension available | |
Interface | ||
Video out | HDMI | |
Digital interface | USB and WLAN，Data transfer to PC | |
Others | ||
Setup | Day/Time/Language | |
Laser pointer | Class 2, Semiconductor diode laser, 1 mW, 635nm (red) | |
Battery | Rechargeable Li-ion battery， operating time≥3 hours | |
Start-up time | Typically 6min | |
Environmental data | ||
Operating temperature range | -20℃～+50℃ | |
Storage temperature range | -30℃～+60℃ | |
Encapsulation | IP54 | |
Physical data | ||
Camera weight | ≤2.9kg | |
Camera size (L×W ×H) | 305×172×145mm | |
Tripod mounting | UNC ¼"-20 | |
Above data are for reference only. The specification of the marketed products shall prevail.
