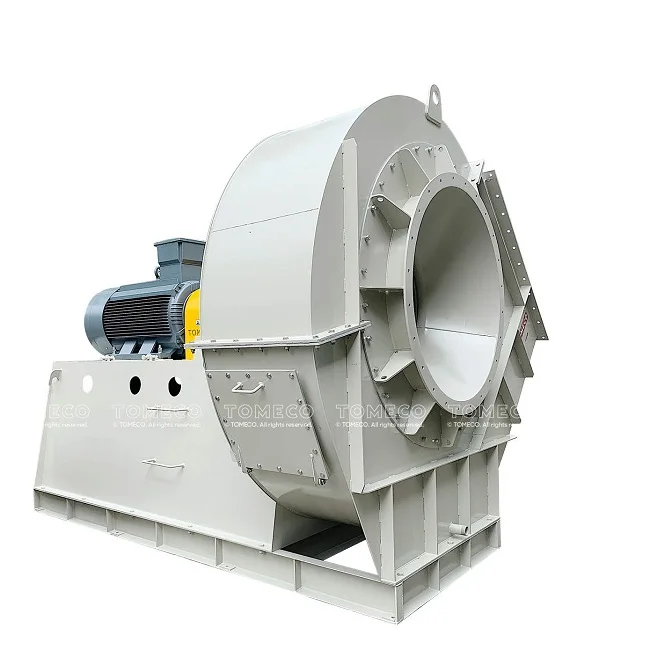

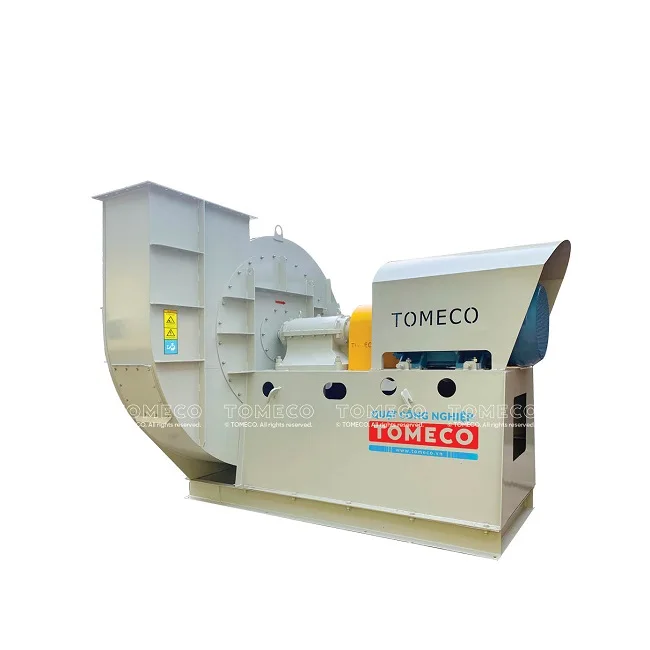

VIET NAM HIGH QUALITY FACTORY DIRECTLY SELLS MEDIUM PRESSURE DIRECT COUPLING CENTRIFUGAL FAN CFD.LQ08
- Category: >>>
- Supplier: TOMECO MECHANIC ELECTRICAL JOINT STOCK COMPANY
Share on (10000001729300):
Product Overview
Description

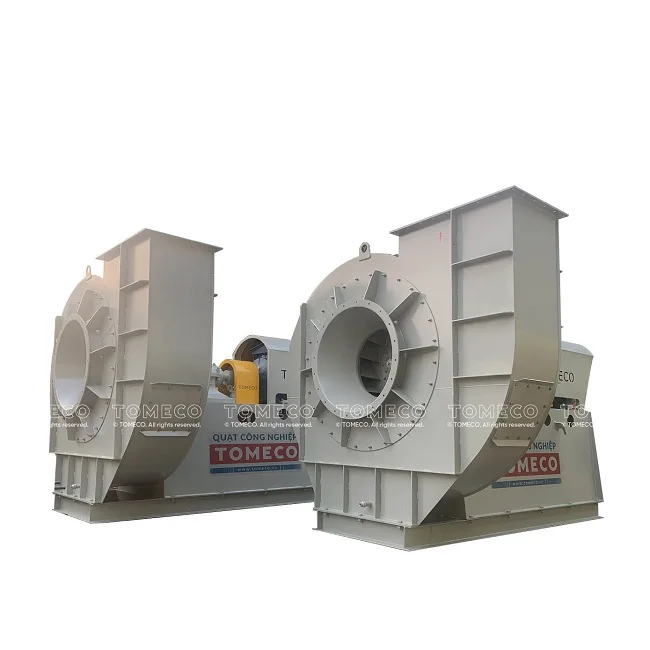

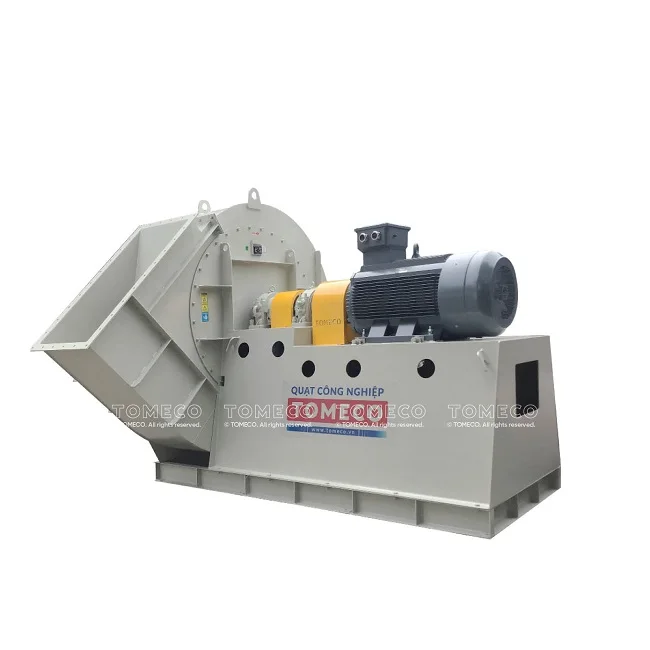

Product Photo
Application
The CFD.LQ08 direct coupling double with - double inlet centrifugal fan products designed and manufactured by TOMECO are widely applied to the needs:
Impellers are constructed of steel using flat, single thickness blades that are solid welded to the rim and backplate. The
inlet-side rim is designed as a proper companion for the inlet cone. All impellers are statically and dynamically balanced to
grade 6.3 and provide smooth operation prior to being assembled in the fan, followed by final balance of the entire
rotating assembly. All LQ01,LQ02,LQ03-2X fan housings are continuously-welded and reinforced with rigid bracing to increase structural
integrity.
With the use of bearings with clearance C3 it is possible to effect the suction of fluids at a temperature higher than 40°C up to max 80°C.
operation. Fans are dynamically balanced and calibrated on a digital dynamic balancer, in accordance with ISO 10816. Materials and important components such as motors and bearings are imported from international manufacturer.
Handle large volumes of relatively clean air as required in heating, ventilating and air conditioning systems as well as many industrial air supply and exhaust applications.
inlet-side rim is designed as a proper companion for the inlet cone. All impellers are statically and dynamically balanced to
grade 6.3 and provide smooth operation prior to being assembled in the fan, followed by final balance of the entire
rotating assembly. All LQ01,LQ02,LQ03-2X fan housings are continuously-welded and reinforced with rigid bracing to increase structural
integrity.
With the use of bearings with clearance C3 it is possible to effect the suction of fluids at a temperature higher than 40°C up to max 80°C.
PREMIUM CHARACTERISTICS
Meeting all the demands of large flow: The superior design with dual blades and two intakes allows the LQ01-2X product lines to achieve flow parameters up to over 600,000 m3/h with advantages in size and capacity.
High efficiency - energy saving: The blades are designed and engineered with a rear-curved aerodynamic profile to help TOMECO's dual-suction and dual-blade fan products operate with outstanding efficiency. up to 83%.
Quiet operation - low noise: The inboard blade design with two side supports helps the fan achieve maximum reliability in
operation. Fans are dynamically balanced and calibrated on a digital dynamic balancer, in accordance with ISO 10816. Materials and important components such as motors and bearings are imported from international manufacturer.
Durable in all harsh operating conditions: Depending on the degree of corrosion, chemical composition, temperature and humidity of the gas stream, TOMECO can propose solutions to choose materials such as wear-resistant steel. , stainless steel,...
Technical Specifications
Air volume | 50.000-600.000 | m3/h |
Pressure | 500-3.000 | Pa |
Motor power | 37-560 | kW |
Speed | 720-1450 | Rpm |
Impeller diameter | 400-2.300 | mm |
Voltage | 380/3/50; 6kV/3/50 | V/Ph/Hz |
CONFIGURATION
Material | SS400/SUS201/SUS304/SUS316/Wear Resistance Steel/High strength steel |
Drive type | Direct Coupling |
Motor brand | ABB/SIEMENS/WEG/HEM(VIETNAM) |
Motor type | Foot mount |
Impeller design | Backward Curved |
Finish | Powder coated, Epoxy coated, hot dip galvanized |
Accessories
Inlet Flow Control Damper
Oulet damper
Actuator
Flexible Joint
Spring & Rubber Isolators
Electric Control Box
