2021 New Arrival Ultra Light Sturdy Aluminum Sandwich Panel from Trusted Exporter Aluminum Composite Panels
- Category: >>>
- Supplier: LAFFAN ALUMINUM FACTORY
Share on (10000001730258):
Product Overview
Description
Product Description

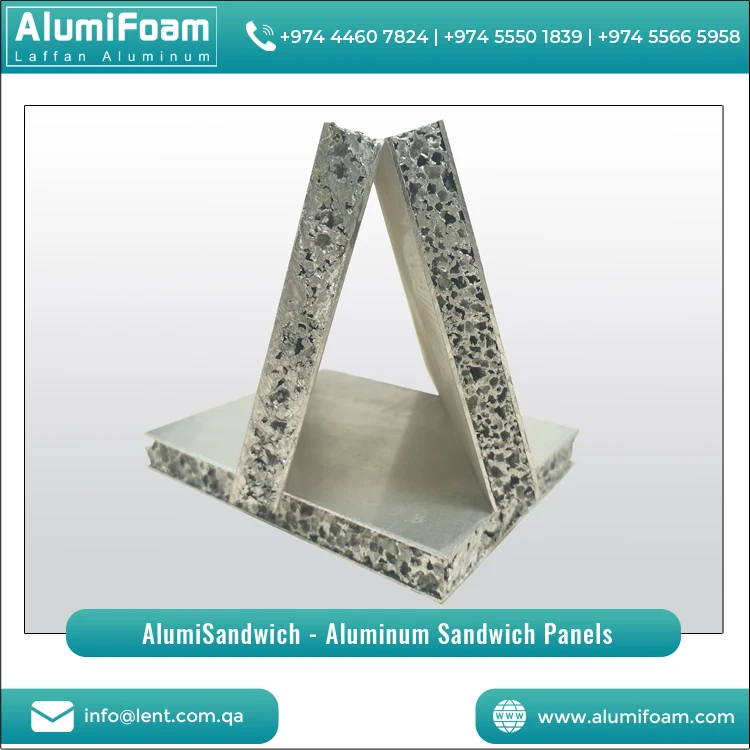

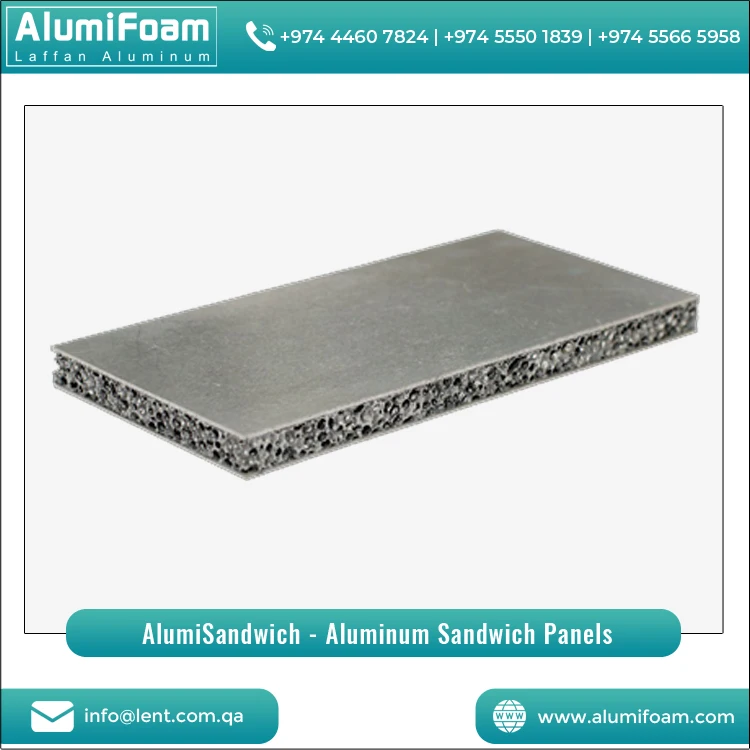

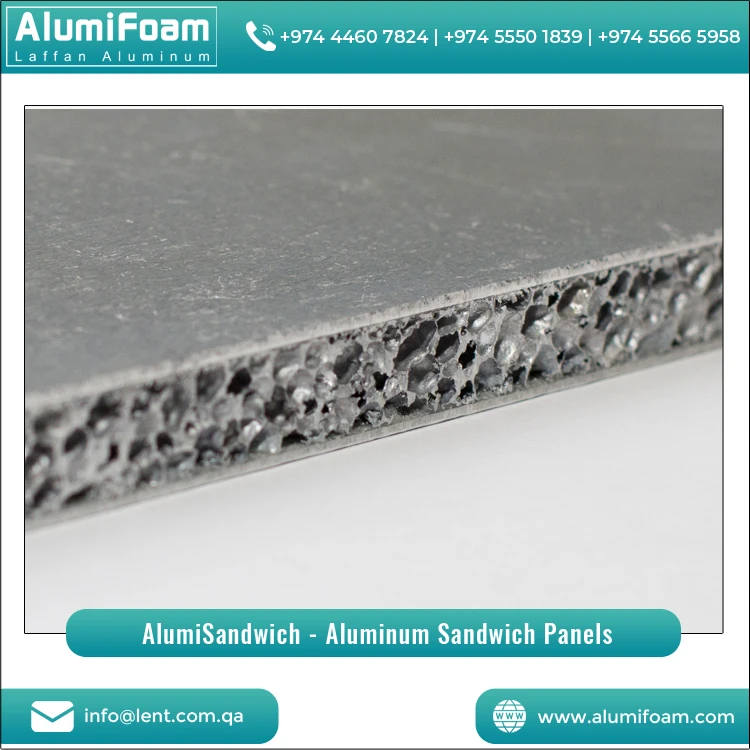

2021 New Arrival Ultra Light Sturdy Aluminum Sandwich Panel from Trusted Exporter
Composite panel consisting of alumifoam coupled with 2 metal sheets with different adhesives.

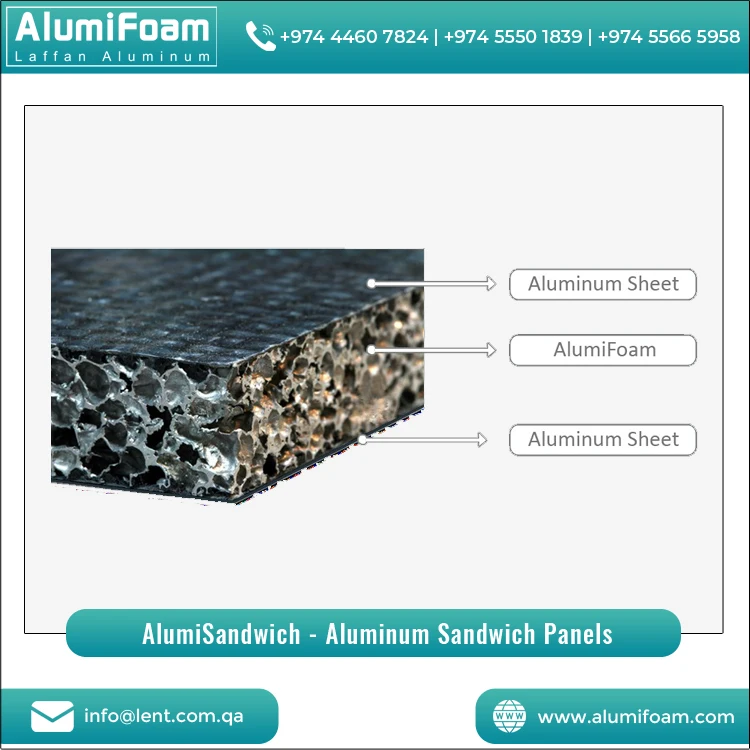

ALUMISANDWICH is a composite panel made of two metal sheets layered at the outer surface of AlumiFoam core. This product can be manufactured according to clients demands and requirements in terms of aesthetics and thickness.
The advantage of using AlumiFoam as core instead of conventional polymer or mineral wool is that it gives long term acoustical performance without decreasing the value of noise absorption or sound transmission.
It can be used on ceiling, walls, floors, road noise barrier and acoustical partition. The outer metal skin can be comprised of any materials such as aluminum, steel or carbon fiber etc. depending on the usage for a wide scope of applications.
 |  |
APPLICATIONS
APPLICATION TYPE
|

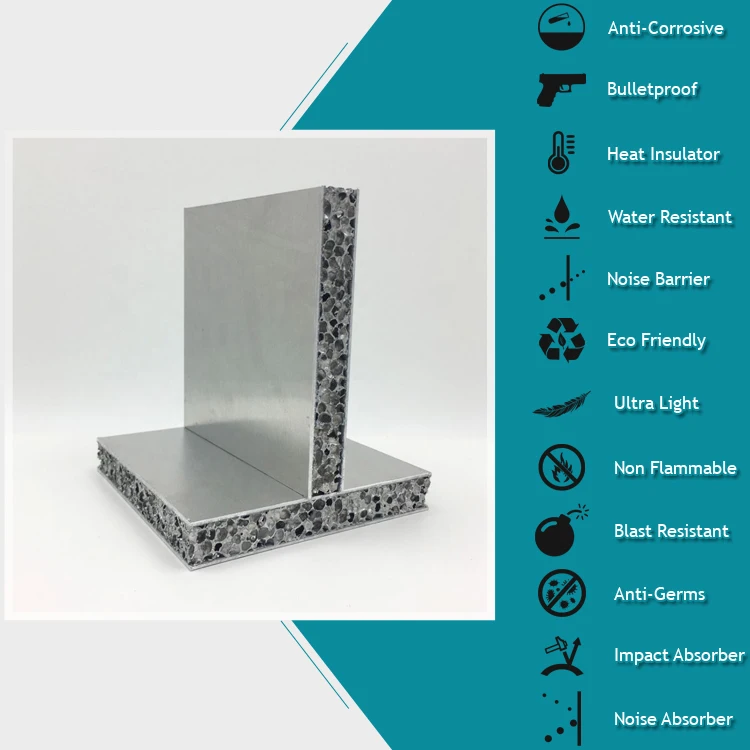

MAIN FEATURES
| High strength and stiffness | Have good weight-to-stiffness ratio. |
| Easy to install and replace | Light-weight panel which makes it easy to install and handle. Simple fixing systems make it easier for replacement. |
| Improved noise insulation | ALUMISANDWICH has great sound performance as AlumiFoam works well both for noise absorption and noise barrier. |
| High impact energy absorption | ALUMISANDWICH works great for energy absorption, which makes them suitable to be used in various impact absorption applications. |
| Weather resistant | ALUMISANDWICH can be used outside in various weather conditions as it doesn’t corrode, doesn’t retain water and doesn’t grow any mould or germs. |
| Improves heat insulation | The core of the ALUMISANDWICH helps in resisting heat transfer because of the porous structure of the AlumiFoam. The thermal conductivity of the panel is less than 1 W/mK. |
| Non-Flammable | ALUMISANDWICH is a non-flammable panel & non-toxic. The panel is classified as Class A fire rated panel. |
| Absorption of high impact energies | Sandwich structures with AlumiFoam core act as a very good energy absorber. The AlumiFoam core has the ability to undergo high pressure of force for which it is used widely as a crash cushion for road barriers. |
| Highly efficient in sound absorption & sound transmission | ALUMISANDWICH panel is used for acoustical applications because of the high NRC & STC rating of the AlumiFoam core. |
| High stiffness at very low density | The porous structure of the AlumiFoam core gives it a high strength at a low density. |
TYPICAL INSTALLATION DETAILS
Specifications
| PROPERTIES | UNIT | ALUMISANDWICH |
| Material Composition | Closed Cell | |
| Physical and Mechanical Characteristics | ||
| Density | kg/m3 | 150-1000 |
| Thickness | mm | 5-85 |
| Maximum panel dimensions | mm | 1200×600 |
| Colour | Pantone/RAL | |
| Fire Characteristics | ||
| Classification | Class A | |
| Flame Spread Index (FSI) | 0 | |
| Smoke Developed Index (SDI) | 5 | |
| Criteria Class for Fire behavior | A1 – non-ignitable | |
| non-combustible | ||
| Acoustic Characteristics | ||
| Acoustic Insulation & Noise Reduction | dB | 10-31 |
| Noise Absorption (NRC) | % | 65-97 |
| Thermal Characteristics | ||
| Thermal Conductivity | W/mK | 0.5-1.0 |
| Additional Characteristics | ||
| Material Recyclability | % | 100 |
| Non-toxic | √ | |
| Does not collect dust | √ | |
| Anti-mold | √ | |
| Anti-insects and anti-germs | √ | |
| Corrosion-resistant | √ | |
| PROCEED TO BUY NOW | ||
About Us
⇒ Over the past few years, AlumiFoam is becoming immensely popular in a wide range of modern industries. As pioneers in manufacturing Aluminum foam in the Middle East region, Laffan Aluminum Factory synergizes local high quality Qatari raw materials with state of the art international technologies and machineries.
⇒ Leveraging Doha as the beachhead, Laffan has been catering to numerous industries in the region cutting across various verticals.
⇒ In a short span of time, we have consolidated our position as one of the largest producer of high quality AlumiFoam in the region.
|  |
⇒ In our endeavor of becoming an industry leader, we also understand our commitments towards the environment and take every necessary step to ensure minimal damage to the environment and long sustainability.
Facilities
Our manufacturing process follows 4 simple steps to produce Aluminum Foam
Aluminum Foam blocks are then cut into slices which are formed into panels of different dimensions and thicknesses as per project and client requirements
If required, panels are then sent to be painted or joined with other materials as per the product range
Packaging & Shipping
Products are packaged with good care within customized wooden boxes
Projects
FAQ
| Ques. | Are you a manufacturer or a trading company? | |
| Ans. | We are a Manufacturer. | |
| Ques. | Where is your factory situated? | |
| Ans. | It is located in Qatar. Our address is New Industrial Area Street 11, Gate 260 Doha, Qatar. | |
| Ques. | How is product quality guaranteed? | |
| Ans. | Our product is unique and we are using a very High technic in the production. We also give a warranty for 20 years. | |
| Ques. | What makes your products unique when compared to others? | |
| Ans. | We use a special production method, also we have a high qualification educated team supported. | |
| Ques. | What are your after-sales services? | |
| Ans. | We provide a warranty for 20 years along with technical support. | |
| For further information, please contact us here. | ||
