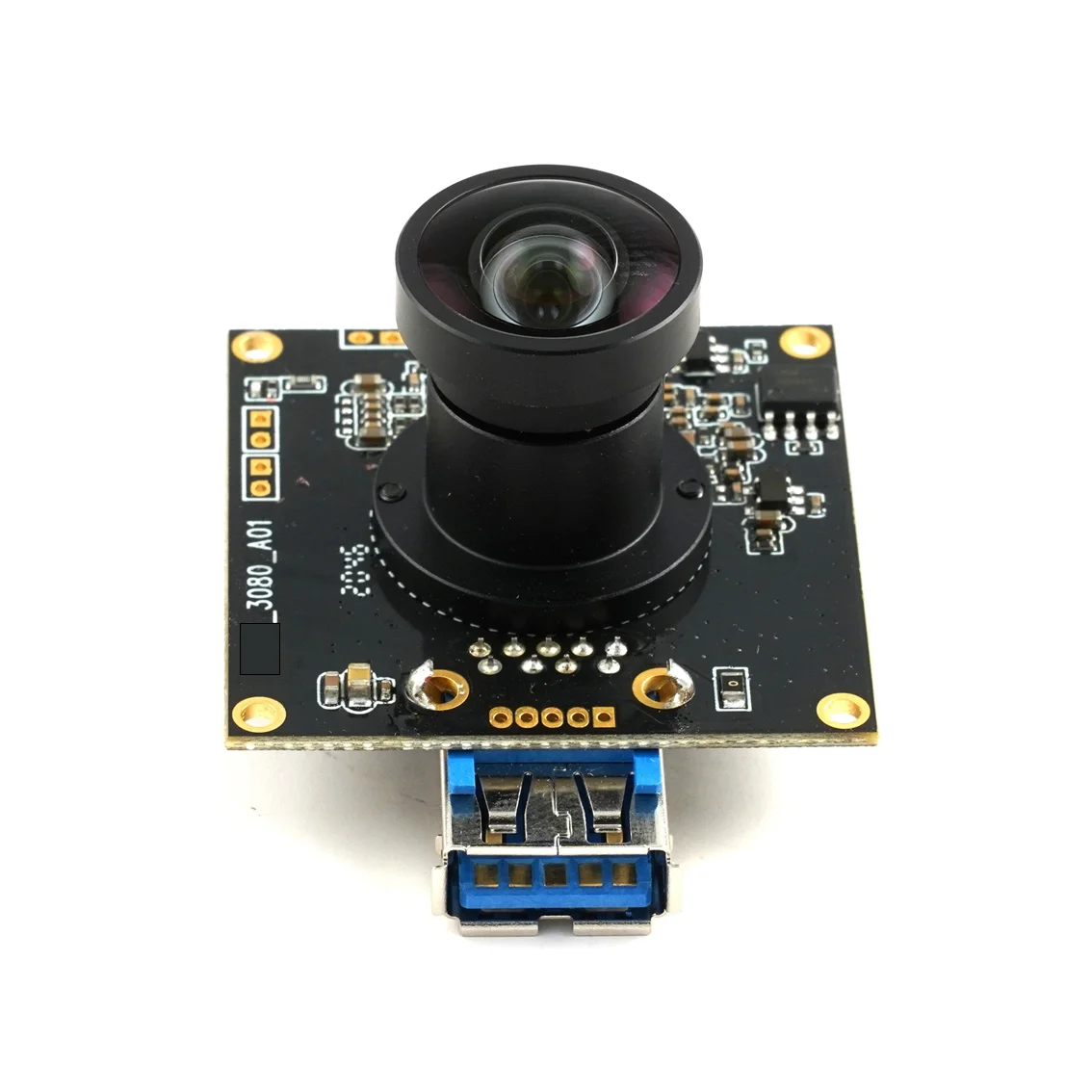

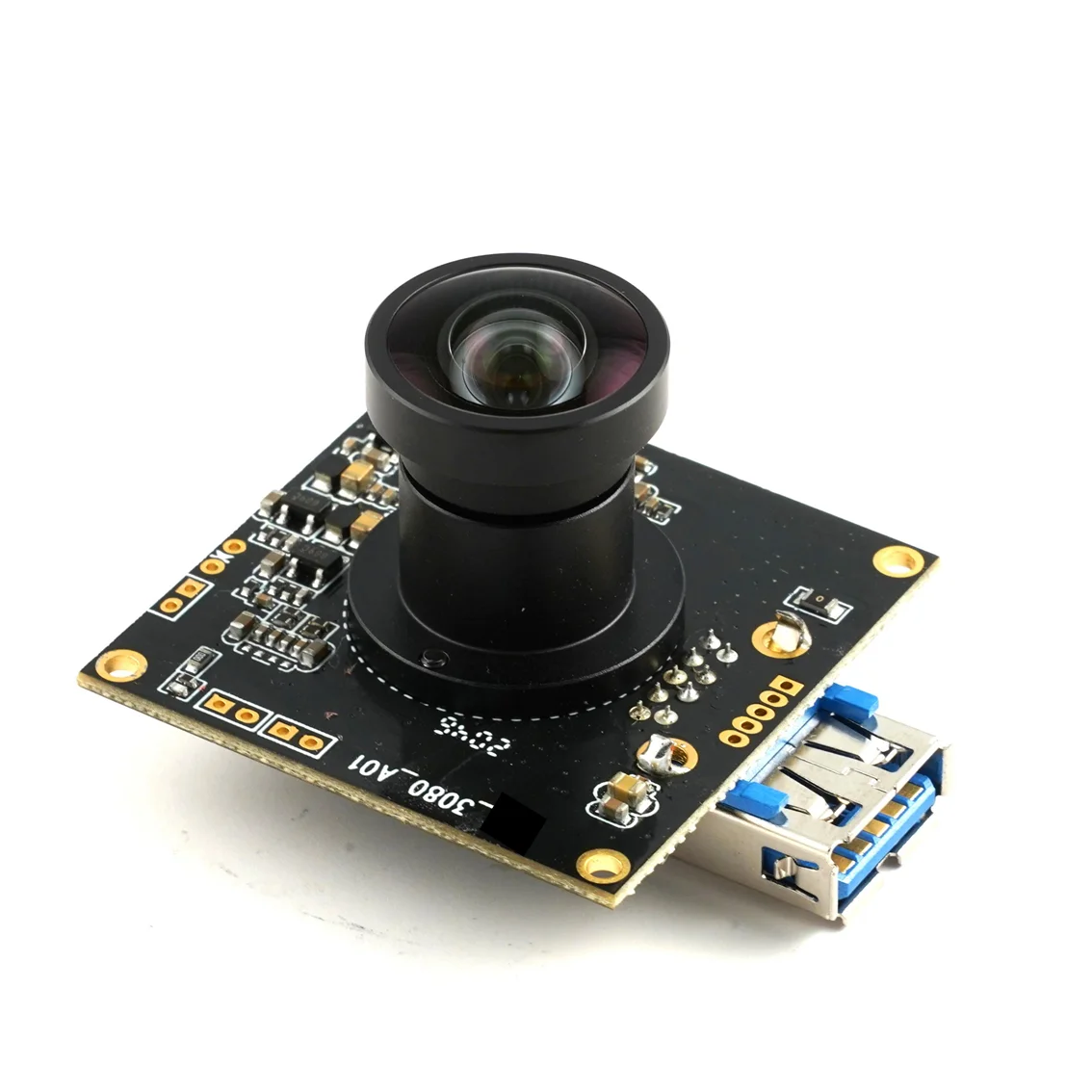

Умный модуль камеры 4K с 8MP, USB 3,0, H.264 производитель для CCTV, роботов, дронов
- Category: >>>
- Supplier: MIDAS TOUCH SOLUTIONS INC.
Share on (10000001794630):
Product Overview
Description
Product Description
* 【4K Ultra HD 2160P USB Web Camera】: USB camera built with a 4k max resolution of 3840 x 2160@30fps. USB camera with 120-degree wide-angle lens which can provide a more crystal-clear image and video for professional-quality video conference, live streaming, also supports ultra HD 2160P video calling, & online education.
* 【USB3.0 Plug&Play USB Camera】: 2160P USB camera just plugs the USB cable into your PC’s USB port, plug, and play. Webcam for MAC, PC, desktop computer, laptop USB with the camera is easy to use, there is no need to download or install complicated driving software. Support USB 3.0, high-speed USB 3.0 data transmission, occupy less bandwidth, greatly improved the working efficiency.
* 【Compact Desgin】: Super small and thin profile for embedded applications. Compact camera for all kinds of machine vision. Wide application for electronic equipment, industrial equipment, 3D scanner, VR camera, electronic microscope, medical machine, automated image acquisition system.
* 【Multi-compatible Computer Camera 】: USB webcam widely works with WinXP/Vista/Windows 7/8, Windows 10 Linux with UVC（above Linux-2.6.26）MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC.
* 【Advanced Sony IMX317 Image Sensor】: USB camera module equipped with an advanced SONY IMX317 image sensor, can provide a more crystal-clear image and video for professional-quality video conference, webcasting, and recording. Perfect for hight levels video systems for personal or industrial.
* 【USB3.0 Plug&Play USB Camera】: 2160P USB camera just plugs the USB cable into your PC’s USB port, plug, and play. Webcam for MAC, PC, desktop computer, laptop USB with the camera is easy to use, there is no need to download or install complicated driving software. Support USB 3.0, high-speed USB 3.0 data transmission, occupy less bandwidth, greatly improved the working efficiency.
* 【Compact Desgin】: Super small and thin profile for embedded applications. Compact camera for all kinds of machine vision. Wide application for electronic equipment, industrial equipment, 3D scanner, VR camera, electronic microscope, medical machine, automated image acquisition system.
* 【Multi-compatible Computer Camera 】: USB webcam widely works with WinXP/Vista/Windows 7/8, Windows 10 Linux with UVC（above Linux-2.6.26）MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC.
I/O ports (Front) | ||
Size(LWH/mm) | 38.0 x 38.0 x 32.0±0.2 mm (include PCB Thickeness) | |
PCB Thickeness | 1.0 mm | |
Output Interface | USB 3.0 | |
Image/Video Format | 1x Power On/Off Button | |
HD | 1280x720 | |
FHD | 1920x1080 | |
2K | 2048x1536 | |
2.7K | 2688x1512 | |
QSXGA | 2592x1944 | |
UHD | 3840x2160 | |
Frame Rate | 8.29 M – 30FPS | |
Video Class Compliant | YES | |
LED Indicate | N/A | |
Operating Temperature | -10℃ to +65℃ | |
Power Consumption | ||||||
Min | Type | Max | ||||
Input Supply Voltage | 4.85V | 5V | 5.25V | |||
Un-configured Current | - | - | - | |||
Operating Current | - | - | - | |||
Suspend Current | - | - | - | |||
Backend IC Specification | ||
Type | AIT8589D Backend IC with USB3.0 interface | |
Compatibility | USB Video class Compliant, Microsoft WHQL Certified | |
Support Sensor Size | Support Most popular CMOS sensors | |
OS Supported | Win10, Linux, Android | |
Sensor Specification | ||
Optical format | IMX317 1/2.5-inch 8M CMOS Sensor | |
Active resolution | 3840H×2160V | |
Unit pixel size | 1.62μm x 1.62μm | |
0°C to 40°C (with standard HDD/SSD/SATA‐Slim/DRAM) | ||
Lens Specification | ||
F/No. | 2.2 土 5% | |
Field of View | 120° (Diagonal) 112(H) 75(V) | |
Focus Distance | 50cm | |
Note: All specifications are subject to change without furthur notice.
