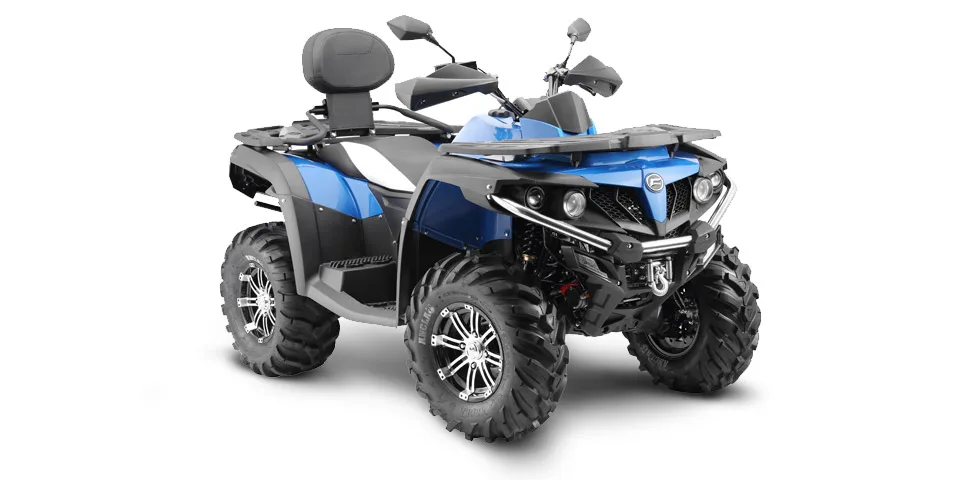

Adult EEC Approval 500cc UTV ATV

Product Overview

Description



Super High quality UTV with 550CC, 4-stroke, single cylinder, air-cooling

1) Engine type: Single Cylinder,4-stroke,liquid-cooled ,4-valve
2) Bore and stroke :87.5mm*82mm3) Displacement: 550cc
4) Max Torque: 38.8N.M/5500rpm
5) Max Power: 24kw/6500rpm
6) Compression ration: 10.2: 1
7) Ignition system: CDI
8) Oil capacity: 13L
9) Max speed: >75km/h
10) Turning angle: 30°
11) Starter system: Electric/ Hand
12) Transmission: CVT,R/N/L/H
13) Brake Type: Dual disc brake R: Single disc brake
14) 4*4 system: On-command 2WD/4WD and Command front diffential lock
15) Wheelbase: 1300mm
16) Ground clearance:240mm
17) Tires (front / rear): 25 x 8-12 / 25 x 10-1218)
18) Dry Weight:365KGS
19) Product dimension: 2160*1180*1200 20)

Carton dimension(Don't take down wheel): 2200*1230*1050
Carton dimension( Take down wheel):      2280*1180*8402
Container loading qty :Qty/20FT: 10 unitsQty/40HQ: 30units



Q1.What is your terms of payment?
A.T/T 50% deposit,50% balance before dispatch from factory.

Q2. How about the logo?
A:We can customize the logo for free as per your requets.

Q3.How about your delivery time?
A;Usually it will take about 7-15 days to complete production after receiving your deposit.

Q4.How about your sample charge?
A:We are happy to supply the sample if we have existing parts in stock,but thecustomers have to pay the sample cost and the courier cost.

Q5:Do you test your goods befeore delivery?
A:Yes,we have 100% test before delivery.
