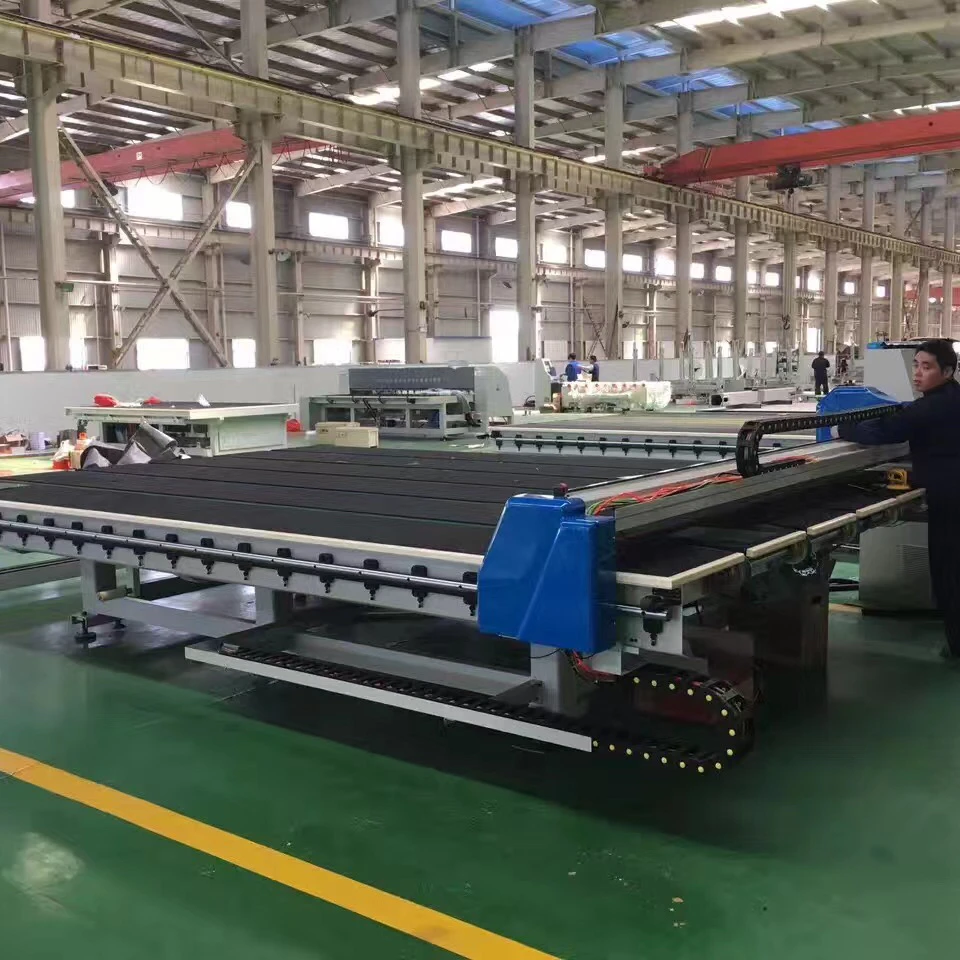

Full automatic Glass CNC cutting machine

Product Overview

Description



Full automatic Glass CNC cutting machine





* Automatically load glass on table

* CNC fast cutting

* Air float in the machine

* With glass breaking table

* For various shape of glass cutting

* Machine size can be customized

* With the use of editable optimizing software

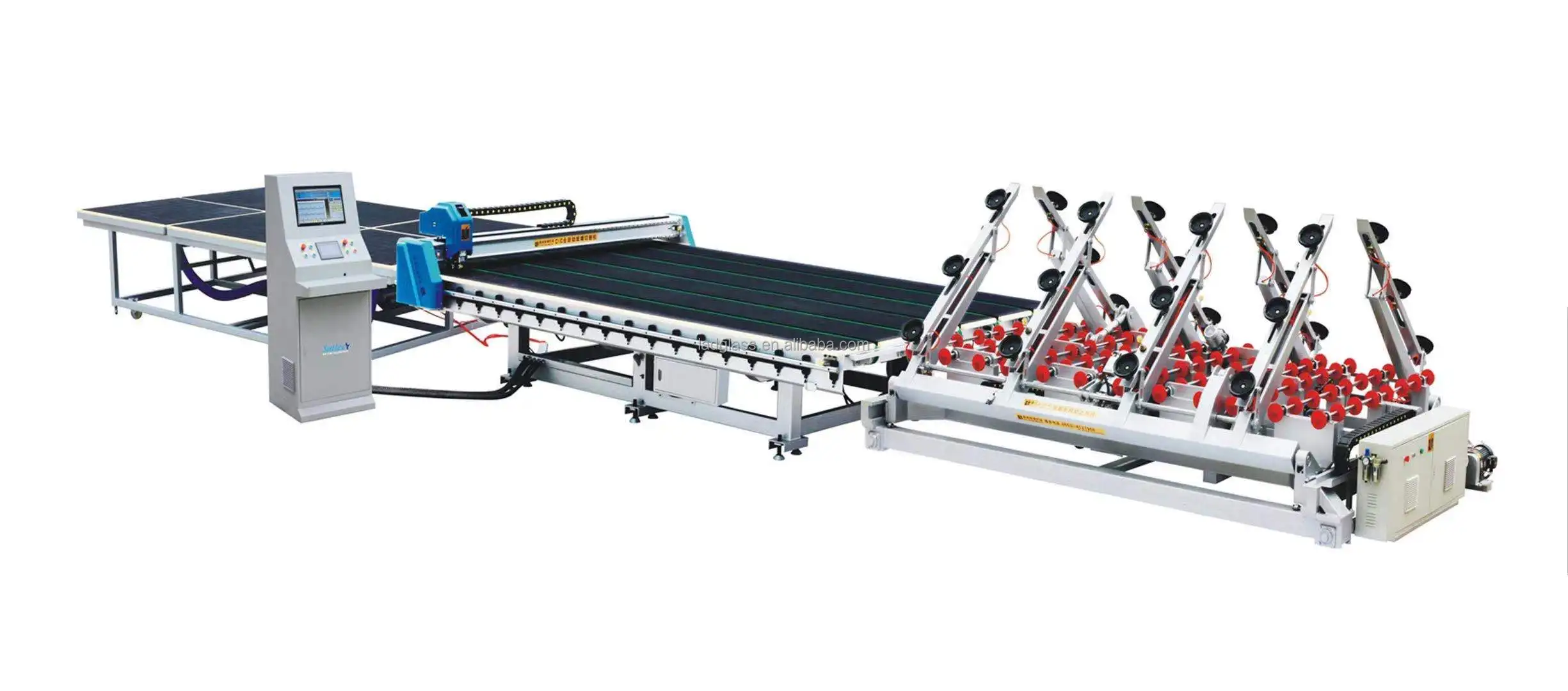

Full automatic glass cutting machine line

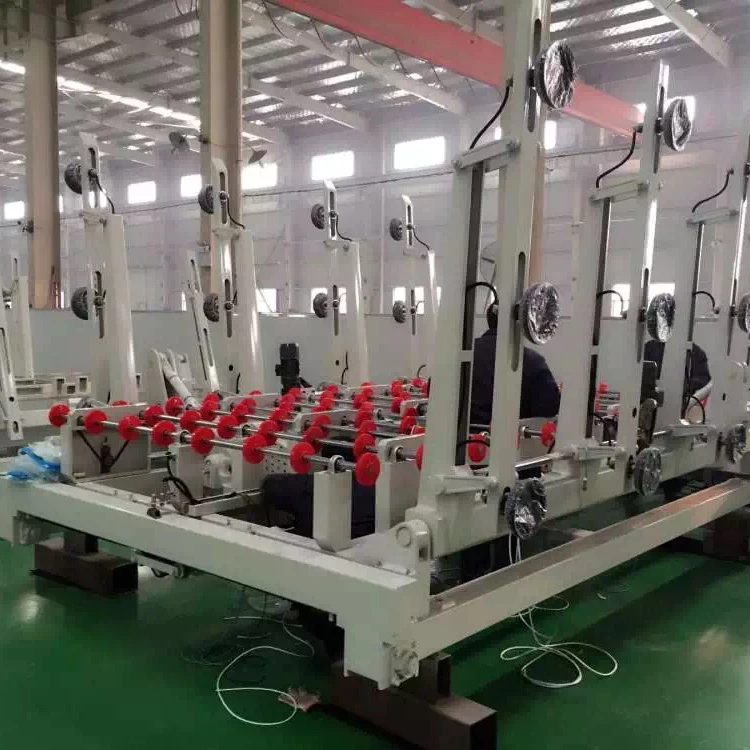

• With 4 loading arms to load glass automatically (single side or double side)


• Each arms has 3pcs suckers


• PC computer control, Microsoft windows interface


• Standard Chinese and English interface

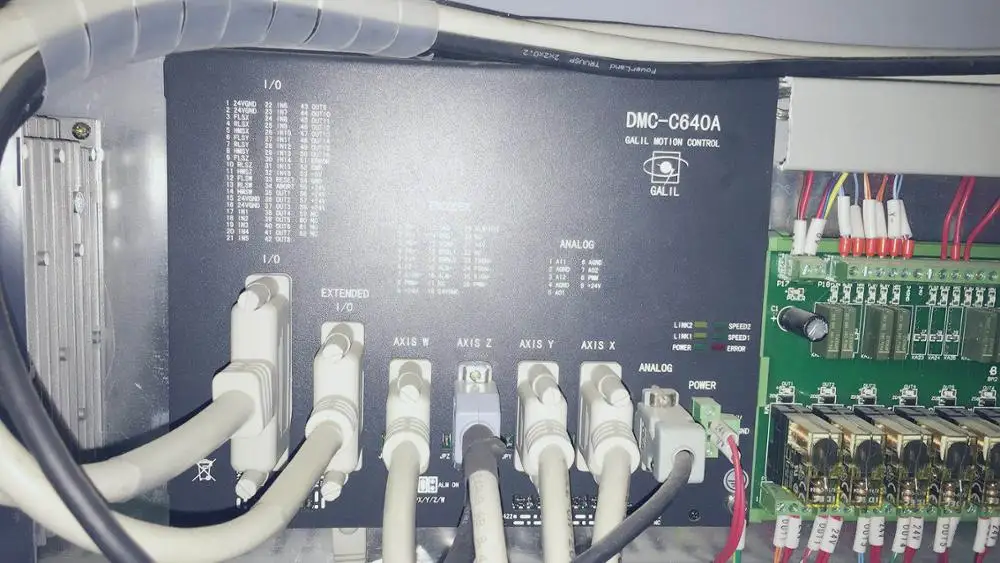

• Controller:America GALI


• Rack/Gear:Japan KHK


• Cutter wheel / wheel clamp: Belgium


•  Low voltage electric parts: Schneider (France)


•  Optimize software


• Air float table for easy move



Machine specification:

Glass loading:

• Max loading size:4200*2800mm


• Loading glass thickness:3~19mm


• Fastest cycle loading time:40~50S


• Max loading depth:700mm


• Max loading weight:900KG


• Single side(double side) loading bars: 4 arms


• Suckers on each arms: 3 pcs


• Installation power:8KW


• Air compressor:0.3Mpa


• Vacuum pressure:-70~90Kpa(adjust by glass thickness)

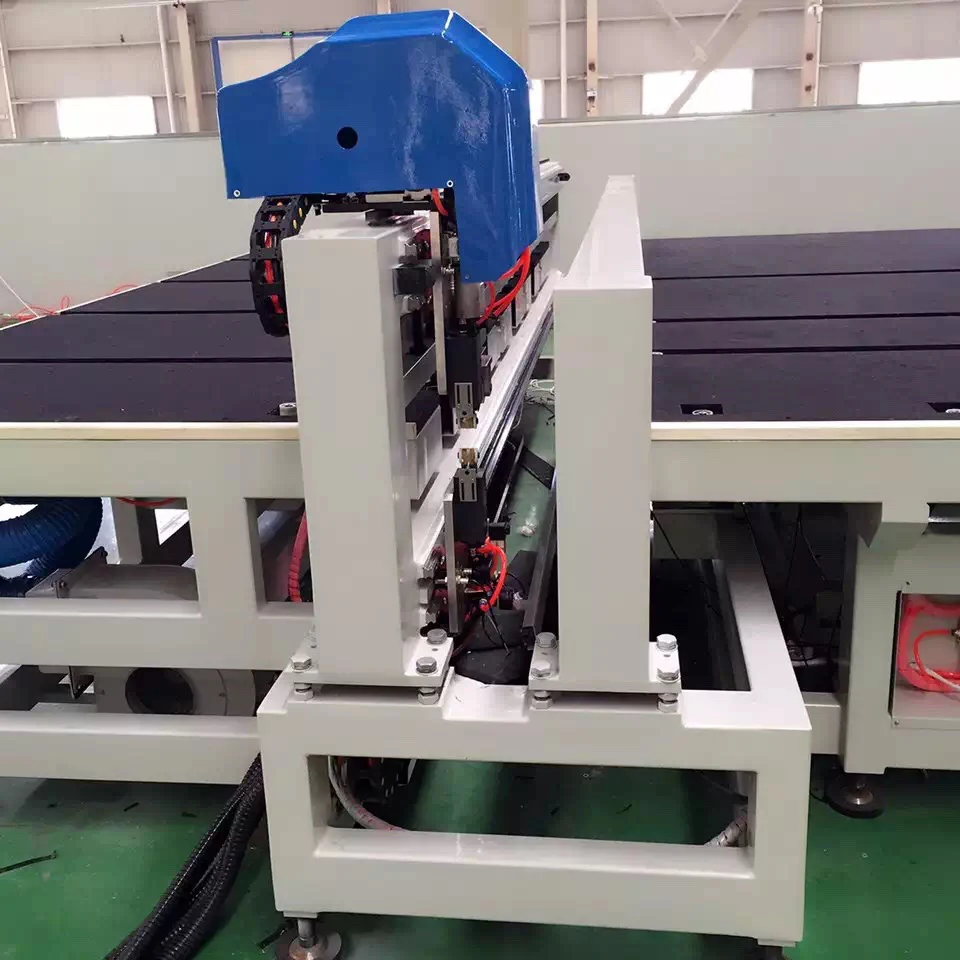

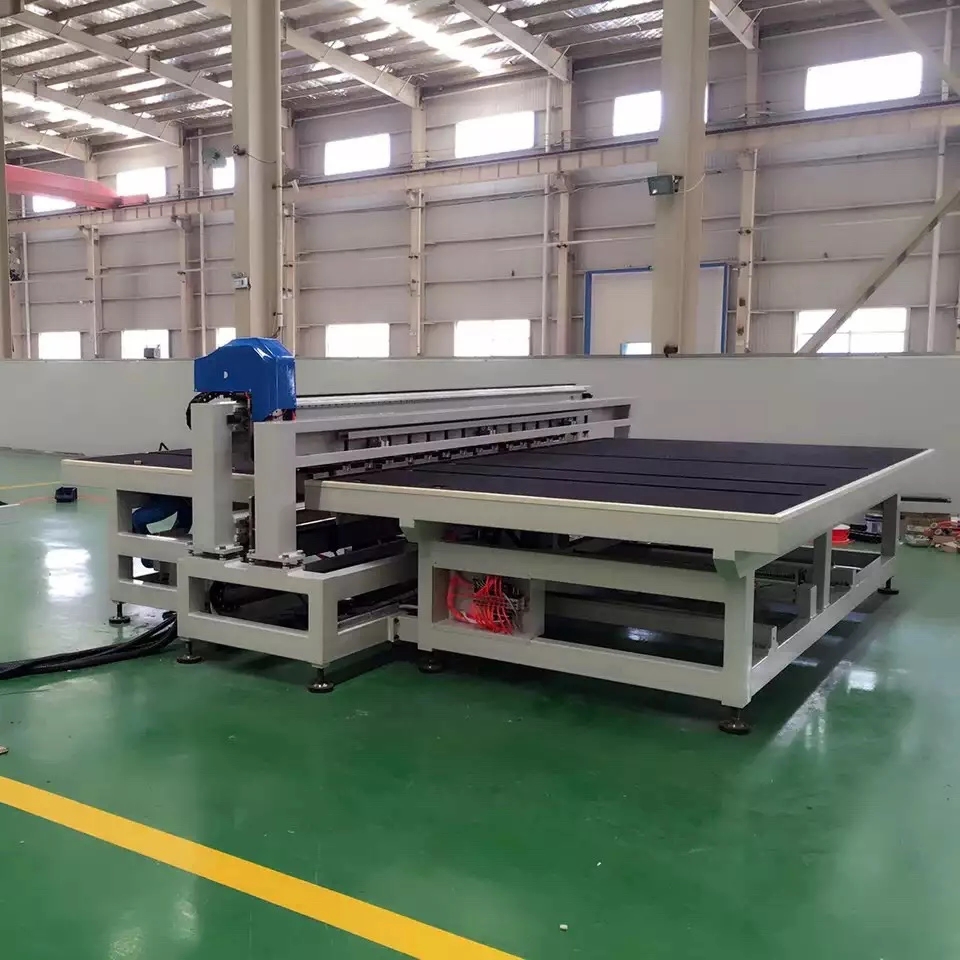

Glass cutting:

• Max cutting glass layout: 4200*2800mm


• Working table height: 900±50mm


• Glass thickness: 3~19mm


• Linear parallel: ≤±0.20mm/m


• Diagonal accuracy: ≤±0.25mm/m(The above accuracy is base on glass before breaking)


• Cutting bridge speed: 0~280m/min(can be adjusted)


• Cutting bridge acceleration: ≥3.0m/s²


• Cutting head speed: ≥150m/min


• Cutting head acceleration: ≥6.0m/s2


• Cutting head positioning accuracy error: ≤±0.15mm


• Machine total power: 8KW


• Air compressor: 0.6MPA

Glass breaking:4200*2800mm

• Max. glass size: 4200*2800mm


• Breaking bars: 1+2


• Air float function, MDF board


• Power: 6.6kw


• Multi point push rod contrl function, convenient and relaiable



Warranty and service:



• 1 year warranty for the machine


• Life time service available for parts and malfunctions


• 24 hours on line service


• Working video and installation video avaible


• Provide English operation manual


• Installation and trainning service



Payment term and shipping:



• By T/T, 30% deposit, balance paid before delivery


• Machine delivery after 30 days production.


• Machine loading in container or sending by  LCL cargo is permit


• Shipping agent will be offer if you required

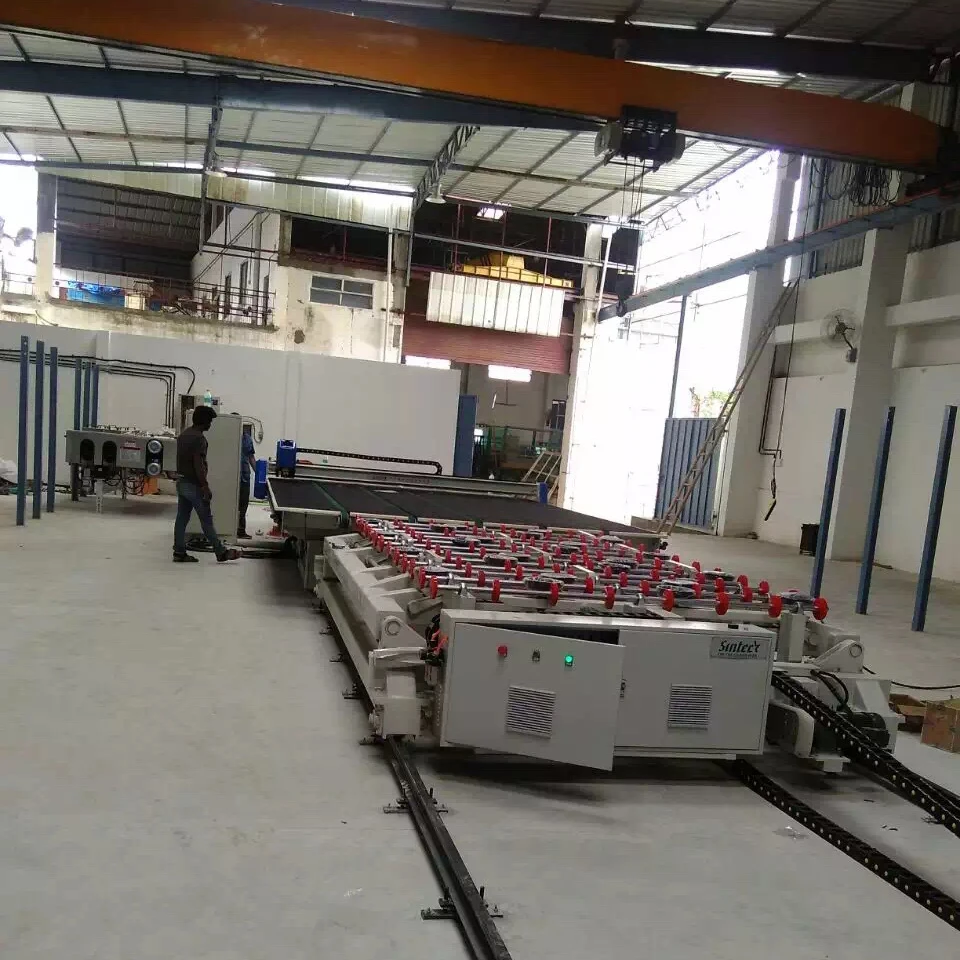

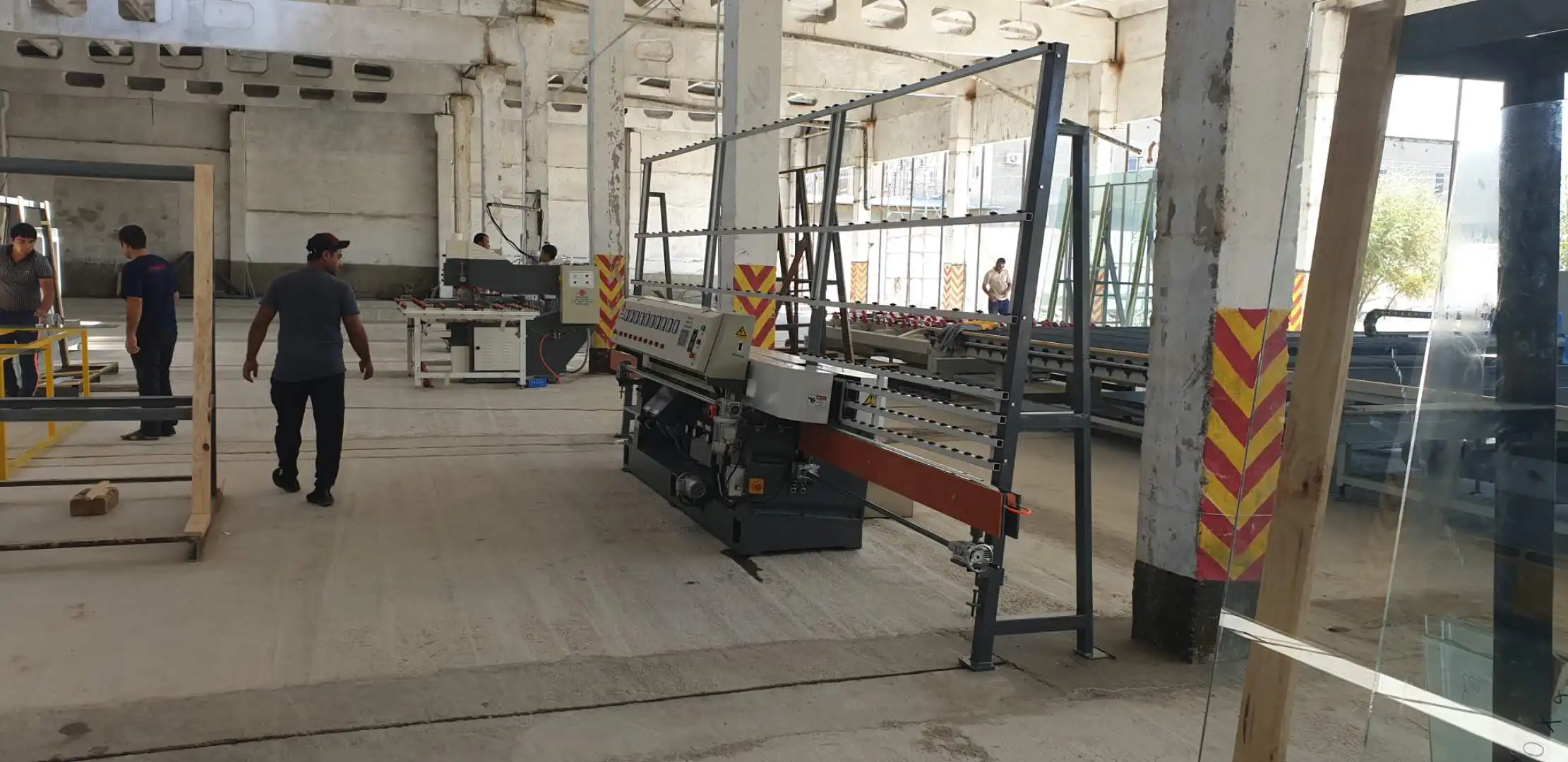

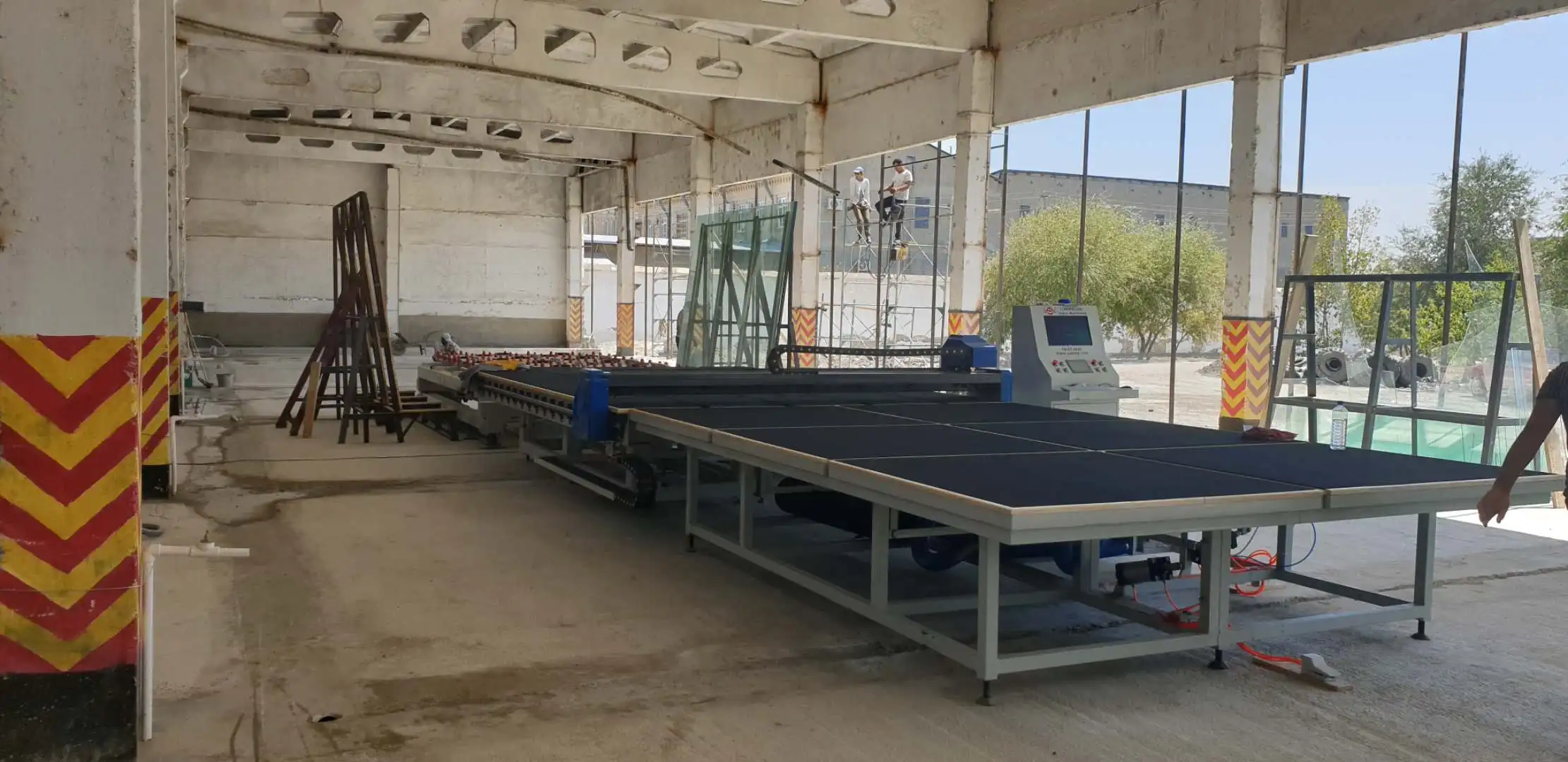

Machine at customer's factory (Uzbekistan)





We are a factory specialized in manufacturing of glass cold & hot processing machines.

The main products include glass cutting machine, glass double edging machine, glass vertical edging machine, vertical beveling machine, glass drilling machine, glass shape edging machine, glass sandblasting machine and glass flat/bent tempering furnace.

The factory started production of glass processing machines since year 2000.

All of our machines have CE certifications and thousands of our machines are working well all in customer’s factories over the world .

We have our own export team and service team. We are glad to support our high quality glass processing machines and give our instant, sufficient service to you!
