Horizontal automatic PLC control glass hole driller making machine

Product Overview

Description





Horizontal automatic PLC control glass hole driller making machine







 Introduction of machine .



• This machine devoloped based on our glass double-head drilling machine.


• Has 2 drilling carraiges with position changes as requirement.


• The Max.hole distance of this machine is 1500mm.


• There are glass loading and unloading table at front and back of the drilling body.


• Min.hole distance: 200mm


• Single hole drilling is also Ok

 Machine specification



Model Number	YD-DD-1500
Max.hole Distance	1000mm
Hole diameter(mm)	4~80
Glass thickness(mm)	3~30
Concentric tolerance(mm)	±0.2
Compressed air consumption (IT/min)	0.6
Pressure (kg/cm2)	8
Power (kw)	4.8
Outer dimention (m)	2.38x2.2x1.7
Weight (kg)	800

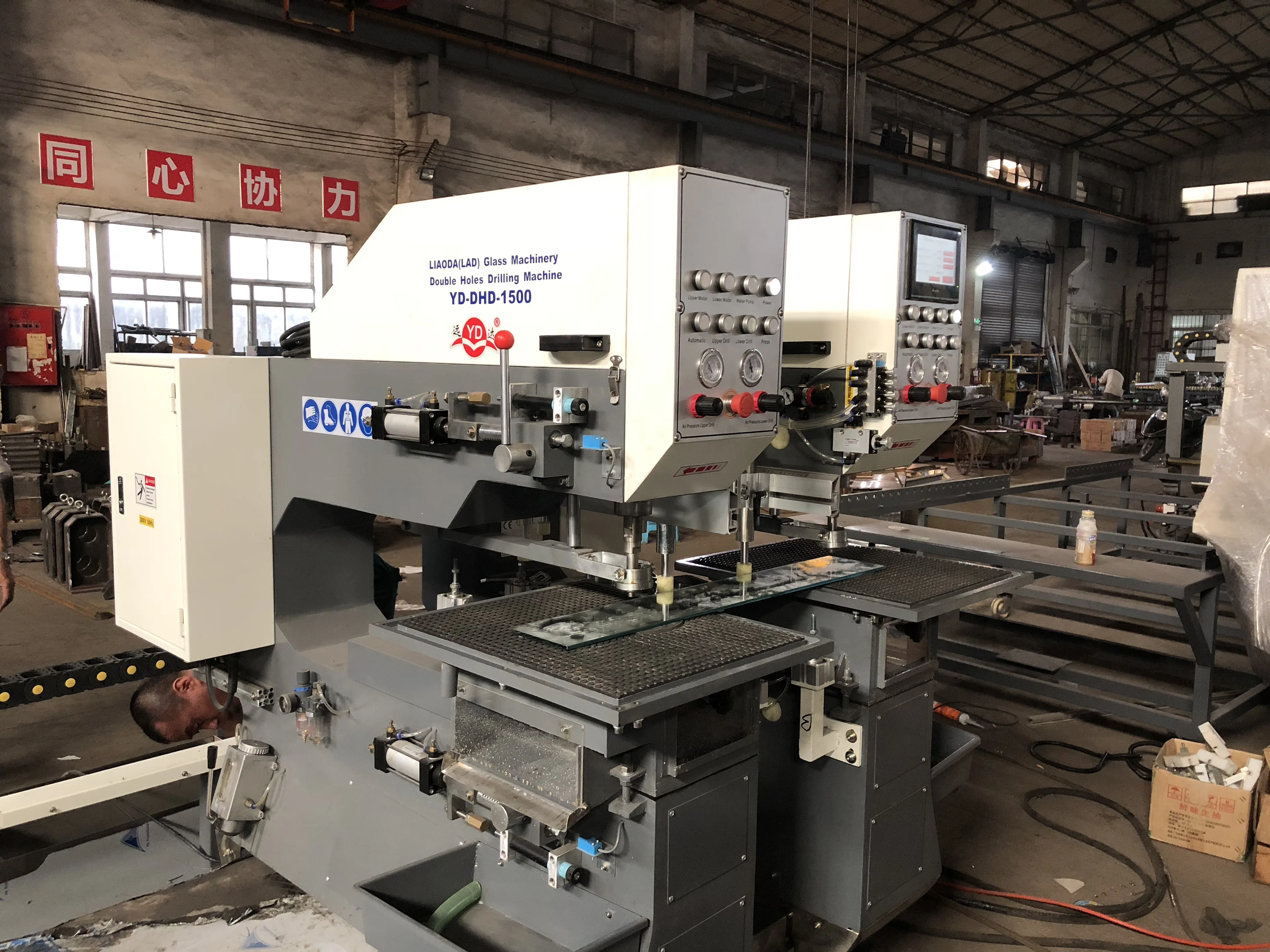

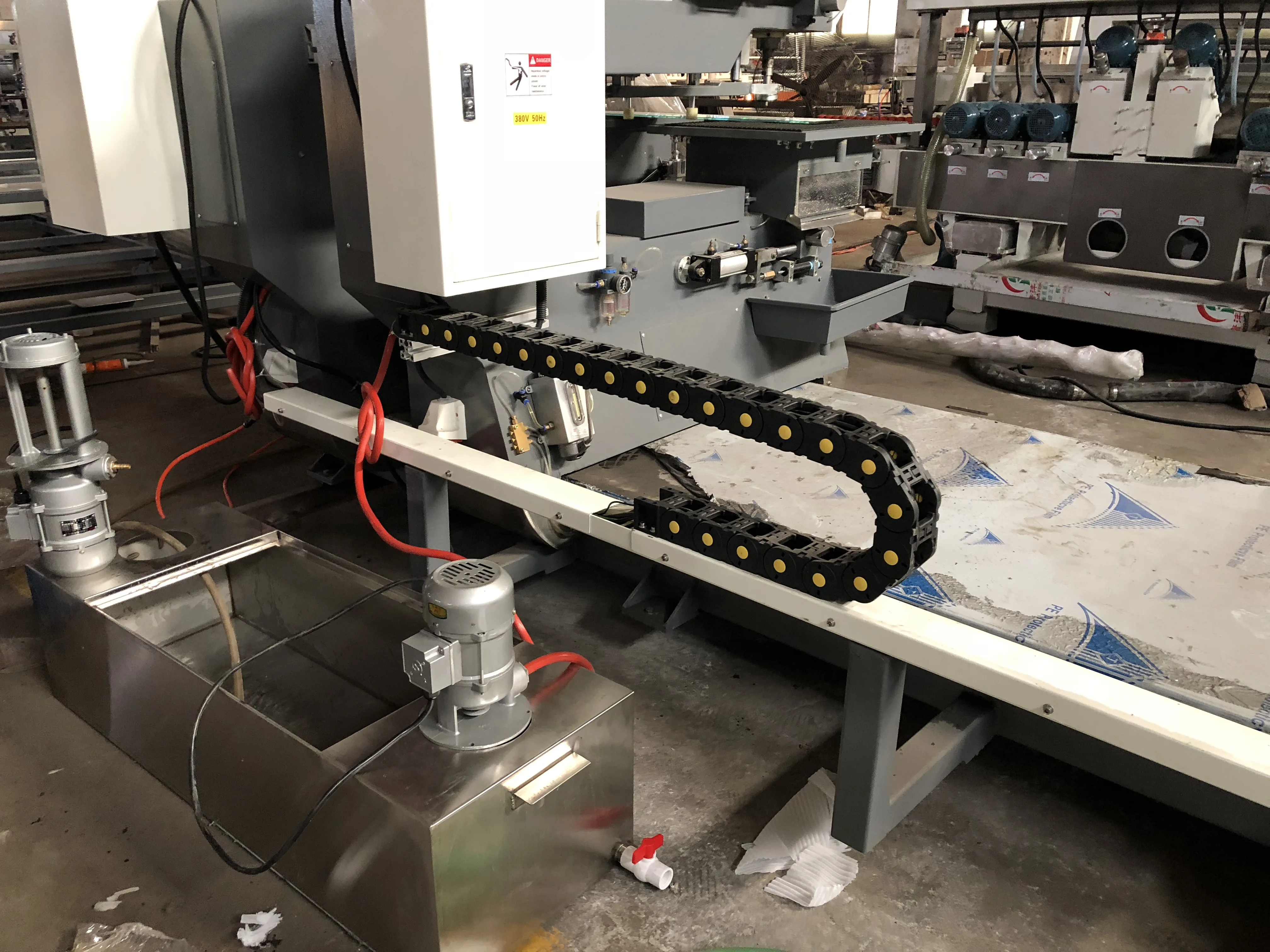

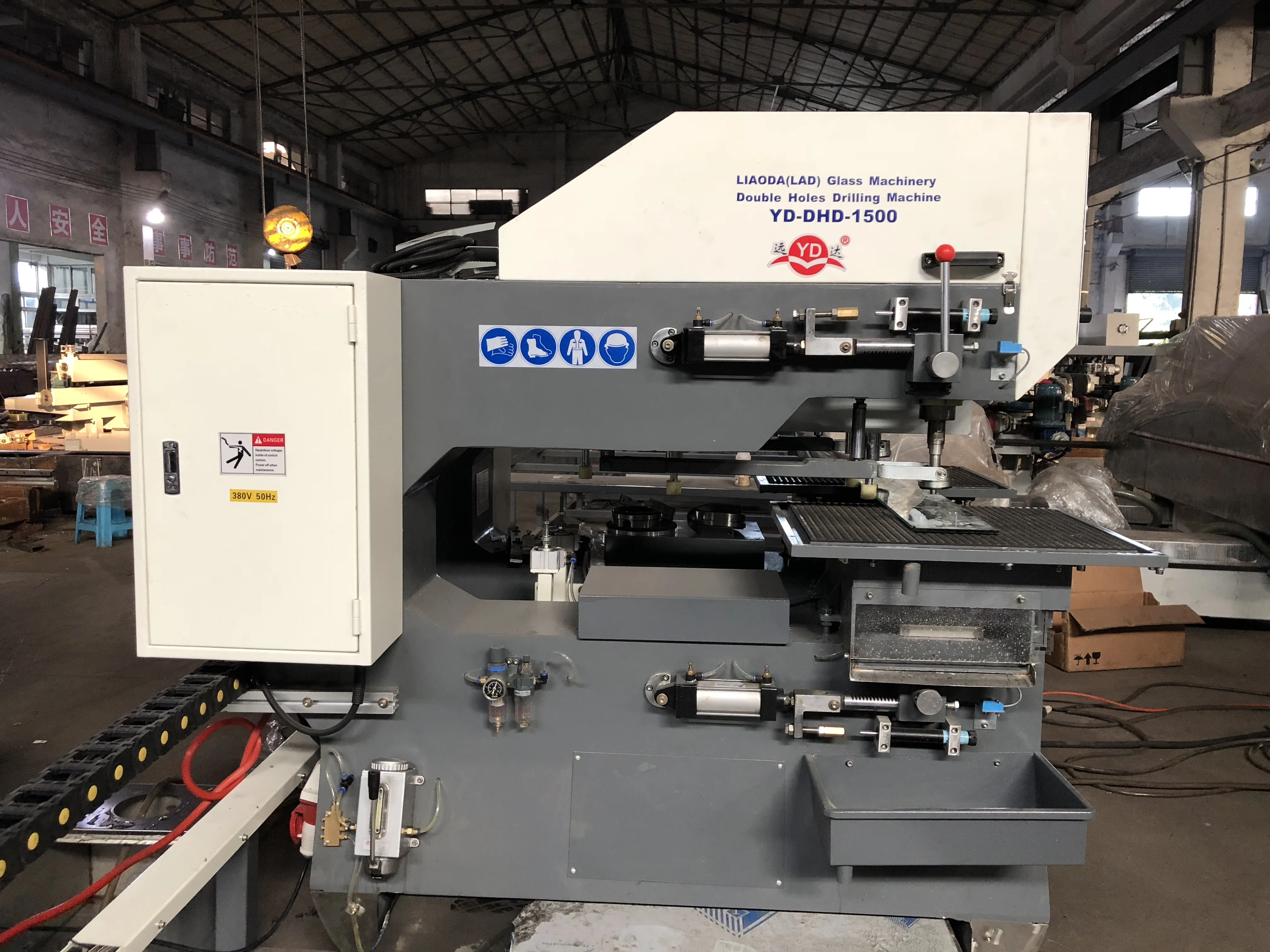

 Photo of machines











We are a factory specialized in manufacturing of glass cold & hot processing machines.

The main products include glass cutting machine, glass double edging machine, glass vertical edging machine, vertical beveling machine, glass drilling machine, glass shape edging machine, glass sandblasting machine and glass flat/bent tempering furnace.

The factory started production of glass processing machines since year 2000.

All of our machines have CE certifications and thousands of our machines are working well all in customer’s factories over the world .

We have our own export team and service team. We are glad to support our high quality glass processing machines and give our instant, sufficient service to you!
