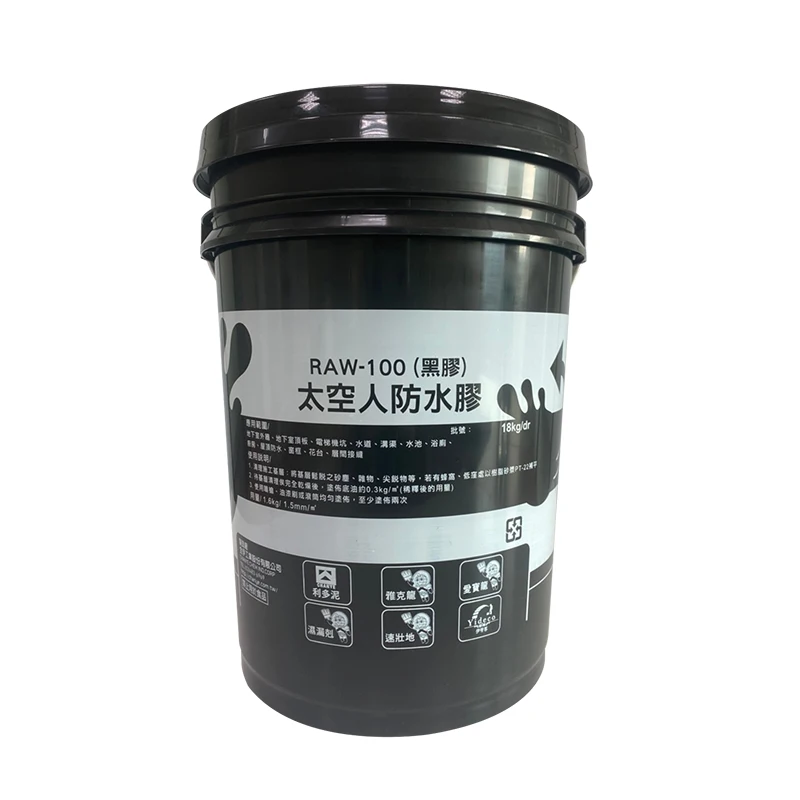

Product Description RAW-100 is a mineral colloid bitumen emulsion for general waterproofing,concrete protection and metal protection. Which cures to form a flexible membrane. RAW-100 is designed for use on horizontal and vertical surface. RAW-100 is suitable for use as waterproof membrane on concrete,asbestos cement,mastic asphalt,slate,tile and metal surface.

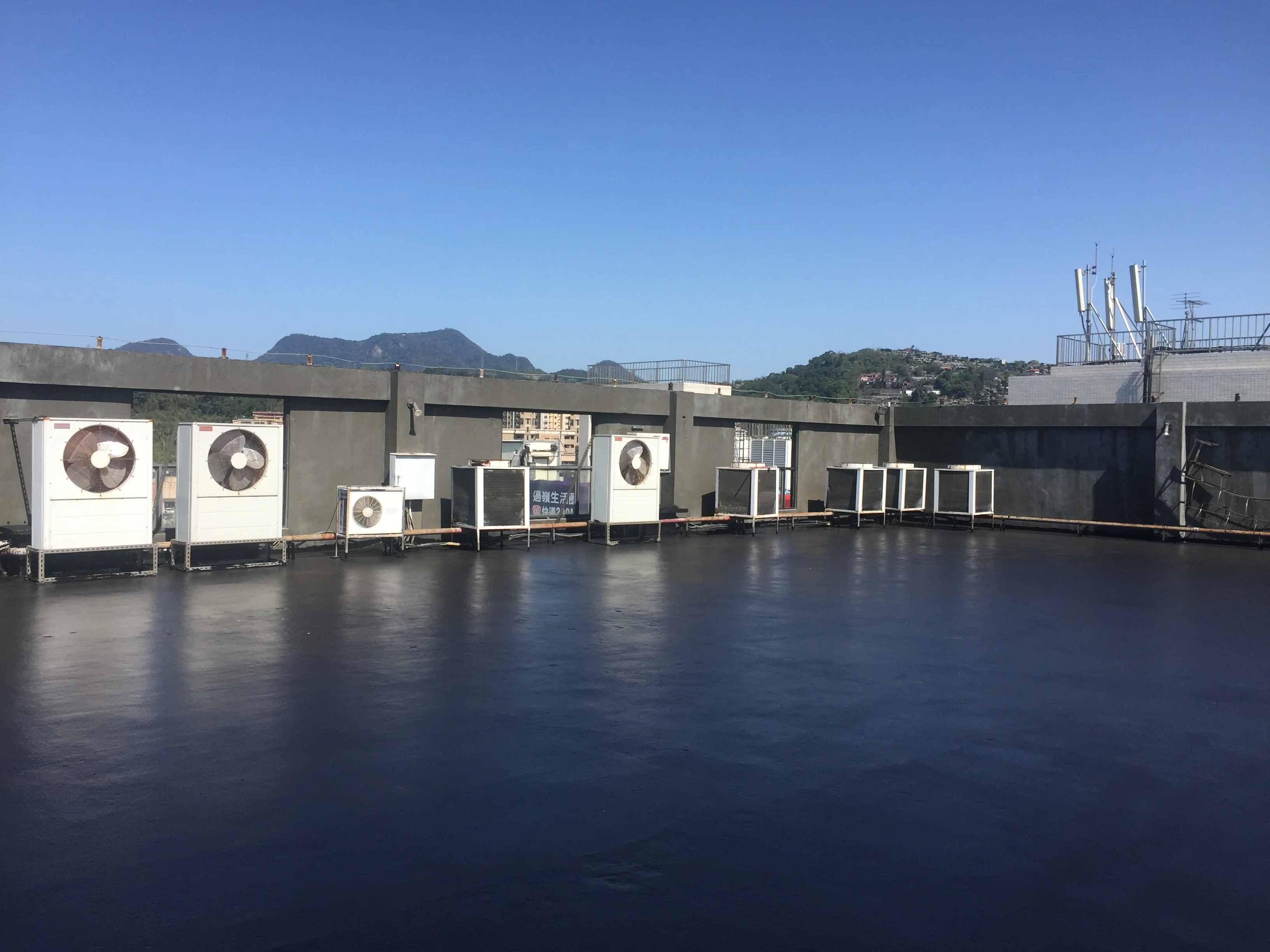

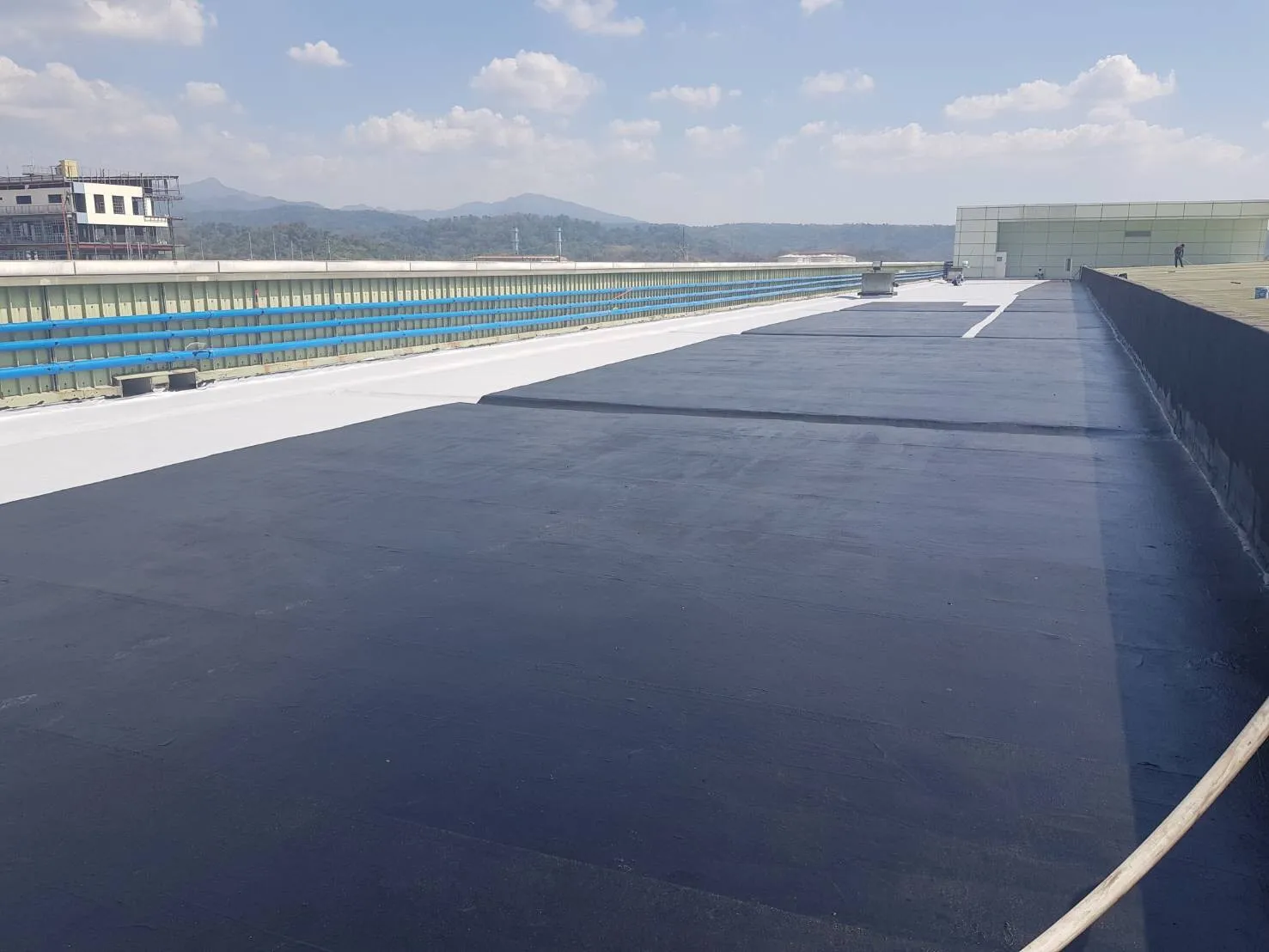

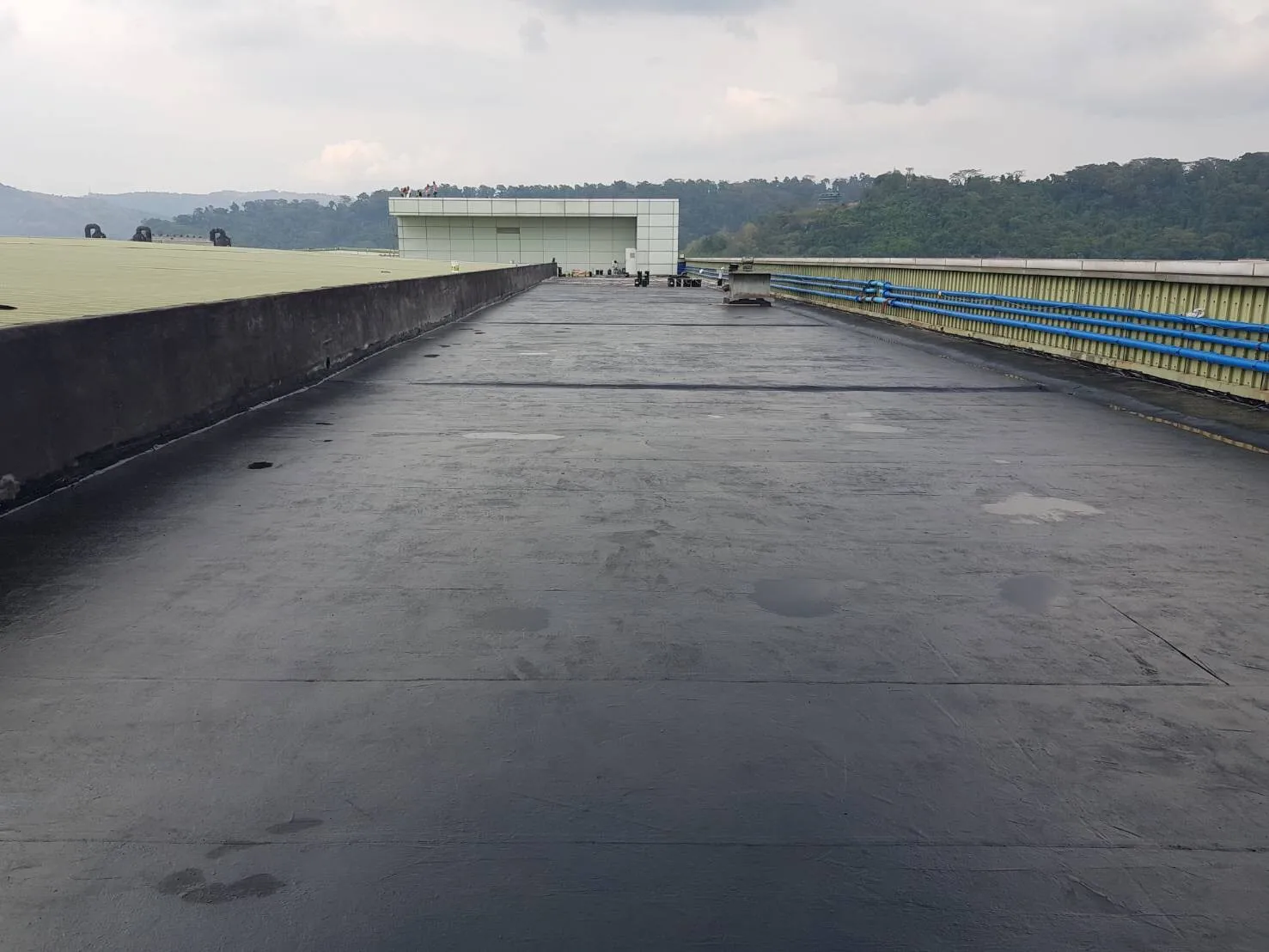

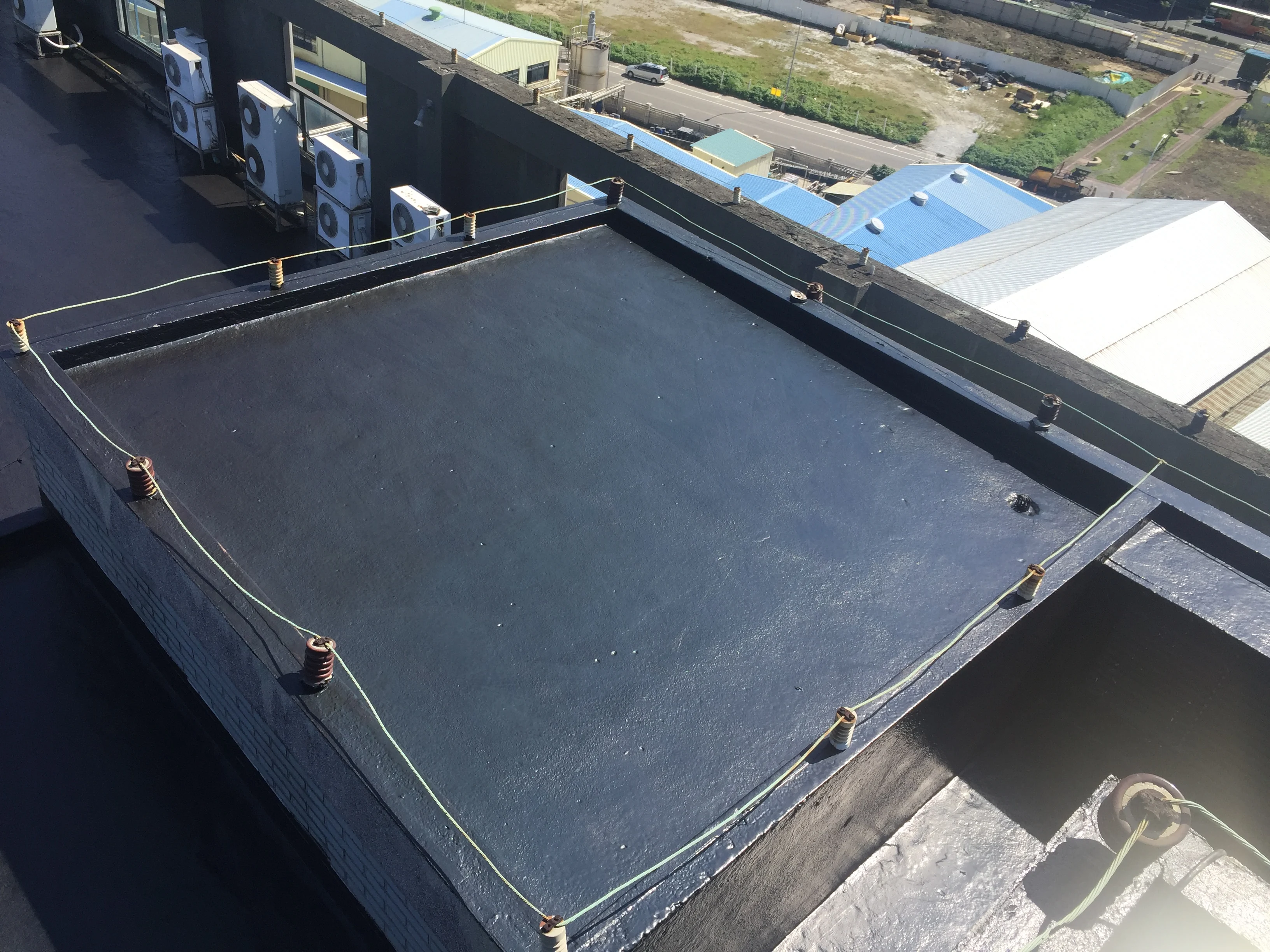

Uses ▪ Concrete roofs ▪ Retaining wall ▪ Balcony, toilet, bathroom ▪ Planter boxes ▪ Lining to water tanks ▪ Ground slabs and walls
Advantages ▪ Easy to apply by brush, trowel and sprayer ▪ Forms a seamless and lap free membrane over the substrate. ▪ No flow or sagging on vertical surface ▪ Cures to form a flexible resilent barrier ▪ Can be applied to damp surface ▪ Crack bridging
Consumption ▪ 0.8 kg/m²(one coat) ▪ RAW-100 must be applied in minimum 2 coats. ▪ 3 coats may be required in areas of extremely high infiltration.
Dependent on the application area, substrate roughness, surface profile and thickness
Technical Information
Test Items
Test Required Value
Tensile strength
>0.25 N/mm²
Elongation at break
>600 %
Tear Strength
>2 N/mm
Application ▪ Cross coating on the construction surface with roller or brush also can apply by machine spray. ▪ After the first application of RAW-100, wait 4-8 hours (+23°C)(+73.4°F) before applying the second application ▪ At least 24 hours after the coating is completed, the follow-up work can be carried out (it can be applied with external tiles, covered with cement mortar or painted with water-based waterproof topcoat). Note: ▪ Operating time: 30 minutes~2 hours (temperature: + 15° C(+59°F) ~ + 35 ° C(+95°F))
Shelf Life 12 months from date of production if stored properly in original, unopened and undamaged sealed packaging.
Storage Conditions Store dry at +5°C(+41°F)~+35 °C(+95°F) Protect from moisture, direct sunlight, flame sources and freezing.
Technical data sheet(TDS)
