Product Overview

Description



Product Overview

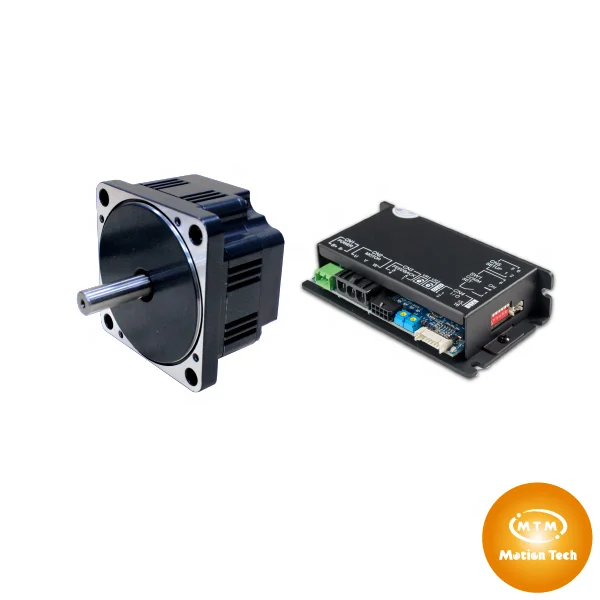

MTM AGV wheel motor series can provide our customers a set of power module which is included BLDC motor, motor controller, and gearbox. For this entry model, we provide you a good cost–performance solution hollow shaft gearbox. This power module is already applied in more than 2000 AGVs all over the world which is included some international company. MTM provide you power module from 15W to 7000W and this entry model provide you from 100W to 350W solutions.


Products Description


Simple but Tough
Motor: 24V / 100W / 3000rpm
Motor Controller Rated: 5.7A
Rated Output: 3000 rpm / 0.32N-m
Control Method: 6 Input / 2 Output
Voltage(Potentiometer), Pulse, PWM
RS-485(Modbus RTU)

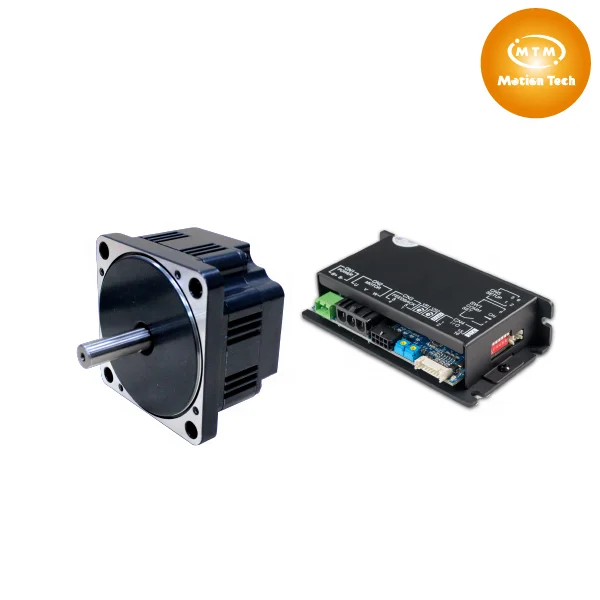

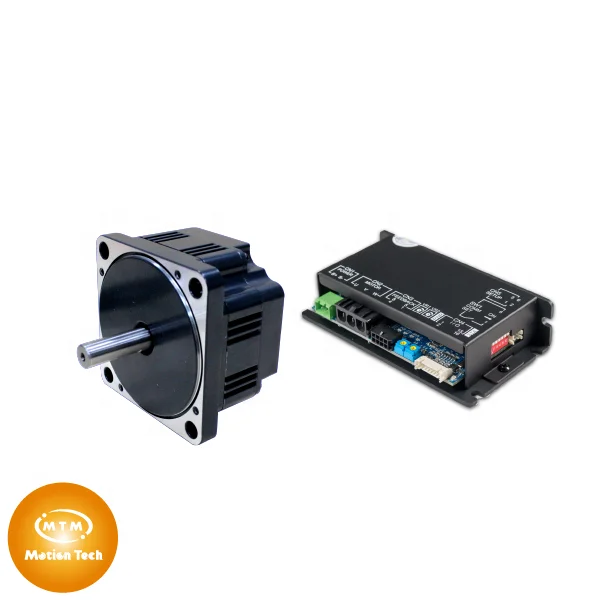

Product Configuration

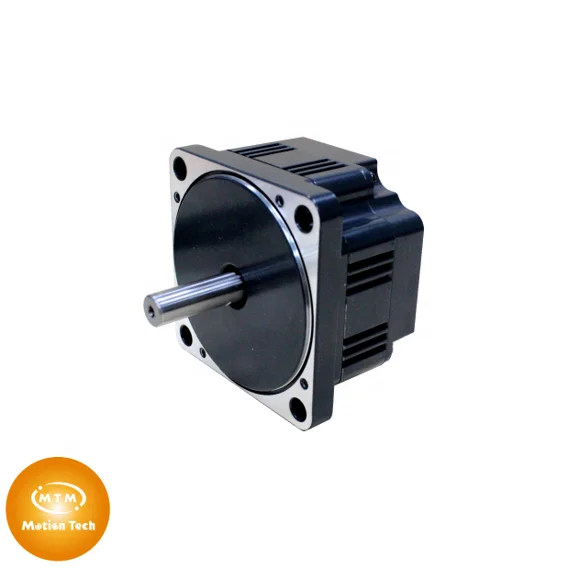

24V 30W 3000rpm BLDC motor

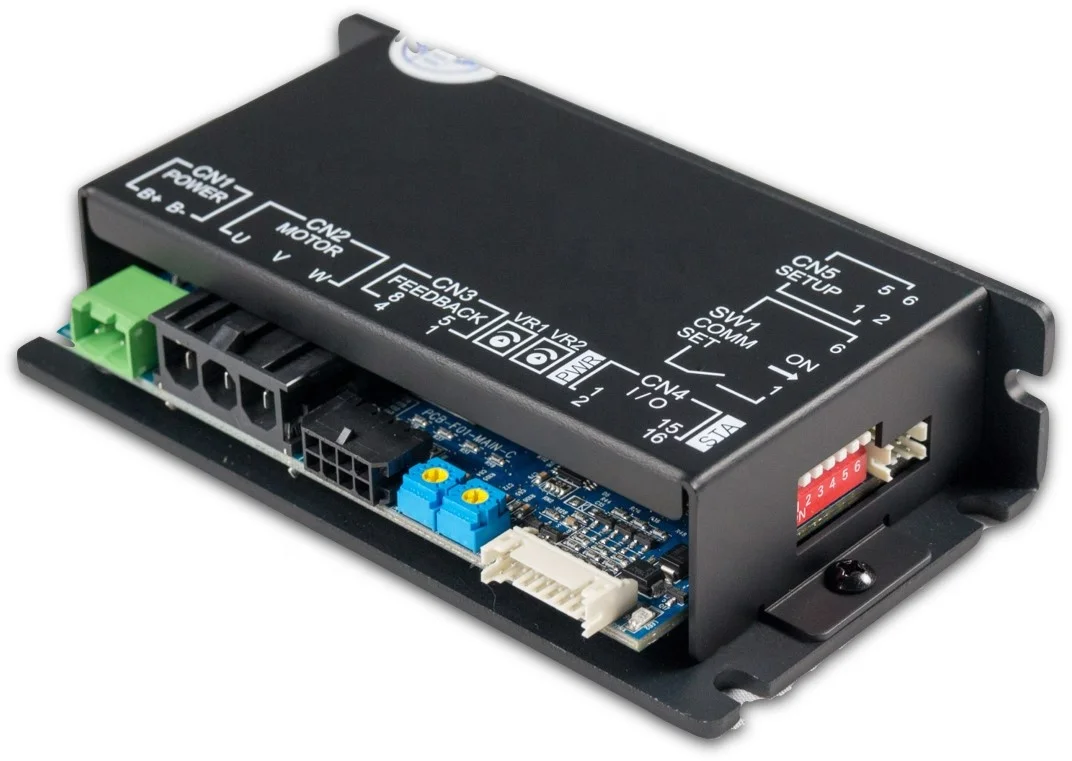

Motor Controller for BLDC

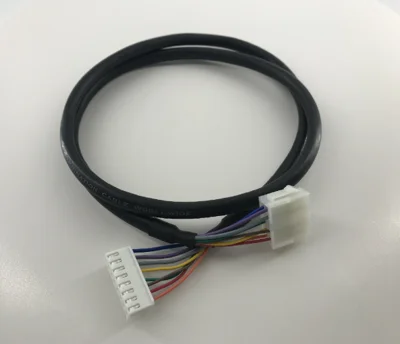

1M Trunk

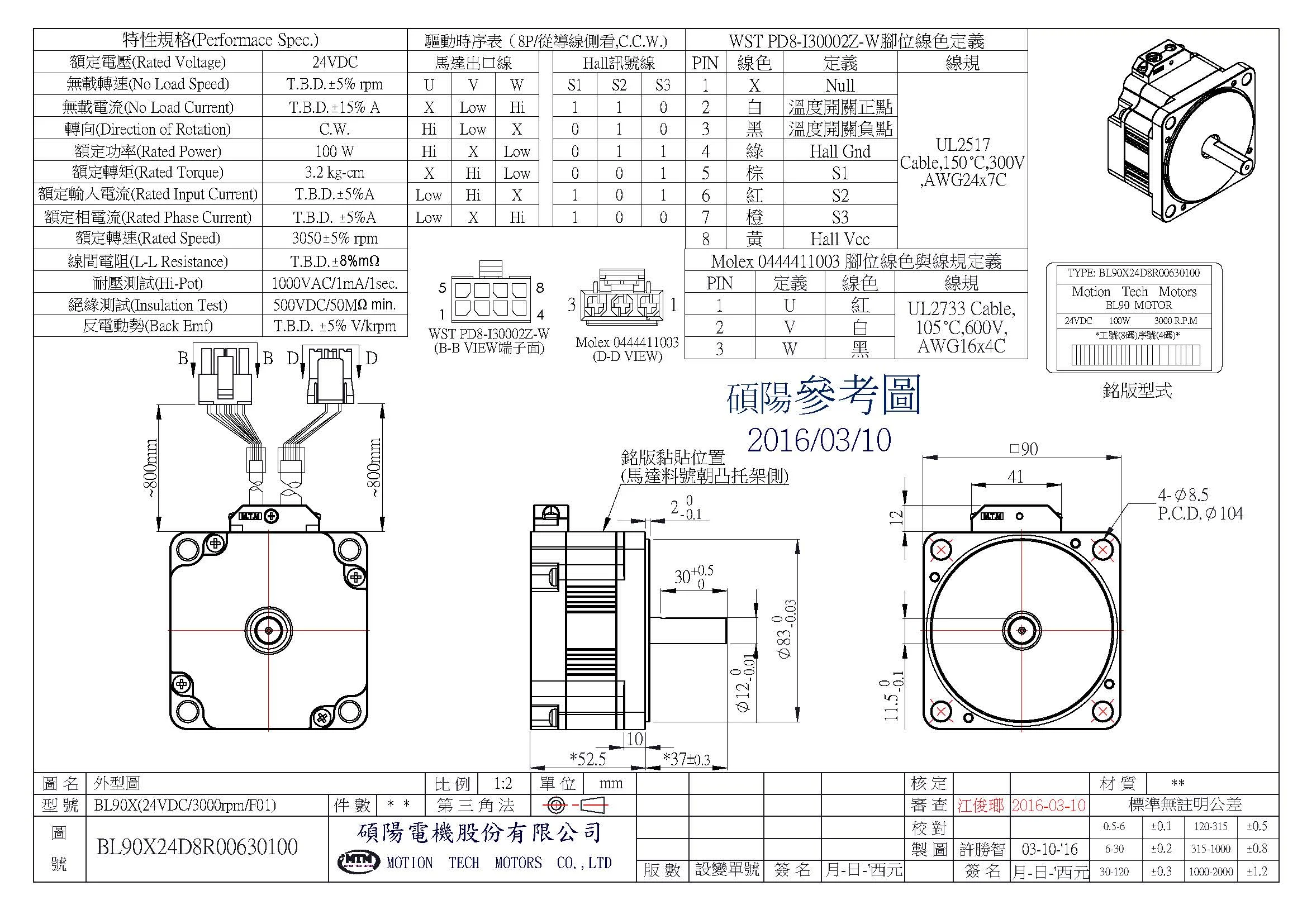

Product Paramenters

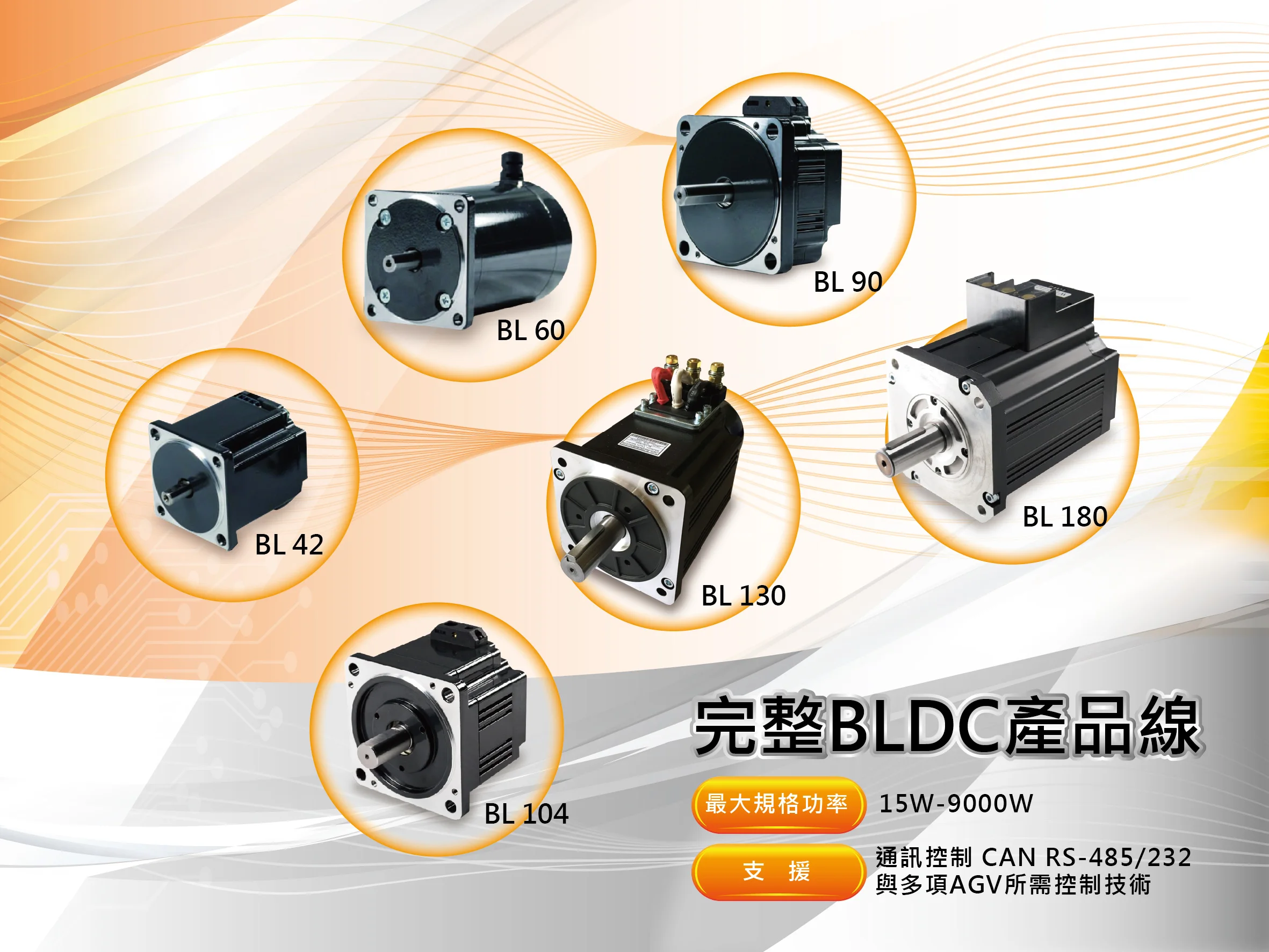

About BLDC Series


From 15W to 9000W
MTM have a complete BLDC product line from 15w to 9000w, from 100rpm to 8000rpm, from 12VDC to 96VDC, from 100VAC to 220VAC.
Standard BL42 products: 15W~30W
Standard BL60 products: 40W~120W
Standard BL90 products: 100W~500W
Standard BL104 products: 400W~1000W
Standard BL130 products: 1000W~2000W
Standard BL180 products: 2000W~9000W
Optional Power off brake: 2N-m~10N-m
Gearbox motor is available from 40W~7000W


Model
Rated Power(W)
Rated Voltage(V)
Rated Torque(N-m)
Rated Speed(RPM)
Brake
With Driver
No Driver
BL180L
5500
48VDC
23.9
2000
x
link
link
BL180M
3500
48VDC
16.7
2000
x
link
link
BL180S
2000
48VDC
9.6
2000
x
link
link
BL130M
2000
48VDC
6.4
3000
x
link
link
1000
48VDC
6.4
1500
10N-m
link
link
BL130N
1500
48VDC
4.8
3000
10N-m
link
link
1000
24VDC
3.2
3000
5N-m
link
link
BL104L
1000


48VDC

3.2
3000
x
link
link
1000
48VDC
3.2
3000
x
link
link
BL104M
750
48VDC
2.38
3000
x
link
link
750
48VDC
2.38
3000
6N-m
link
link
BL90L
500
48VDC
1.6
3000
x
link
link
500
48VDC
1.6
3000
4N-m
link
link
350
24VDC
1.8
1800
x
link
link
350
24VDC
1.8
1800
4N-m
link
link
BL90M
350
24VDC
1.1
3000
x
link
link
350
24VDC
1.1
3000
2N-m
link
link
BL90N
200
24VDC
0.64
3000
x
link
link
BL90S
150


24VDC

0.48


3000

x
link
link
BL60L
120


24VDC

0.39


3000



x

link
link
BL60M
80


24VDC

0.26


3000



x

link
link
BL60S
40


24VDC

0.13


3000



x

link
link
BL42M
30


24VDC

0.1


3000



x

link
link
BL42S
15


24VDC

0.05


3000



x

link
link


Applications




Brush motor is our root, Servo motor and brushless motor is our future.
The main product of MTM is for vehicles with low voltage DC power. If you are looking for a DC power servo motor, BLDC, brush motor or gearbox, MTM is your best choice.

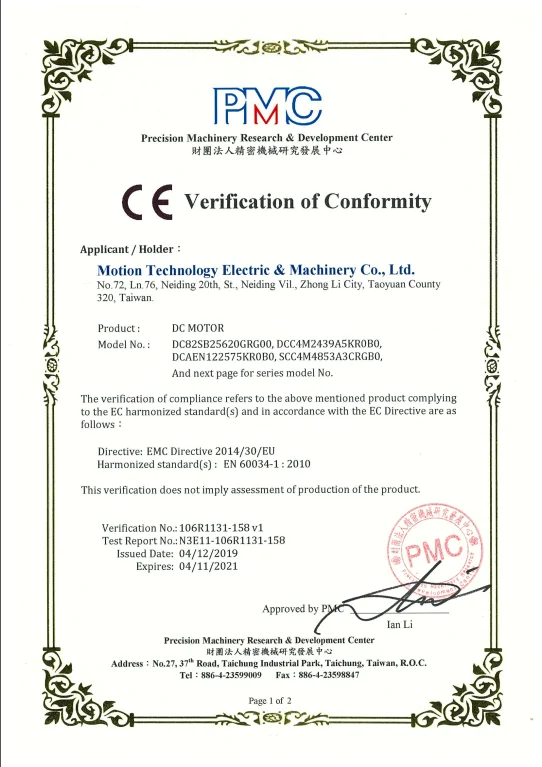

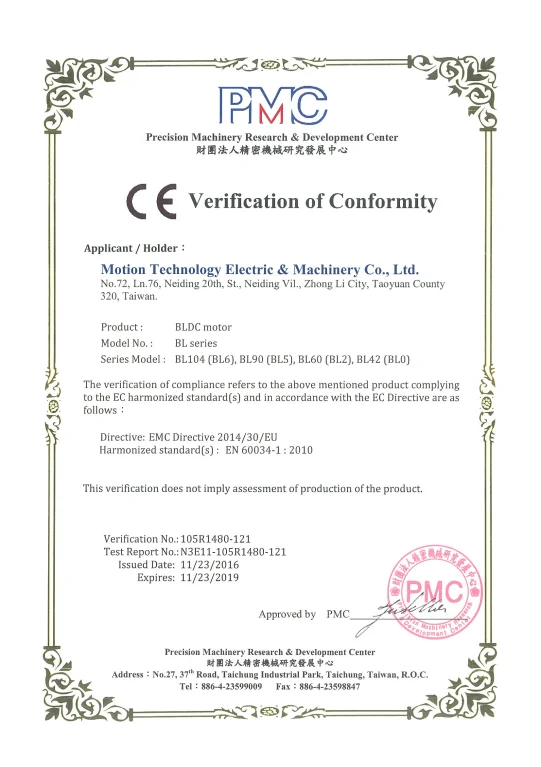

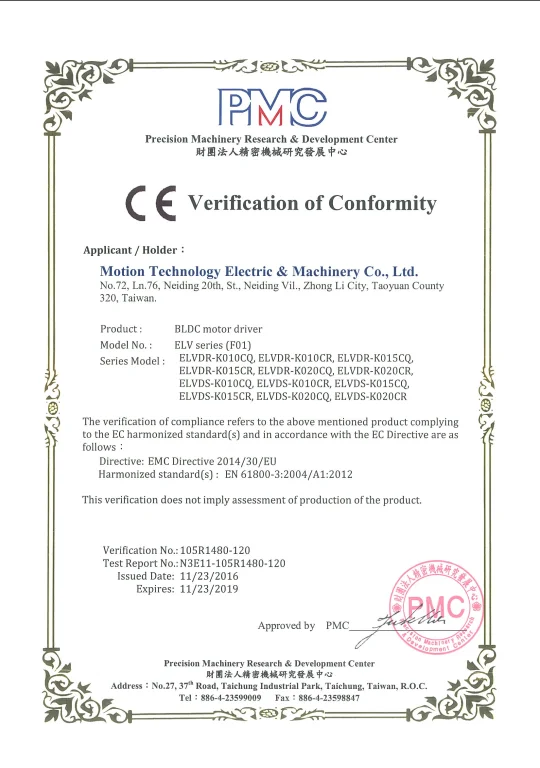

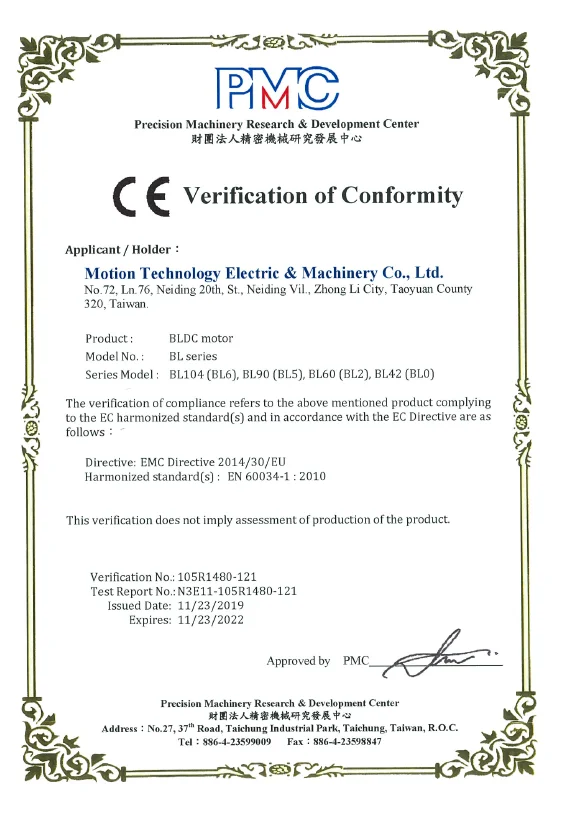

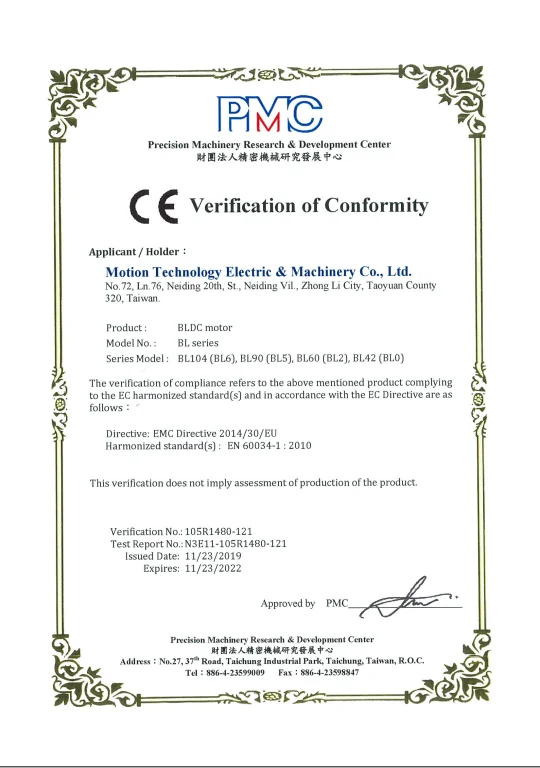

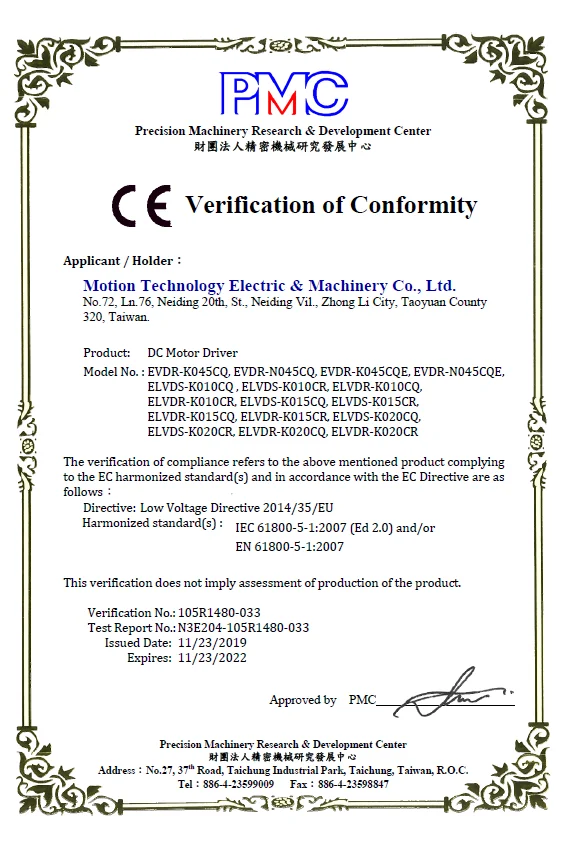

Certifications






Packing & Delivery




Company Profile


About MTM
ISO 9001, ISO 14001 AUTHORIZED.
Motion Tech is the leading role in motor industry in Taiwan and leading brand of medical electric wheelchair, E-scooter all over the world. We devote to manufacture PMDC motors and BLDC motors since 2002.The main products of MTM is power module which included motor, gearbox and motor controller. MTM provide customization service which included design, test and manufacture to create a product with quality, efficiency and reliability.
