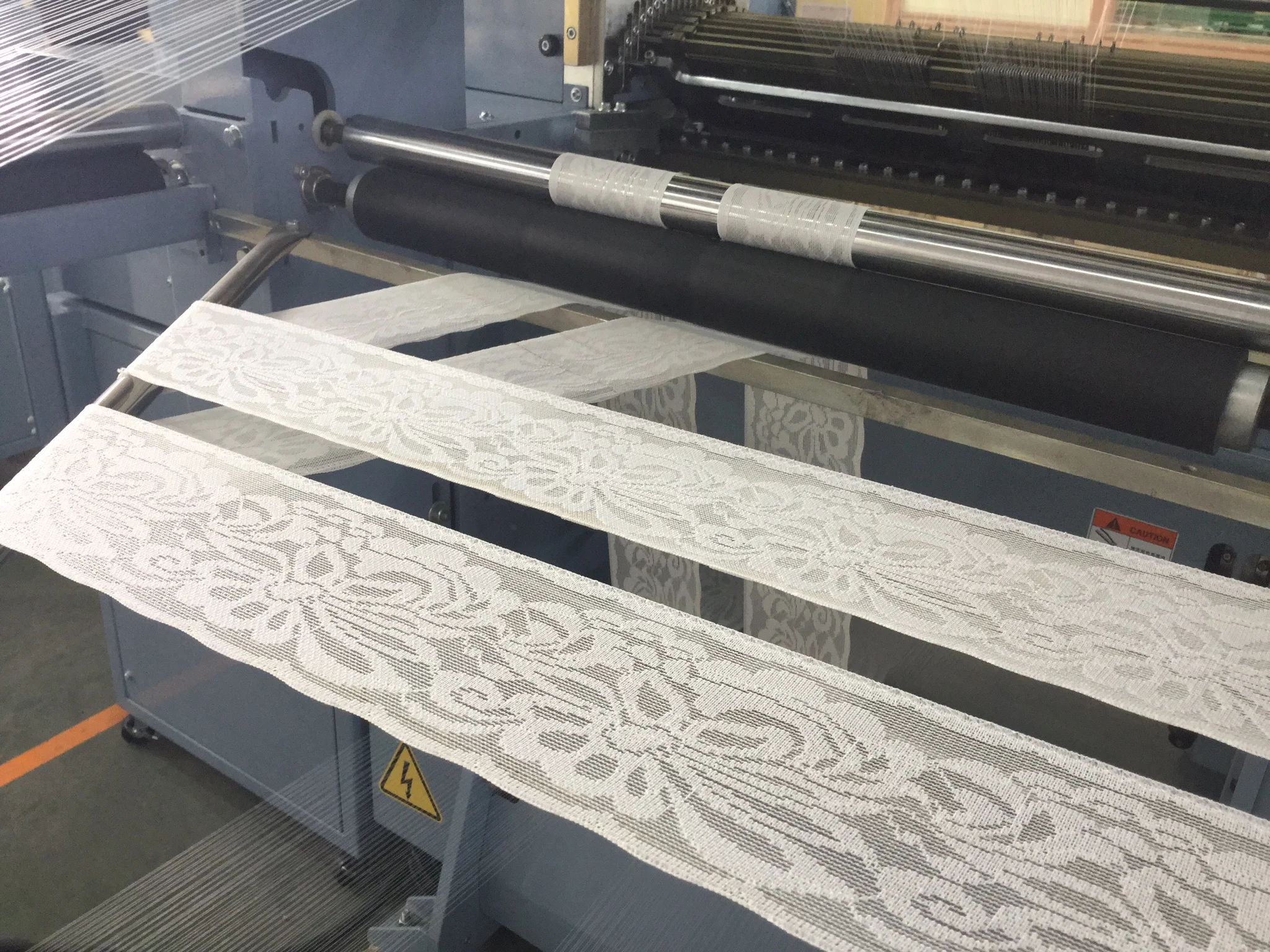

DAHU automatic electronic crochet machine
DAHU automatic electronic crochet machine
DAHU automatic electronic crochet machine
DAHU automatic electronic crochet machine
DAHU automatic electronic crochet machine
DAHU automatic electronic crochet machine
DAHU automatic electronic crochet machine

DAHU automatic electronic crochet machine

Share on (10000002174790):


Price:

Quantity:


Product Overview

Description



Product Overview

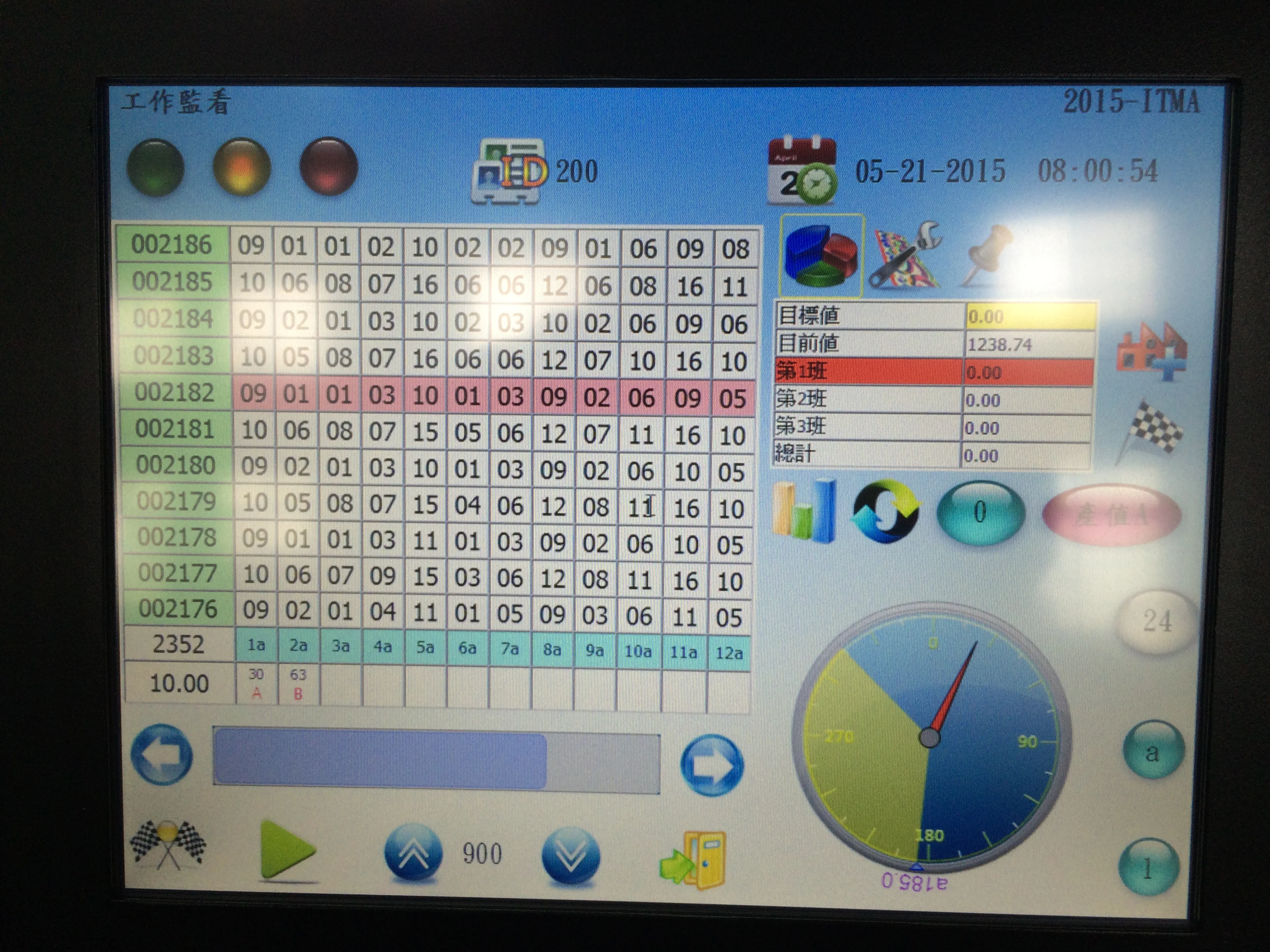

The model equips with DHWFSD® 8/12/16/20 bars servo motor driven electronic weft yarn lateral shifting, electronic yarn feeding, take off system, which cooperates with advance of EFFECT® DAHU CONTROL system.


FEATURES AT A GLANCE

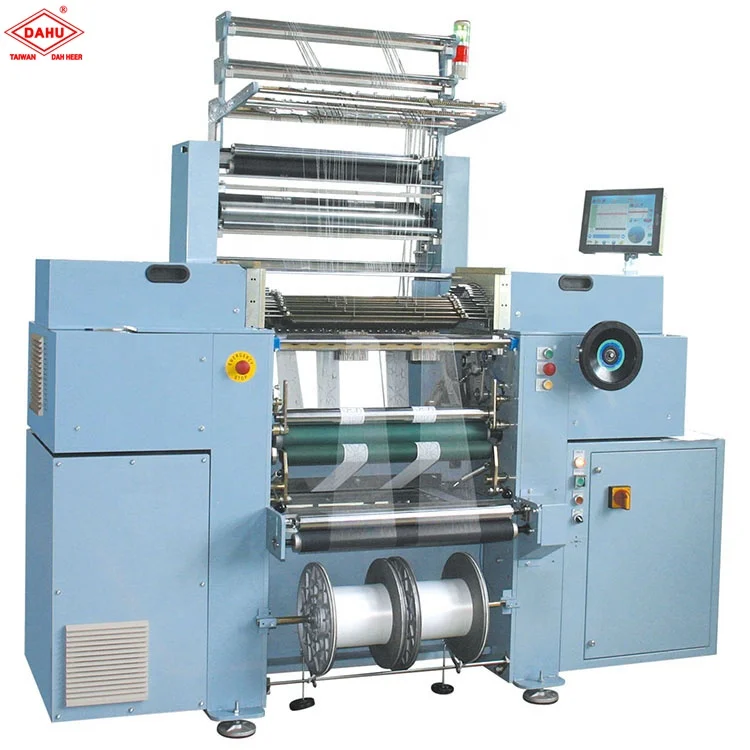

DH 608-B16/20AC
- With patent newest dual swing needle emerging system, machine running more stable and reduce needle consumption.
- The up and down position of weft yarn bar can be adjusted from both side of bolsters, which make easier for machine’s setting.
- Infinity pattern length edit.
- Automatic lubrication system, which can effectively extend machine’s life and reduce manual maintenance procedure.

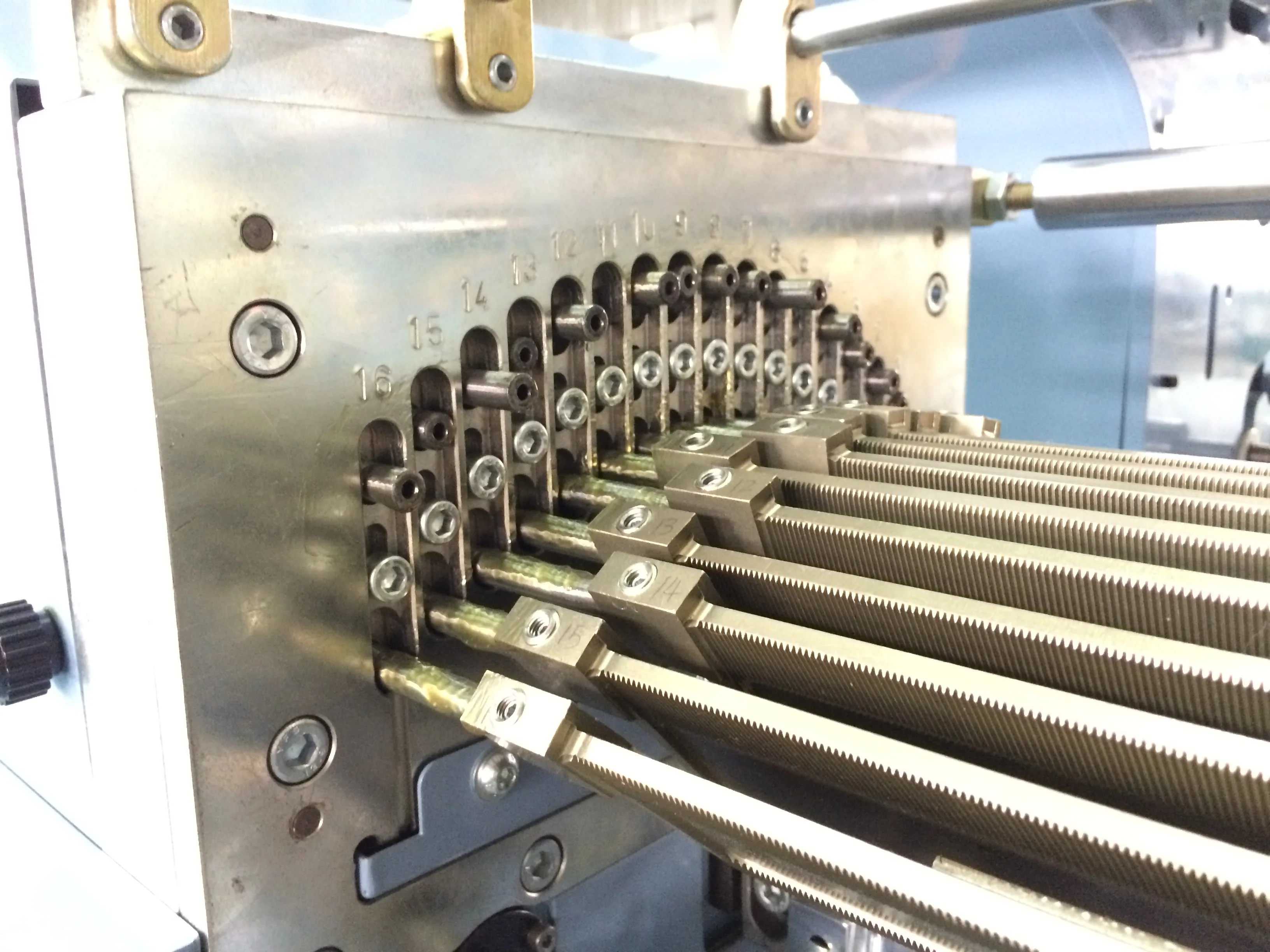

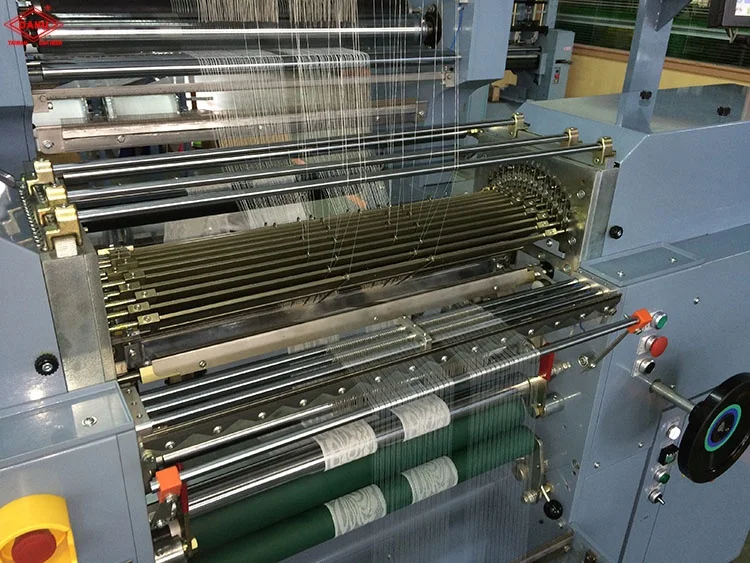

Multi Weft Yarn Bar 16/20
Back creel

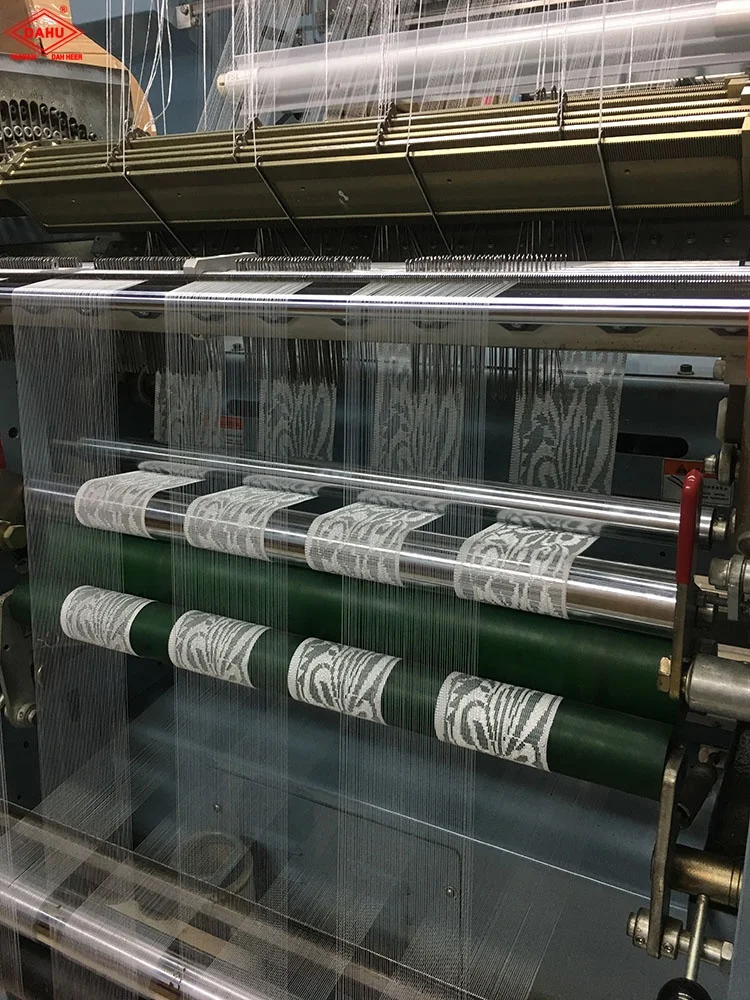

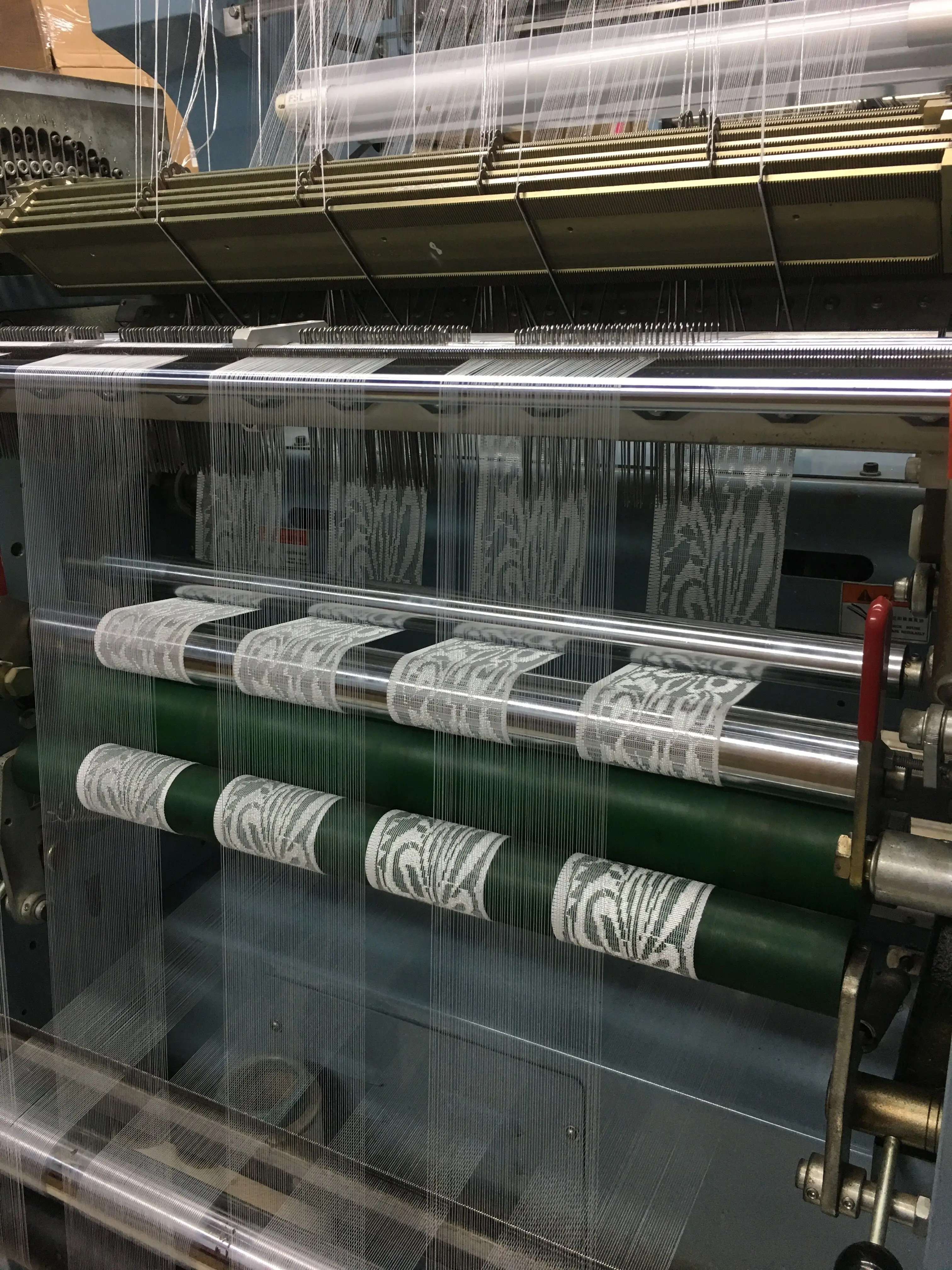

Output Device


PRODUCT SPECIFICATIONS



Specification
Net Weight
1020 kgs
Size(WXLXH)
210X500X210 cm
Motor (Servo Motor)
1 kW

Technical Data
Speed
Max. 1,200 rpm
Gauge of Cylinder
14/15/18/20/24 GG
Operation Width
24 inch


Company Profile


Established in 1992, DAHU specializes in researching, designing, manufacturing and selling of high quality crochet machines.

"Innovation, Quality, Service" are our managing principles. All employees invariable persist in making quality crochet machines to satisfy our customers in crocheting field.

DAHU has a strong R & D team in which our employees are experienced in crocheting technology. The crochet machines of our company are under serious inspection. We inspect all segments before shipping out machines.

Sales services, technical consultation and training are available on request. Customers' visit for understanding the performance, operation, maintenance and repair of machines will be the most welcome.

We do adhere to our managing principles to upgrade our products in order to co-work with our customers to develop a fruitful future.




SALES AND SERVICE NETWORK

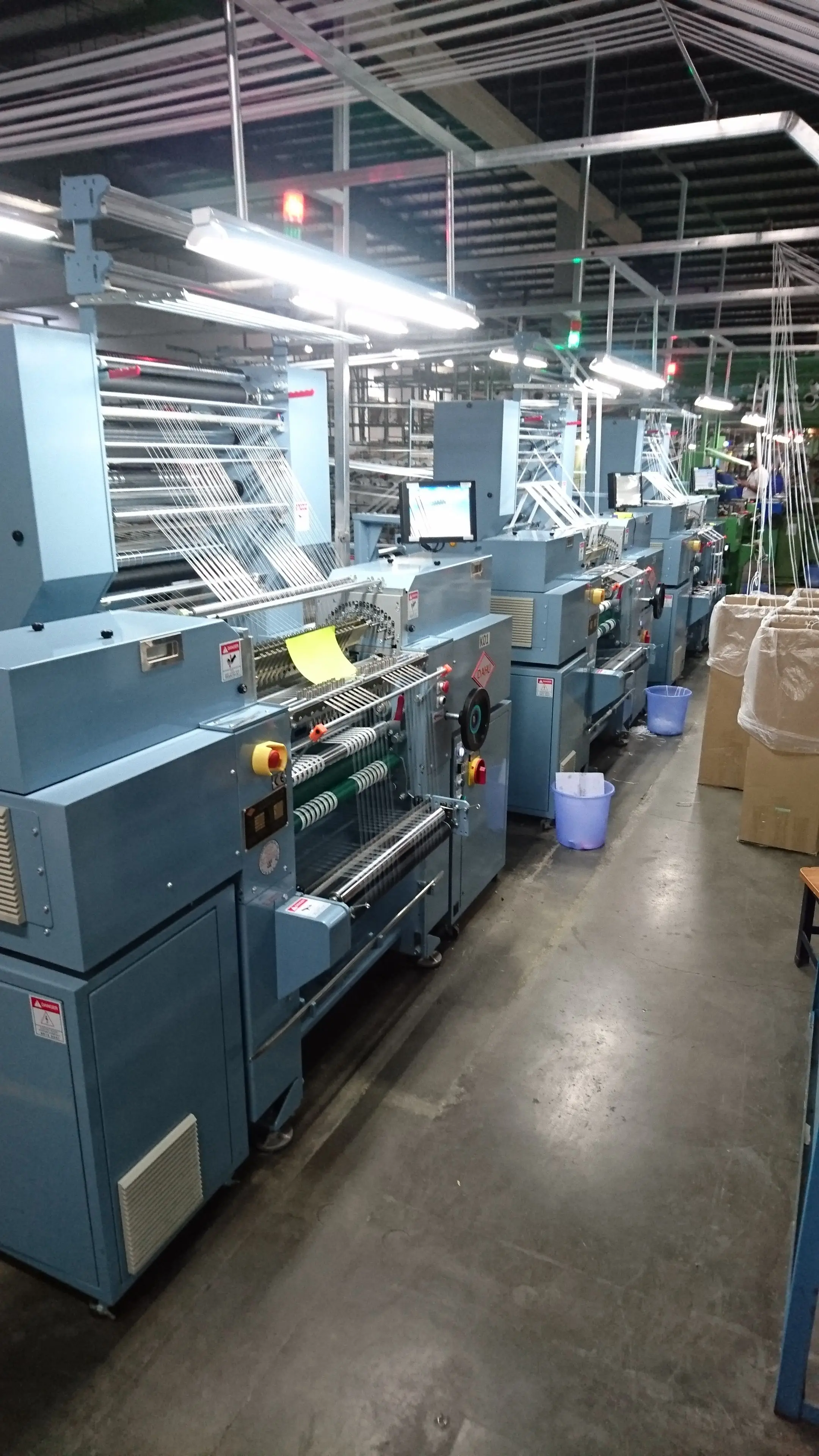

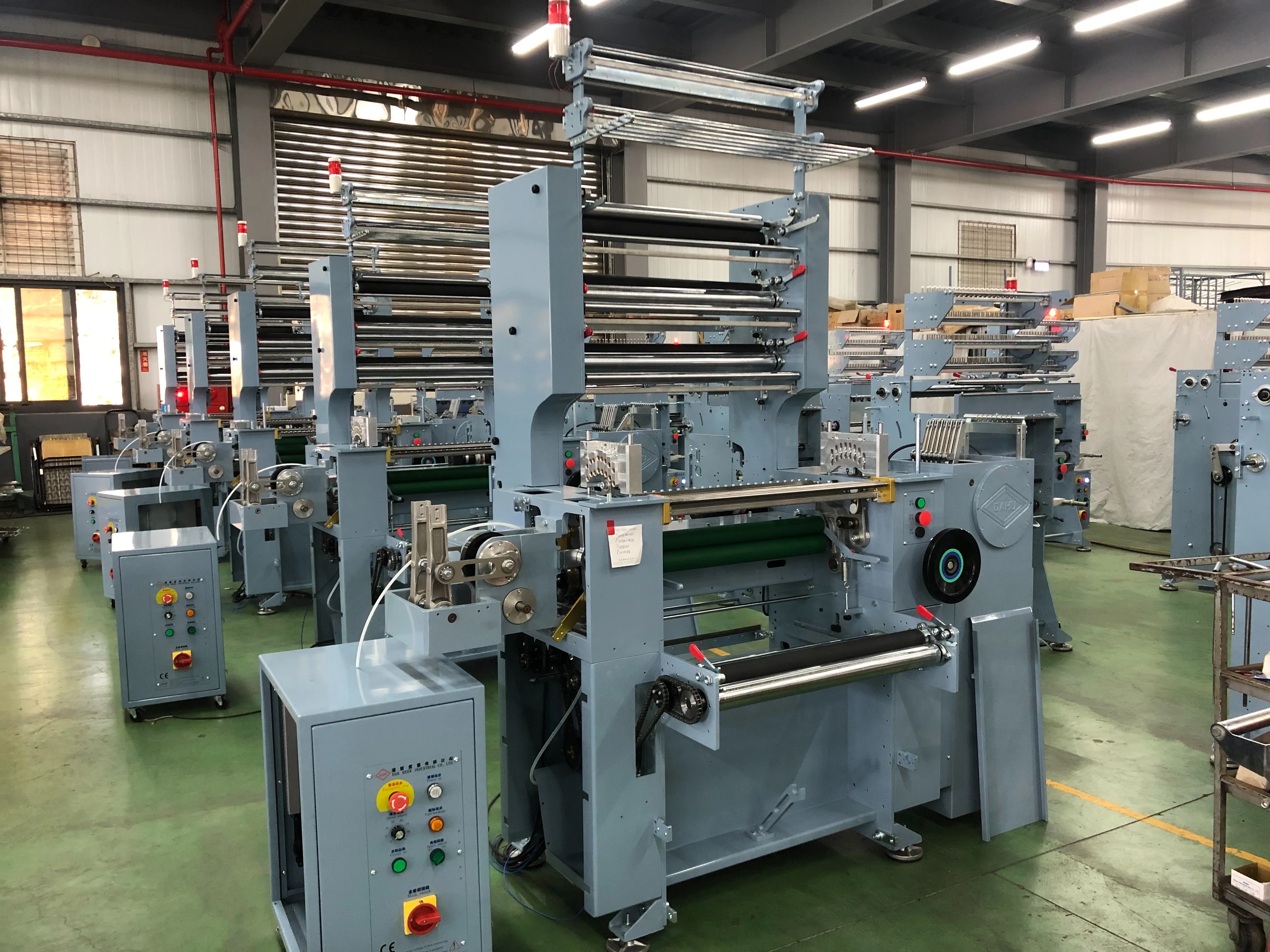

Customer Photos




Why Choose Us


● Worldwide sales and service back up
● Skilled technical team and professional sales team
● Prompt reply withing 24 hours
● 30 years of experienced both in electronic drive and software controllers
● Yearly service visiting in our major sales areas
● Regional agents in 20 countries around the world
● More than 60 regions of customers
● Local training provided if need
● Over 10,000 crochet machines sold


DH 608-B16/20AC
DH 608-R8/12BAC
Numbers of Weft Yarn Bar
16/20
8/12
Max. Number of Pattern
40
40
Max. Speed
 1200 rpm
1200 rpm


FAQ


Q1：How would you help us to check machine problem?
A1：We can check machine software problem by online service.

Q2：Does the machine can produce the width of tape more then 4" ?
A2：An optional long throw device for model DH 608-R8/12BAC, the machine can produce widest 12" tape.

Q3：How would you help us to install the machine?
A3：The installation manual is provided with each machine. Our regional agents will arrange technician for machine installation when needed.

Q4：How long is the machine warranty?
A4：We offer 12 months warranty.

Q5：Where is the machine from?
A4：The machine is 100% made in Taiwan.
