H81 I3 4130 4G 128G Open Pluggable Specification detachable pluggable mini pc computer OPS for interactive board
- Category: Mini PC >>>
- Supplier: Shenzhen Hong Shuo Xun Technology Co. Ltd.
Share on (10000002255996):
Product Overview
Description
Product Description
Title goes here.
1.Full-featured detachable OPS mini PC module for seamless integration into smart lcd display.
2. Compliant with Intel® Open Pluggable Specification (OPS)
3. Intel® Core™ i3 i5 i7 processor with integrated Intel® HD graphics chipset
4. DDR4 DDR3, RAM 4GB/8GB/16GB, Harddisk:128GB/256GB/512GB/1TB SSD or HDD for choices.
5. HDMI 1.4, VGA-Out, and DisplayPort out ports for connection to secondary display.
6. Four(2)/4 high speed 3.0 USB ports for connection to keyboards and mice, to hard drives and flash drives.
7. Integrated RJ45 port for network monitoring and management solutions.
8. Reduces clutter & promotes a cable-free workplace
9. Easy installation and maintenance
10 Eco-friendly with low consumption
11.Rugged steel chassis for extra strength and integrity
2. Compliant with Intel® Open Pluggable Specification (OPS)
3. Intel® Core™ i3 i5 i7 processor with integrated Intel® HD graphics chipset
4. DDR4 DDR3, RAM 4GB/8GB/16GB, Harddisk:128GB/256GB/512GB/1TB SSD or HDD for choices.
5. HDMI 1.4, VGA-Out, and DisplayPort out ports for connection to secondary display.
6. Four(2)/4 high speed 3.0 USB ports for connection to keyboards and mice, to hard drives and flash drives.
7. Integrated RJ45 port for network monitoring and management solutions.
8. Reduces clutter & promotes a cable-free workplace
9. Easy installation and maintenance
10 Eco-friendly with low consumption
11.Rugged steel chassis for extra strength and integrity
Specification
Model | H81-I3-4130+4G+128G | |
processor | System chipset | H81 |
CPU model | 4th generation Intel® Core™ i3-4130 processor | |
Core and frequency | Number of cores: 2, Number of threads: 4, Basic frequency 2.5GHz | |
RAM | technology | 1 x SODIMMs DDR3 |
DDR3-4G | RAMDDR3-4G | |
display | Front-end output | HDMI-Max. 1920 x 1080 |
VGA-Max.1920 x 1080 | ||
JAE side | HDMI-Max.1920 x 1080 | |
Processor graphics | model | Intel® HD Graphics 3000 |
Fundamental frequency | 650 MHz | |
Maximum dynamic frequency | 1.1 GHz | |
hard disk | hard disk | 128G SSD |
Network Card-Dual Band 5G | interface | PCIE |
Support | 2.4g wifi ( optional: 5g dual frequency, bluetooth) | |
Gigabit LAN controller | ||
I/O interface | JAE Connector | 1(JAE TX25 80-PIN) |
HDMI | HDMI-Max.1920 x 1080 | |
VGA | VGA-Max.1920 x 1080 | |
LAN | 1(RJ45.Gigabit) | |
USB | 2 x USB3.0 & 2 x USB2.0 | |
Audio | 1 x AUDIO OUT + 1 x MIN IN | |
Serial port | 1 x RS232 com / tailboard serial port TTL output (Optinal either one , can't both) | |
Extension ports | Mini-PCLe (built-in) | 1 x Mini-Pcle |
1 x Msata | ||
Power requirements | Input voltage | DC-IN 12-19V |
Physical characteristics | size | 180x 195 x 42 mm |
shell material | Iron sheet | |
Heat dissipation | Cooling method | Copper tube with double ball fan for heat dissipation and temperature control |
Environment | temperature | 0-40℃ |
Relative humidity | 95% @40℃ (non-condensing) | |
Software Development Kit | System | Windows®7.0 Windows®8.1 Windows®10 |
Company Profile

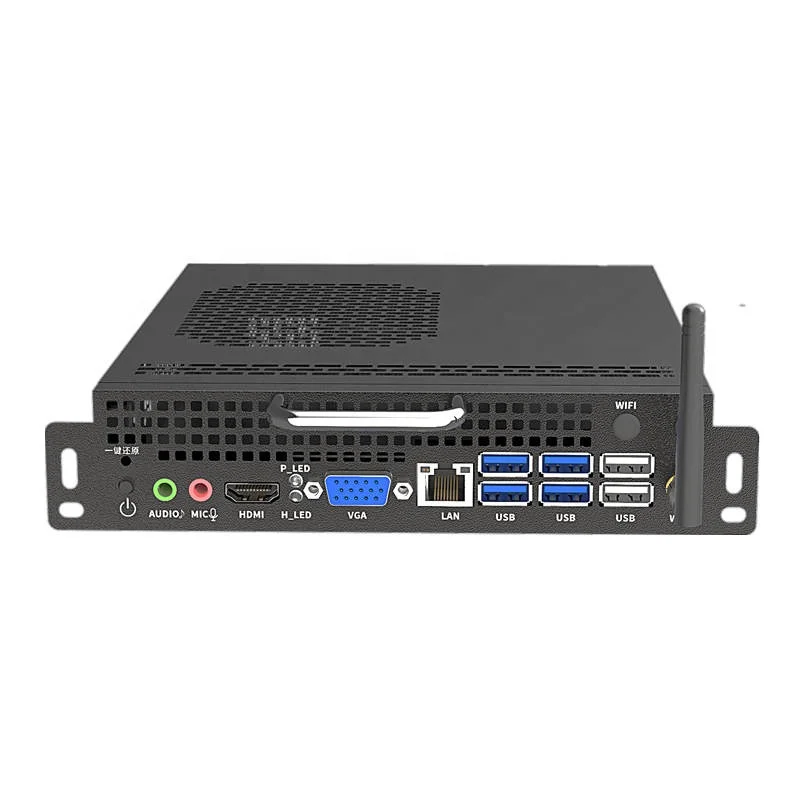

1. Front HDMI+VGA display interface.
2. The antenna increases the WIFI signal output.
3. Support 4th laptop CPU.

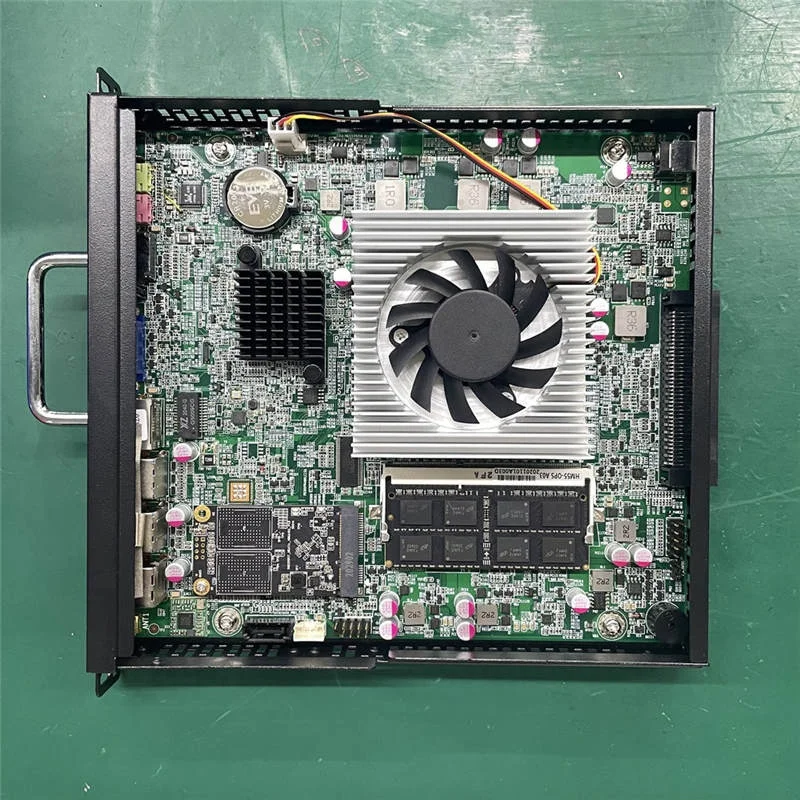

4. Motherboard with hardware restore function.
2. The antenna increases the WIFI signal output.
3. Support 4th laptop CPU.
4. Motherboard with hardware restore function.
Packing & Delivery

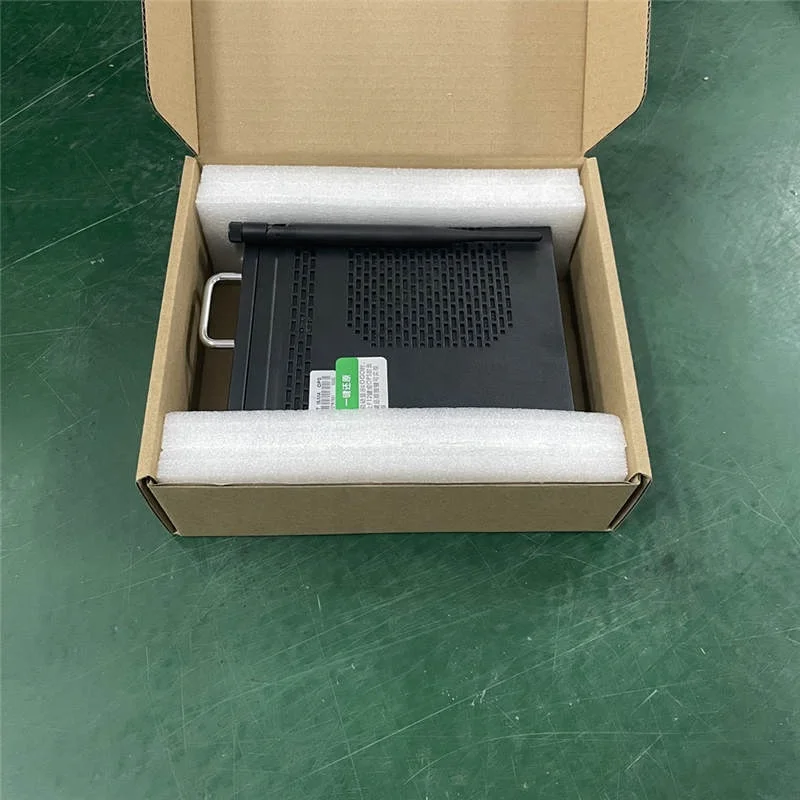

The OPS mini pc are well packed by carton box
