SFP DWDM D46 HW 10G 1540.56nm 40km Optical Transceiver Module for prompt delivery
- Category: >>>
- Supplier: XWIFI INDUSTRIAL LIMITED
Share on (10000002256210):
Product Overview
Description

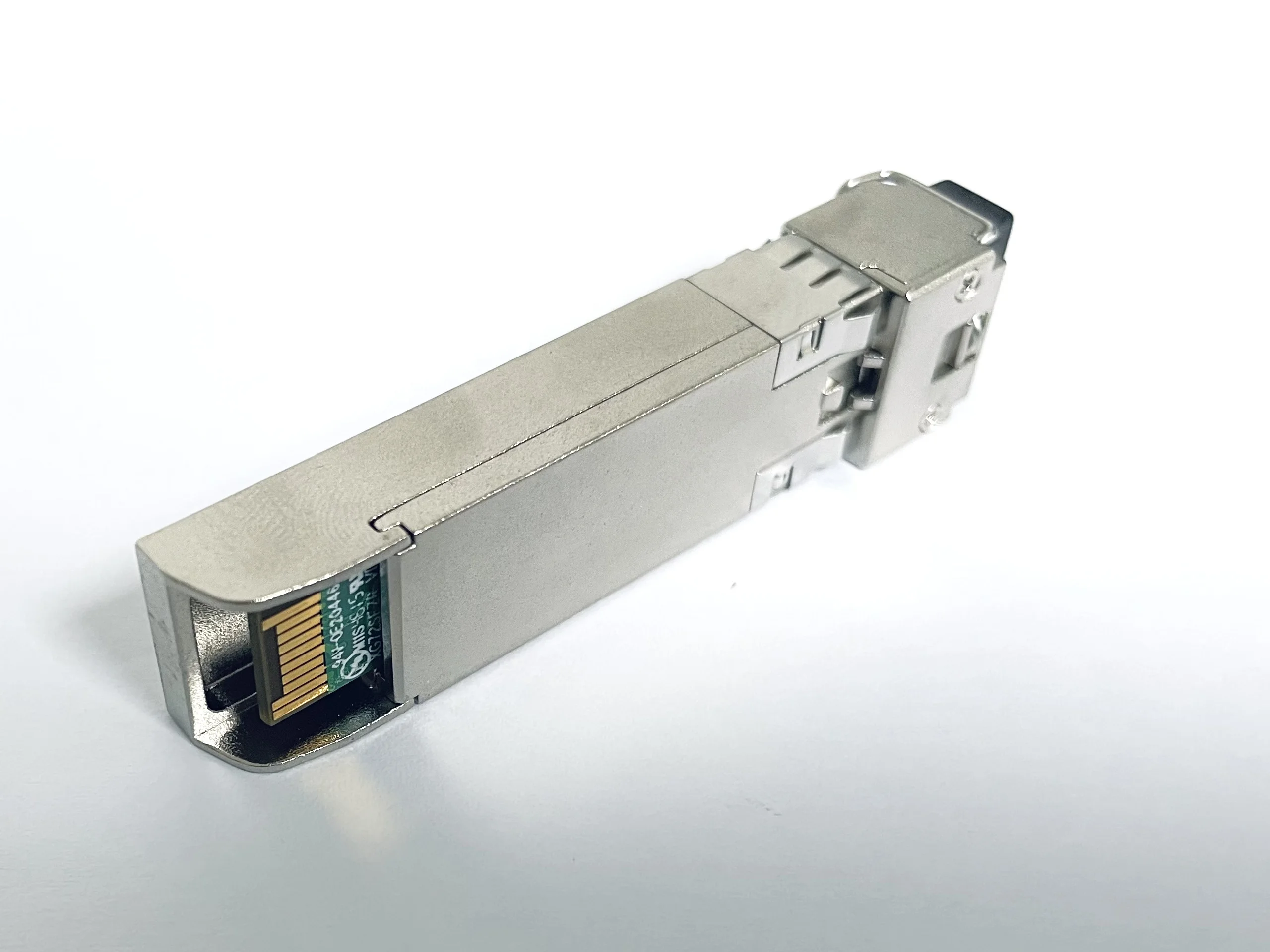

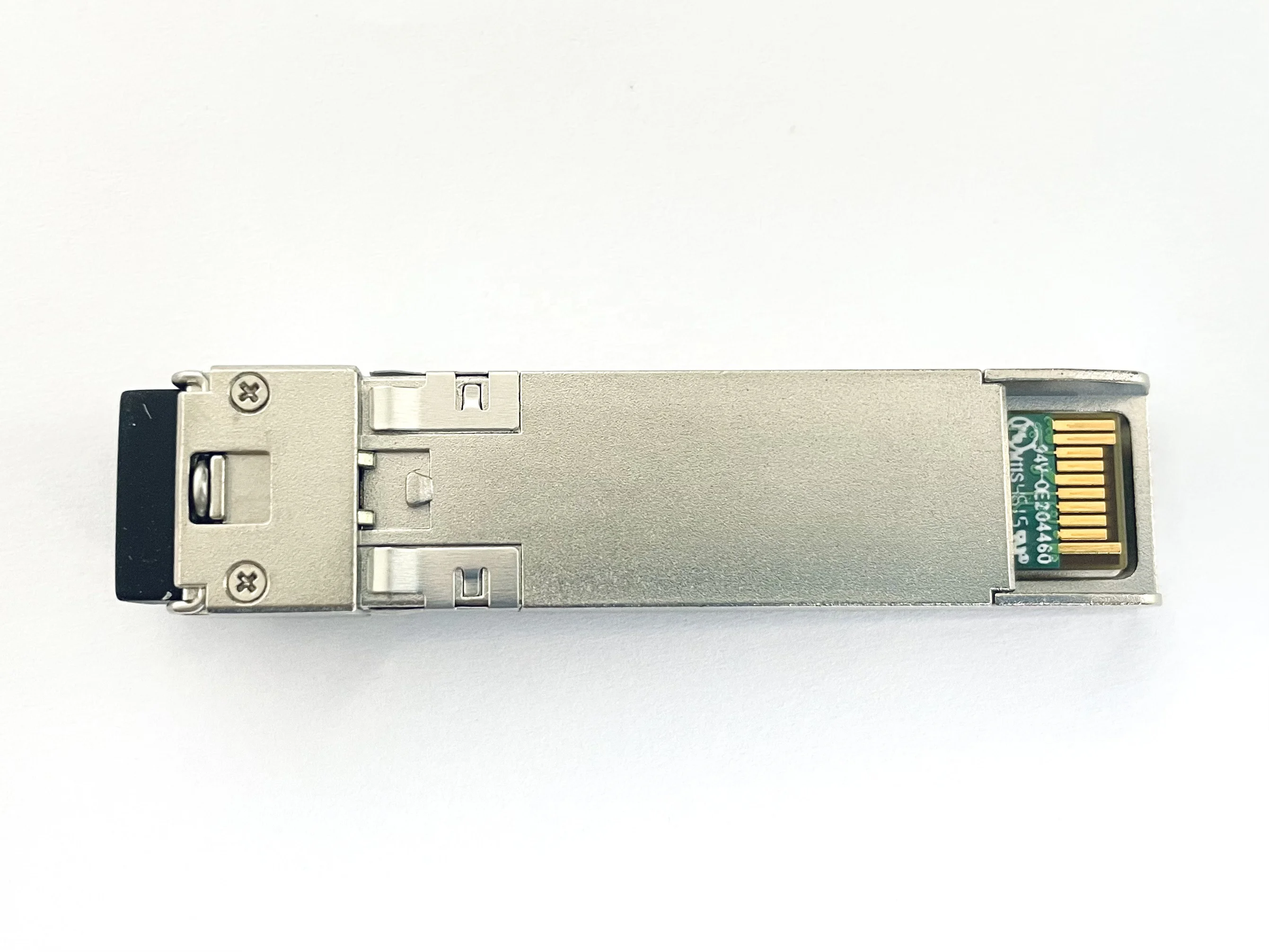

Detail Images

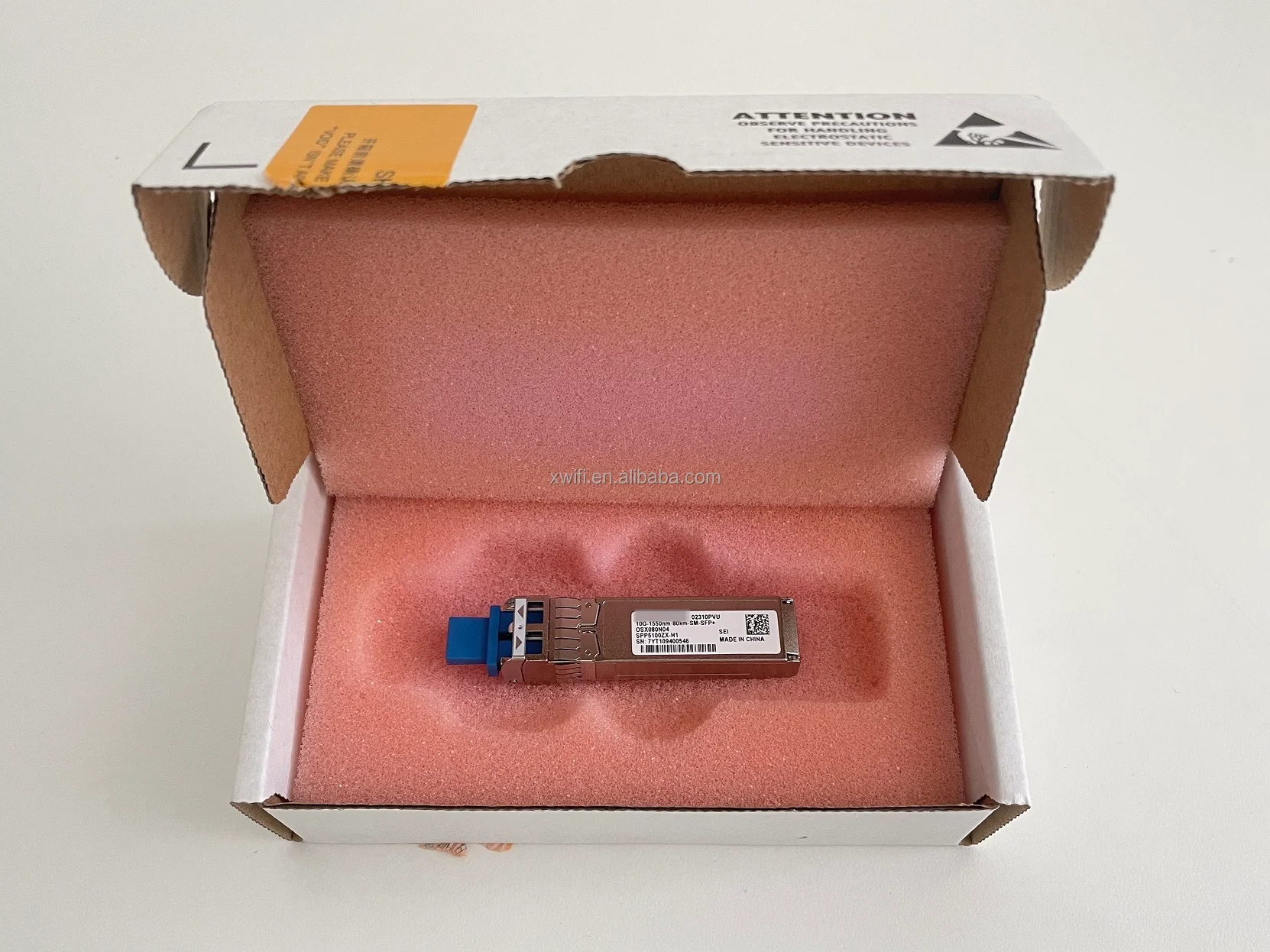

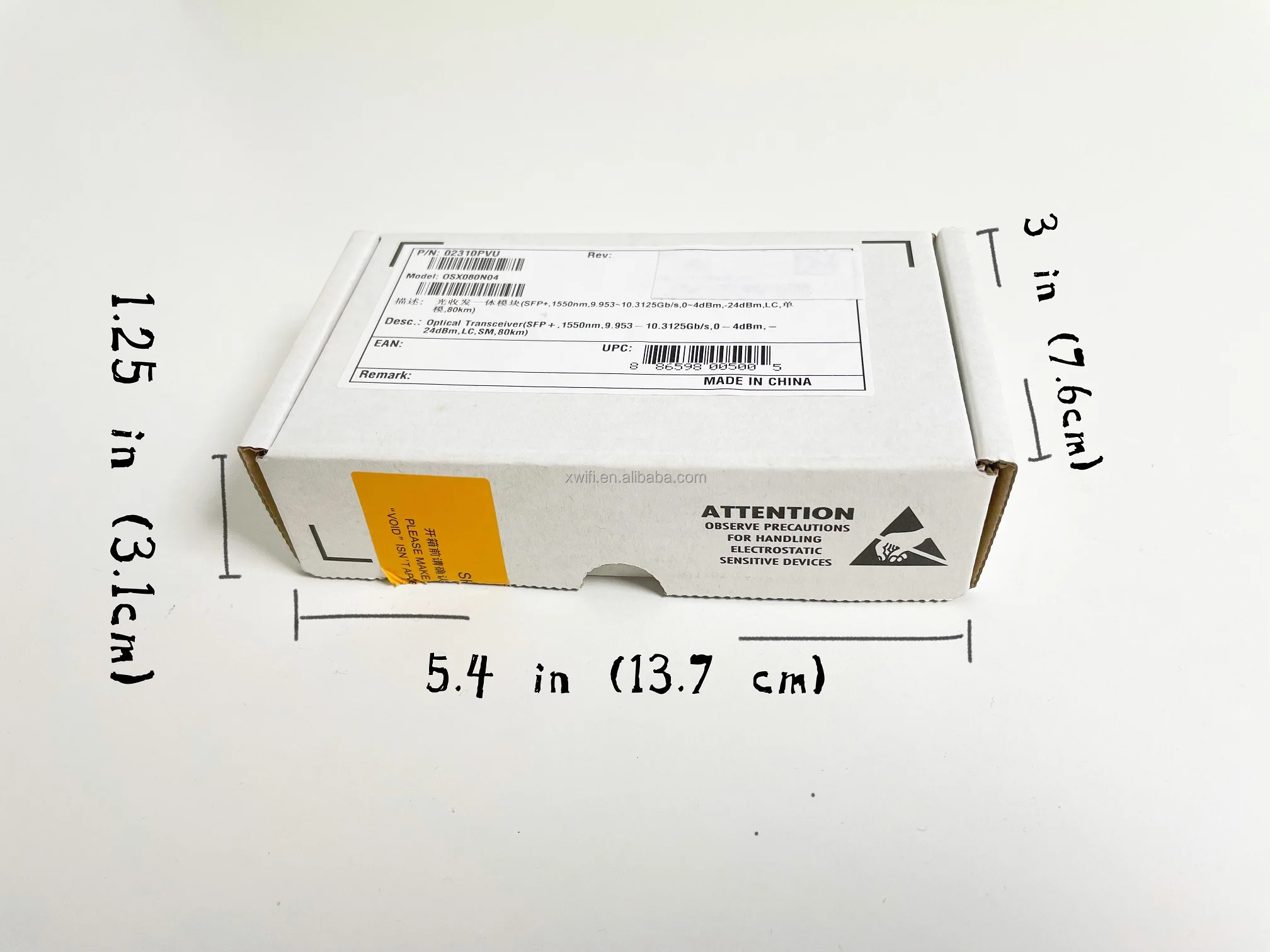

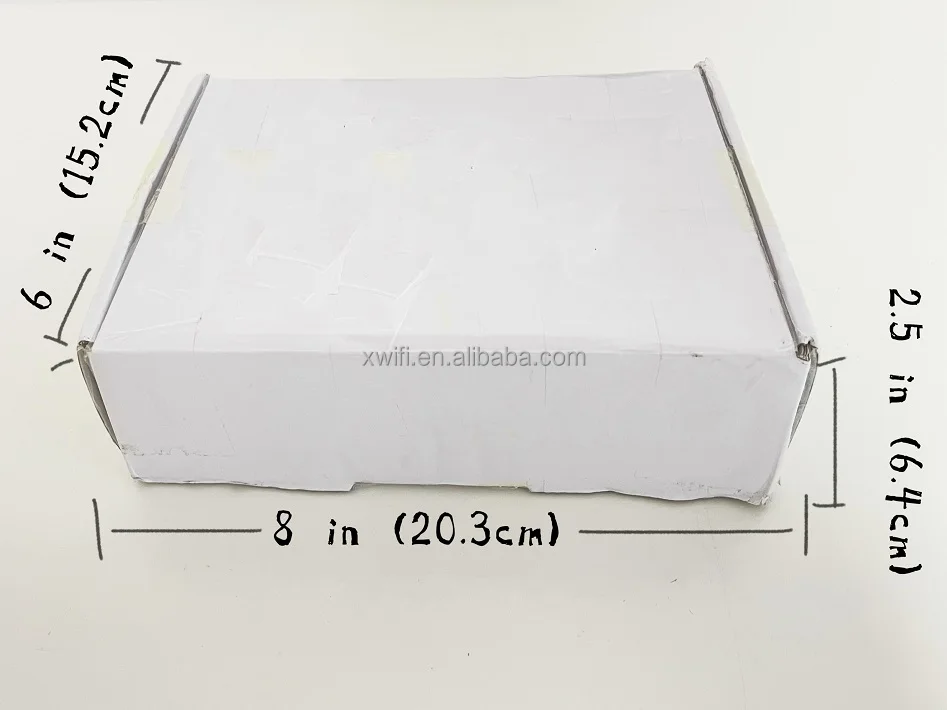

Packaging (Single Module)

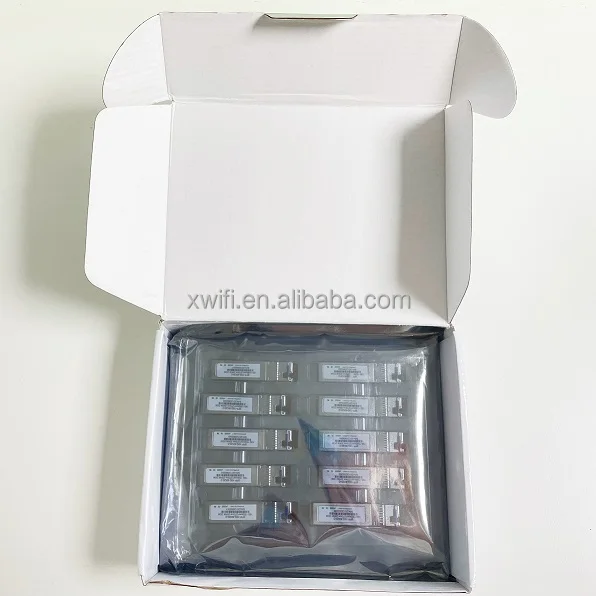

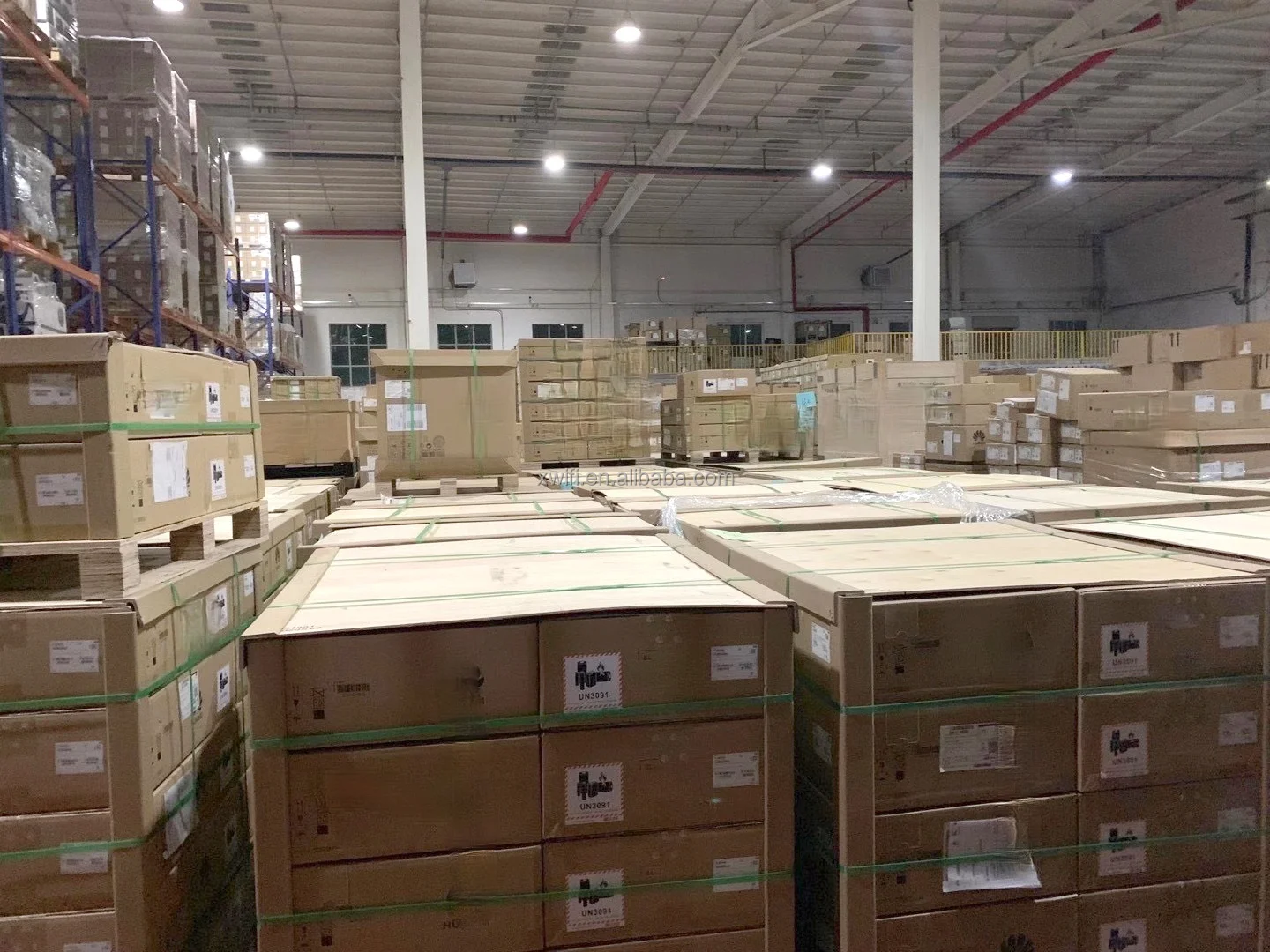

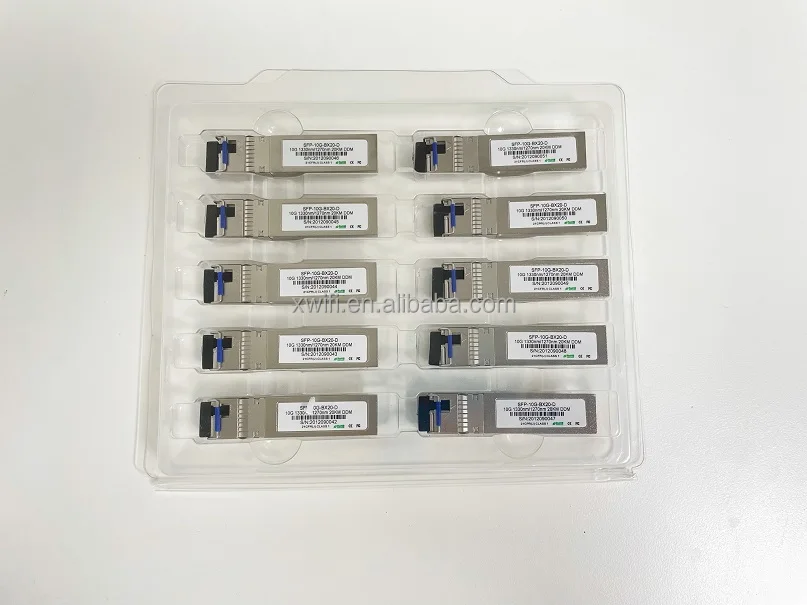

Packaging (Multiple Modules)

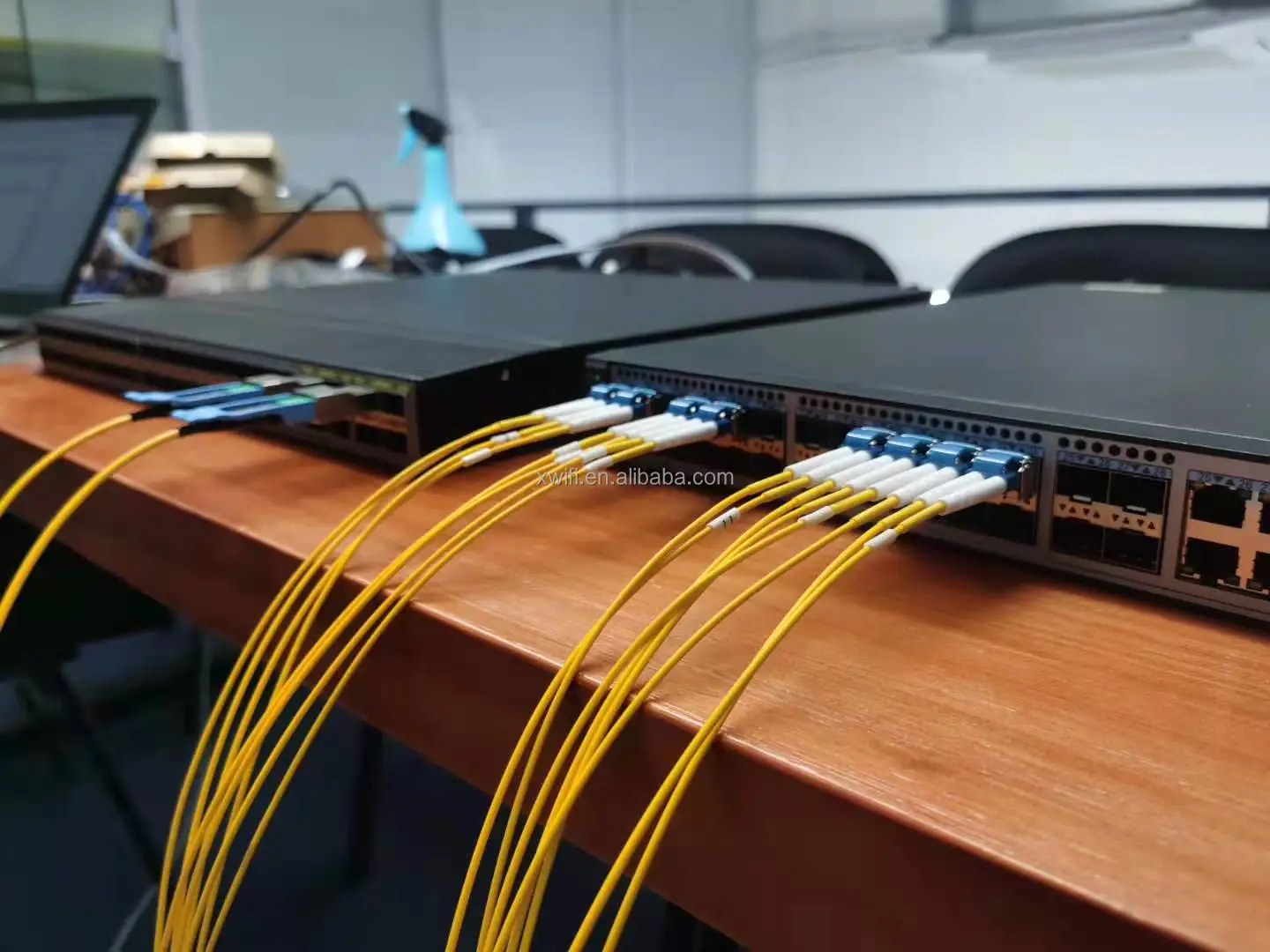

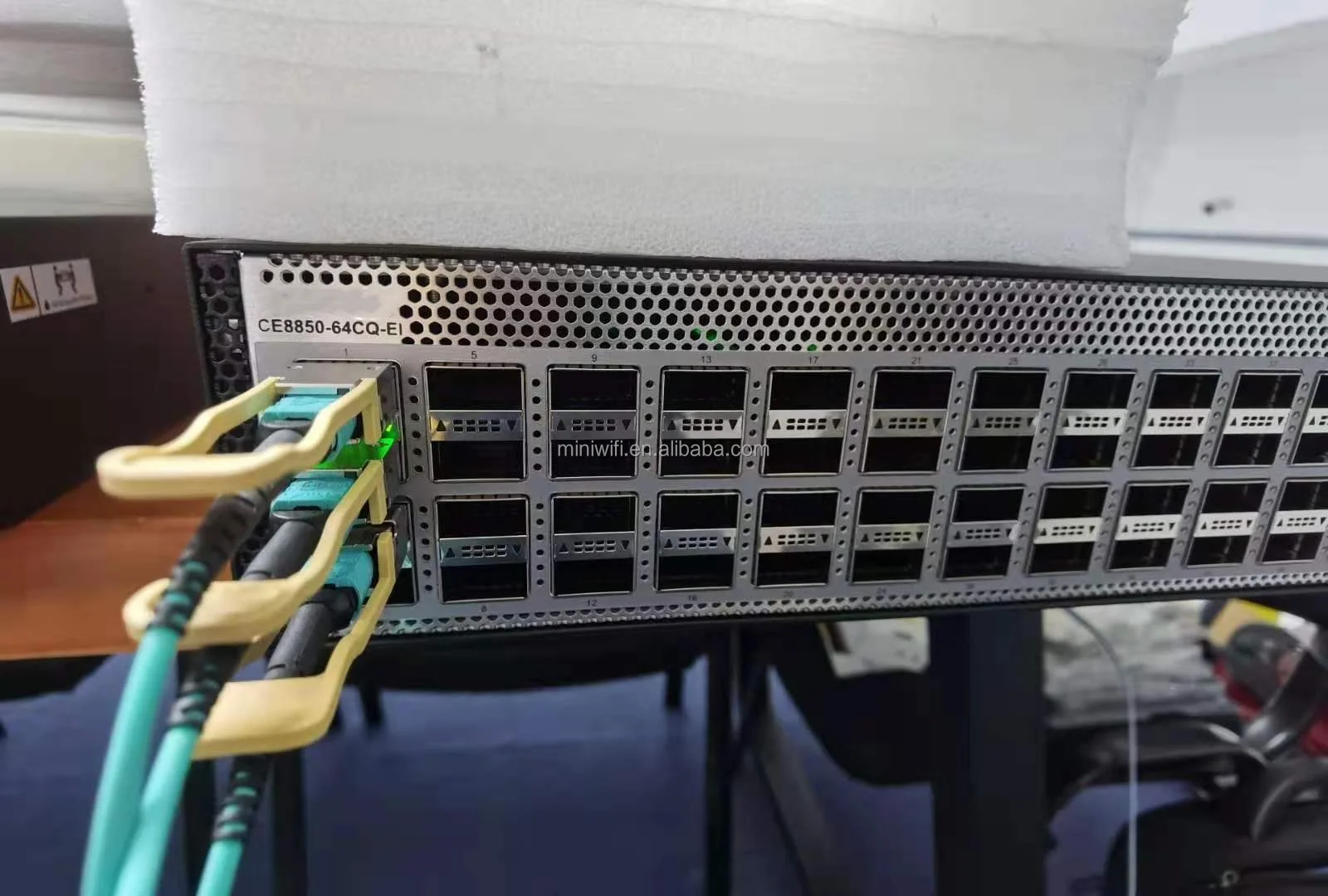

Installation Instructions
We will test all products before shipping. All the device are in new and original condition.
SFP+-DWDM-D46-HW 10G 1540.56nm 40km Optical Transceiver Module for prompt delivery | |
Rate | 10Gb/s |
Distance | 40km |
Wavelength | 1540.56nm |
Temperature | 0°C~70°C |
Fiber Type | SMF |
Type | DWDM SFP+ |
Connector | Duplex LC |
Diagnostics | DDM |
Power Supply | 3.3V |
SFP+ 10G 1540.56nm 40km SM Transceiver, -1~4dBm, Duplex LC, SMF, DDM
The DWDM SFP+ transceiver module complies with SFP+ MSA specifications (SFF-8431, SFF-8432, SFF-8472), 10 Gigabit Ethernet specifications (10GBASE-ER/EW per IEEE 802.3ae ), and 10G Fibre Channel. It’s suitable for use with 10GbE Ethernet switches, routers, network interface cards (NICs), fiber media converters and storage networking equipment in DWDM networks. Additionally, the DWDM SFP+ module has been integrated with an enhanced digital diagnostic monitoring interface (DDMI) per SFF-8472, which
provides real-time monitoring of the transceiver temperature, laser bias current, optical power, received optical power and transceiver supply voltage.
This DWDM SFP+ transceiver module is designed for 10 Gigabit Ethernet links up to 40km over single-mode fiber. It features a high-performance DWDM EML transmitter and PIN diode into a duplex LC optical connector. This DWDM SFP+ module operates on a nominal wavelength of 100GHz ITU Grid, C Band DWDM wavelength.
The DWDM SFP+ transceiver module complies with SFP+ MSA specifications (SFF-8431, SFF-8432, SFF-8472), 10 Gigabit Ethernet specifications (10GBASE-ER/EW per IEEE 802.3ae ), and 10G Fibre Channel. It’s suitable for use with 10GbE Ethernet switches, routers, network interface cards (NICs), fiber media converters and storage networking equipment in DWDM networks. Additionally, the DWDM SFP+ module has been integrated with an enhanced digital diagnostic monitoring interface (DDMI) per SFF-8472, which
provides real-time monitoring of the transceiver temperature, laser bias current, optical power, received optical power and transceiver supply voltage.
Product Selling Points
Features
* Brand New and 100%Genuine
* 40 km transmission at DWDM
* Compliant with SFP+ MSA standard
* Compliant to 802.3ae 10GBASE-ER
* RoHS Compatible
* Temperature-stabilized DWDM-rated EML transmitter and PIN ROSA
* Single 3.3V power supply
* Retimed 400GAUI-8 electrical interface
* Hot Pluggable SFP+ print
* Low Power Consumption
* Digital Diagnostic Monitor (DDM)
* Use with DWDM MUX/DEMUX, combined DWDM optics solution
* 40 km transmission at DWDM
* Compliant with SFP+ MSA standard
* Compliant to 802.3ae 10GBASE-ER
* RoHS Compatible
* Temperature-stabilized DWDM-rated EML transmitter and PIN ROSA
* Single 3.3V power supply
* Retimed 400GAUI-8 electrical interface
* Hot Pluggable SFP+ print
* Low Power Consumption
* Digital Diagnostic Monitor (DDM)
* Use with DWDM MUX/DEMUX, combined DWDM optics solution
Company Profile
XWIFI company provides high-end data center switches from Huawei, applied to ISP & IDC, operating over 10 years. We are based in Zhongguancun, Beijing. We aim to provide users with high-quality products and campus network solutions by integrating market advantages through efficient supply chains. We will initiate the second phase of our development strategy. Our company regards “reasonable prices, efficient delivery time and good after-sales service” as our tenet. We hope to cooperate with more customers for mutual development and benefits. Our equipment sell well all over the world and has been received lots of favorable reviews from customers. We would appreciate it if you could choose us and cooperate with us!
Product packaging
FAQ
1.How can I get the price?
-We usually quote within 24 hours after we get your inquiry (Except weekend and holidays). If you are very urgent to get the price, please Email us or contact us in other ways so that we can offer you a quote.
-We usually quote within 24 hours after we get your inquiry (Except weekend and holidays). If you are very urgent to get the price, please Email us or contact us in other ways so that we can offer you a quote.
2.Can I buy samples before placing orders?
-Yes. Please feel free to contact us.
-Yes. Please feel free to contact us.
3.What is your lead time?
-It depends on the order quantity and the season you place the order. Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.
-It depends on the order quantity and the season you place the order. Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.
4.What is your payment term?
-T/T, Western Union, Money Gram, and PayPal. This is negotiable.
-T/T, Western Union, Money Gram, and PayPal. This is negotiable.
5.What is the shipping method?
-It could be shipped by sea, by air or by express (EMS, UPS, DHL,TNT, FedEx and etc). Please confirm with us before placing orders.
-It could be shipped by sea, by air or by express (EMS, UPS, DHL,TNT, FedEx and etc). Please confirm with us before placing orders.
6.How do you make our business long-term and good relationship?
-a. We keep good quality and competitive price to ensure our customers' benefit;
-b. We respect every customer as our friend; we do business sincerely and make friends with them, no matter where they come from.
-a. We keep good quality and competitive price to ensure our customers' benefit;
-b. We respect every customer as our friend; we do business sincerely and make friends with them, no matter where they come from.
