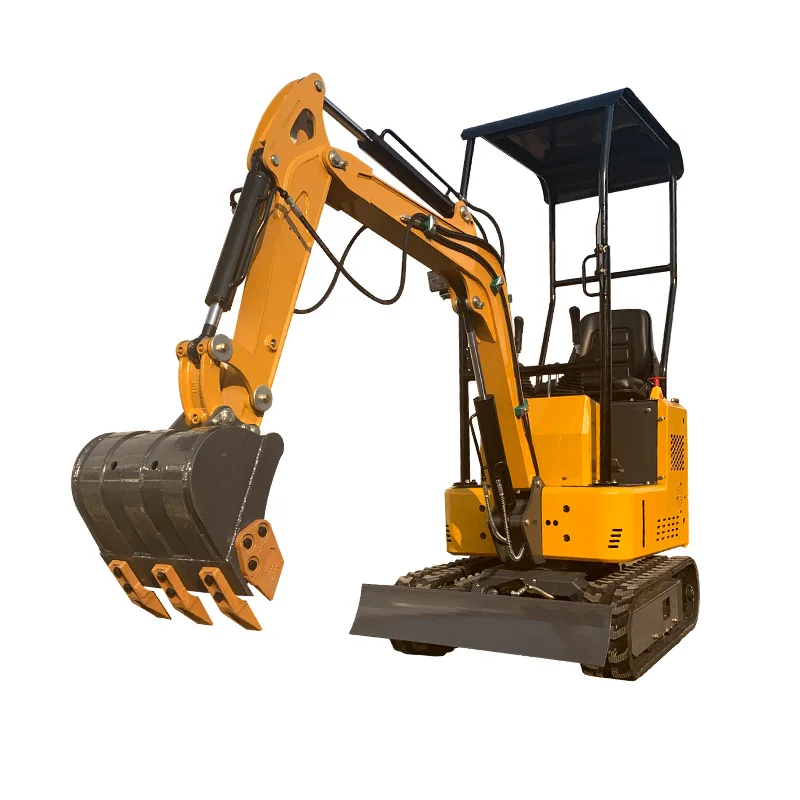

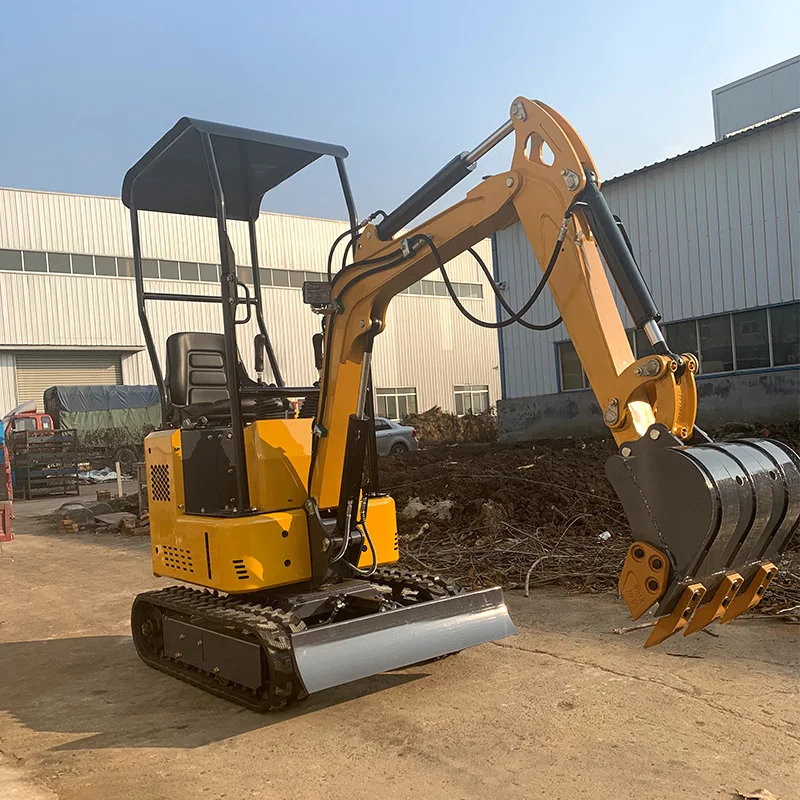

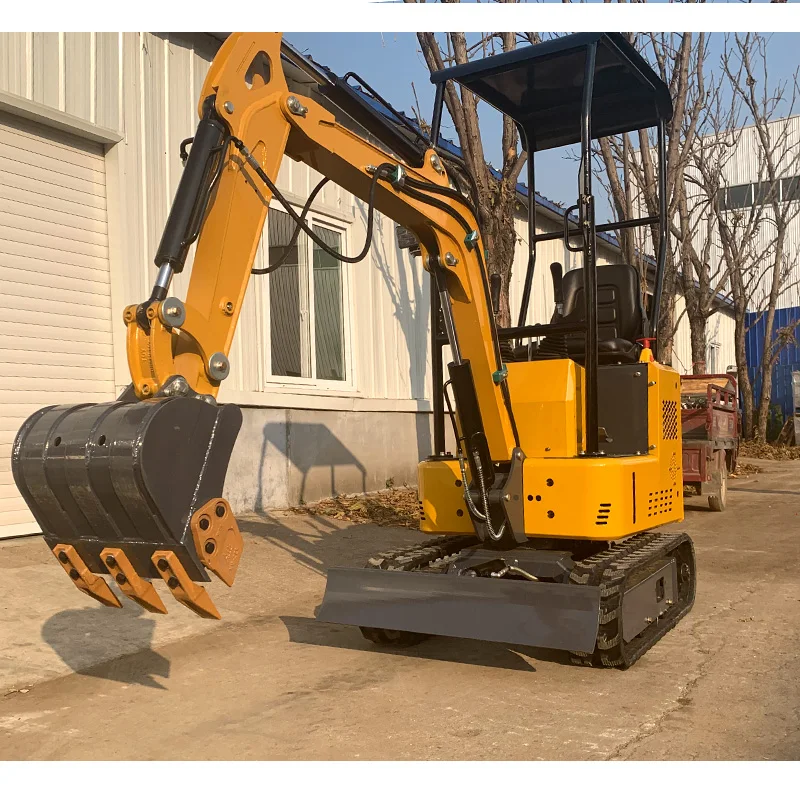

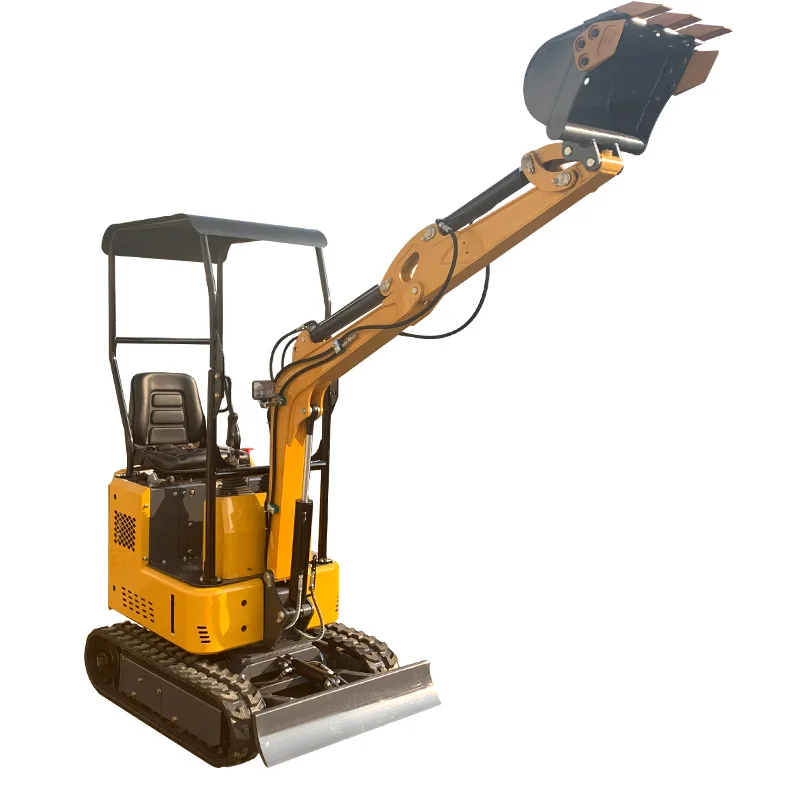

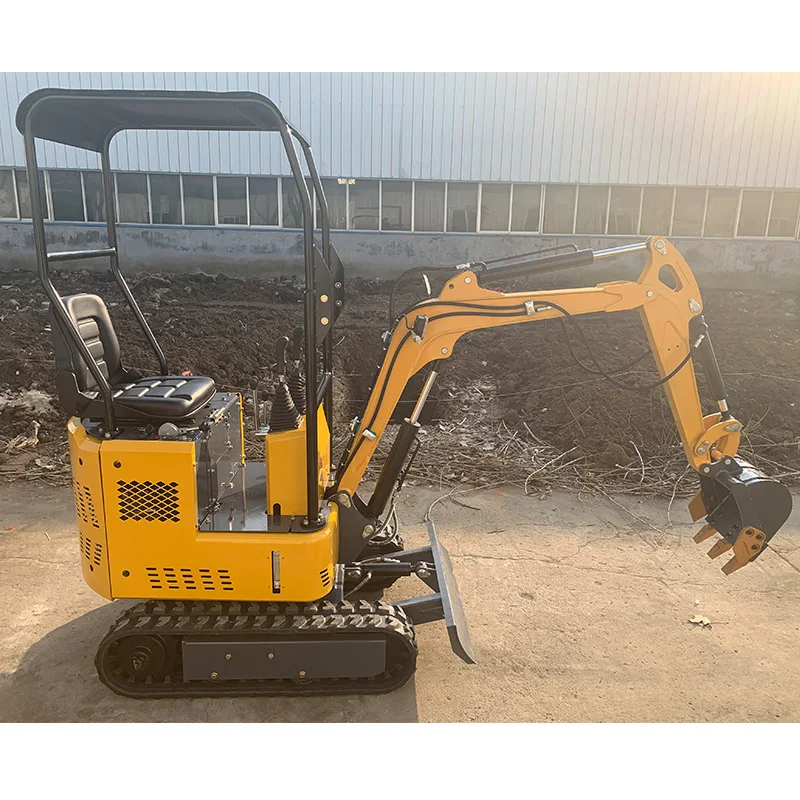

2021 new Beijun CE EPA 1 ton household small hydraulic crawler garden excavator for sale
- Category: >>>
- Supplier: Shandong Beijun Heavy Industry Co. Ltd.
Share on (10000002263683):
Product Overview
Description
Products Description
The product has beautiful appearance, high configuration, superior performance, low fuel consumption and wide operating range. It is suitable for small space construction operations such as loosening of land in vegetable greenhouses, landscaping of municipal departments, digging pits for planting trees in orchard nurseries, crushing of concrete pavement and mixing of sand and stone materials. Quick-change joints can be used to reduce maintenance and operation costs, liberate labor, increase mechanization, low investment and high return.
performance parameter | ||||
Rated power | Kw | 9.2 | ||
Bucket capacity | m³ | 0.03 | ||
Engine model | Changchai192 | |||
Working weight | Kg | 758 | ||
Maximum digging force | Kn | 7.5 | ||
Pump type | Single gear pump | |||
Setting working pressure | Mpa | 14 | ||
Rotation speed | Rpm | 12 | ||
Walking speed | Km/h | 2.2 | ||
Gradeability | ° | 30 | ||
Ground specific voltage | Kpa | 19 | ||
Scope of work | ||||
Maximum excavation distance | mm | 2450 | ||
Maximum excavation depth | mm | 1410 | ||
Maximum excavation height | mm | 2420 | ||
Maximum unloading height | mm | 1650 | ||
Minimum radius of gyration | mm | 1100 | ||
Maximum clearance of bulldozer blade from ground | mm | 120 | ||
Maximum support depth of bulldozer blade | mm | 200 | ||
External dimensions | ||||
Total width | mm | 820 | ||
Total height | mm | 1400-1900 | ||
Total lenght | mm | 2430 | ||
The minimum ground clearance | mm | 80 | ||
Track grounding length | mm | 1140 | ||
Crawler width | mm | 150 | ||

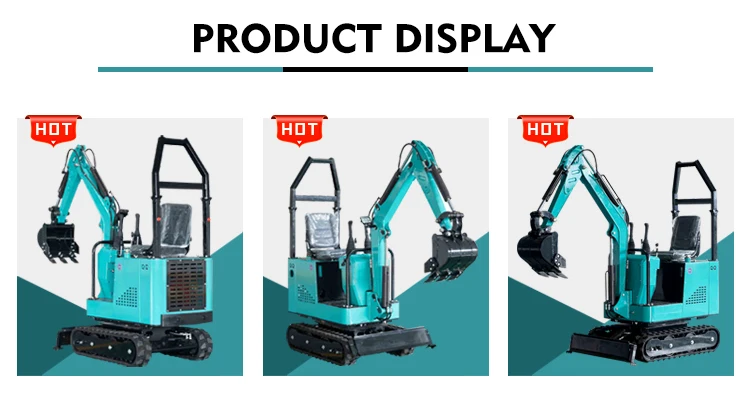

Details Images
