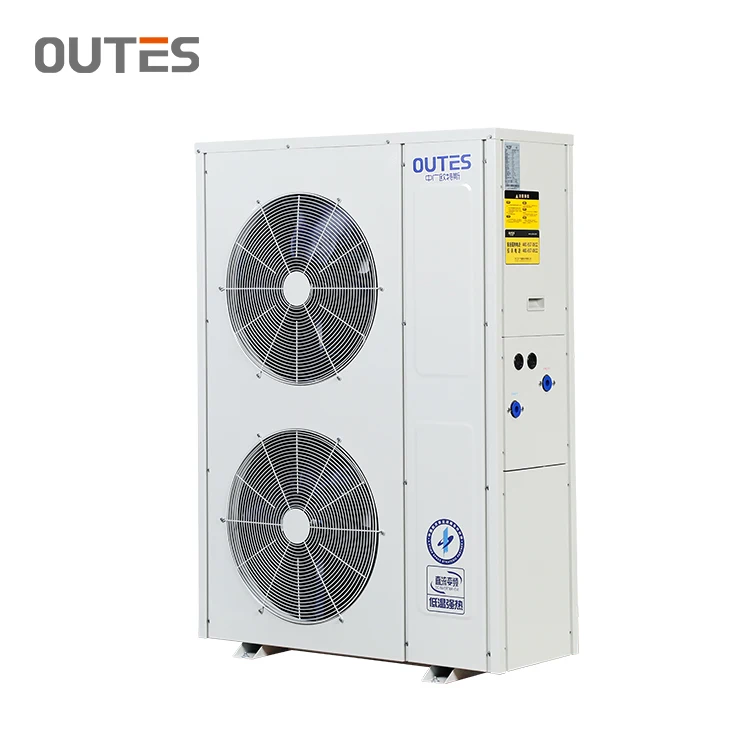

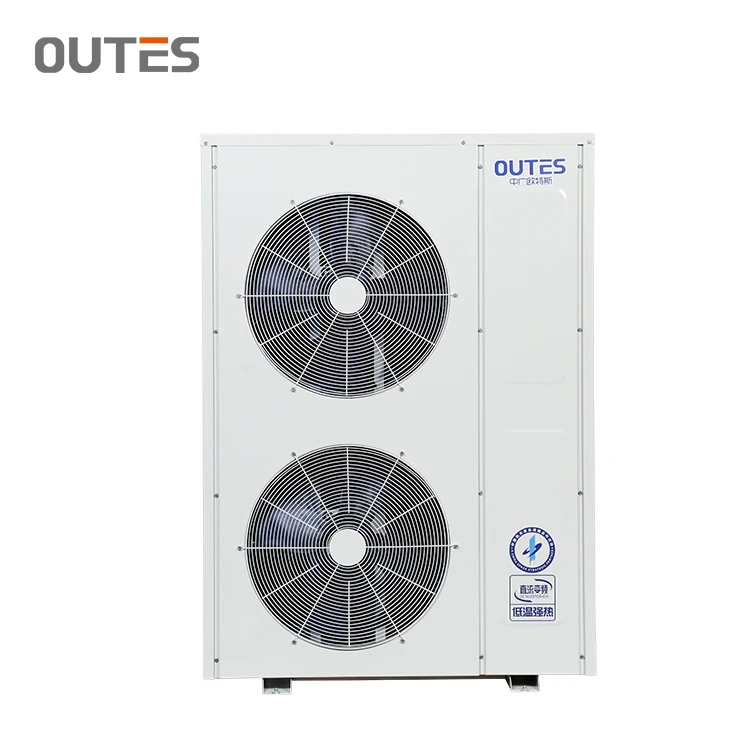

Hight efficency Air to water domestic hybrid heat pump with heating and cooling and hot water
Hight efficency Air to water domestic hybrid heat pump with heating and cooling and hot water
Hight efficency Air to water domestic hybrid heat pump with heating and cooling and hot water
Hight efficency Air to water domestic hybrid heat pump with heating and cooling and hot water
Hight efficency Air to water domestic hybrid heat pump with heating and cooling and hot water
Hight efficency Air to water domestic hybrid heat pump with heating and cooling and hot water

Hight efficency Air to water domestic hybrid heat pump with heating and cooling and hot water

Share on (10000002265535):


Price:

Quantity:


Product Overview

Description



Product Overview

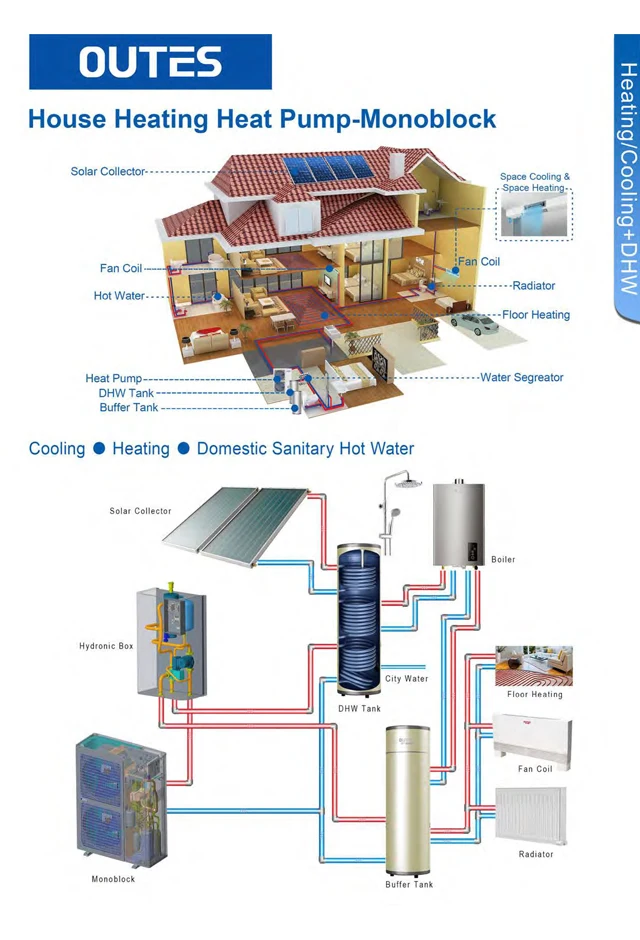

House Heating Heat Pump
Modes: AUTO/ECO/FAST/MULT


PRODUCT SPECIFICATIONS


Model
AHb22De
AHb25De
AHb28De
Power Supply
/
380V~415V/50Hz
380V~415V/50Hz
380V~415V/50Hz
WaterProof Level
/
IPX4
IPX4
IPX4
Electric Shock Proof Grade
/
Ⅰ
Ⅰ
Ⅰ
Heating*（A7/W35)
Max. Heating Capacity
kW
22.00
25.00
28.00
Heating Input Power
kW
5.30
6.10
6.90
COP
W/W
4.15
4.10
4.06
Heating Capacity Min./Max.
kW
8.5/22
9.5/25
10.5/28
Heating**（A7/W45)
Max. Heating Capacity
kW
21.00
24.00
27.00
Heating Input Power
kW
6.50
7.50
8.50
COP
W/W
3.23
3.20
3.18
Heating Capacity Min./Max.
kW
7.35/20.5
8.6/23
9.5/26.5
Heating***（A2/W30)
Max. Heating Capacity
kW
17.57
19.56
22.75
COP
W/W
4.12
4.1
4.09
Max. Cooling Capacity
kW
20.0
22.0
25.0
Cooling Input Power
kW
6.00
6.90
8.00
EER
W/W
3.33
3.19
3.13
Cooling Capacity Min./Max.
kW
6.3/10.3
6.9/11.2
7.5/12.5
Refigerant
/
R410A
R410A
R410A
Max. Water Outlet Temperature
℃
55℃
55℃
55℃
Heat Range Of Heating Operation
℃
-25~43
-25~43
-25~43
Heat Range Of Cooling Operation
℃
15~43
15~43
15~43
Compressor
Type
Rotary
Rotary
Rotary
Brand
Panasonic
Panasonic
Panasonic
Fan
Type
DC
DC
DC
Heat Exchanger
Type
Plate
Plate
Plate
Pump Head
m
22
22
22
Pump Input Power
W
500
500
500
Rated Water Flow
m3/h
3.40
3.80
4.30
Water Pressure Drop
kPa
35
35
35
Max. Water Pressure
MPa
1.0
1.0
1.0
Water Pipe Connection
inch
Rc1-1/4"
Rc1-1/4"
Rc1-1/4"
Noise
dB(A)
63
63
63
Net Weight
kg
185
185
185
Net Dimension(L*W*H)
mm
1110*420*1560
1110*420*1560
1110*420*1560
Packing Dimension(L*W*H)
mm
1150*520*1720
1150*520*1720
1150*520*1720


PRODUCT SPEC.




Successful Project


Projects
Projects
Projects


SIMILAR PRODUCTS

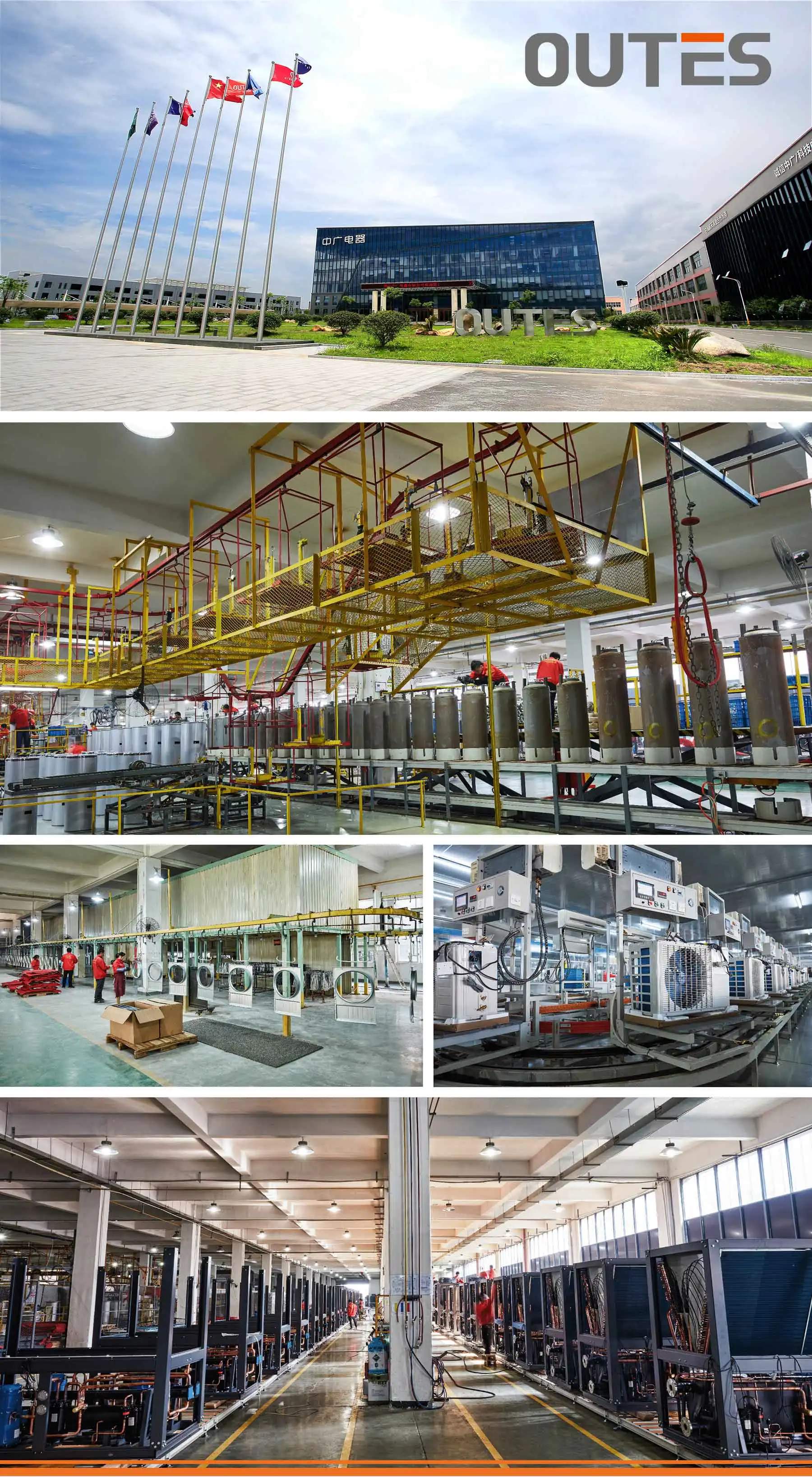

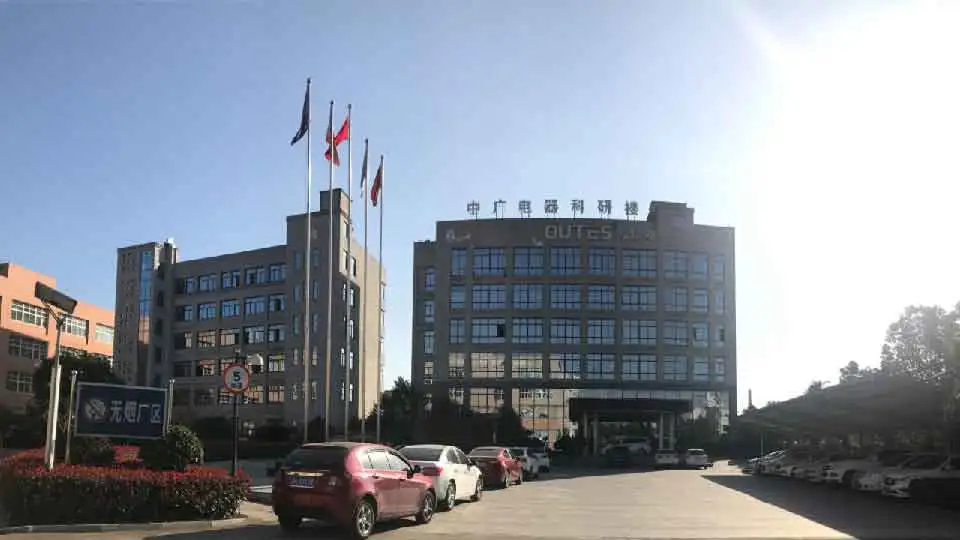

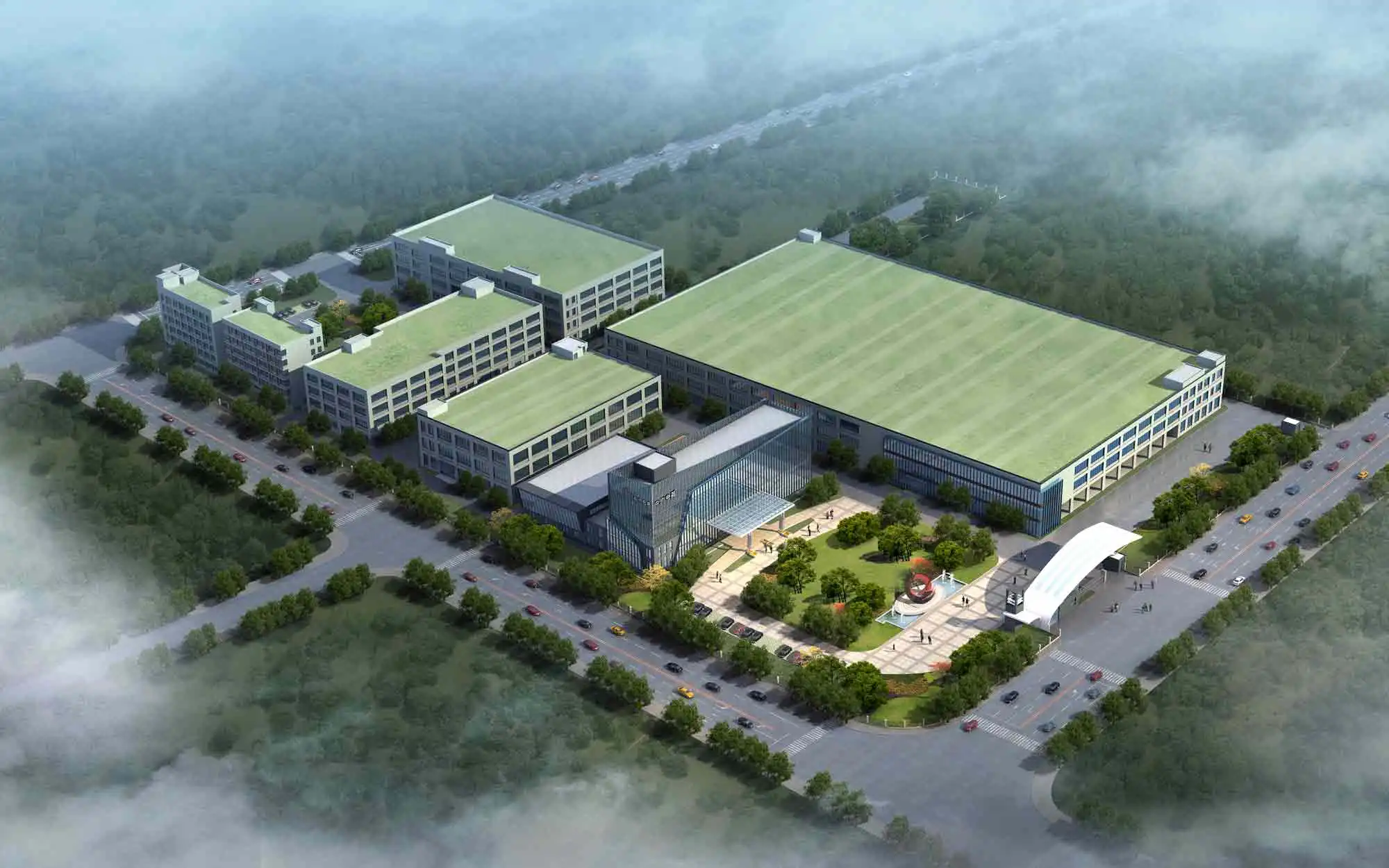

About us
Zhejiang Zhongguang Electrical Co., Ltd. (OUTES) is a national high-tech factory manufacturing/Researching & Developing/Sales & Service 5C Comfort Home products including Central floor heating Heat Pump, Central Air Conditioning, Central Hot Water Heat Pump, Central Water Purification, Central Air Ventilation Units.
OUTES provides safe, healthy, comfortable and intelligent products for global users with high quality and considerate service!

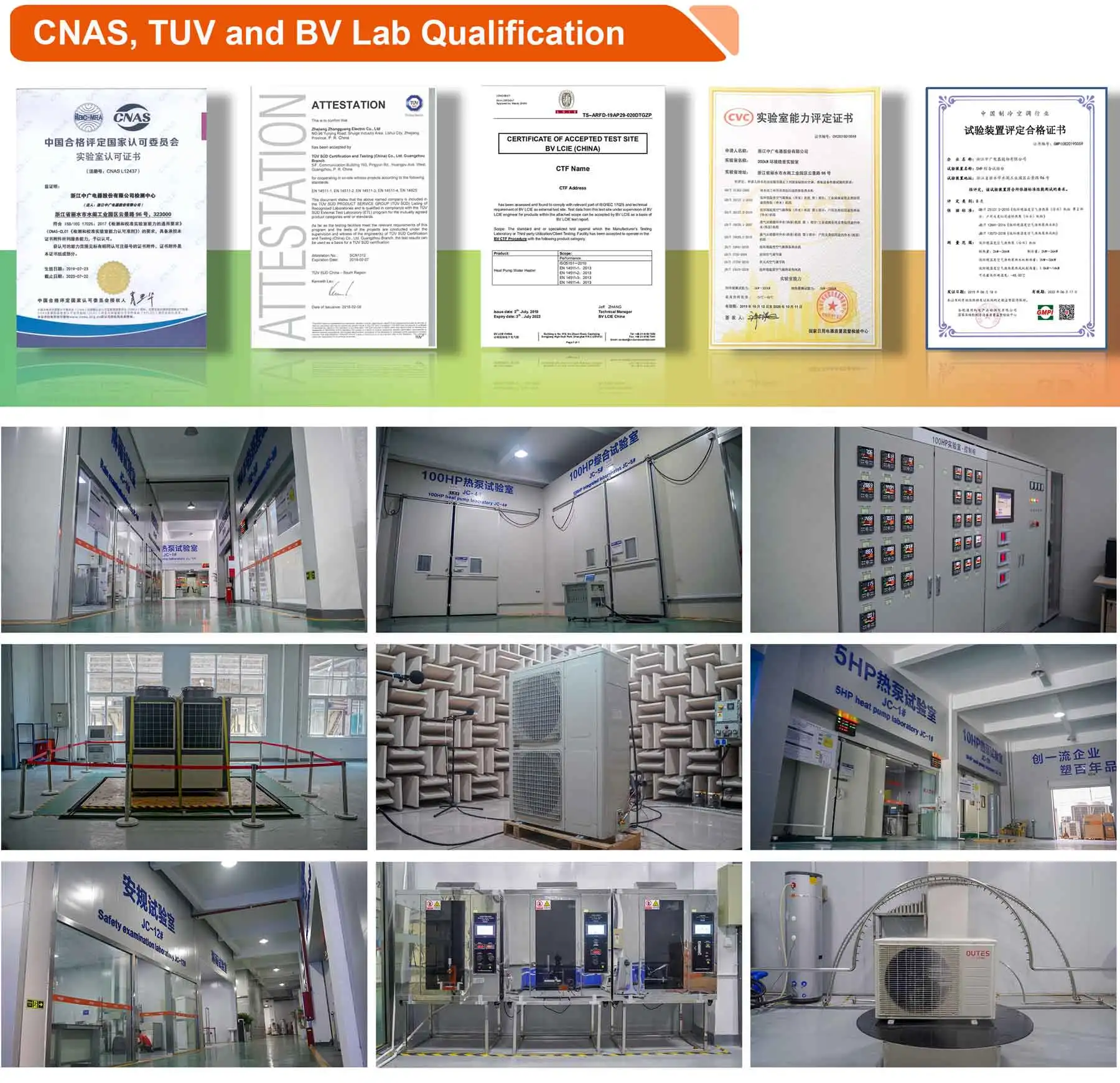

Testing Central
2007,we set up the 1st testing room, until now, we have 15 testing rooms and 30 test station. The Testing Center is covered 5400㎡(six thousand four hundred square meters) and the total investment reach to 50,000,000(fifty million) RMB. We have 40 engineers working here now.
2019, we got the approval from CNAS, TUV and BV. So it’s more easy for us to test the products exporting to different countries now!


We can test the performance, safety, life, noises, stress, transportation and all the other test we need for our products.
The products we can test including Hot Water Heat Pump, Chillers, gas system Central Air conditioners, water system Central Air Conditioners, Swimming Pool Heat Pump, Dryers, Air Ventilation Unit and Water Purification Unit.

The test capacity from 1 Horse Power to 200 Horse Power for a single Module Machine.
The ambient test condition can be from -35℃ to 60℃。
