Recoda 4CH 720P 1080P Mobile DVR Support 3G 4G WiFi GPS MDVR with Car/Bus/Truck/Vehicles Camera Recorder Waterproof
- Category: >>>
- Supplier: Shenzhen Recoda Technologies Limited
Share on (10000002287243):
Product Overview
Description
Products Description
Recoda 4CH 720P 1080P Mobile DVR Support 3G 4G WiFi GPS MDVR with Car/Bus/Truck/Vehicles Camera Recorder Waterproof

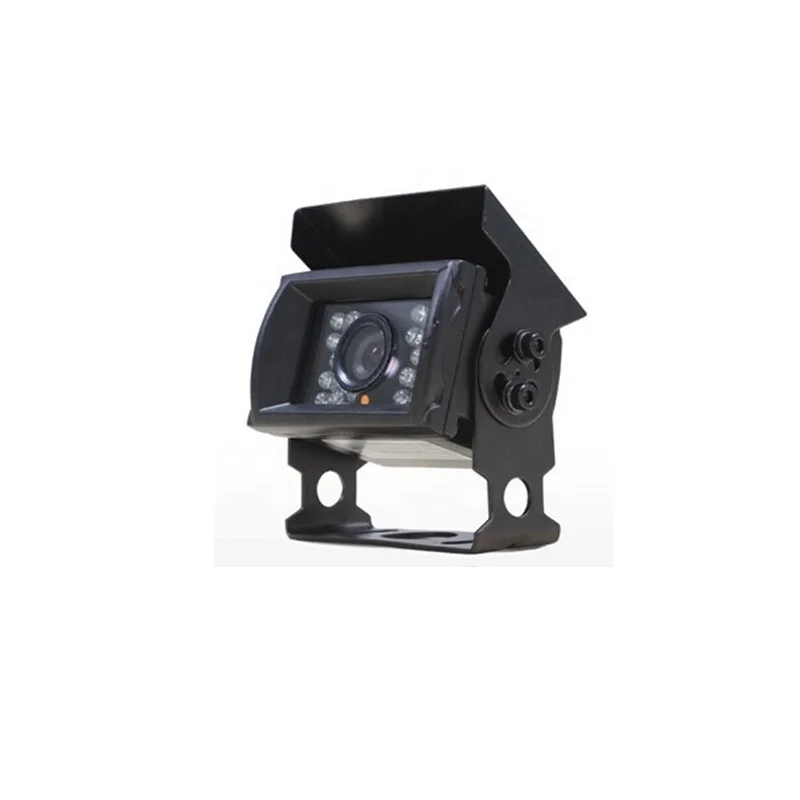

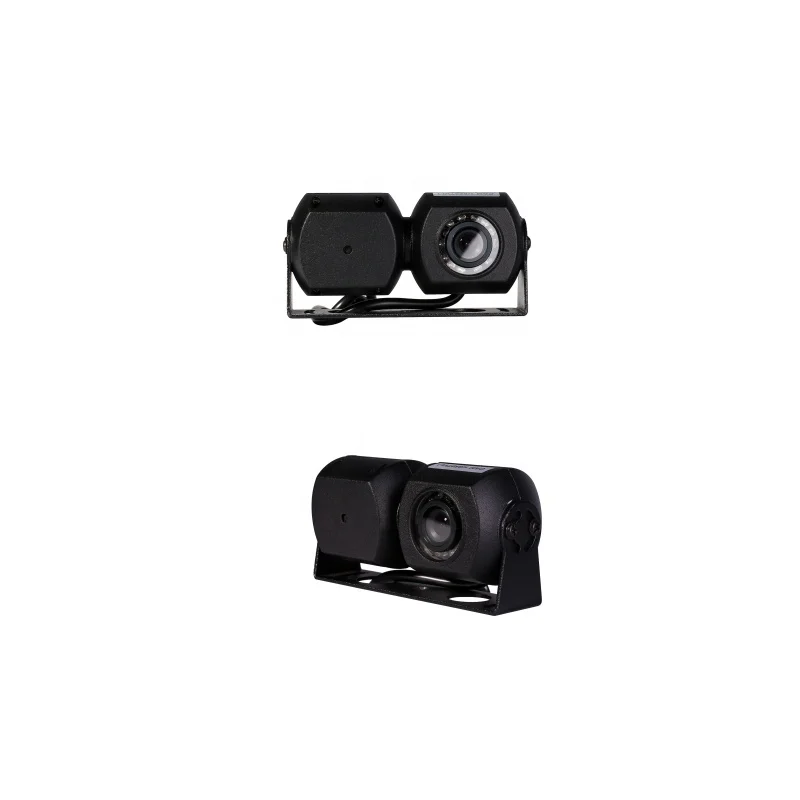

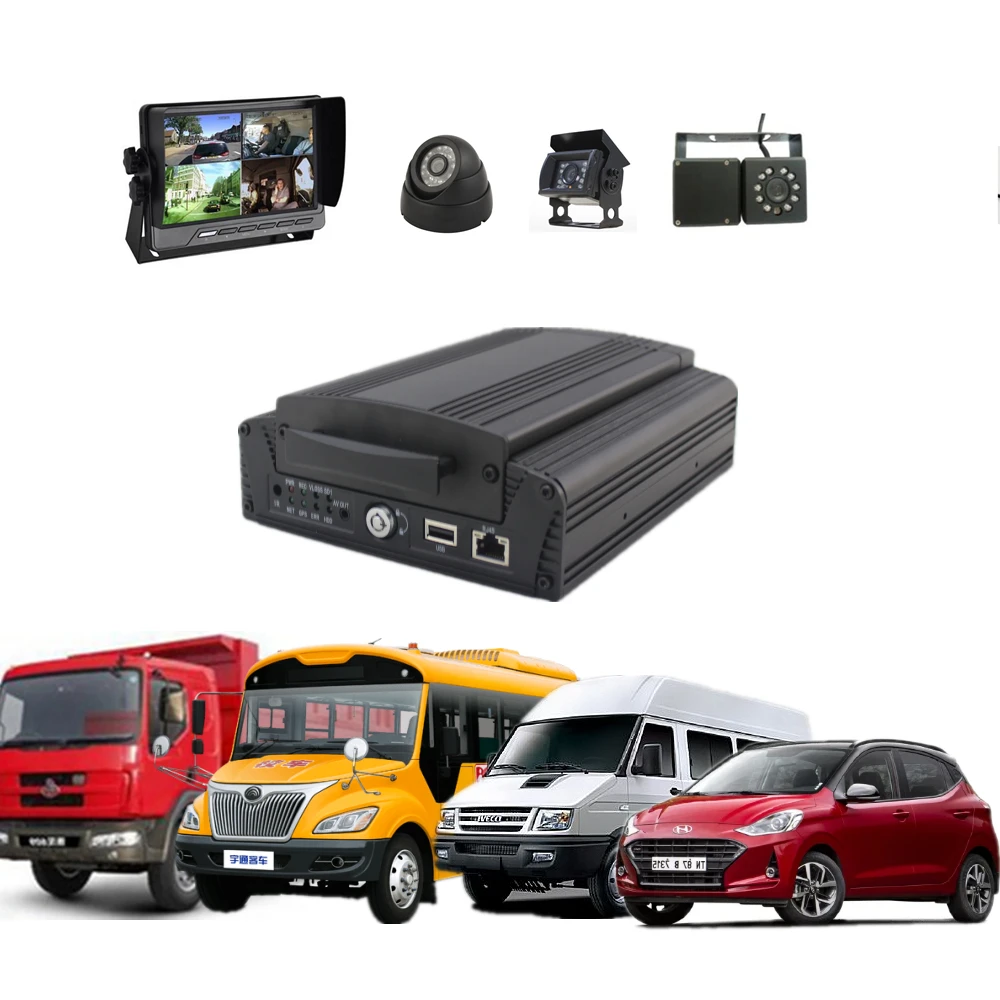

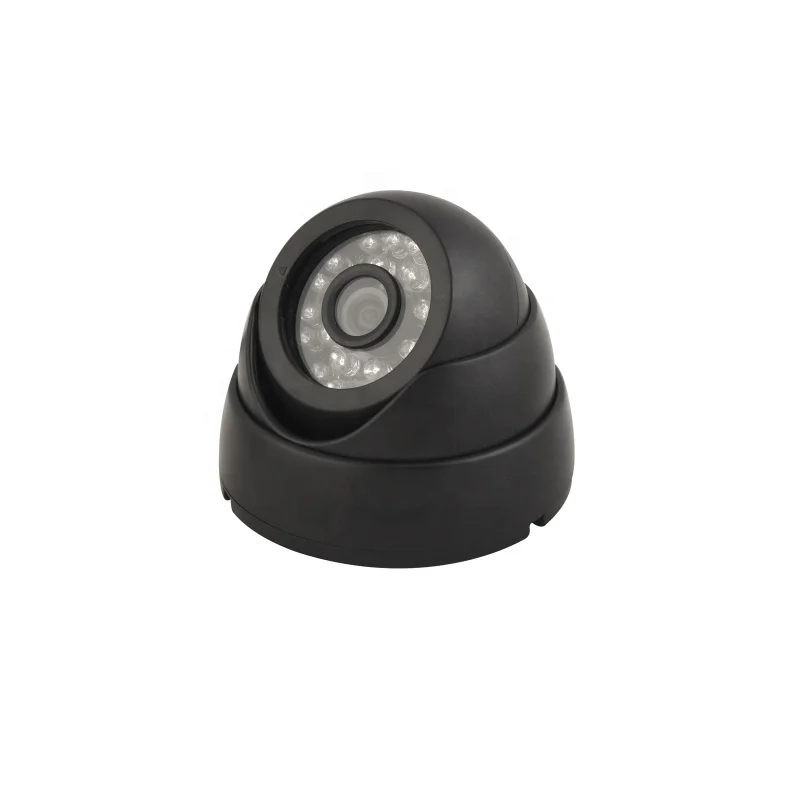

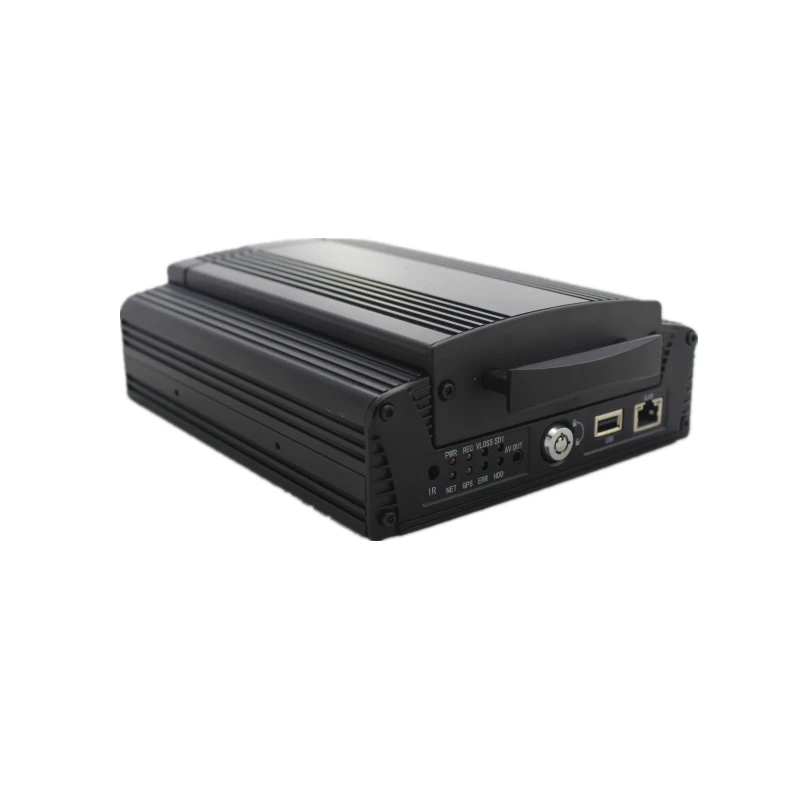

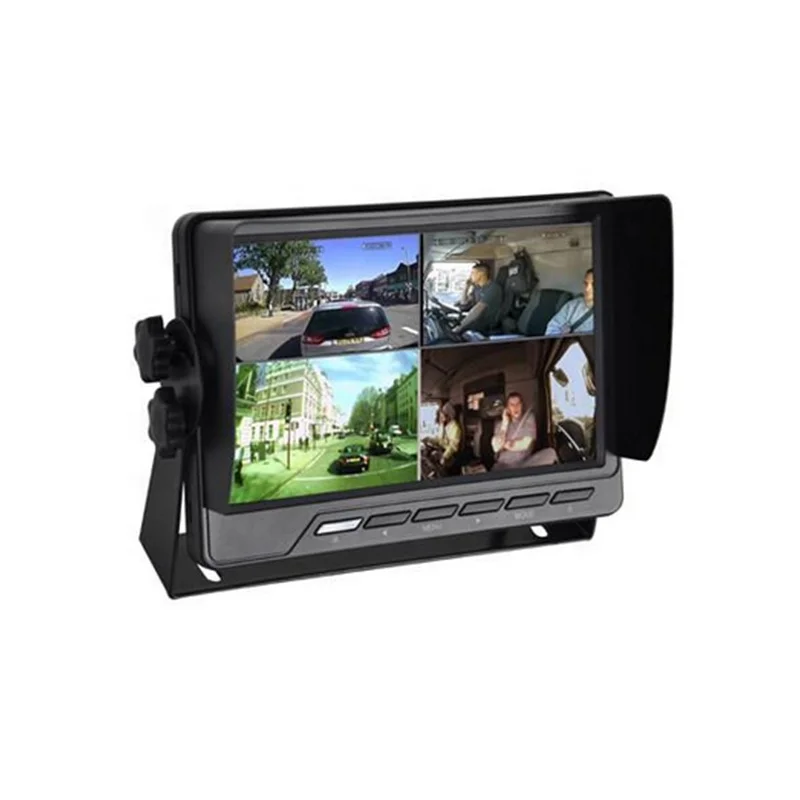

This DVR kit is a complete DVR system, including an 4-channel DVR M720, a display V902 (7inch /9inch), a dual-lens camera RCDP7B for viewing the road conditions in front of the vehicle and the cab, , a camera C801 for checking the road conditions at the rear of the car, and a camera C802 for checking the situation in the car.
Specifications
Item | Parameter | ||||
OS | Linux | ||||
Language | English/Chinese/Customized | ||||
Video Compression | H.264 Compression | ||||
OSD | Overlays information such as date time and vehicle ID | ||||
GUI | Graphical User Interface | Setup system parameters with the remote control. | |||
Video Record System | Video Input | 4CH AHD input,CVI,TVI or CVBS aviation connector, 1.0Vp-p, 75Ω | |||
Video Onput | 1 CVBS, 1.0Vp-p, 75Ω,Aviation,Support 1CH Full Screen,4CH Screen view | ||||
Preview | Support 1 channel and 4 channels preview., Support Manual/Alarm Trigger full screen preview | ||||
Resolution | 1080P/720P/D1/HD1/CIF, MAX:8 channels of 1080P | ||||
Image Quality | 0-7 levels, 0 is the highest level. | ||||
Video Standard | PAL: 100f/s , CCIR625 line,50field; NTSC: 120f/s, CCIR525 line,60field; CIF: 256Kbps ~ 1.5Mbps, 8 level video quality optional; HD1: 600Kbps ~ 2.5Mbps, 8 level video quality optional; D1: 800Kbps ~ 3Mbps, 8 level video quality optional; 720P: 4Mbps-6Mbps, multi level video quality optional 1080P:4Mbps-8Mbps,multi level video quality optional | ||||
Record Mode | The default setting is auto recording after power on. Timed recording, alarm trigger recording and manual recording are supported. | ||||
Audio | Audio Input | 4CH Aviation Plug Input | |||
Audio Output | 2CH,headphone connect at front panel, BNC Connect on Back panel | ||||
Compression | G.726 compression, 8KB/s speed | ||||
Alarm Input | 6CH Alarm Input,1CH AD Input,impulse speed input,Alarm Linkage | ||||
Alarm Output | 2CH Alarm Output,Support Light/Sound alarm sensor,Oil/Power cut off | ||||
Interface | 2CH RS232 to connect OBD, POS/Fuel Sensor/LED Advertisement Connection | ||||
1CH 485 Interface,Connect PTZ Camera | |||||
Wireless Transmission | Support Built in 3G transmission,, WCDMA, CDMA2000,GPRS, EDGE; Built in 4G module optional, TDD-LTE, FDD-LTE | ||||
GPS Position | Support Built GPS/BD Module | ||||
HDD | Max 2.5” 2TB HDD | ||||
Storage | SD Card | Max 128GB SD Card Mirror Recording Keep Data Safety | |||
Update | Support USB Updating, SD Card Updating,OTA Remote Updating | ||||
File Format | H.264 | ||||
File System | Special FAT32 File System | ||||
USB | USB Interface on Front Panel for data back up by U Disk,Hard Disk | ||||
Record Replay | Video Search | Search By Record Time/Record Type etc | |||
Playback | Max support 4CH Replay /Stop/Fast/Slow at same time | ||||
Support forward and backward play at the speed of: x 2,x4,x8,x16. | |||||
Security | User/Admin 2 Level Different Password | ||||
Optional Functions | Voice Call | Support voice call each other | |||
TTS Voice Broadcast | Support TTS voice broadcast function. | ||||
Serial Expand | Support LED Advertisement Panel,Oil Sensor, POS,Bus Station Broadcaster,Car OBD,ect.external device | ||||
Voltage & Power | Power Management | Wide Voltage.Support Timed/Delay off | |||
Input Voltage | DC:+10V - +36V | ||||
Output Voltage | +12V~1.5A,+5V~1.5A | ||||
Power | Working <5W | ||||
Working Environment | Temperature | -20℃ - +70℃ | |||
Humidity | 20% - 80% | ||||
Ohters | Size | 218 (D)* 161(W)* 65(H) mm | |||
Net Weight | 2.2 Kg | ||||
Details Images
Software

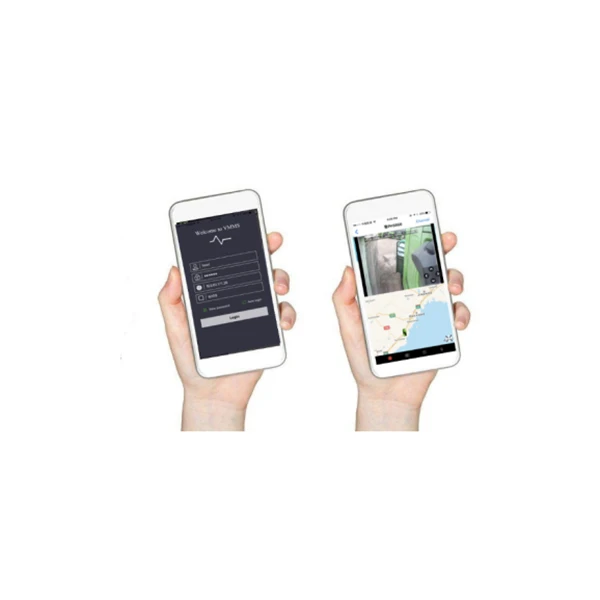

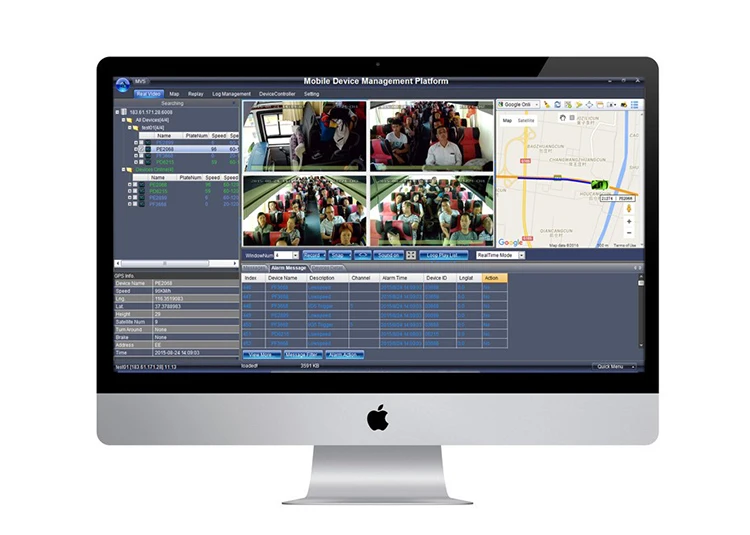

Our MDVR software VMMS is independently developed and designed. You can use and update for free if you purchase our DVR. We also have technical staff who can provide remote online technical support. Compared with other third-party software, we can customize the software for you according to your needs. The unique software can also prevent being replaced by other competitors.
Company Profile
Recommend Products
FAQ
Q1. Do you offer free sample?
Yes, we offer free samples. But you would pay sample fee firstly and sample fee will be returned when massive order is placed.
Q2. How does you ensure the quality of products
All goods are 100% inspected before shipping, we do at least 5 test, including In-coming raw material test, sample test then bulk produce, functional test, burn-in test, appearance inspection.
Q3. Lead Time
1. Sample order can be delivered from our factory in 3 working days.
2. General order can be delivered from our factory in 3-5 working days.
3. Big order can be delivered from our factory in 15-35 working days at most.
Q4. Technical Support
We have strong R&D team to support our customers, and if you have any question for the technology of our products, please email to us, reply will be sent to you immediately;
Also if you have any doubt for the information on our website or any feedback for the quality of our products, please email to us, and thanks for your all comments in advance.
Any questions,please inquire us,thank you!
