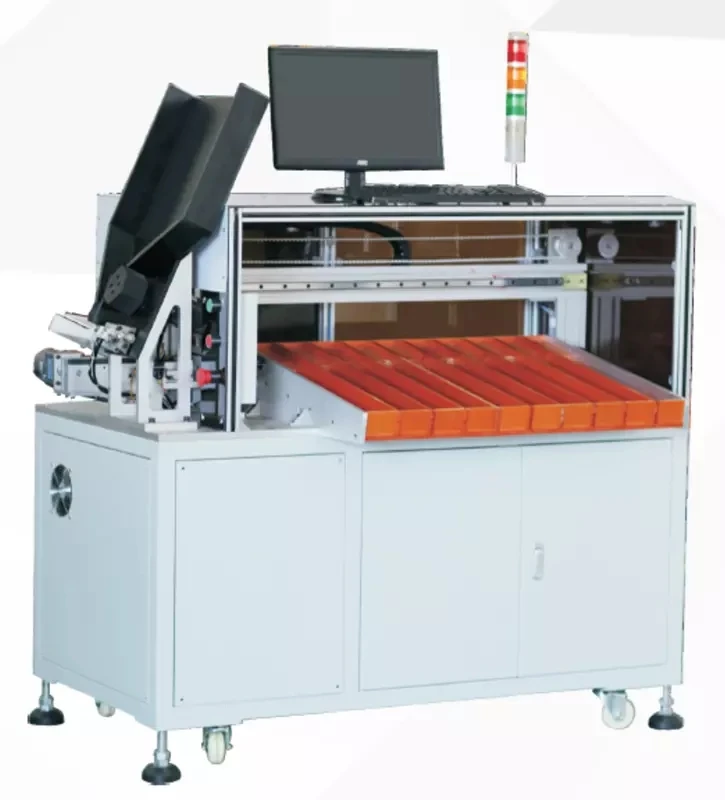

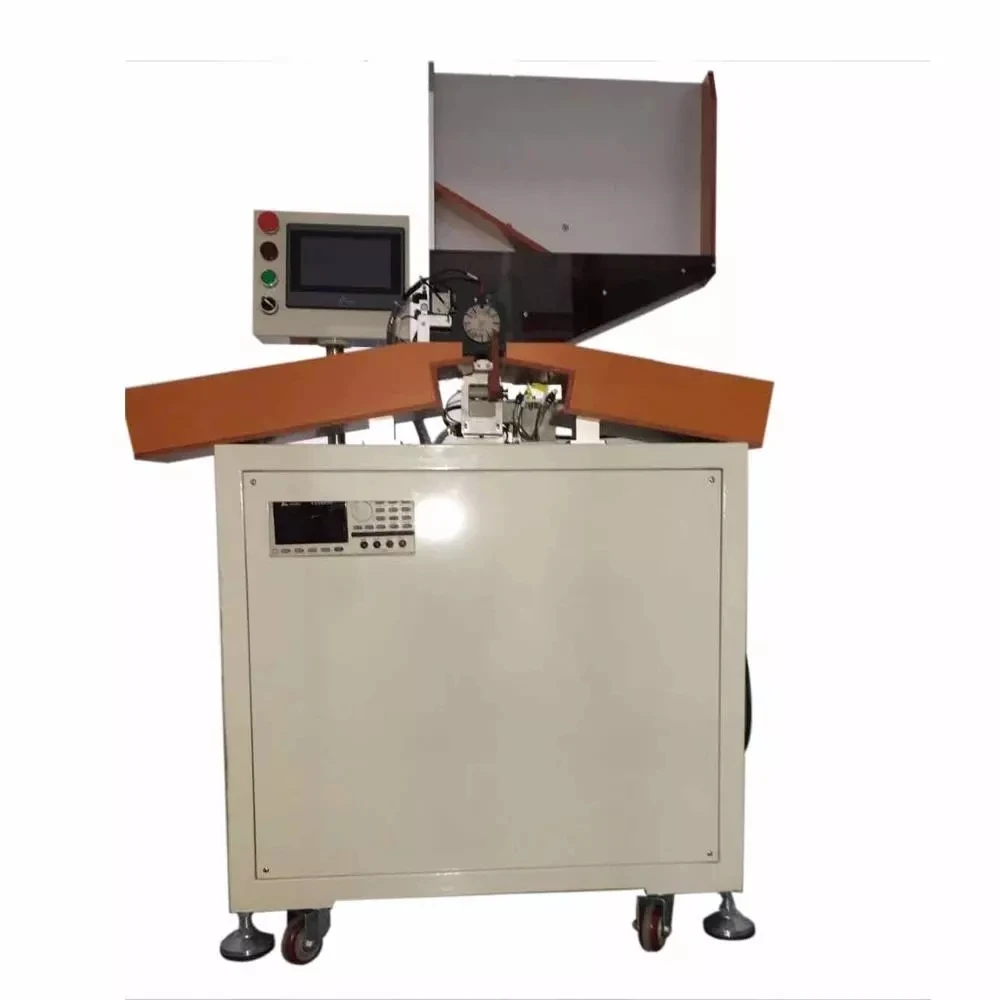

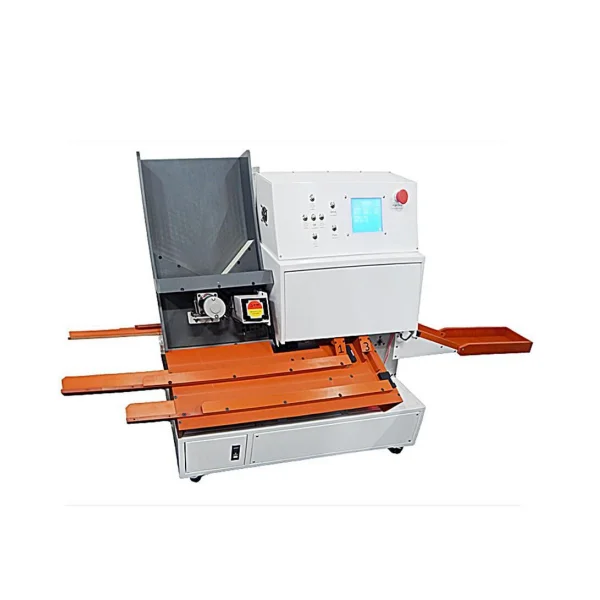

5 Channel Lithium ion Battery Cylindrical Cell Automatic Sorter Machine Sorting Equipment for Battery Pack Assembly
- Category: >>>
- Supplier: Quanzhou Lineng Machinery And Equipment Co. Ltd.
Share on (10000002329294):
Product Overview
Description
5 Channel Lithium ion Battery Cylindrical Cell Automatic Sorter Machine Sorting Equipment for Battery Pack Assembly
Introduction
The battery sorter is mainly used to support the process of sorting and matching cylindrical cores.
On the basis of conventional capacity parameter sorting, accurate AC internal resistance measurement, open-circuit voltage measurement and sorting and matching of the core are carried out.

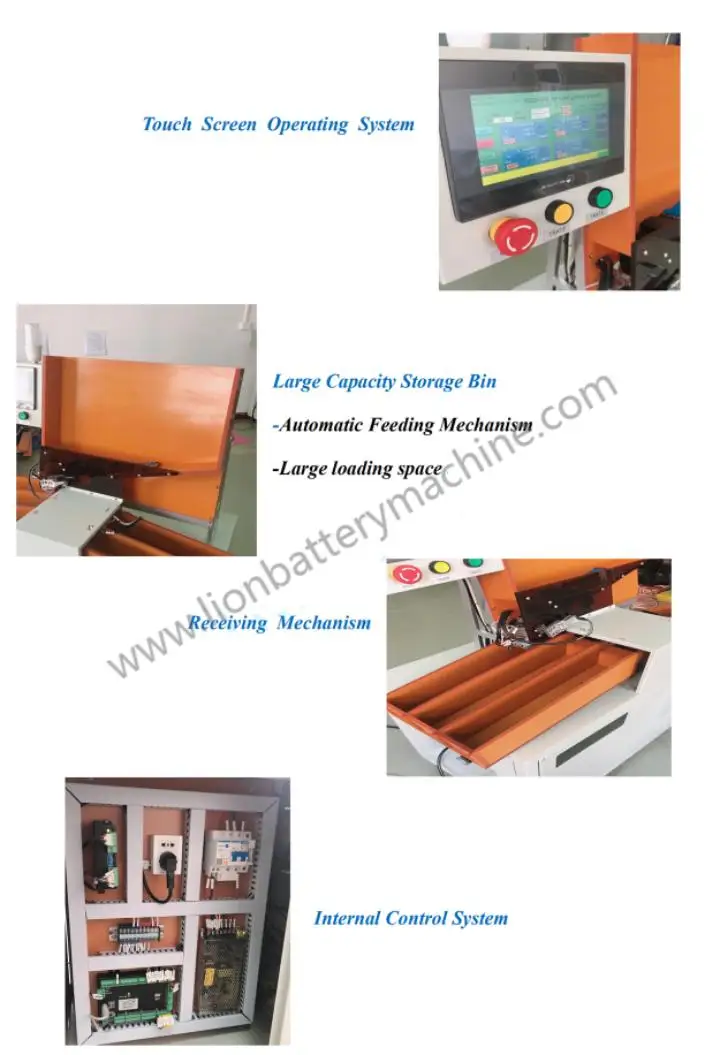

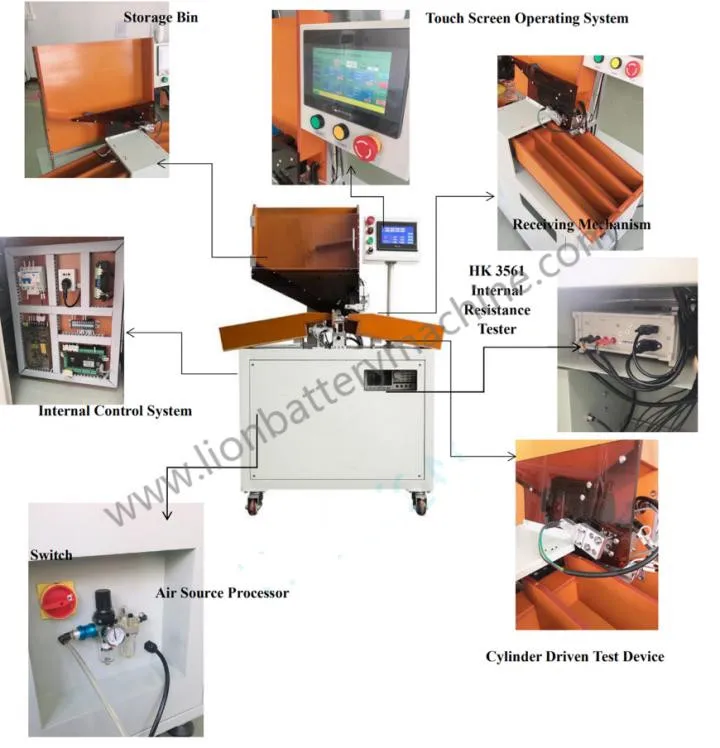

The equipment consists of man-machine interface, charging of core hopper, automatic measurement of internal resistance of core voltage, automatic grading, feeding trough and so on. The maximum one-time grading is 5 grades.
Customization
1. We can provide 5-22 channel battery sorter according to your battery productivity requirement.
2. The battery sorter can equip with a computer which can record the data of battery sortting.
3. Battery sorter is suitable for all kinds of cylindrical batteries which is a useful machine for battery pack assembly.
4. Besides battery sorter, LN also provide a whole line machine for battery pack assembly.
Features
1. It is a must equipment for Battery Pack Manufacturer for voltage and resistance testing and sorting.
2. 5 Channel automatic cell sorter is designed to sort cylindrical 18650 or 26650 32650 21700 cell.
3. Sort by cell's voltage and impedance up to 5 groups.
4. Automatic sorting control.
5. Fast sorting speed (80PPM).
6. Easy to refill cells during the process.
7. Wheels design, easy to move the machine to any operating place.
Voltage Supply | 220V±10%/50Hz±10% |
Power | <800W |
Display Screen | Large size LCD screen/Touch screen |
Battery Types | Cylindrical Cell (18650,18500,26650,14500,21700) |
Receiving Channel | 5 channels |
Test Parameter | AC internal resistance, DC voltage |
Internal Resistance Test | Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm |
Voltage Test | Test range: 0-8V Accuracy:±0.5% rdg Resolution: 0.01mV |
Sorting Speed | 80PPM |
Weight | <200KG |
Dimension | 1120mm(L)*880mm(W)*1250mm(H) |
Tester | HK3561 |
Productivity | 3000pcs/h |
5-22 Channel 18650 26650 32650 21700 Cylindrical Battery Sorting Machine | |||
Channel | Features | Product Link | Pictures |

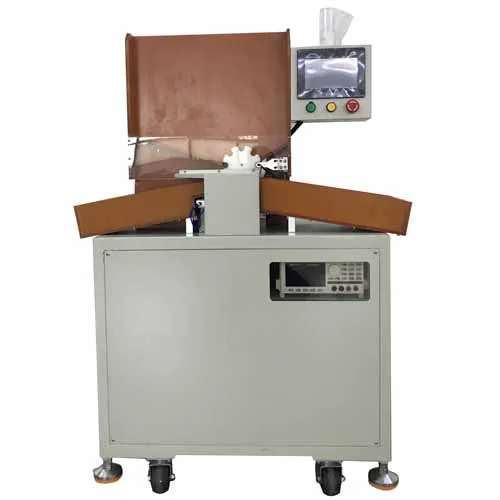

5 Channel | Sorting Speed:80PPM |
| |

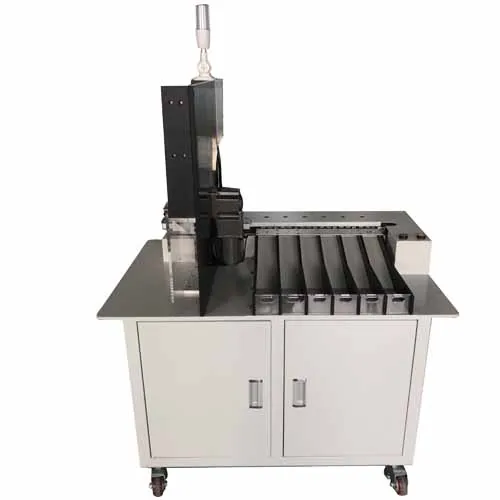

6 Channel | Sorting Speed:80PPM |
| |

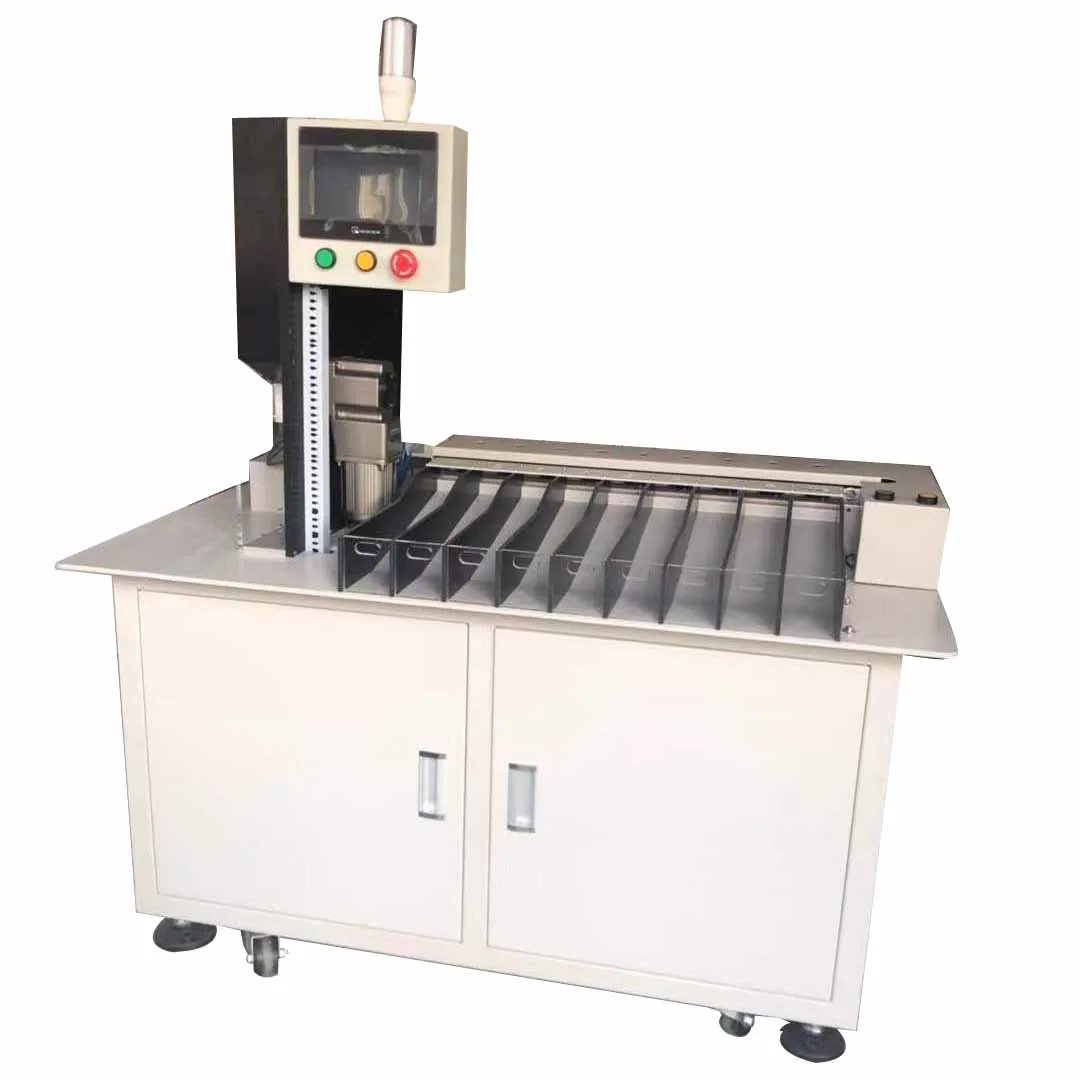

9 Channel | Sorting Speed: ≥ 90PPM |
|
|
10 Channel | Sorting Speed: ≥ 90PPM |
|
|

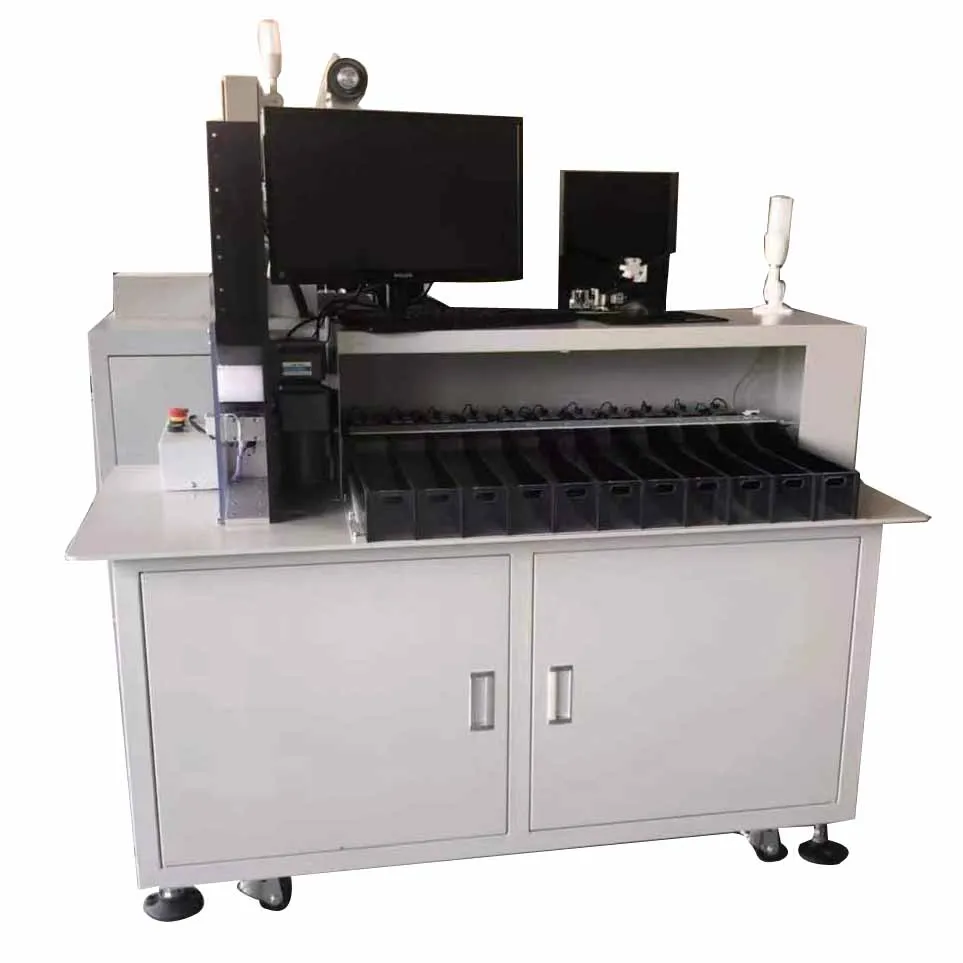

11 Channel | Productivity:5000pcs/h |
|
|

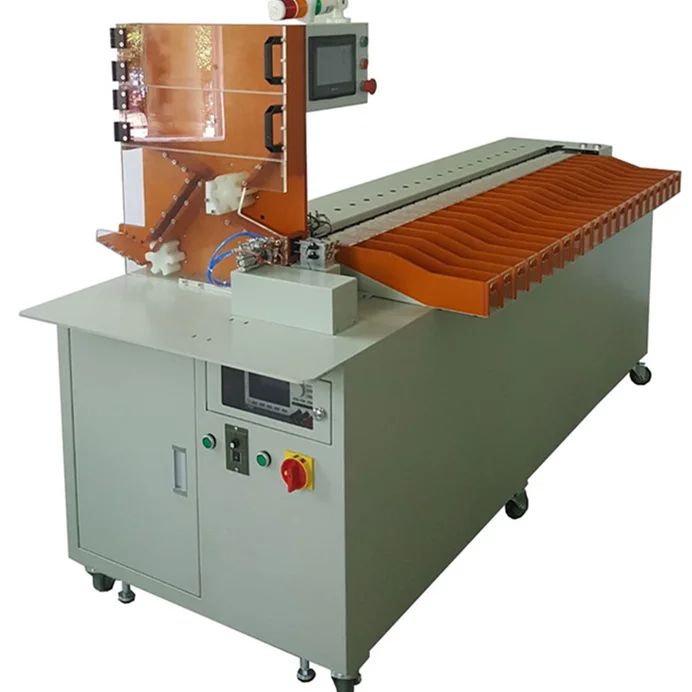

22 Channel | Production Efficiency:6000pcs/hour |
|
|
