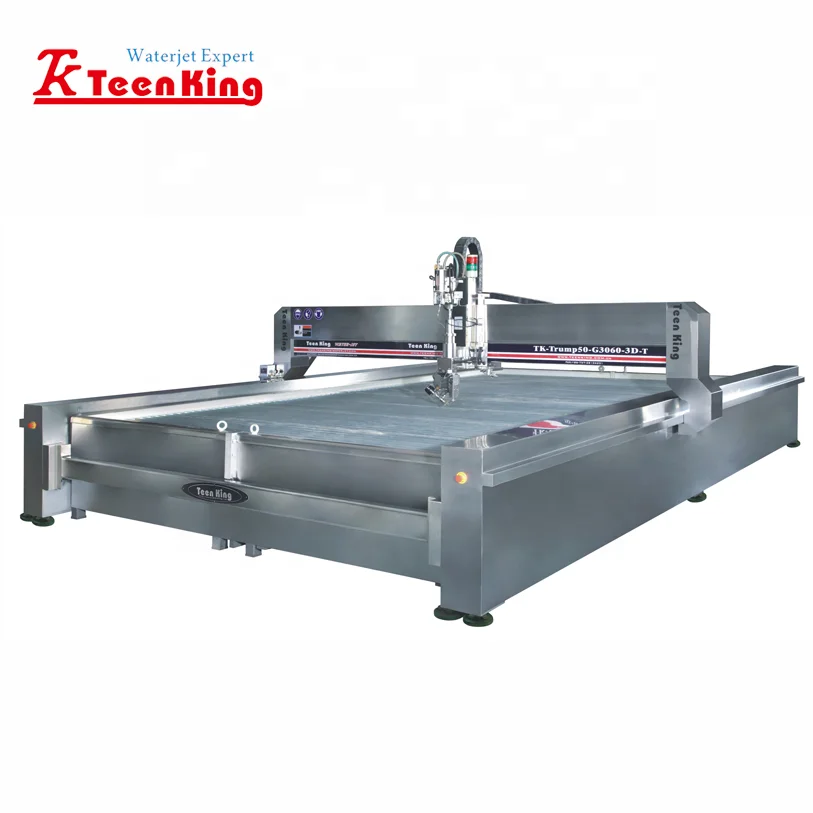

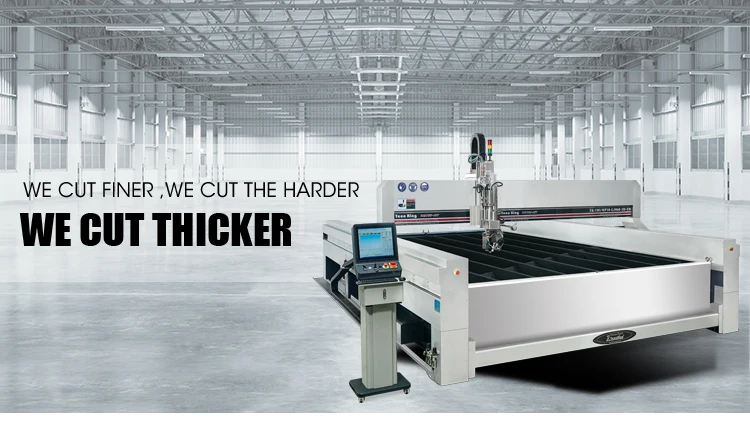

CNC Gantry type in 3 axis waterjet OR 5 axis water jet cutter

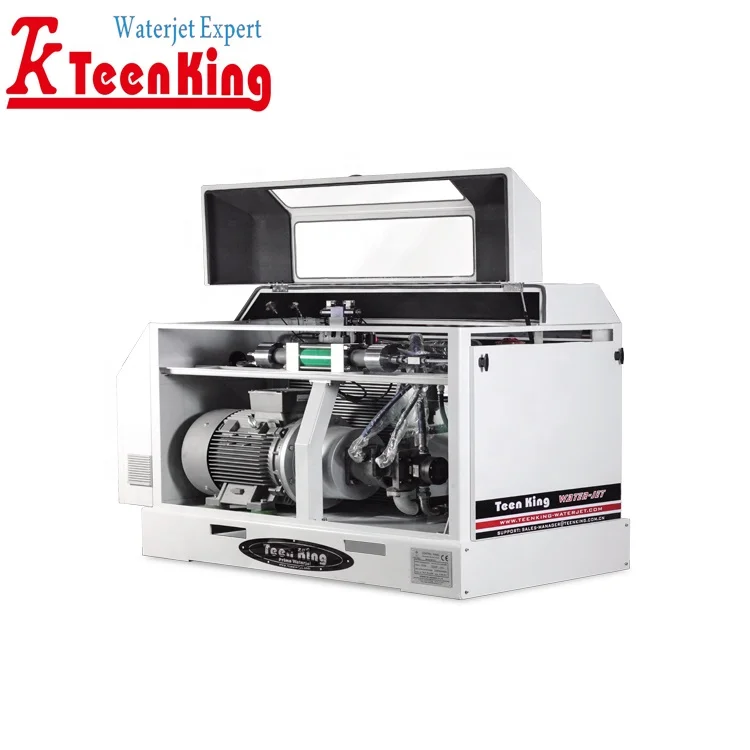

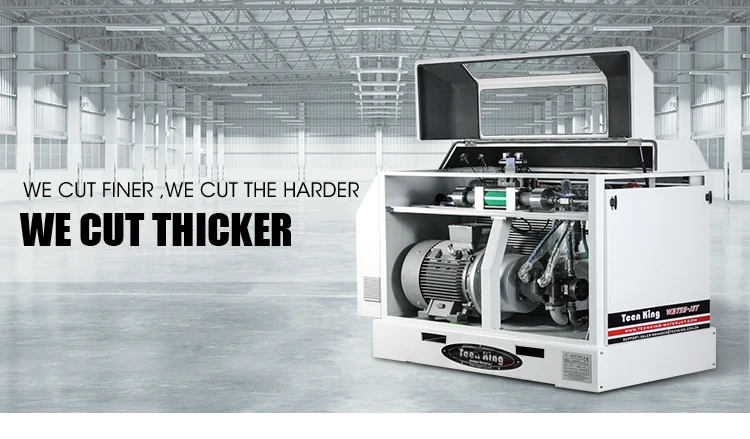

Technical specifications for High pressure pump:

Max generated pressure

420MPa (60,000psi)

Operating pressure

360MPa (50,000psi)

Pressure fluctuation

5MPa.(50bar) @ 3800bar with dia0.33mm orifice

Nominal power

37KW/80A

Power consumption

21kW/50 A @380V/50Hz 3800bar with dia0.33mm orifice

Max Flow:

3.6L/min

Pressure mode

High/Low level auto shift

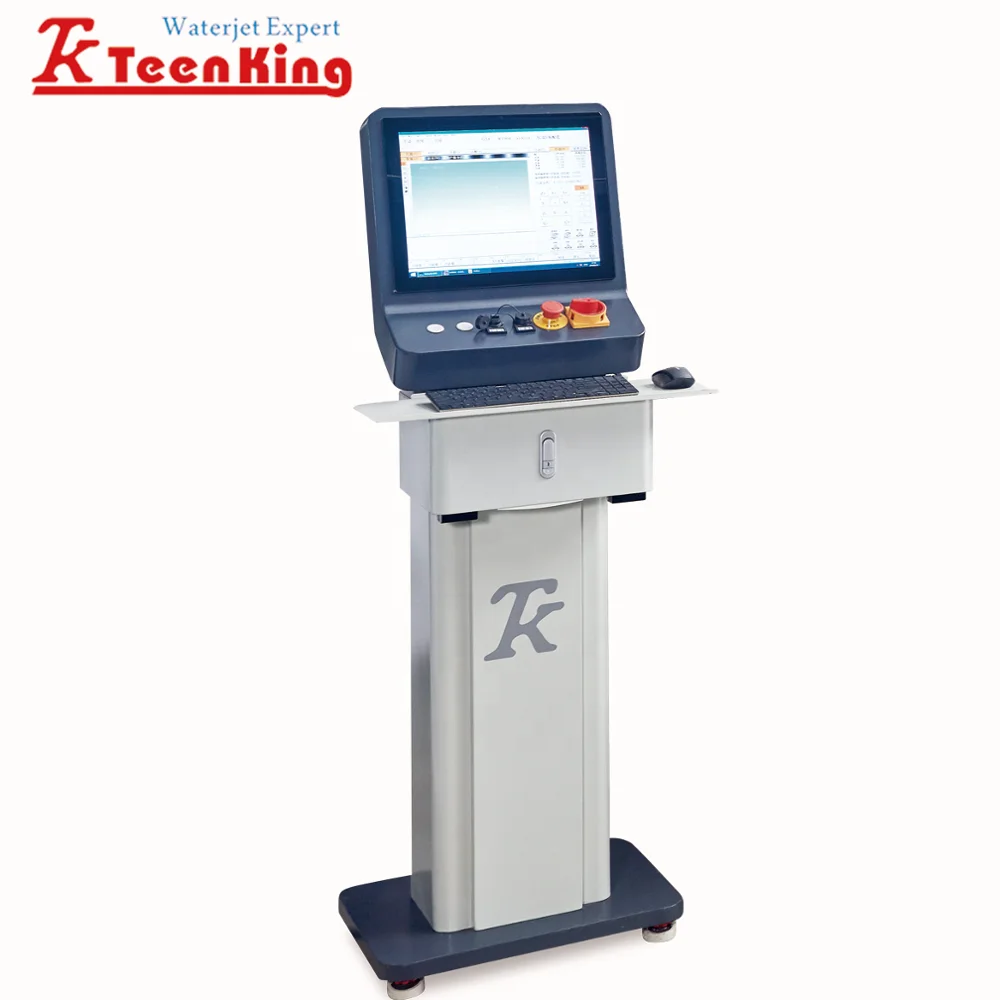

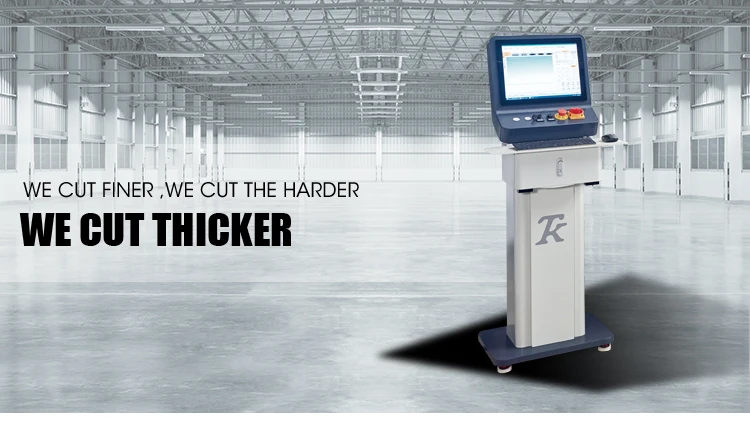

Control System Software  (NC Studio):

>Friendly control interface >Reliable and durable operation. >compatible with IGEMS CAD/CAM/NESTING software, extendable

by module: tile parquet, tube cutting, camera sheet positioning, 3D toolpath generator.  >Dynamic cutting speed/abrasive volume control  >Z Axis piercing height Control  >Follow cutting height by detector.  >Follow cutting height by laser scanning system  >Break Point Resume, Any point continue. >Cutting Time & Cost Evaluation. >Consumable lifetime Reminder >Multi-Origins  >Revolve Program  >Simu-mode On Office Computer >Auto-Error Diagnose  >Backup-Restore software >Remote Assistant

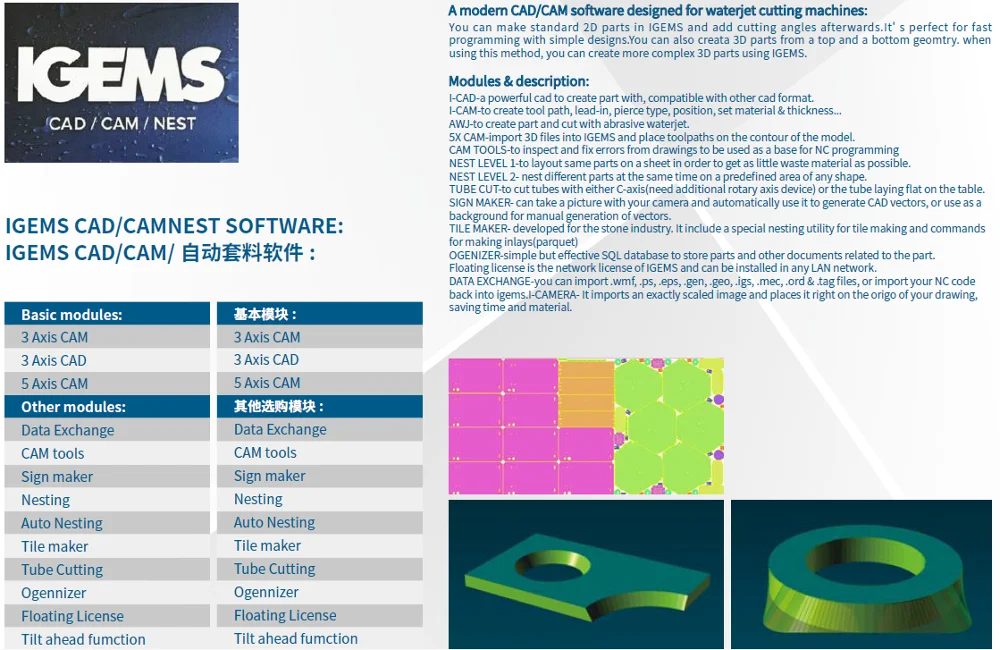

Integrated CAD/CAM Software (NC Editor):

>Draw/design your job with simple tool, such as square, circle, polygon, straight line, and curve.  >import designed part from other software with format: dxf, plt, g-code  >Edit lead-in/lead-out, kerf compensation, direction, cut order, set origin, change size, position.  >Select object(s), or start point, end point to machining from program.  >specify different speed or beveling angle on each contour of part.

Output nce format, compatible with g-code format from IGEMS
