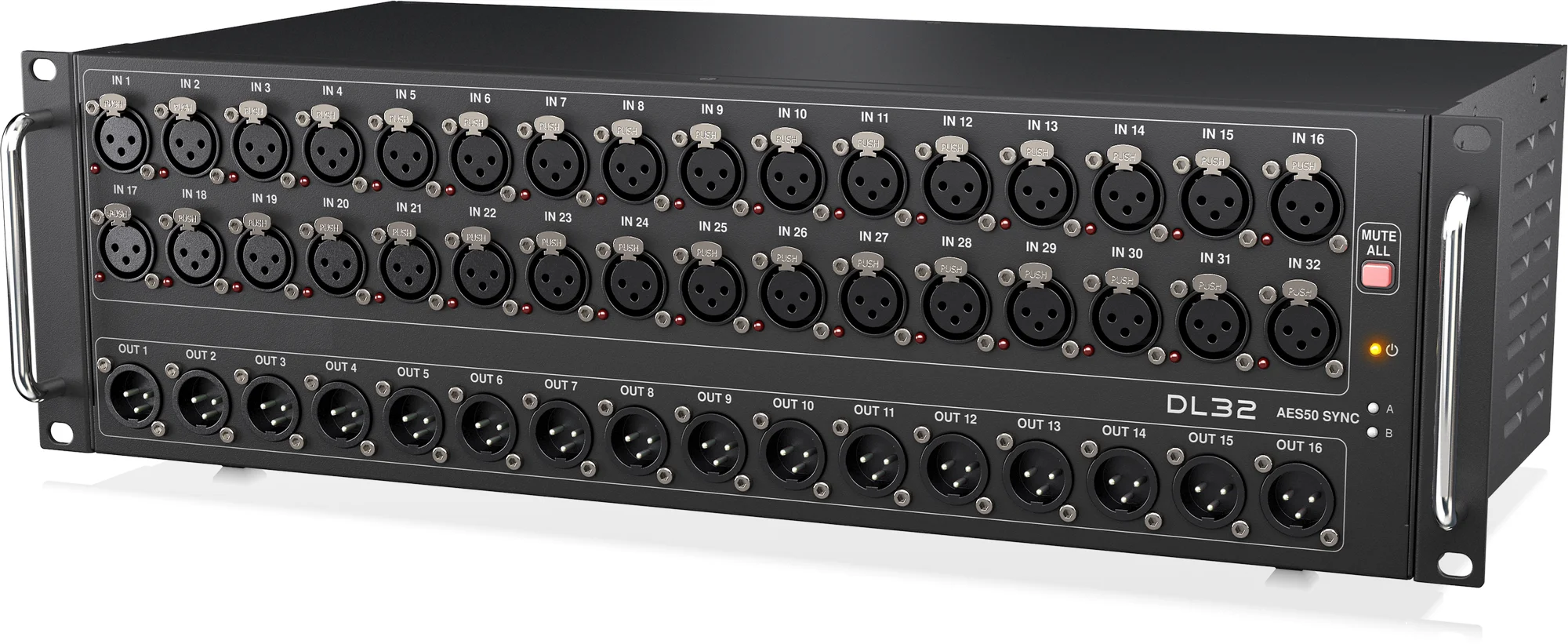

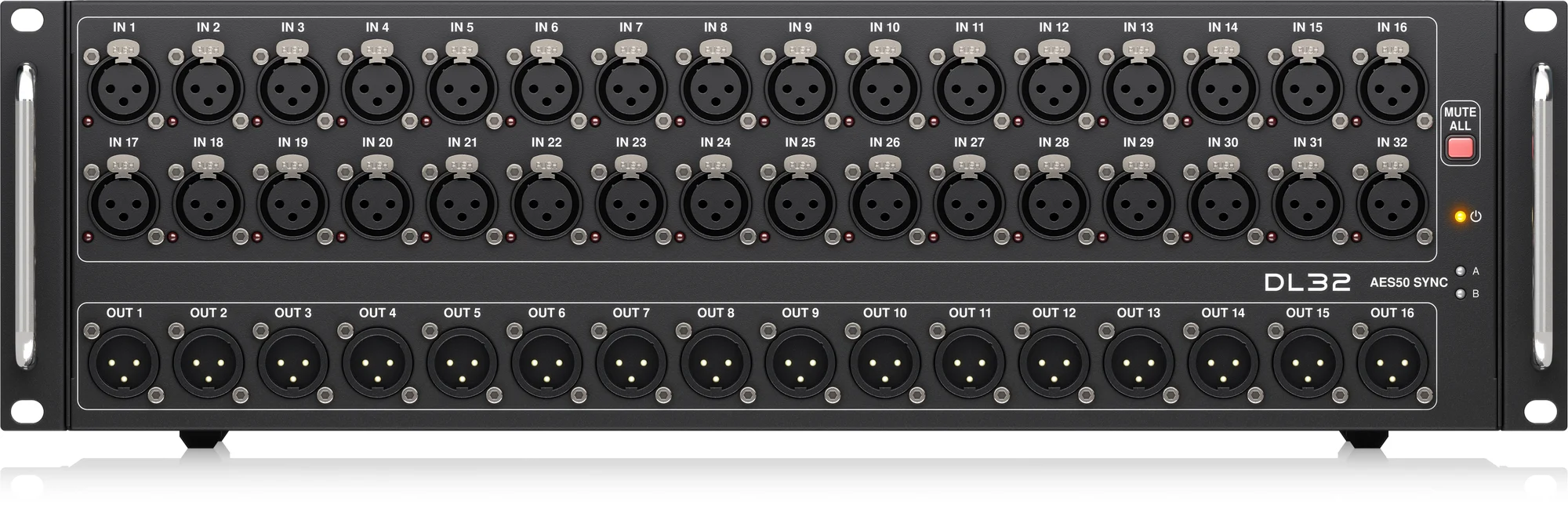

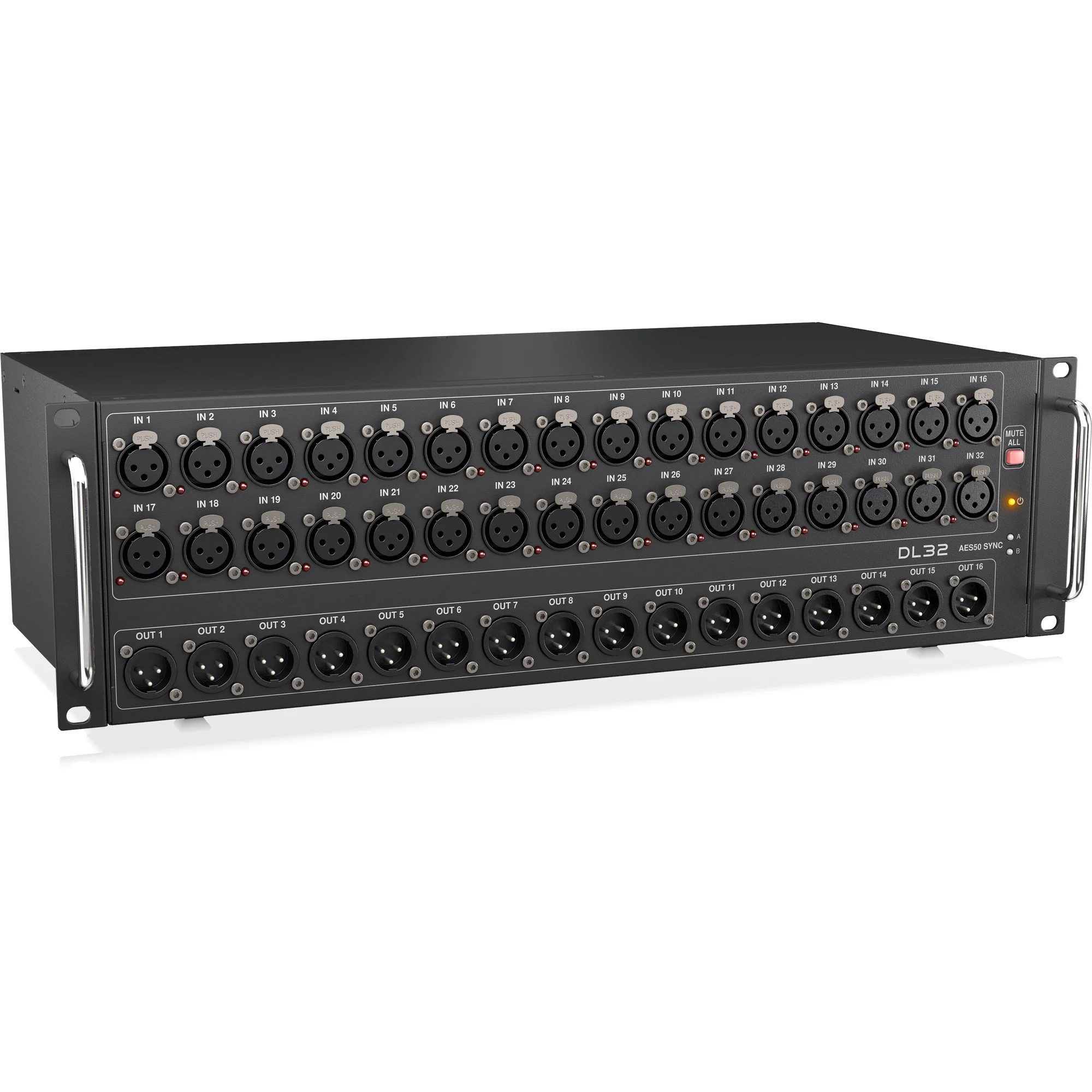

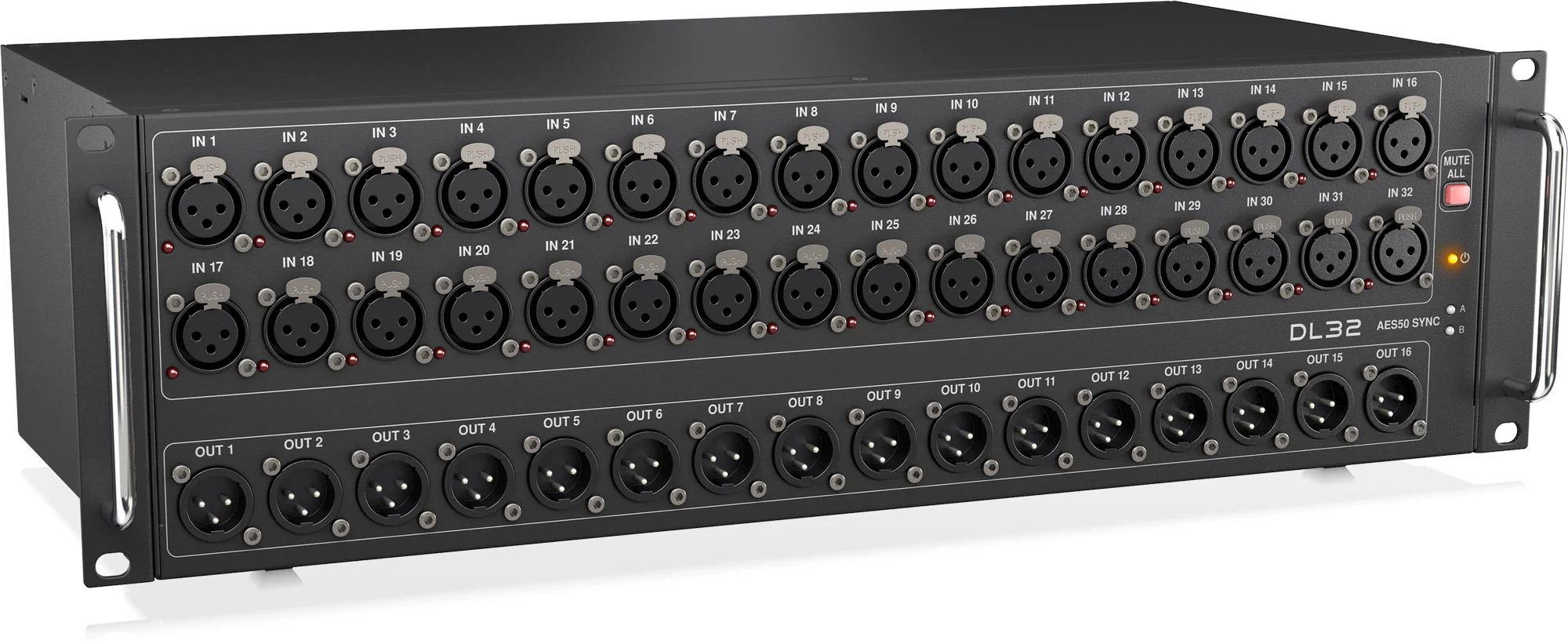

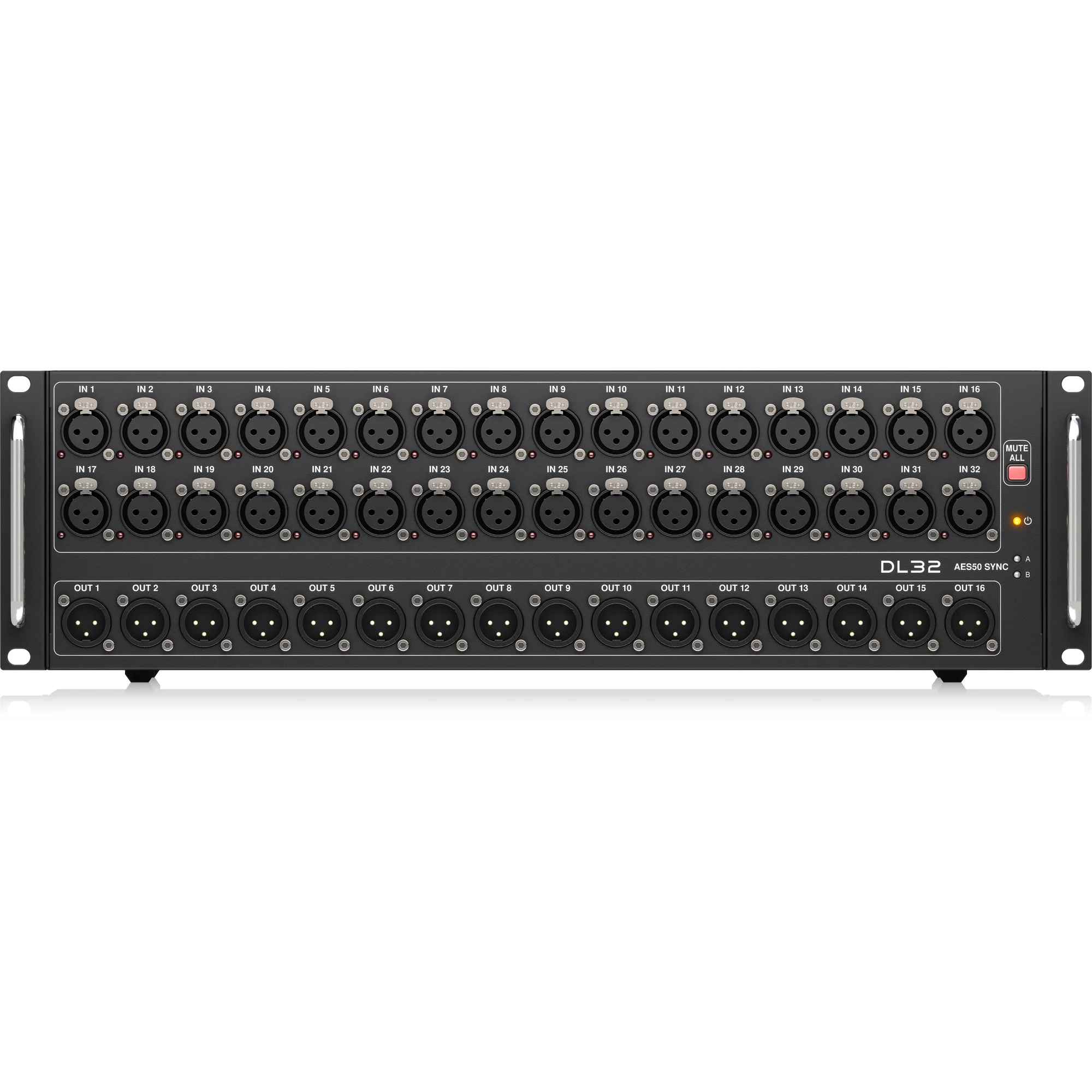

DL32 32 Input 16 Output Stage Box with 32 Microphone Preamplifiers, ULTRANET and ADAT Interfaces

DL32 Stage Box Features:

• Flexible professional digital stage box that works with Powerplay monitor systems and AES50-ready digital consoles


• 32 x fully programmable and remote-controllable Midas Pro mic preamps give you exceptional sound, right from the stage


• 16 x analog, servo-balanced XLR outputs let you send complete monitor mixes to the stage


• AES50 network ports provide you with ultra-low latency digital audio that's in-ear compatible


• Up to 328' of networking capability via a single lightweight Cat 5e cable (not included)


• Dual AES50 ports let you cascade up to 2 DL32 units together for an up to 64-in/32-out system


• Precise LED metering plus 7-segment displays let you keep a close eye on your levels


• Headphones output assignable to any of the inputs/outputs for on-stage monitoring


• Ultranet connectivity for Behringer's Powerplay P16 personal monitoring system is perfect for in-ear applications


• Dual ADAT outputs for use in splitter mode and stand-alone digital multicore applications


• MIDI In/Out provide bidirectional communication between FOH console and on-stage MIDI devices


• Durable yet compact, all-steel 3U rack-mount chassis provides flexible mounting

Tech Specs

• Type:Digital Stage Box


• Compatibility:AES50/Ultranet systems


• Channels:32 x 16


• Inputs - Mic Preamps:32 x XLR


• Phantom Power:Yes


• Outputs - Main:16 x XLR (line)

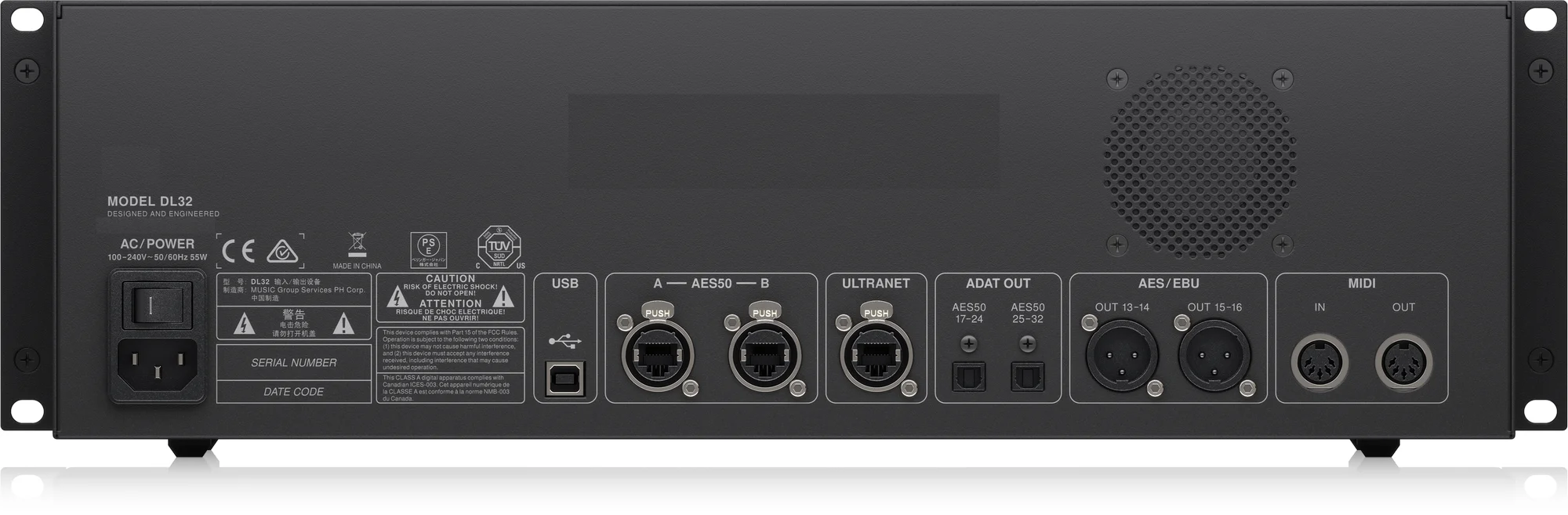

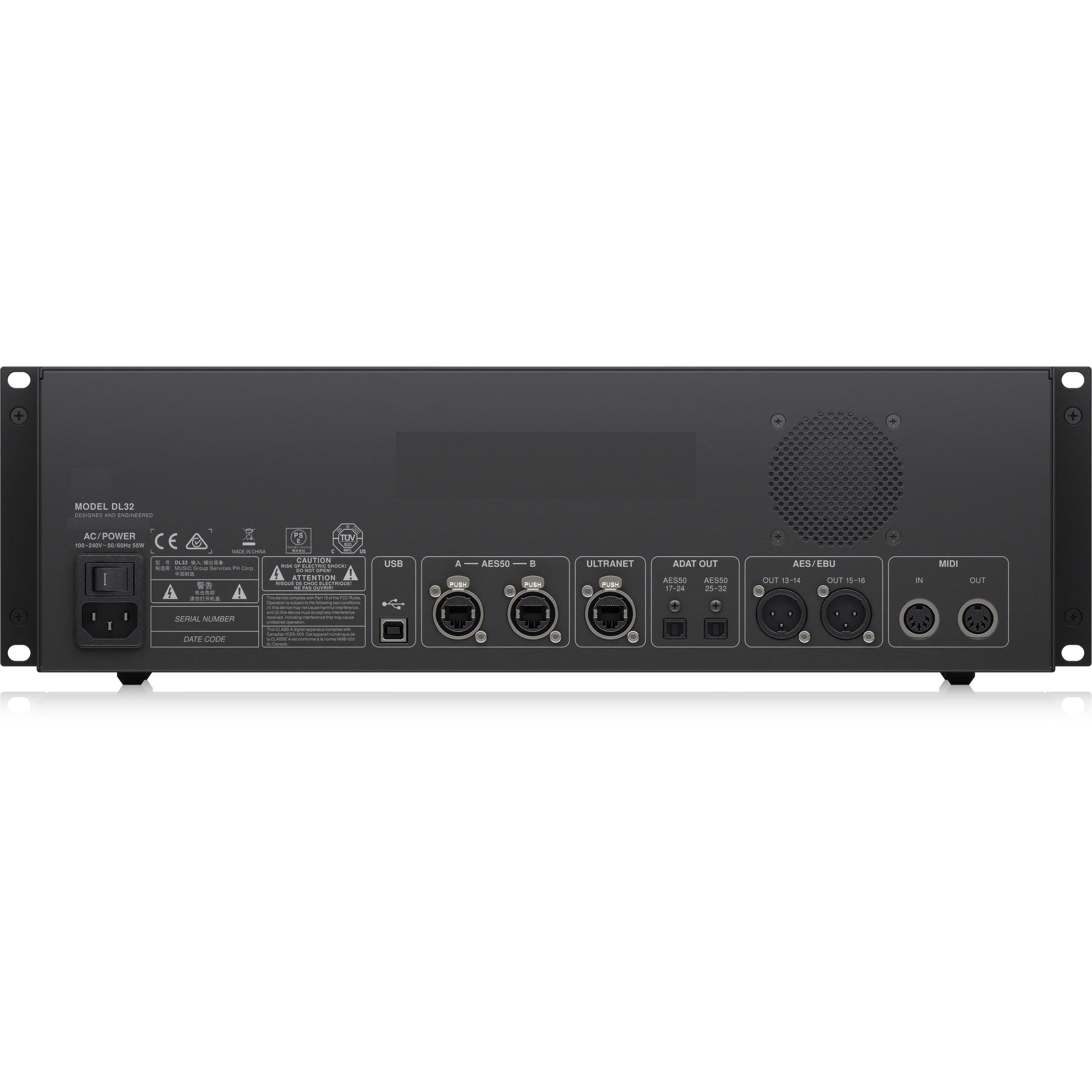

• Inputs - Digital:2 x EtherCon (AES50)


• Outputs - Digital:2 x EtherCon (AES50), 2 x XLR (AES/EBU), 2 x Optical Toslink (ADAT)


• Data I/O:1 x Ethernet (Ultranet monitoring)


• USB:1 x Type B


• Computer Connectivity:USB, Ethernet


• MIDI I/O:In/Out


• Rackmountable:3U


• Depth:9.5"


• Width:19"


• Weight:12.5 lbs.


• Manufacturer Part Number:000-BMD02-00010

Q1: What’s your terms of payment?

A1: Payment, 30% in advance, balance before shipment.
If you have another question, pls feel free to contact us as below:

Q2: What's your delivery term?
A2: We quote and deliver on the term of FOB Huangpu or Shenzhen (except EXW term for small orders). Of course, CIF, C&F or even door to door is acceptable, so we will check and quote shipping cost additionally.

Q3: How long is the lead time?
A3: Generally 2 weeks. If any urgent orders for projects, we will do our best to expedite the process and deliver faster. But for OEM orders, lead time would be little longer on the first order since we need more time to communicate the requirements and confirm artworks...

Q4: How do you pack my goods to ensure intactness in the course of transportation?
A4: We always take care of our products and pack them properly! For example, we use strong carton box (export carton) stuffing with enough foam bubble and inner boxes for air shipment or express, and optional pallet packing could be used for LCL sea shipment for better protection.

Q5: How about the warranty and after-sales service?

A5: Our warranty is two years, but considering the long transit time to overseas customers, we offer three years warranty. For any problems (non-human induced), we shall provide you free spare parts and instruction for repair.
