1676x1754x1822 mm Solid Control Equipment Mini Mud Cleaner Desander for Oil Gas drilling

1676x1754x1822 mm Solid Control Equipment Mini Mud Cleaner Desander for Oil Gas drilling

Hydrocyclone desander manufacturer,oilfield desander with good cones,buy solids control drilling mud fluids desander from China supplier for sale

Following is desander for two different industry and system, Part 1 two desanders are for oil gas drilling, CBM drilling mud solids control. Part 2 desander system with mud tank is for contruction operation for No dig, Bored Pile drilling deander for bentonite recycling.

Part 1: Desander for Oil Gas drilling & HDD

Desander is the second class and the third class solid control equipment to treat the drilling fluid. According to the size of the cone diameter, it is divided into Desander and Desilter. Usually the cone diameter is more than 6″is called Desander, and used as the second-control equipment in drilling operation. We commonly used 8 "and 10" cones desander to separate solid-phase particle size 47-76μm in the drilling fluids

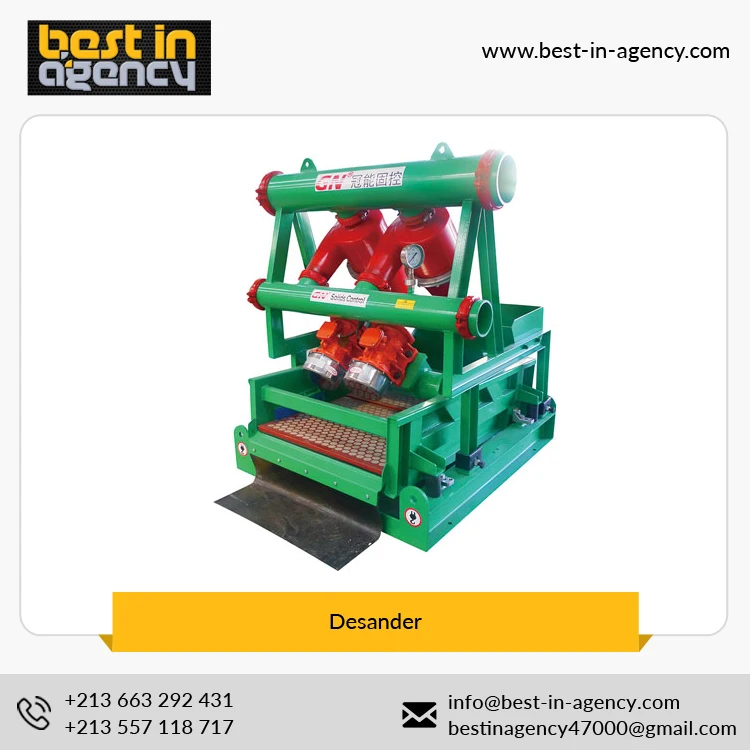

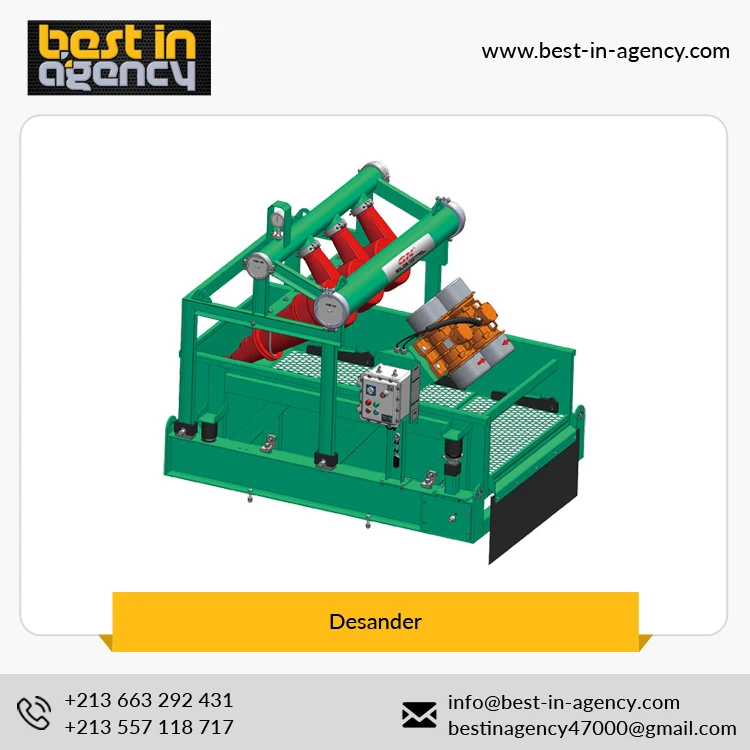

Mini Mud Cleaner(Desander)

The GN Mini Mud Cleaner is innovative products for drilling fluids cleaning. The traditional desander desitler without Shale Shaker is only available for unweighted drilling mud.The traditional mud cleaner is oversized for some applications,and the mud cleaner is relatively more expensive. The innovative GN Mini cleaner is an ideal option for both weighted and unweighted drilling mud with the most cost effective solution for drilling. Further more, the GN Mini Cleaner is the best choices for small mud system for HDD,CBM, water well drilling, mining exploration industry etc.

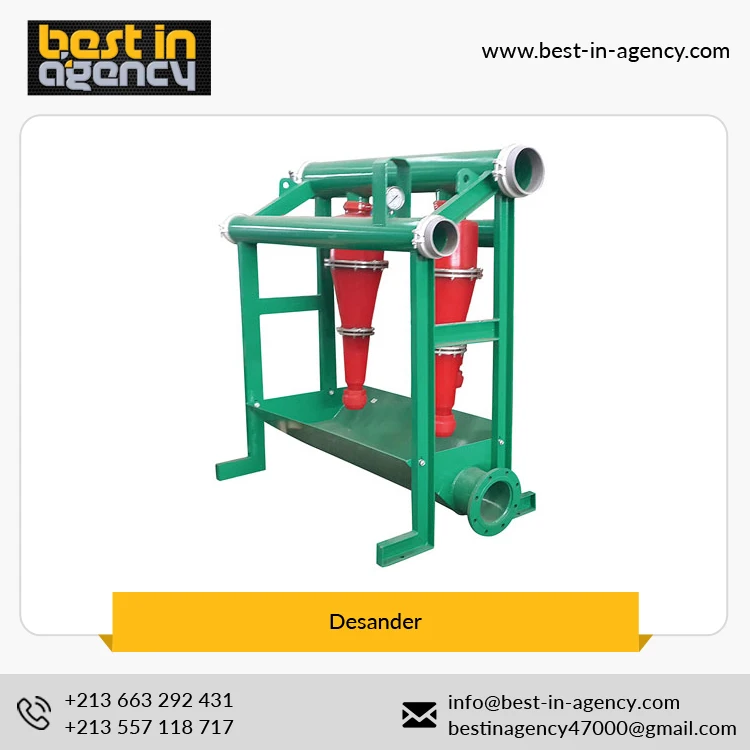

Desander for Oil drilling mud

Hydrocyclones is also called cyclone separator.Hydrocyclones consist of desander(10 in. cone) and desilter(4 in. cone)are drilling rig equipments with a set of hydrocyclones that separates sand and silt from the drilling fluid. Desander is installed after shakers and degasser but before desilter. Desander removes those abrassive solids from the drilling mud which cannot be removed by shakers.

Desander, as stated earlier, have no moving parts. The larger the internal diameter (ID) of the desander is, the greater the amount of fluid it is able to process and the larger the size of the solids removed. Desander (10 in.cone) are able to remove roughly 50 percent of those solids within the 40-50 micron range at a flow rate of 500 gallons per min (gal/min), while desilter (4 in. Cone) are able to remove approximately 50 percent of those solids within the 15-20 micron range at a flow rate of 60 gal/min. Micro fine separators are able to remove around 50 percent of those solids within the 10-15 micron range at a flow rate of 15 gal/min. Desander is typically positioned next-to-last in the arrangement of solids control equipment, with decanting centrifuge as the subsequent processing unit. Desander are preceded by gas busters, gumbo removal equipment (if utilized), shale shakers, mud cleaner (if utilized) and vacuum degasser.Desander is widely used in oilfield drilling.

Part 2: Desander Plant for Bored Pile and TBM

Bored piles are cast in place cylindrical piles excavated either by use of rotary equipment operated augers , buckets, under static drilling fluid or large drill bit (for hard rock) with reverse circulation.The reason to use desander unit is that Bored piles installed in common soil with the presence of water table, generally require the use of a short temporary steel casing and a drilling fluid as static suspension to provide support to the surrounding soil while excavating the pile and until complete backfill of the pile excavation with concrete, in order to prevent cave-in of the excavation and destabilizing the surrounding soil formation.GN Bored Pile desander is to separate the sands from the drilling fluids and recycling the drilling fluids for use.
