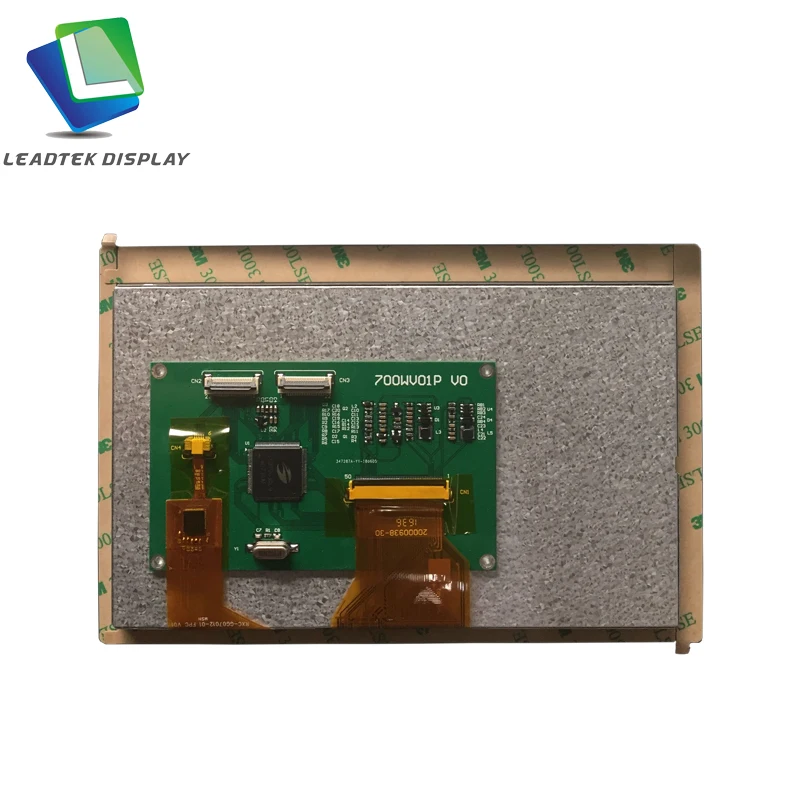

TFT LCD panel 800x480 IPS LCD display 7 inch tft lcd screen with 300nit brightness
- Category: >>>
- Supplier: Shenzhen Leadtek Electronics Co. Ltd.
Share on (10000002571079):
Product Overview
Description
Product Description
Product description
*7-inch color screen,support 262K color display,display rich colors
* 800(RGB)x480 resolution, clear display
* Using 8/9/16/18/24-bit 8080 interface
* Provide a rich sample program
* Military-grade process standards, long-term stable work
* Provide underlying driver technical support
* Long term stable production and guaranteed supply
* 800(RGB)x480 resolution, clear display
* Using 8/9/16/18/24-bit 8080 interface
* Provide a rich sample program
* Military-grade process standards, long-term stable work
* Provide underlying driver technical support
* Long term stable production and guaranteed supply
Production Overview
LCD type | 7‘’TFT |
Dot arrangement | 800(RGB)x480 |
Display mode | IPS / Transmission / Normally black |
Viewing Direction | 80/80/80/80 |

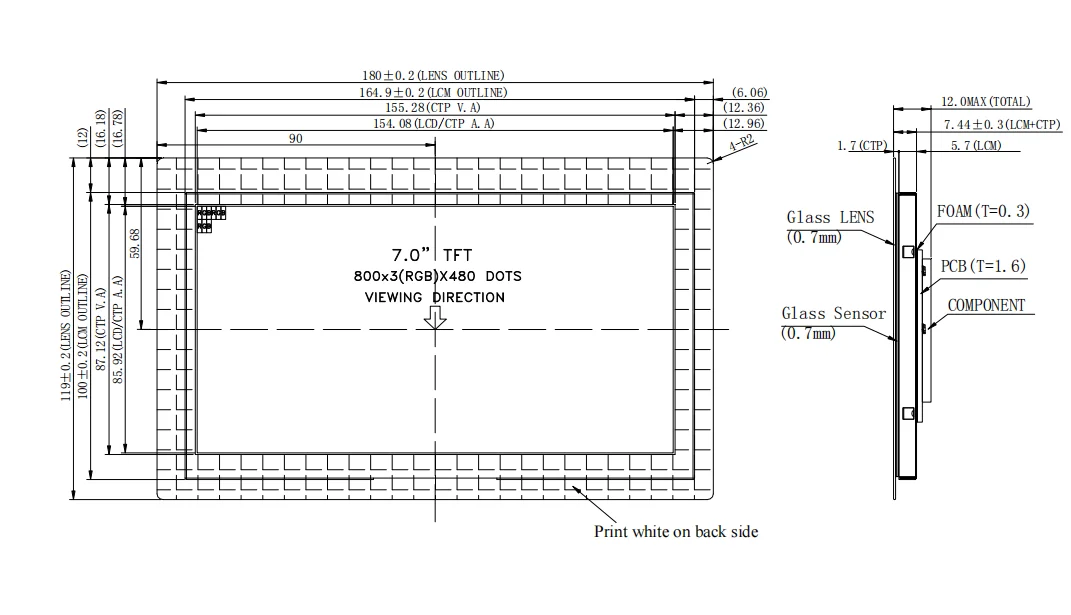

Module size | 180(W)×119(H)×12(T) mm |
Active area | 154.21(H)* 85.92 (V) |

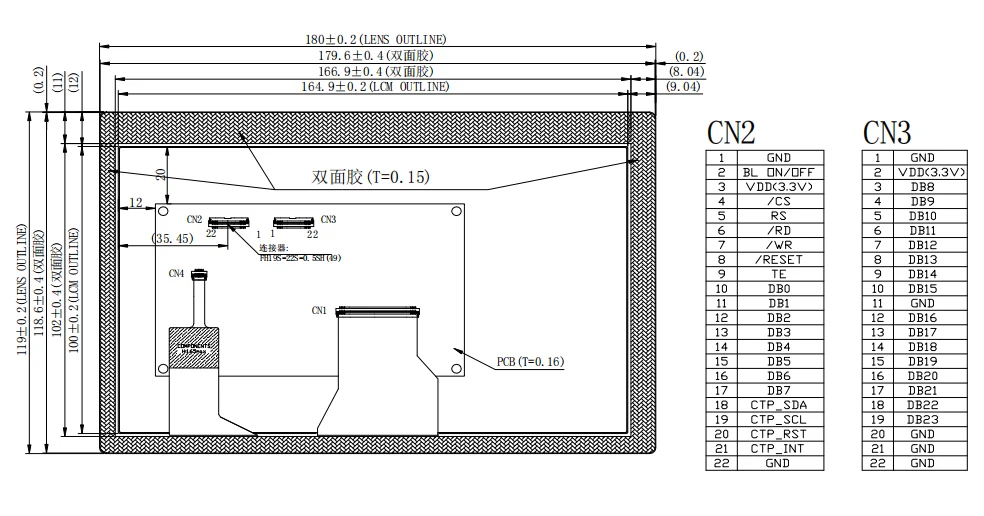

Interface | 8/9/16/18/24-bit 8080 interface |
Operating temperature | -10 ~ +60 |
Storage temperature | -20 ~ +70 |
Detailed Images
Company Profile
LEADTEK COMPANY LIMITED is a national high-tech enterprise which established in year 2015. We are committed to research and
development, manufacturing and sales of LCD screens, touch screens and comprehensive display solutions. All our products have
passed CE, RoHS, FCC and ISO 9000 certification.
Leadtek manufacturing centers are located in Fuyong, Shenzhen and Dalang, Dongguan, FAE and Sales technical support centers are
located in Bantian, Shenzhen. Our production plant area is 30,000 square meters and the number of employees is 300. In the future,
we will strive to build a high-tech enterprise with global influence, diversified business and market, and build a globally
competitive LCD brand.
Leadtek Vision: Display Smart Life Leadtek Mission: People-Oriented, Continuous Innovation, and to provide best display solutions
to each of our customer
development, manufacturing and sales of LCD screens, touch screens and comprehensive display solutions. All our products have
passed CE, RoHS, FCC and ISO 9000 certification.
Leadtek manufacturing centers are located in Fuyong, Shenzhen and Dalang, Dongguan, FAE and Sales technical support centers are
located in Bantian, Shenzhen. Our production plant area is 30,000 square meters and the number of employees is 300. In the future,
we will strive to build a high-tech enterprise with global influence, diversified business and market, and build a globally
competitive LCD brand.
Leadtek Vision: Display Smart Life Leadtek Mission: People-Oriented, Continuous Innovation, and to provide best display solutions
to each of our customer

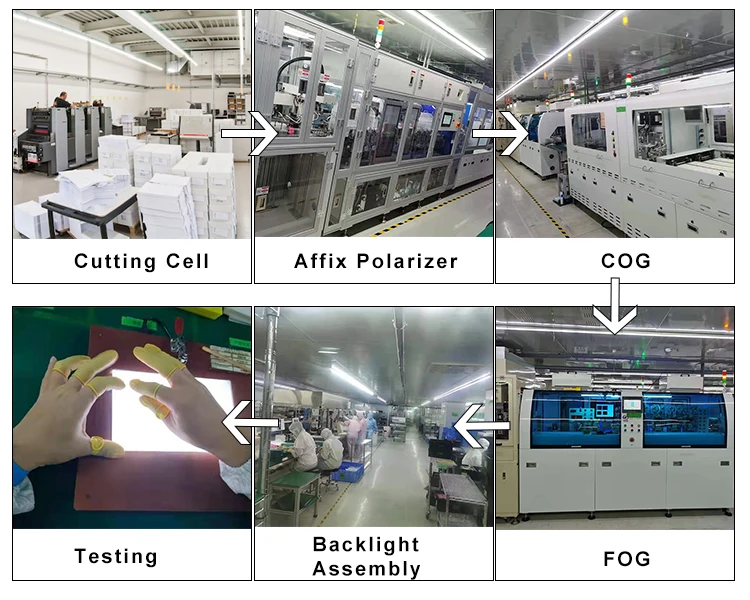

Production process
Leadtek Display products Application
Leadtek Display Certificates
Leadtek Display Exhibitions
