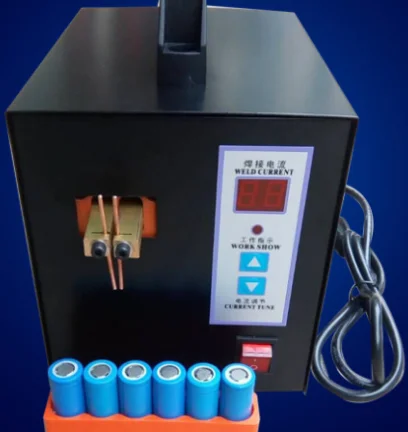

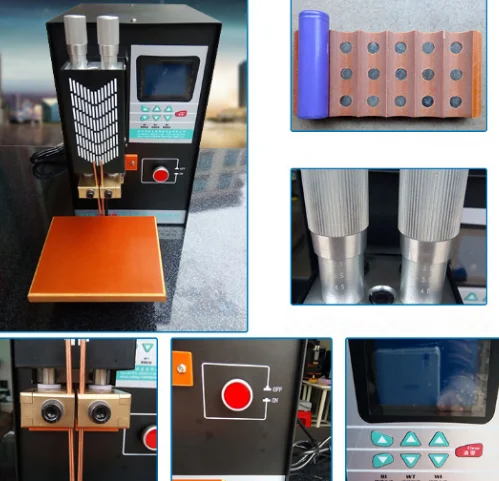

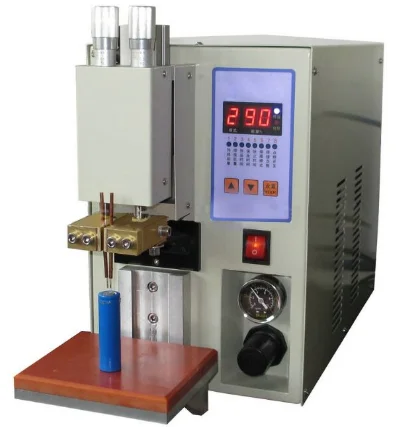

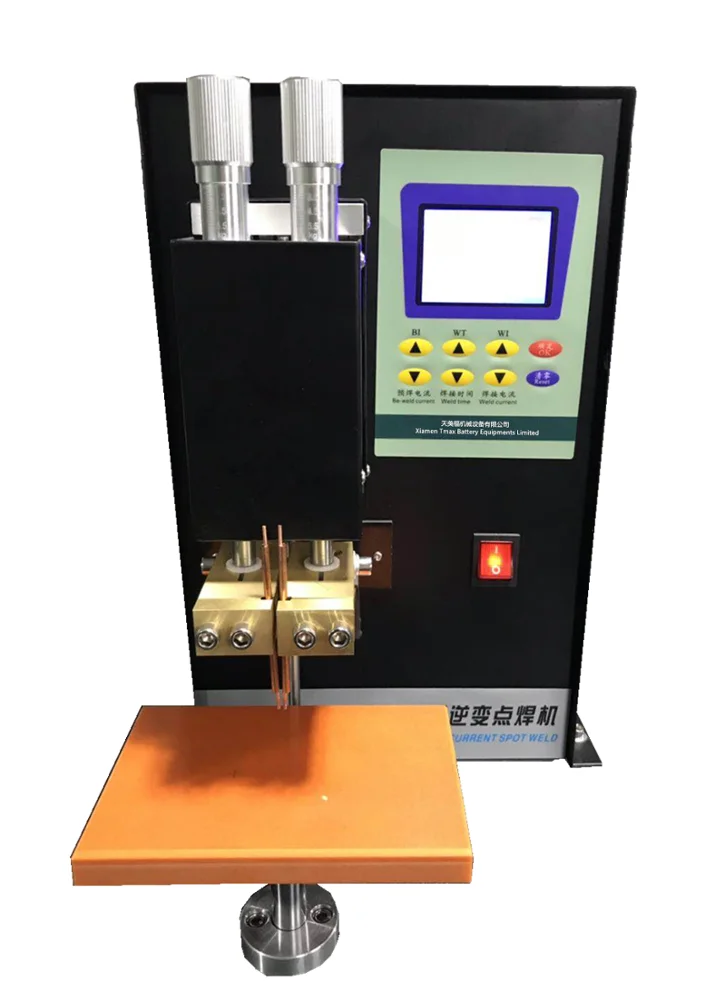

18650 21700 Cylindrical Battery Pack Pneumatic Spot Welding Machine Welder With CNC Current Numerical Control Adjustment System

Product Overview

Description

18650 21700 Cylindrical Battery Pack Pneumatic Spot Welding Machine Welder With CNC Current Numerical Control Adjustment System



Main features

*Microcomputer control, current numerical control adjustment;

*Welding power is calculated by calculus, with higher accuracy;

*Digital tube display, keyboard control, flash storage of welding parameters, avoiding lack of code dialing;

*Double pulse welding makes the welding stronger;

*The welding spark is small, the welding spot is uniform and beautiful, and the surface is clean;

*Normal welding and continuous automatic welding are possible, and the number of continuous welding can be set arbitrarily;

*Preload time, pressure hold time, rest time can be set, and welding speed can be adjusted arbitrarily;

*High power, stable and reliable;

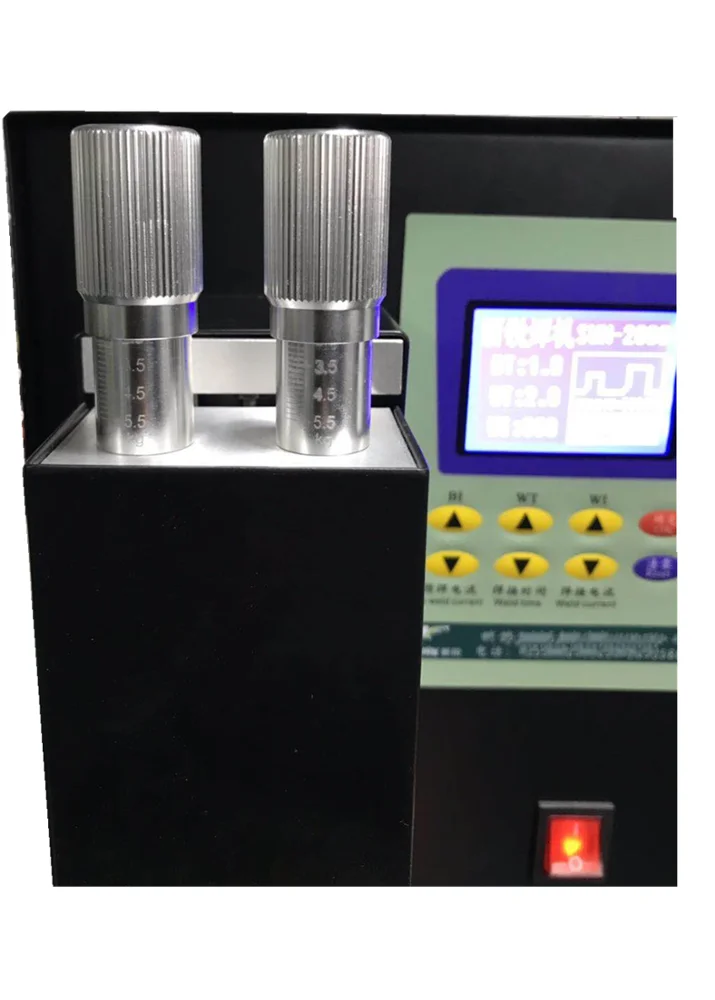

*The pressure of the two needles can be adjusted independently to suit different thicknesses of solder pads;

*Linear bearing design enhances flexibility and movement life of the machine head.



Technical parameters

Item	Specification
Power supply	APR30
Control function	Pneumatic
Secondary welding current	3000A
Pre-welding energy, welding energy	0-99% adjustable
Welding method	Double pulse
Max. Output power	15KVA
Input power supply	AC 220V±10% 50Hz±2Hz
Welding method	Ordinary welding, continuous welding
Pre-pressure, holding pressure, rest time	0-2.55 second
Automatic counting function	Yes
Weight	30kg
Dimension	800*600*1300 mm



Application

Battery combination, power battery, mobile phone battery, mobile power supply, LED, wire, mobile phone hardware, lighting hardware, lamps, precision hardware, relays, fuses, circuit breakers, semiconductor components, etc.
