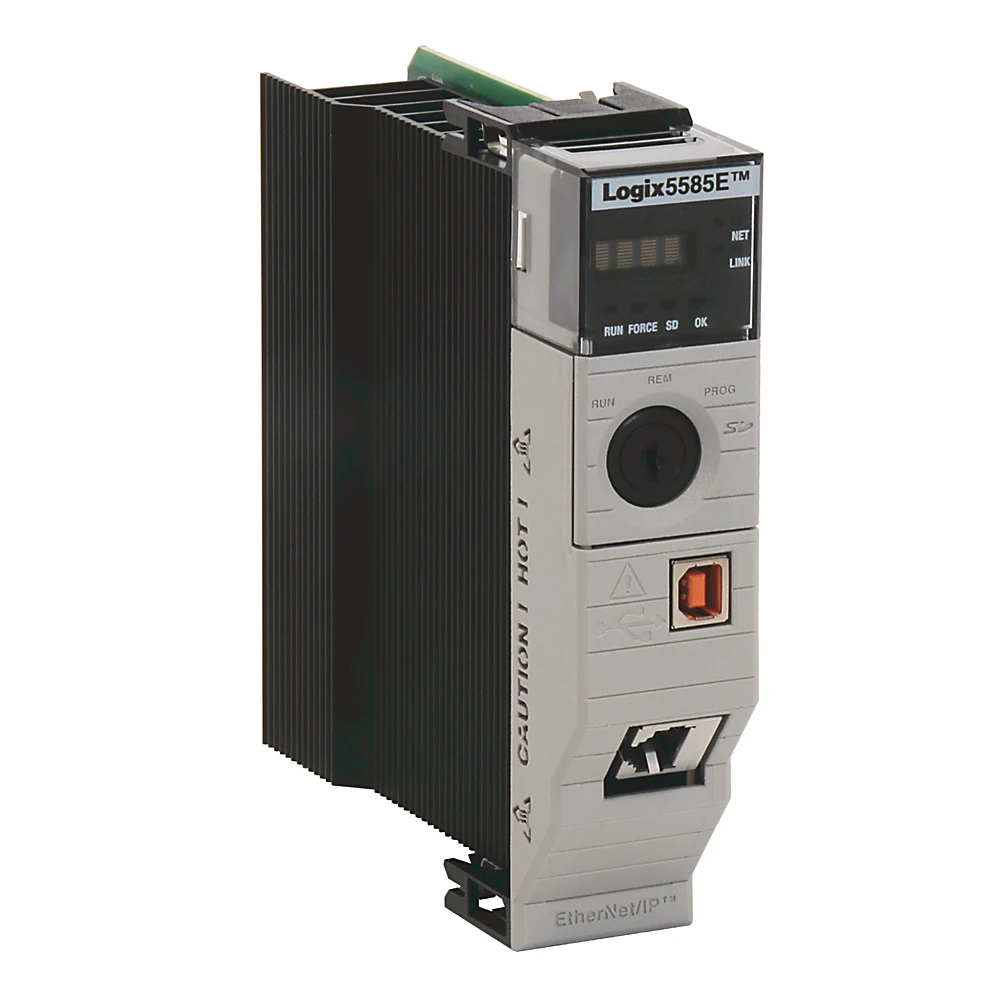

Allen Bradley 1756 L81E Control Logix 5580 Controller Programmable Automation Controllers Industrial PLCs
- Category: >>>
- Supplier: PLC Direct LLC
Share on (10000002632331):
Product Overview
Description
Product Description
Features and Benefits
• Gains up to 45% capacity when using the 5580 controller
• Includes a 1 gigabit (Gb) embedded Ethernet port that enables high-speed communications, I/O, and motion control
• Offers controller functions that maximize system performance
• Includes controller-based change detection and logging, digitally-signed controller firmware, and role-based access control for extra security
• Provides a display that allows for enhanced diagnostics and troubleshooting
• Offers conformal coating to help protect in harsh environments; these products include a “K” in the catalog number
• Offers memory options from 3 MB to 40 MB
• Includes a 1756 Slim Power Supply option for series B and C standard and 1756 XT Chassis, which offers a 29% reduction in width when space is limited
Specification
Place of Origin | United States |
Brand Name | Allen Bradley |
Category according to EN 954-1 | 3 |
Depth | 136.6 mm |
Front installation possible | yes |
Height | 145.2 mm |
Memory size | 3072 kByte |
Model | Modular |
Number of HW-interfaces industrial Ethernet | 1 |
Number of HW-interfaces other | 0 |
Number of HW-interfaces RS-232 | 0 |
Number of HW-interfaces USB | 1 |
Number of relay outputs | 0 |
Performance level acc. to EN ISO 13849-1 | Level d |
Rack-assembly possible | yes |
Rail mounting possible | no |
SIL according to IEC 61508 | 2 |
Supporting protocol for Data-Highway | no |
Supporting protocol for EtherNet/IP | yes |
Supporting protocol for MODBUS | yes |
Supporting protocol for SERCOS | no |
Supporting protocol for TCP/IP | no |
Wall mounting/direct mounting | no |
Width | 34.55 mm |
With display | yes |
