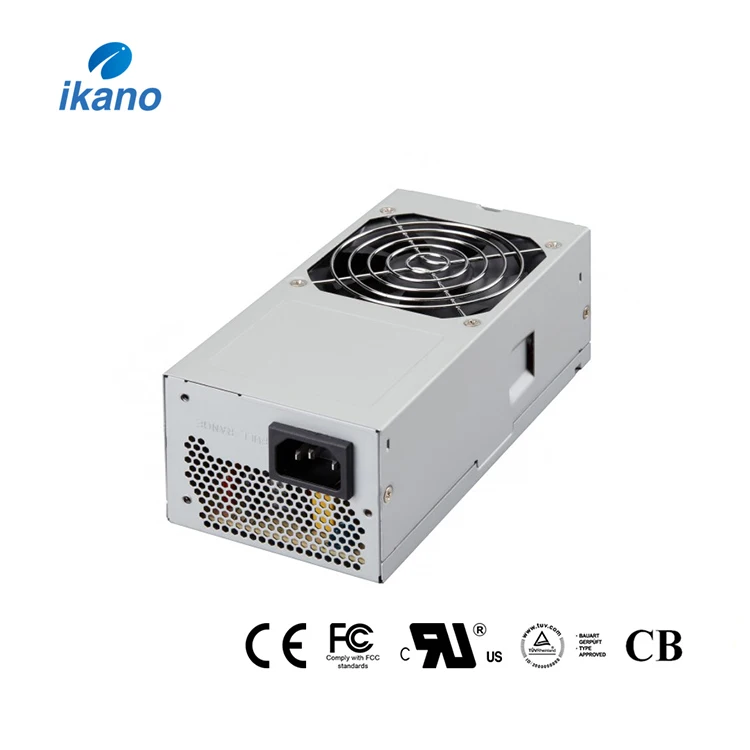

Product Desciption
Feature
• Intel PSDG TFX 12V V2.52 version
• 80 PLUS GOLD Certification
• Worldwide Input Voltage 100Vac-240Vac
• Dual 12V Rails To Fulfill System Protection Demand
• Active PFC Within 0.99 Power Factor Correction
• DC to DC Design for Better System Compatiblity
• Own Patent IC To Offer High Performance and Efficiency
• Smart Fan Speed Control Provide Ultra Silent Working Environment
• 2 Years Warranty

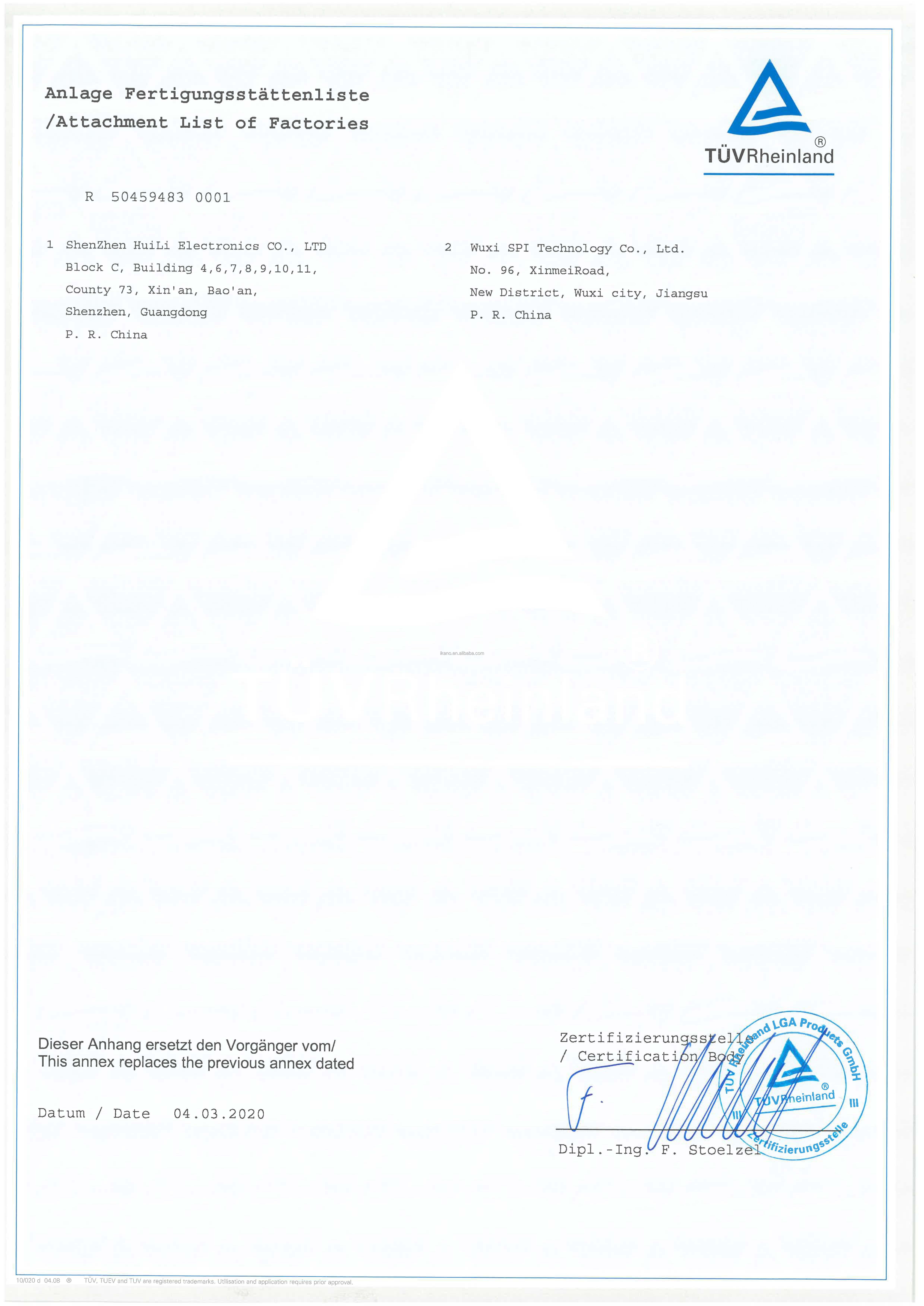

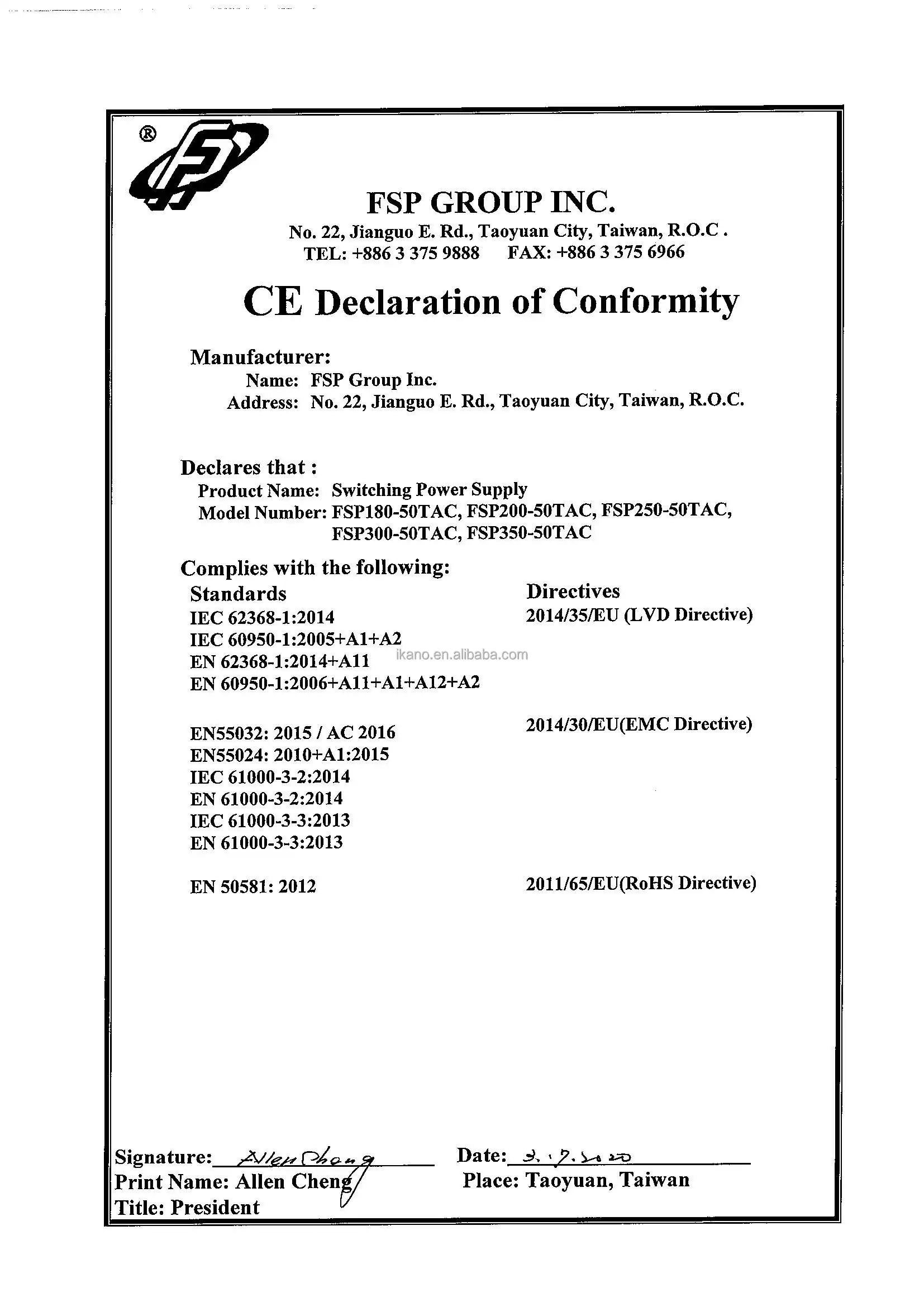

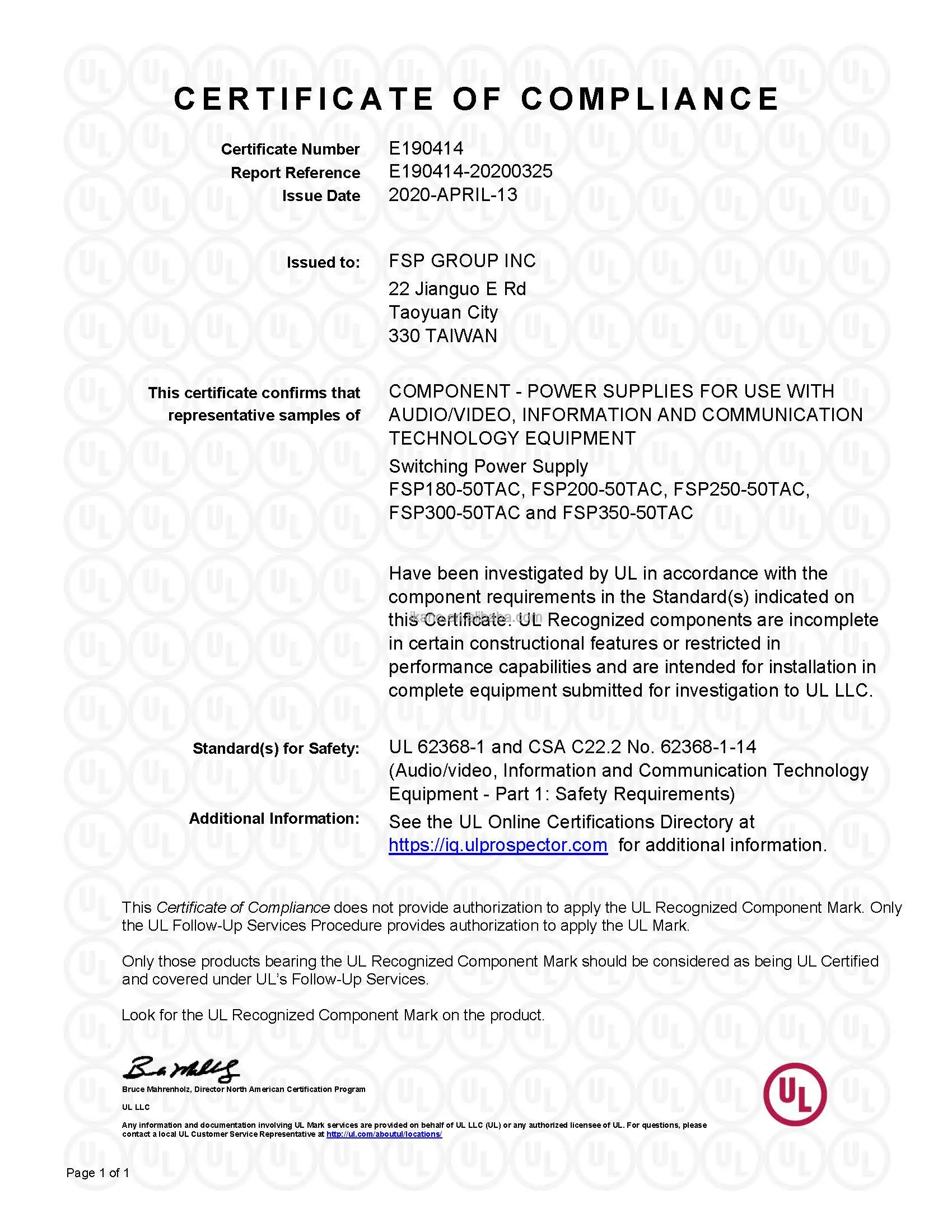

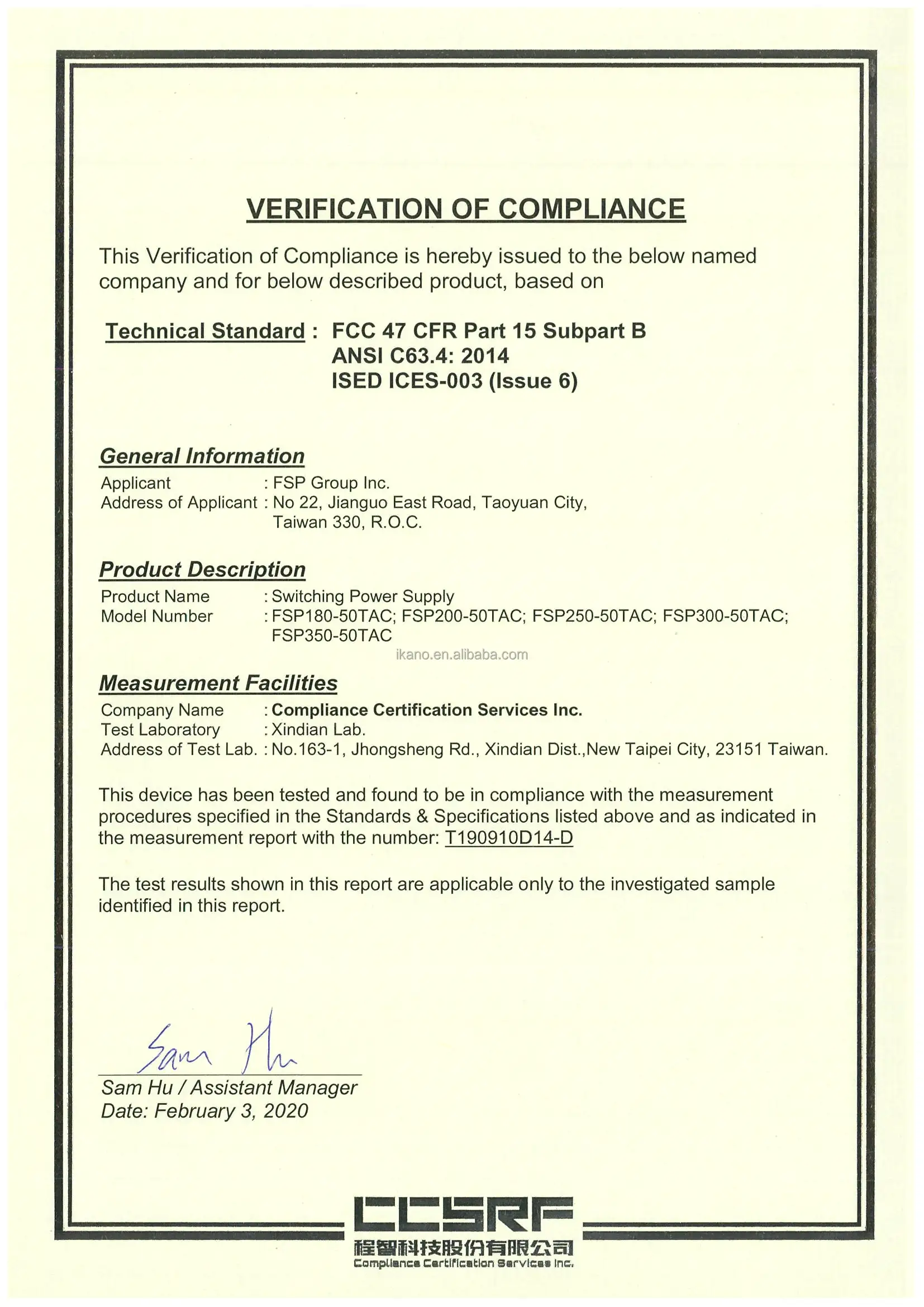

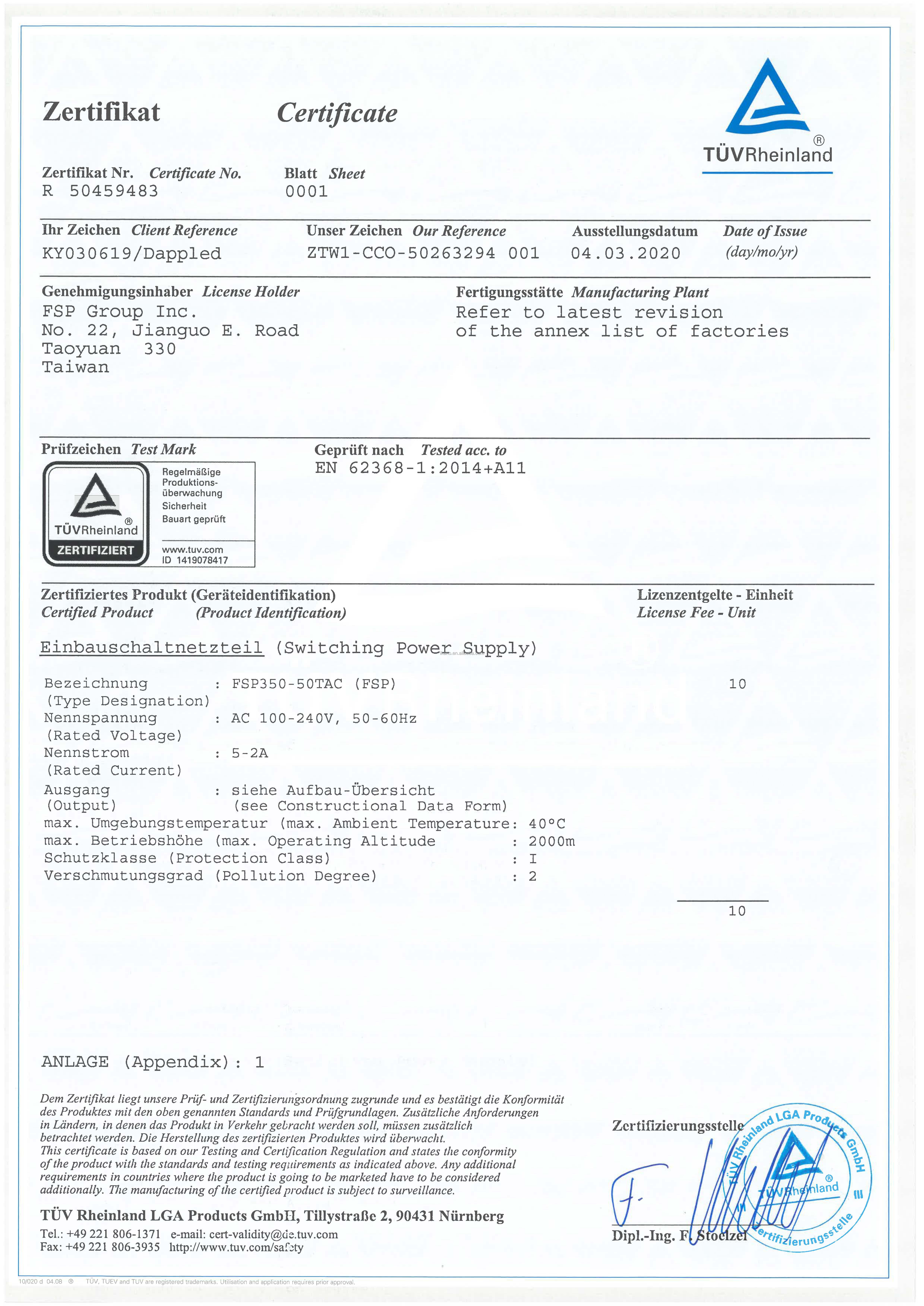

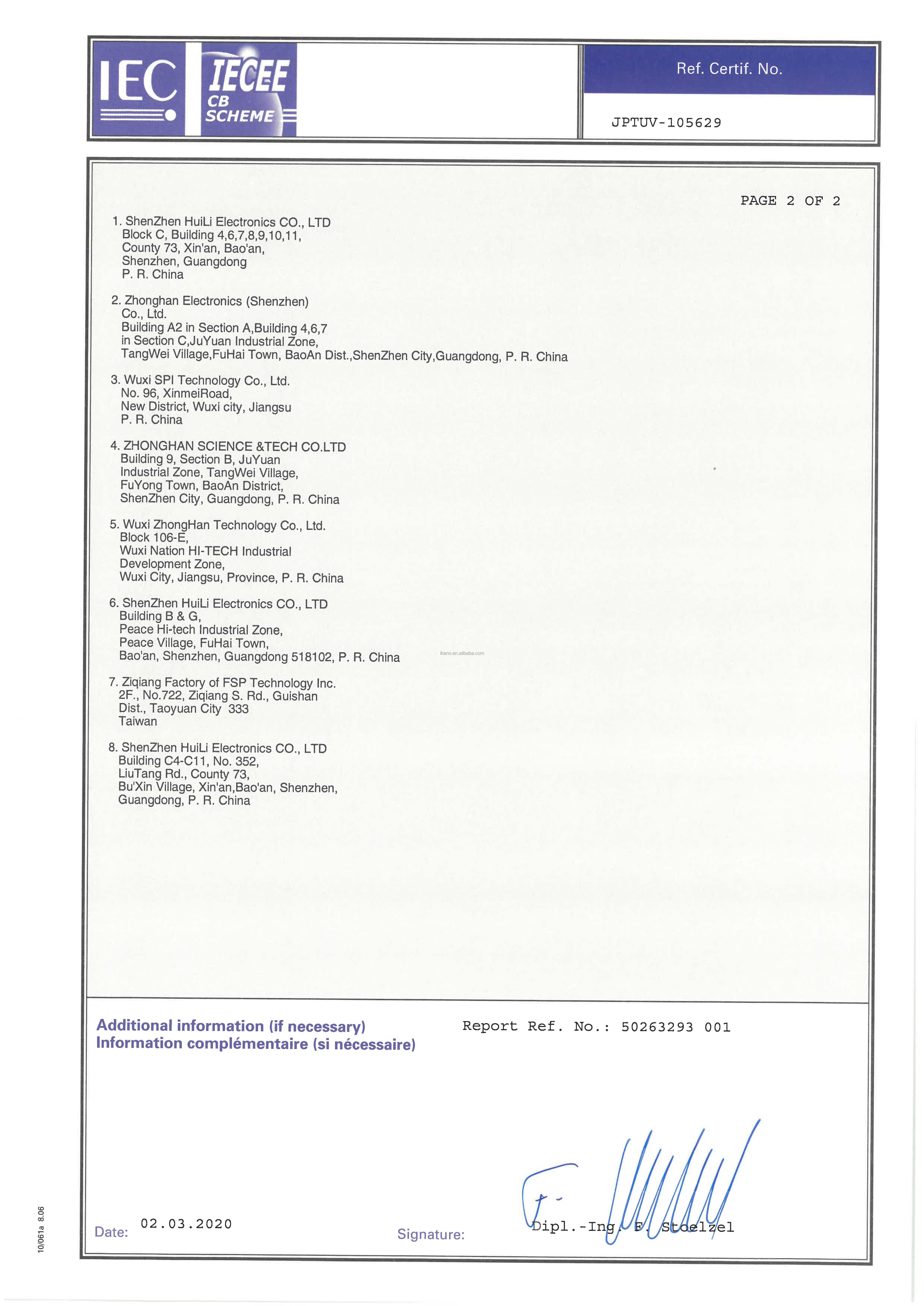

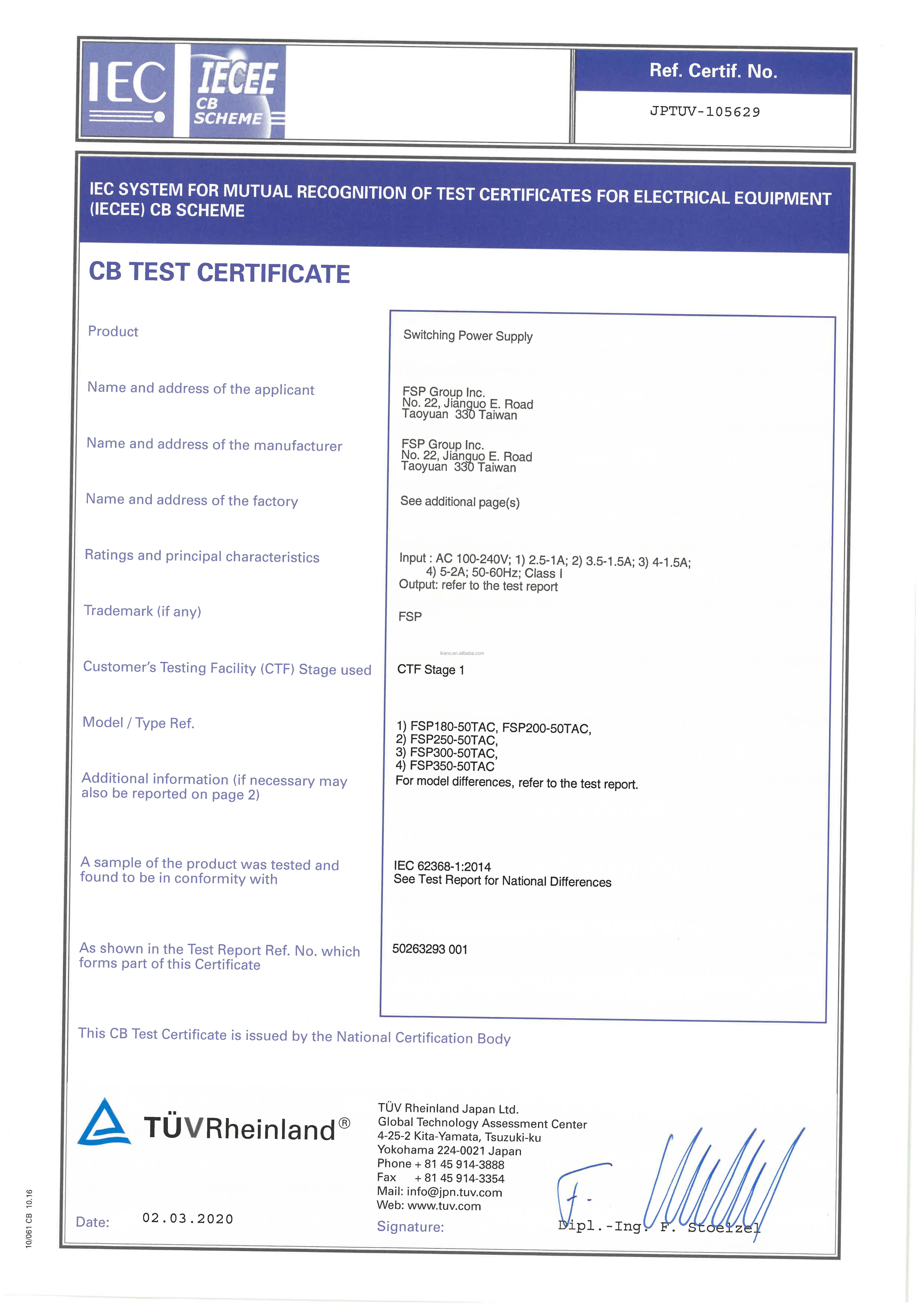

• National Safety Regulations Certification: CB 62368, CE, FCC, TUV, CUL
Introduction

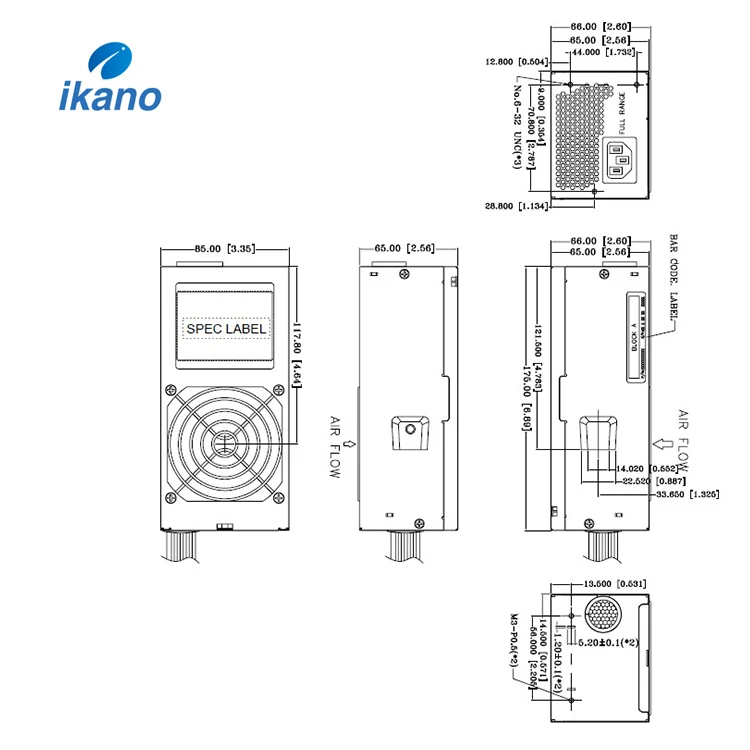

• Dimension: 175 (L) x 85 (W) x 65 (H) mm
• Output Wattage: 300W
• Input voltage: 90-264Vac
• Input frequency: 47-63Hz
• Input current: 115Vac @ 10A, 230Vac @ 5A
• IEC-62368
| GENERAL SPECIFICATIONS | |
| Dimension:(L x W x H) | 175 x 85 x 65 mm / 6.89 x 3.35 x 2.56 (inch) |
| Efficiency | 80 Plus Bronze |
| Hold-up time:Hold-up time: | 115V / 60Hz: ≥ 16ms at 80% load |
| 230V / 50Hz: ≥ 16ms at 80% load | |
| Operating altitude | 2,000 meters above sea level |
| MTBF |
100,000 hours of continuous operation at 25°C, Max. output load |
| Environment Working temperature | 0°C to 50°C |
| Storage temperature | -20°C to + 80°C |
| Working humidity | 90% RH non-condensing |
| Storage humidity | 90% RH non-condensing |
| INPUT SPECIFICATIONS | |
| Input voltage: | 90-264Vac |
| Input frequency: | 50-60Hz |
| Input current: | 115Vac @ 3A, 230Vac @ 1.5A |
| OUTPUT RATING | |||||
| Outputs | +3.3V | +5V | +12V | -12V | +5Vsb |
| Max | 12A | 12A | 20.83A | 0.3A | 2.5A |
| Min. | 0A |
0A |
0.1A | 0A | 0A |
| Regulation | ±5% | ±5% | ±5% | ±5% | ±5% |
| Ripple/Noise | 50 mV | 50 mV | 120 mV | 120 mV | 50 mV |
| The +3.3V and +5Vtotal o utput shall not exceed 65W | |||||
