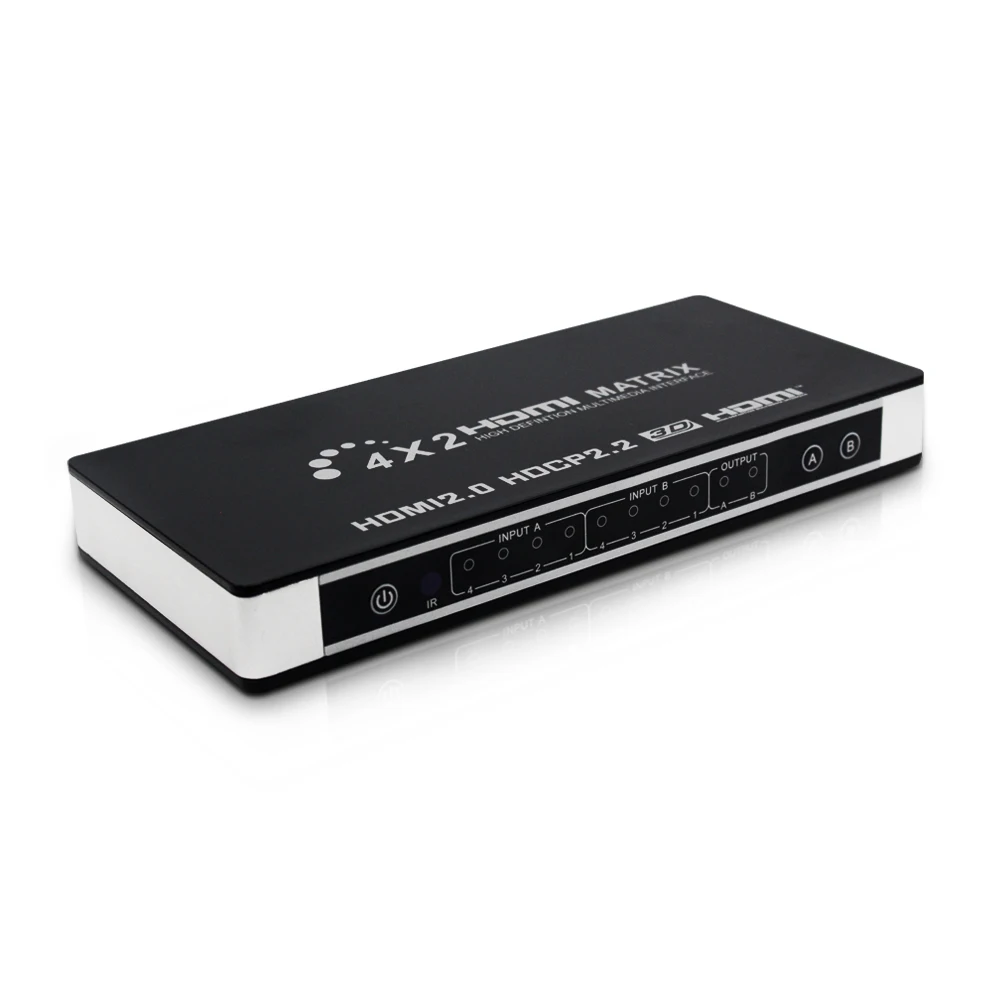

Коммутатор hdmi matrix, 4 в 2 выхода, поддержка 4K 30 Гц CEC ARC с аудиовыходом
- Category: Home Audio, Video & Accessories >>>
- Supplier: Shenzhen Yunzuo Electronics Co. Ltd.
Share on (10000002790308):
Product Overview
Description
HDMI Matrix 4x2 HDMI 2.0 4K@60Hz 18Gbps HDR 4:4:4 CEC 4 in 2 out
Introduction:

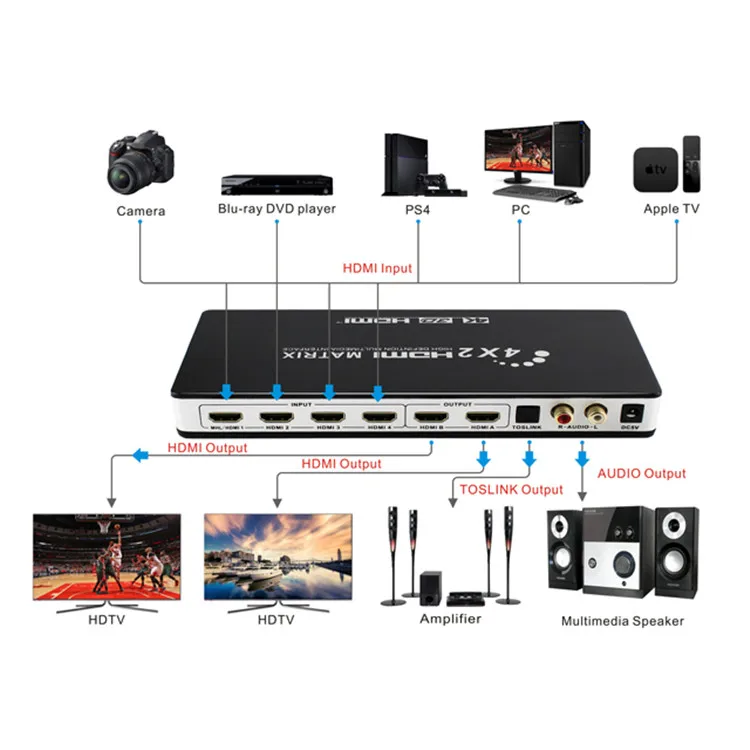

This Matrix 4x2 can connect four high definition sources and two sinks with audio output optical or stereo simultaneously. It can easily switch or split four high definition video sources to two compatible displays or projectors. The Optical and stereo audio output can extract audio signal from output A.
Product Description
Specification:
HDMI version…………………………………………............HDMI 2.0, HDCP 2.2
HDMI resolution.............24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p
/4K x 2K@24/25/30fps@60Hz.
Support video color format........................24 bit/deep color 30bit, 36bit, 48bit
Support audio format..DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Audio output............................................................SPDIF and RCA stereo
Max transmission bandwidth...........................................................340MHz
Max baud rate..............................................................................10.2Gbps
Input/Output TMDS signal...................................................0.5~1.5Volts p-p
Input/Output DDC signal.....................................................5Voltsv p-p(TTL)
Input cable distance..............................Output cable distance
HDMI resolution.............24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p
/4K x 2K@24/25/30fps@60Hz.
Support video color format........................24 bit/deep color 30bit, 36bit, 48bit
Support audio format..DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Audio output............................................................SPDIF and RCA stereo
Max transmission bandwidth...........................................................340MHz
Max baud rate..............................................................................10.2Gbps
Input/Output TMDS signal...................................................0.5~1.5Volts p-p
Input/Output DDC signal.....................................................5Voltsv p-p(TTL)
Input cable distance..............................Output cable distance
Working current............................................................................1.3A max
Power adapter format.........Input: AC100V-240V(50/60Hz); Output: DC 5V/2A
Operating Temperature range..................................................(-15 to +55℃)
Operating Humidity range...............................5 to 90%RH(No Condensation)
Dimension(LxWxH).............................................................218x106x28mm
Weight...............................................................................................318g
Power adapter format.........Input: AC100V-240V(50/60Hz); Output: DC 5V/2A
Operating Temperature range..................................................(-15 to +55℃)
Operating Humidity range...............................5 to 90%RH(No Condensation)
Dimension(LxWxH).............................................................218x106x28mm
Weight...............................................................................................318g
Features:
l Four HDMI input signals switched or split to two HDMI sink devices.
l Output HDMI A is with audio output through Toslink and Stereo.
l Audio sync separator output can be achieved with 2CH, 5.1CH, Pass three audio modes selectable.
l Supports 3D.
l Supports 4K x 2K x 60Hz.
l With HDMI-CEC function.
l Supports deep color 30bit, 36bit.
l Supports Blue-Ray 24/50/60fps/HD-DVD/xvYCC.
l Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/Dolby-AC3/DSD.
l Supports signal retiming.
l Supports input no more than 10 metres (AWG24 HDMI standard cable length) .
l Inputs can be switched with the IR remote control, also can be controled by two Buttons.
l It can come back to the return to default input 1 when restart or reset.
l LED indicator: When any one of the input of sources is selected, the relative
l input LED indicator will be on. When either of the output is selected, the relative
l output LED indicator will be on.
l No loss of quality.
l Install in minutes.
Certifications: CE FCC RoHS

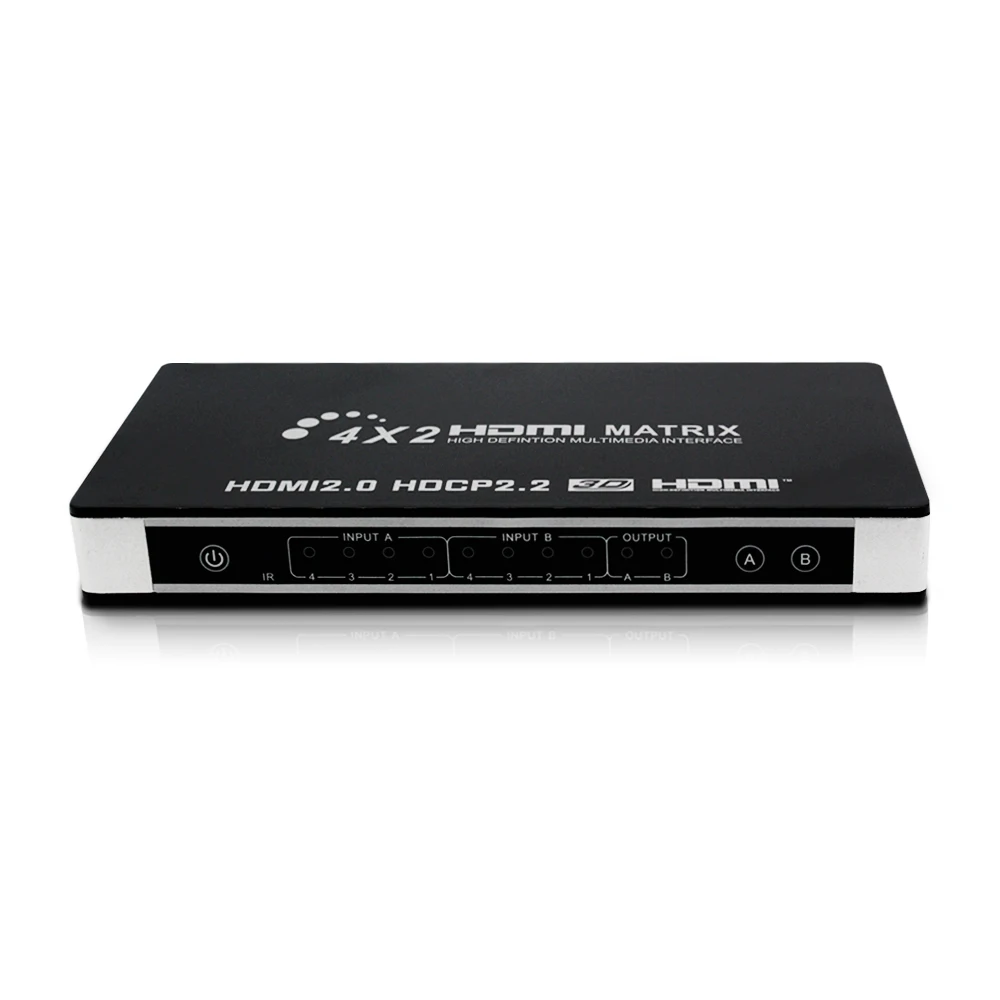

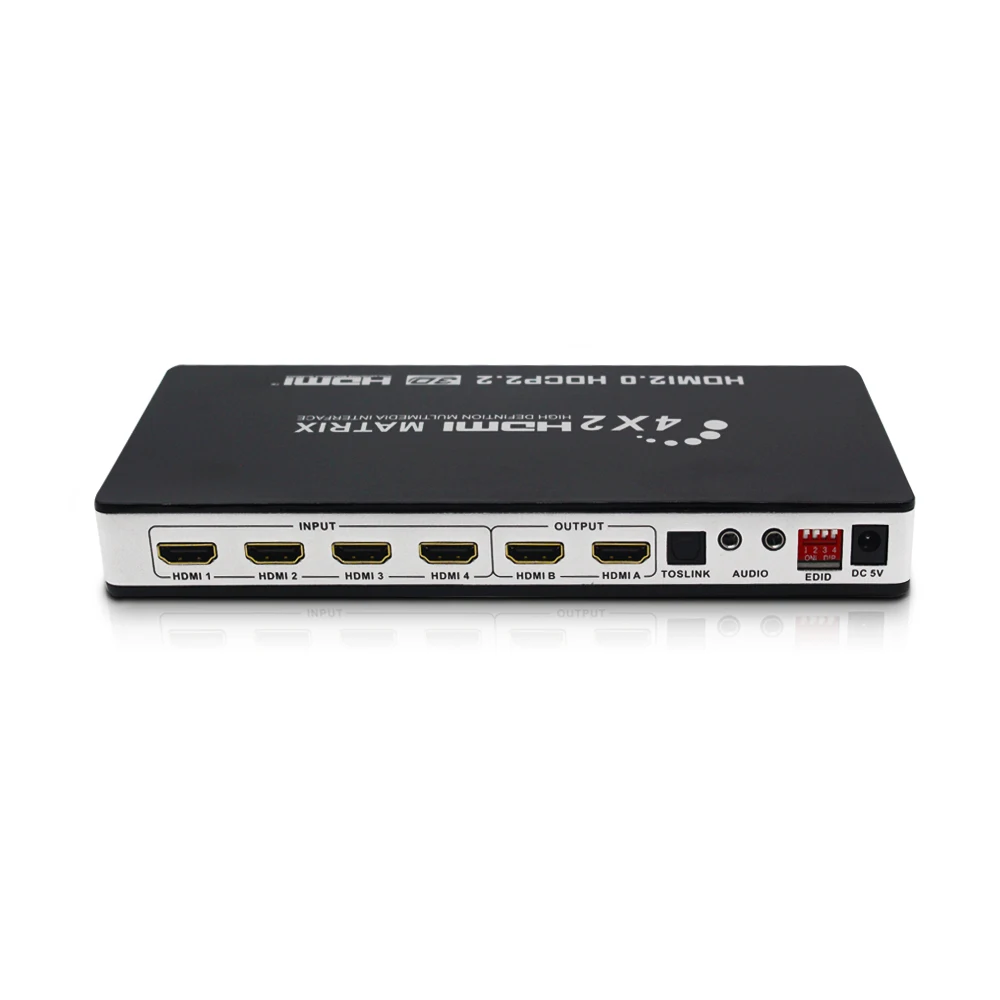

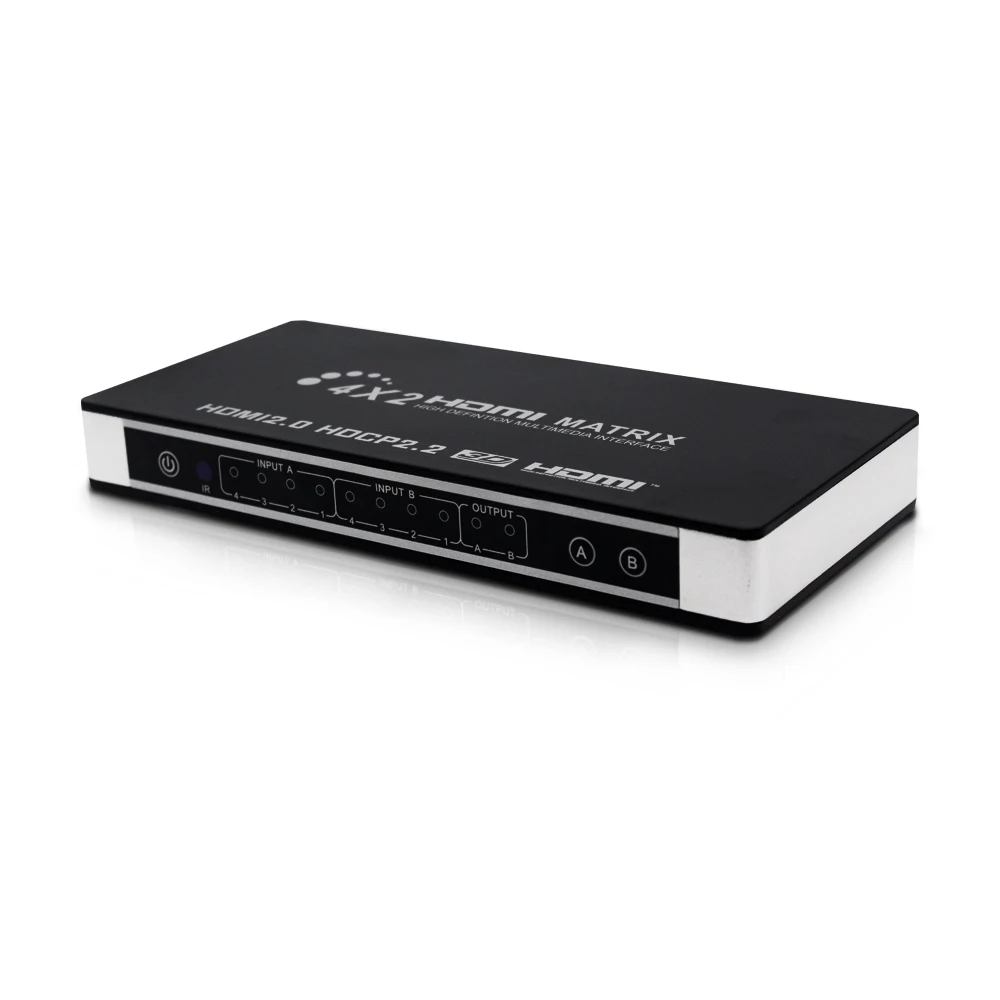

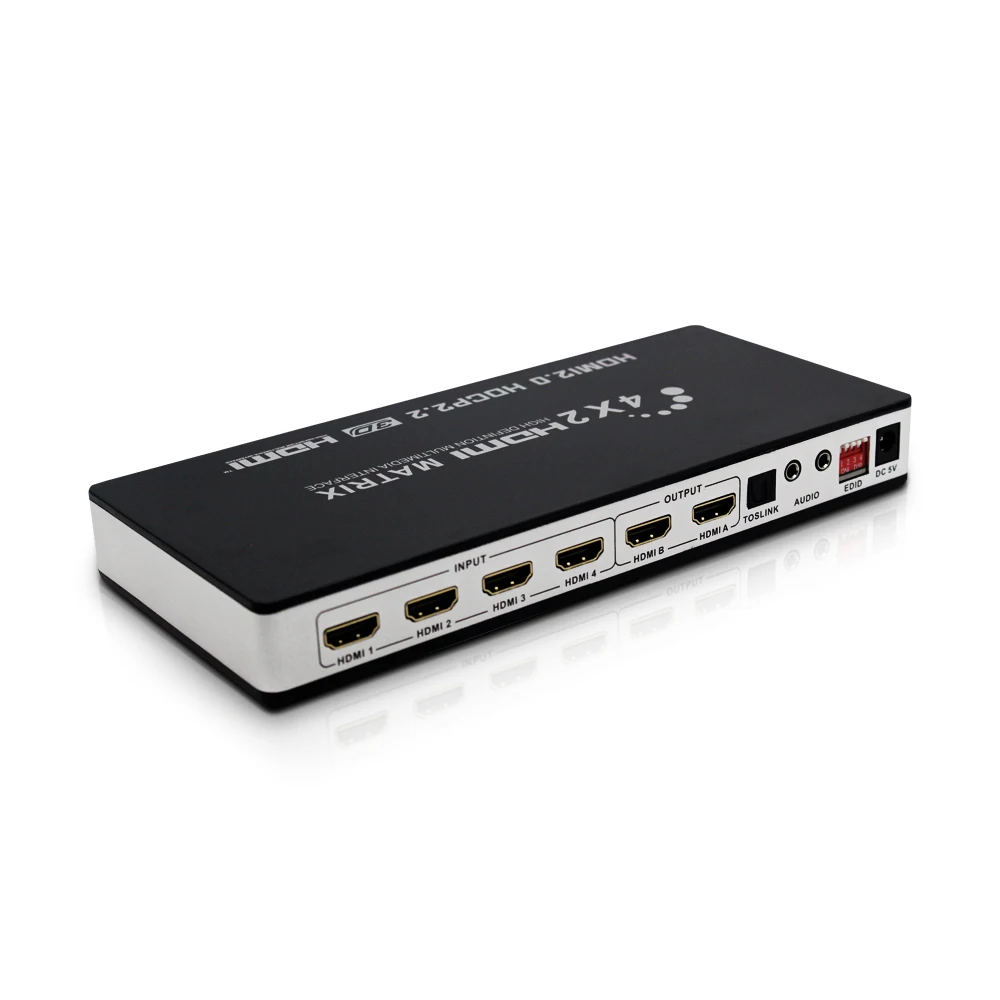

Product Picture:
Package Content:
1. 5V Power Adaptor x1
2. Remote controller x1
3. User manual x1
4.HDMI Cable x1
