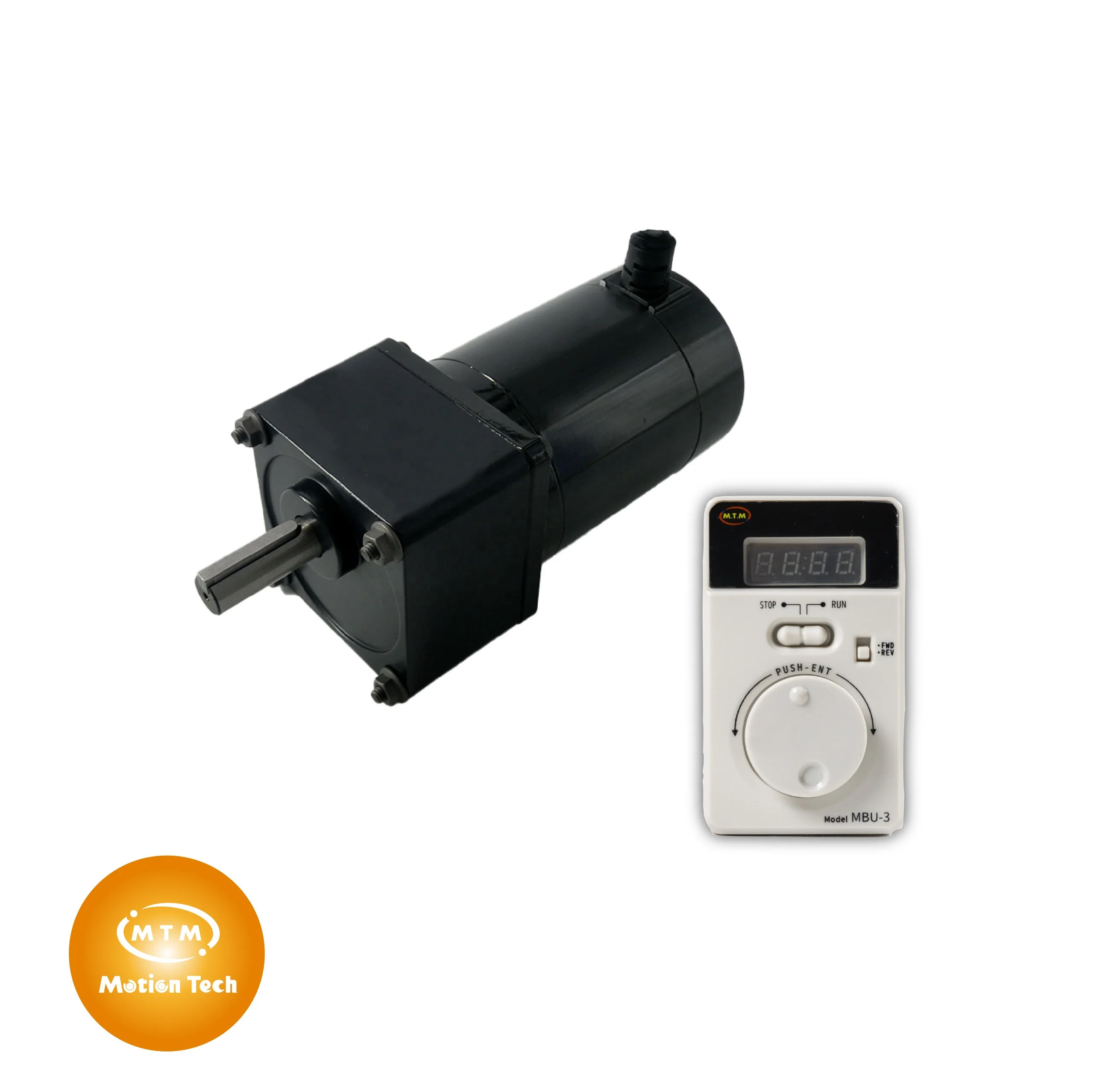

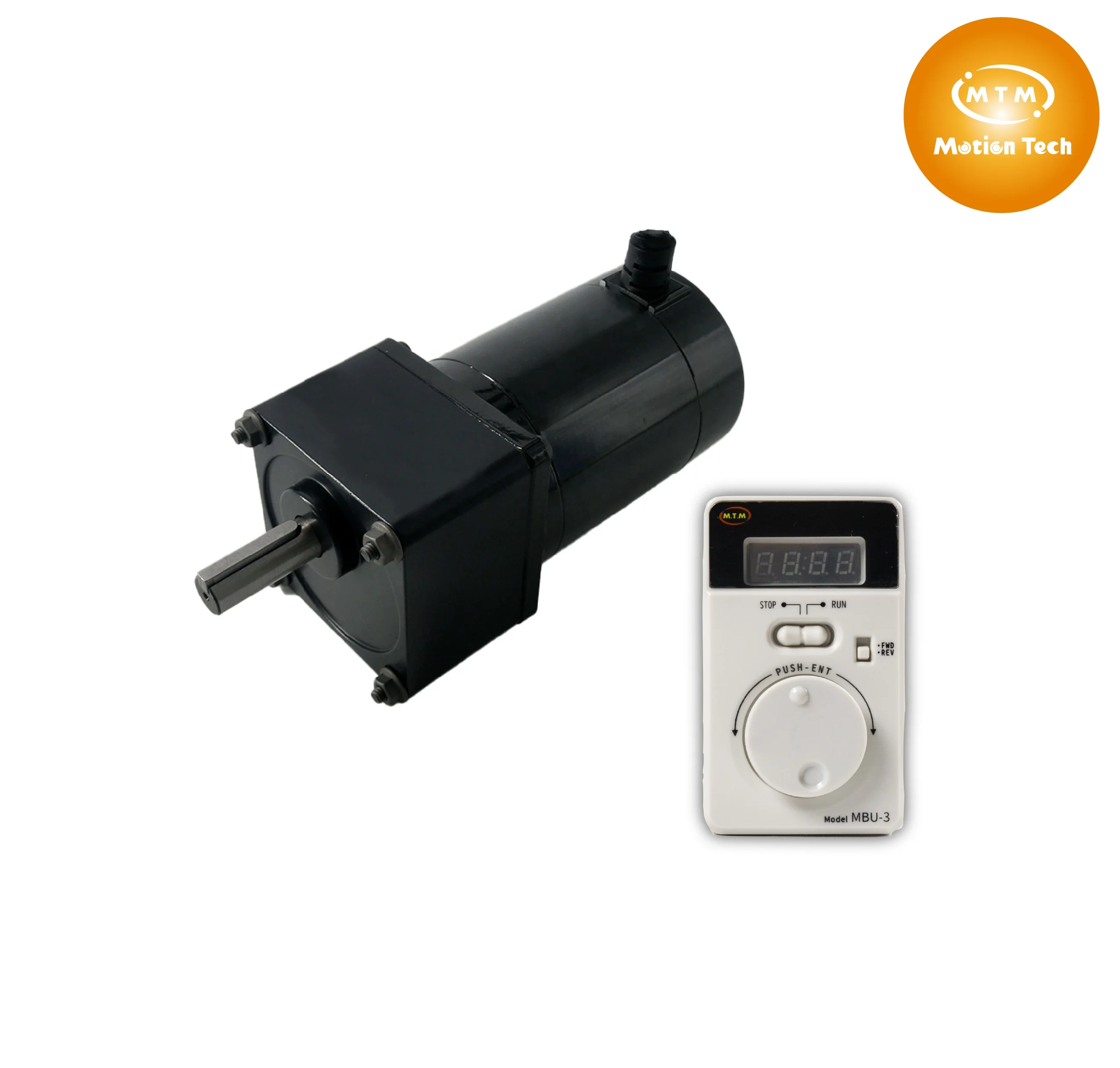

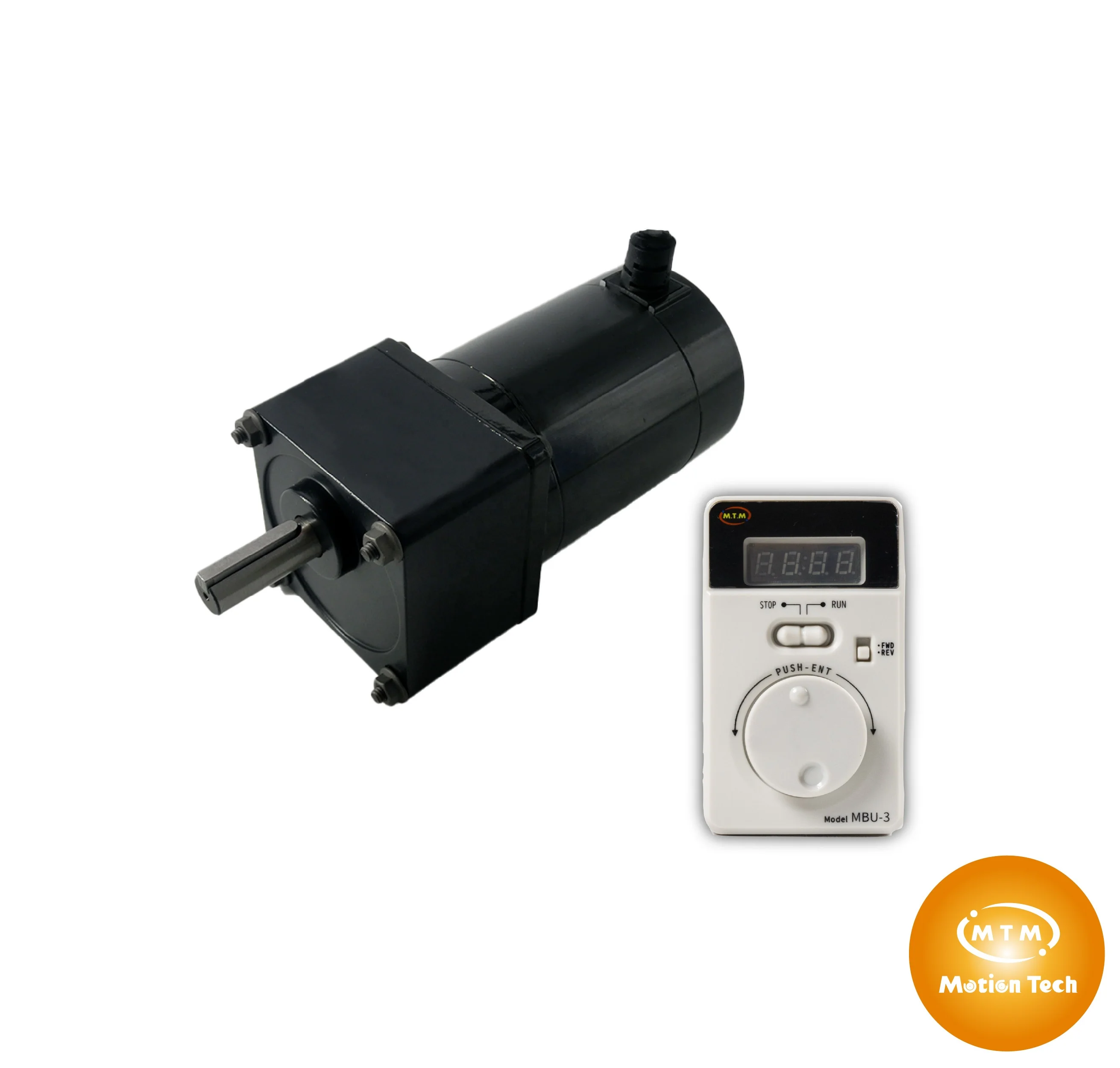

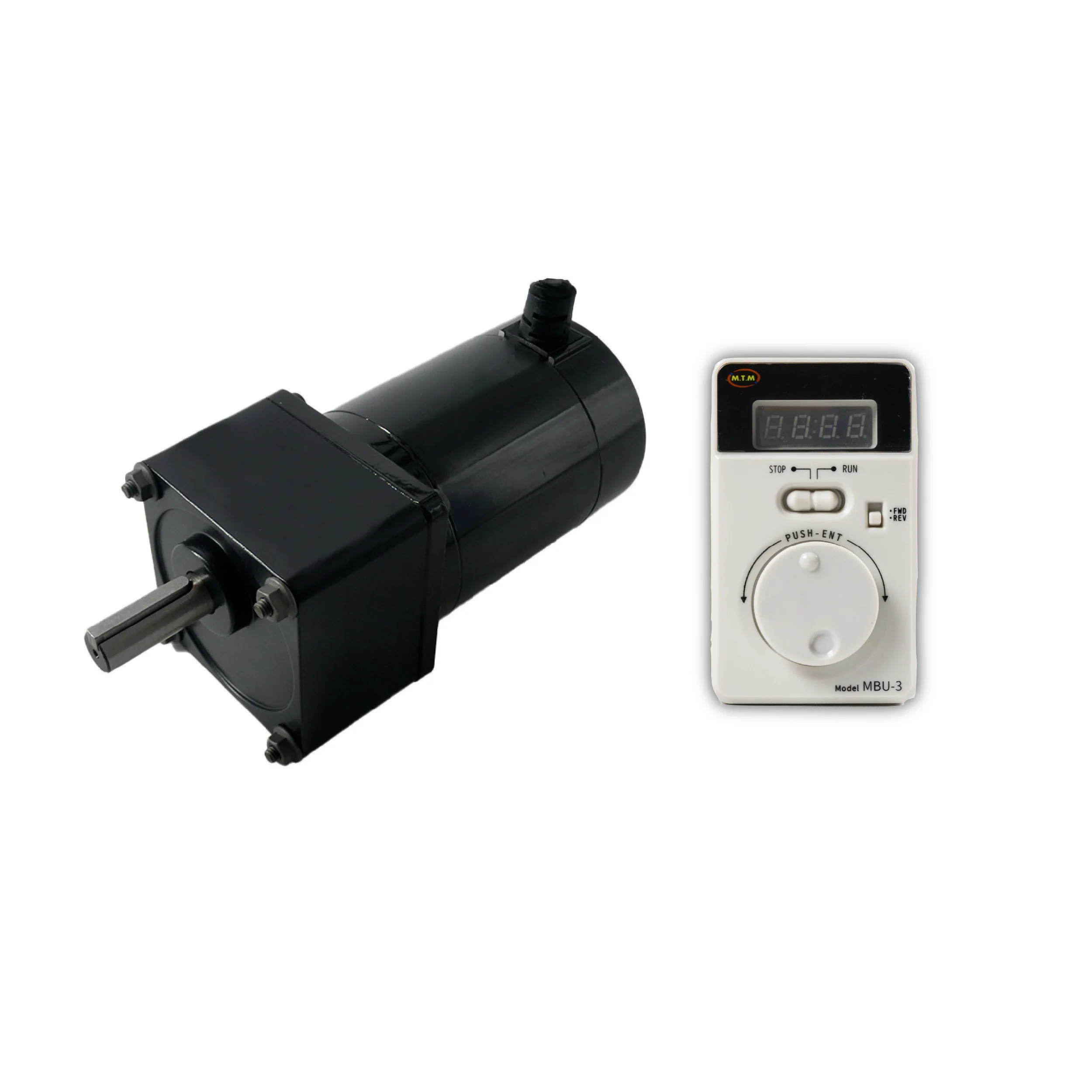

  • [MTM] 220VAC 80W Brushless motor with driver 3000RPM IE4 Made in Taiwan motor bldc
[MTM] 220VAC 80W Brushless motor with driver 3000RPM IE4 Made in Taiwan motor bldc
[MTM] 220VAC 80W Brushless motor with driver 3000RPM IE4 Made in Taiwan motor bldc
[MTM] 220VAC 80W Brushless motor with driver 3000RPM IE4 Made in Taiwan motor bldc
[MTM] 220VAC 80W Brushless motor with driver 3000RPM IE4 Made in Taiwan motor bldc
[MTM] 220VAC 80W Brushless motor with driver 3000RPM IE4 Made in Taiwan motor bldc

[MTM] 220VAC 80W Brushless motor with driver 3000RPM IE4 Made in Taiwan motor bldc

Share on (10000002790313):


Price:$239.00

Quantity:


Product Overview

Description



Products Description




Model Name
Voltage
Motor Output
Rated Speed
Rated Torque
Rated Current
BL60S
24V / 48V / 100V / 110V / 220V
40W
3000RPM
0.13N-m
2.1A
BL60M
24V / 48V / 100V / 110V / 220V
80W
3000RPM
0.26N-m
4.4A
BL60L
24V / 48V / 100V / 110V / 220V
120W
3000RPM
0.39N-m
6.2A


Product Paramenters




Specification


Product name
Brushless motor series - BL60
MOQ
1 piece
Country of origin
Taiwan
Port
Keelung


Certifications






About BLDC Series


From 15W to 9000W
MTM have a complete BLDC product line from 15w to 9000w, from 100rpm to 8000rpm, from 12VDC to 96VDC, from 100VAC to 220VAC.
Standard BL42 products: 15W~30W
Standard BL60 products: 40W~120W
Standard BL90 products: 100W~500W
Standard BL104 products: 400W~1000W
Standard BL130 products: 1000W~2000W
Standard BL180 products: 2000W~9000W
Optional Power off brake: 2N-m~10N-m
Gearbox motor is available from 40W~7000W


Model
Rated Power(W)
Rated Voltage(V)
Rated Torque(N-m)
Rated Speed(RPM)
Brake
With Driver
No Driver
BL104L
1000


220VAC
3.2
3000
x
LINK
LINK
BL104M
750
220VAC
2.38
3000
x
LINK
LINK
BL104S
400
220VAC
1.27
3000
x
LINK
LINK
BL90L
500
220VAC
1.6
3000
x
LINK
LINK
500
110VAC
1.6
3000
x
LINK
LINK
BL90M


350
220VAC
1.1


3000

x
LINK
LINK
350


110VAC

1.1


3000

x
LINK
LINK
BL90N
200
220VAC
0.64


3000

x
LINK
LINK
200
110VAC
0.64
3000
x
LINK
LINK
BL90S
150


220VAC

0.48


3000

x
LINK
LINK

150
110VAC
0.48
3000
x
LINK
LINK
BL60L
120


220VAC

0.39


3000



x

LINK
LINK

120
110VAC
0.39


3000



x

LINK
LINK
BL60M
80


220VAC

0.26


3000



x

LINK
LINK

80
110VAC
0.26


3000



x

LINK
LINK
BL60S
40


220VAC
0.13


3000



x

LINK
LINK
40
110VAC
0.13


3000



x

LINK
LINK


Applications




Brush motor is our root, Servo motor and brushless motor is our future.
The main product of MTM is for vehicles with low voltage DC power. If you are looking for a DC power servo motor, BLDC, brush motor or gearbox, MTM is your best choice.


Packing & Delivery




Company Profile


About MTM
ISO 9001, ISO 14001 AUTHORIZED.
Motion Tech is the leading role in motor industry in Taiwan and leading brand of medical electric wheelchair, E-scooter all over the world. We devote to manufacture PMDC motors and BLDC motors since 2002.The main products of MTM is power module which included motor, gearbox and motor controller. MTM provide customization service which included design, test and manufacture to create a product with quality, efficiency and reliability.
