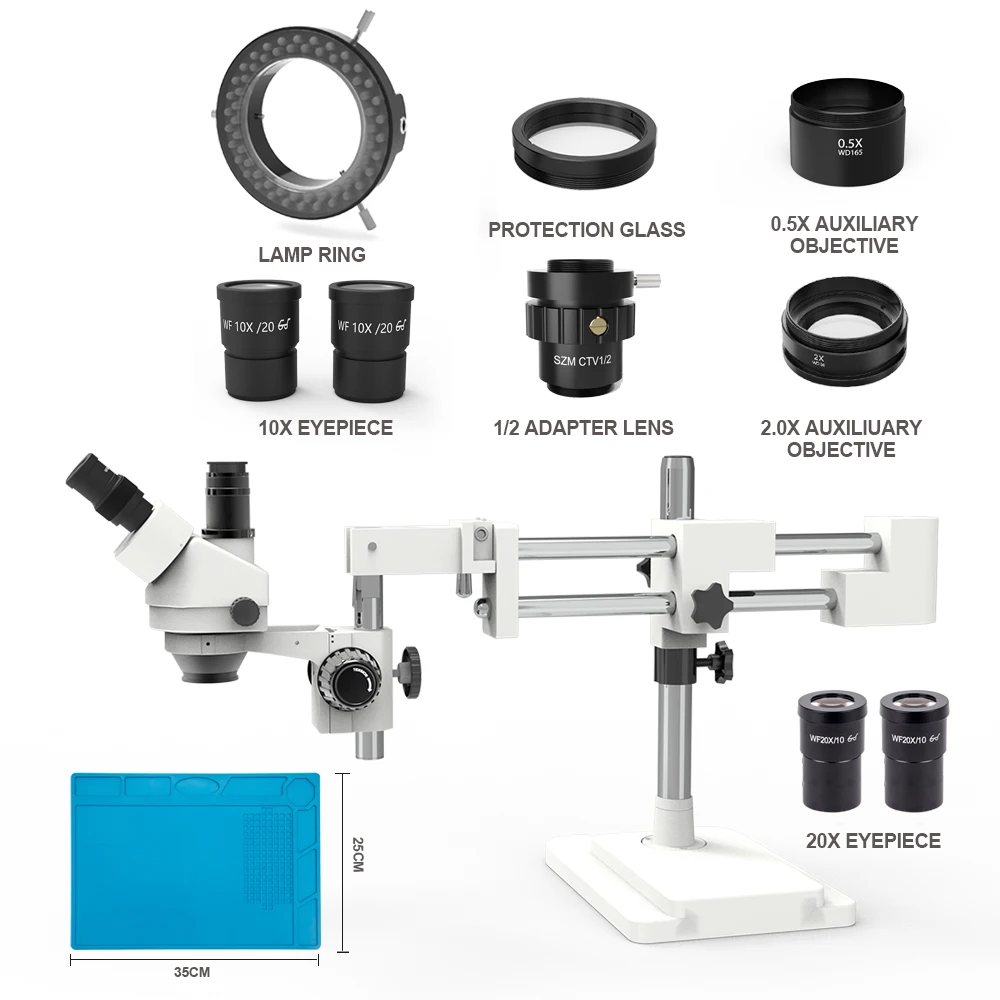

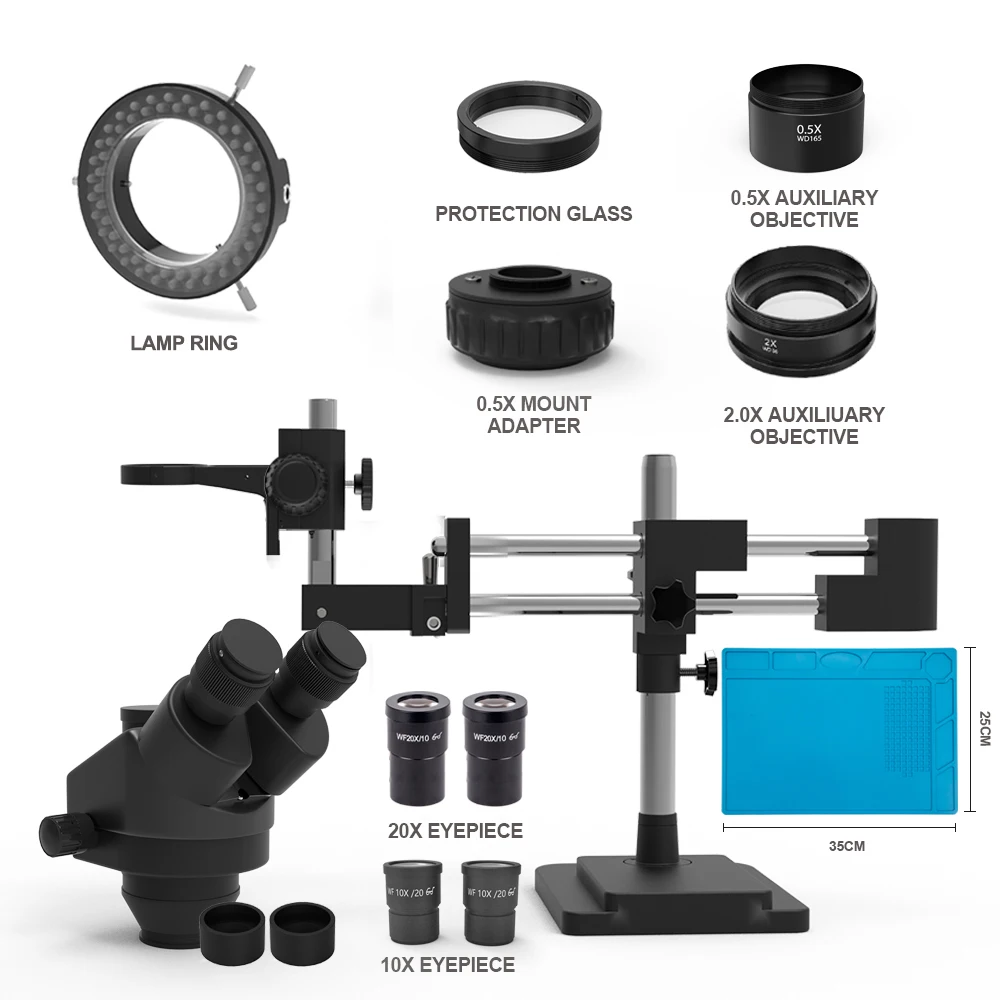

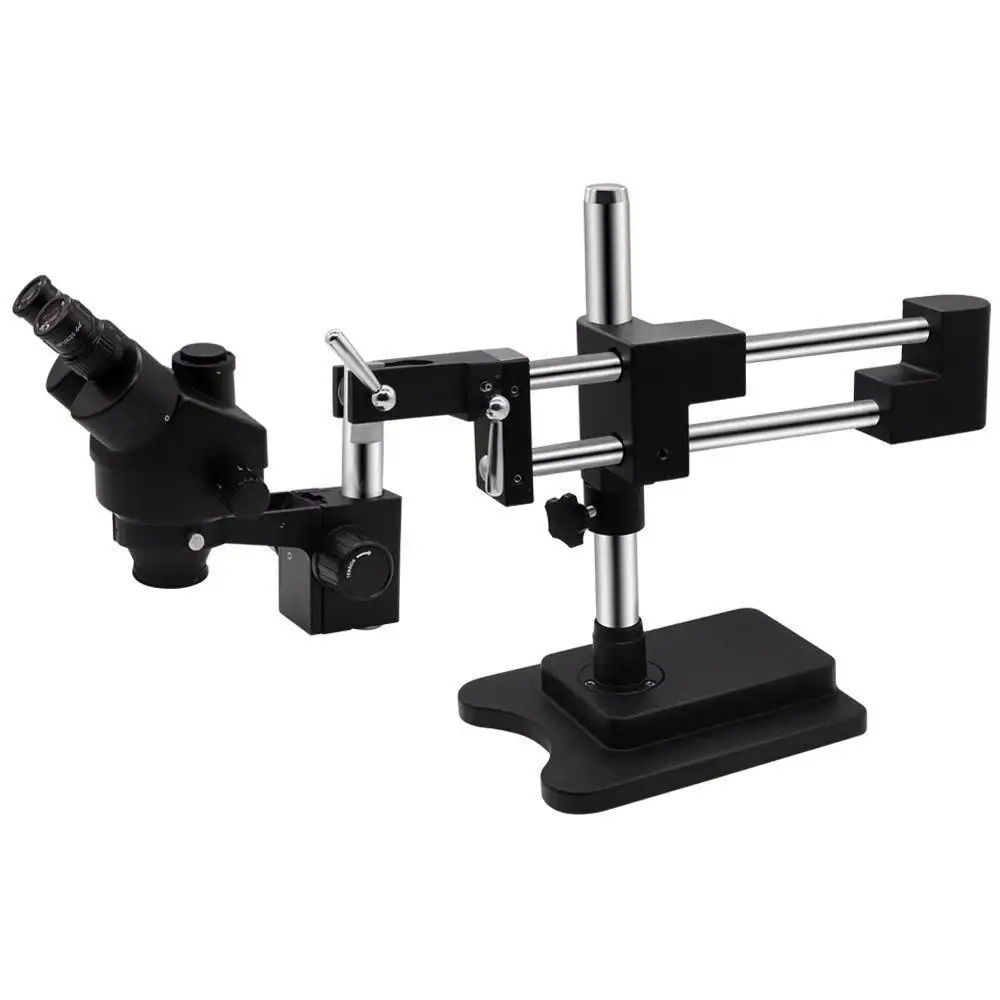

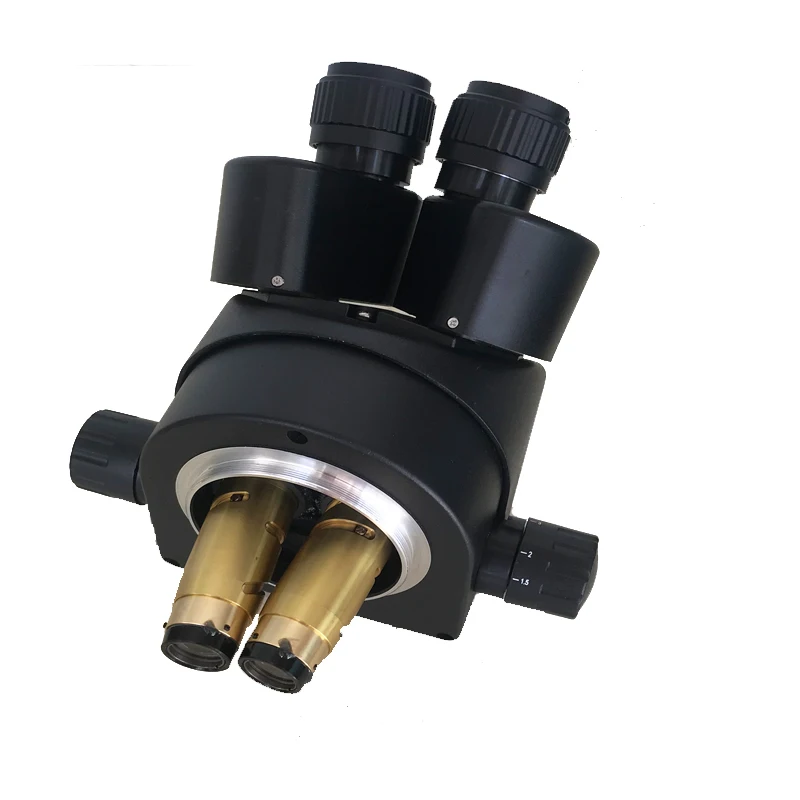

Double arm Boom 3.5 180X Stand Synchronous focus Continuous Zoom Trinocular stereo microscope jewelry for repair

1. Standard Magnification Objective: 7X - 45X ;

2. Double Strereo Strand Frame allows enough operation space;
3. 45°inclined 360°rotatable trinocular head, can add camera;
4. Sharp erect stereo images over a wide field view;

5. Have well-focused, clear images on your PC or video Screen AND through the microscope eyepieces at the same time;
6. Simul Focal No need to re-focus the microscope after each "switch";

6. Mobile Electronic Motherboard CUP Repair Pad and mat, make everything during repair simple and tidy.

7. The Edge Part Of The Maintenance Area Has High Precision Scale Square. And It Is a Plane Effect Combined With The Silicone Insulation Pad.

8. high eyepoint lens, not easy to fragile

Note: For Trinocular Microscope, they can Equipped with professional Camera,to make you can easy to object and capture what you see in the micro world.

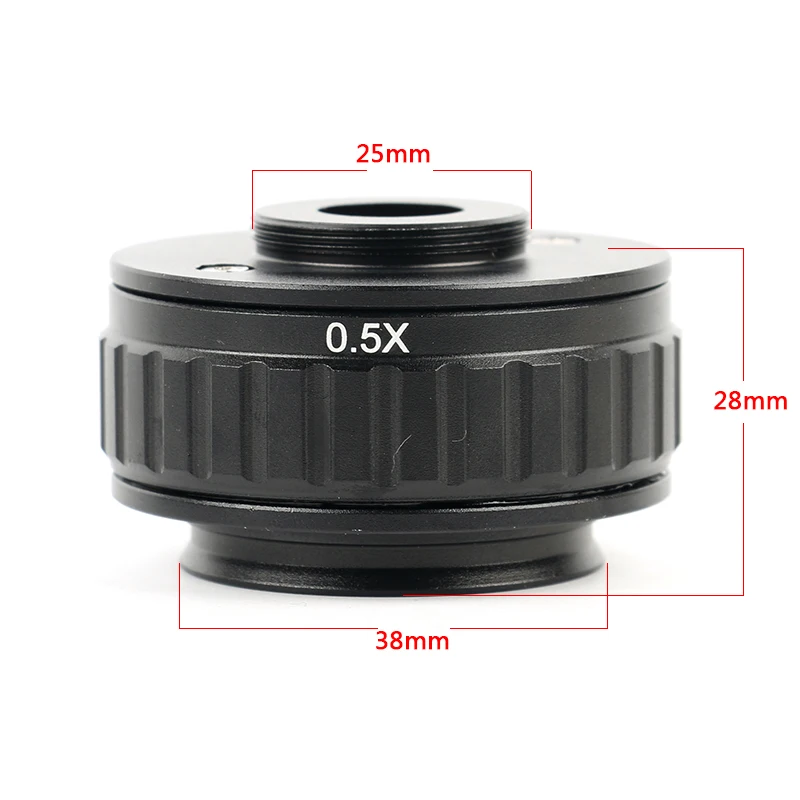

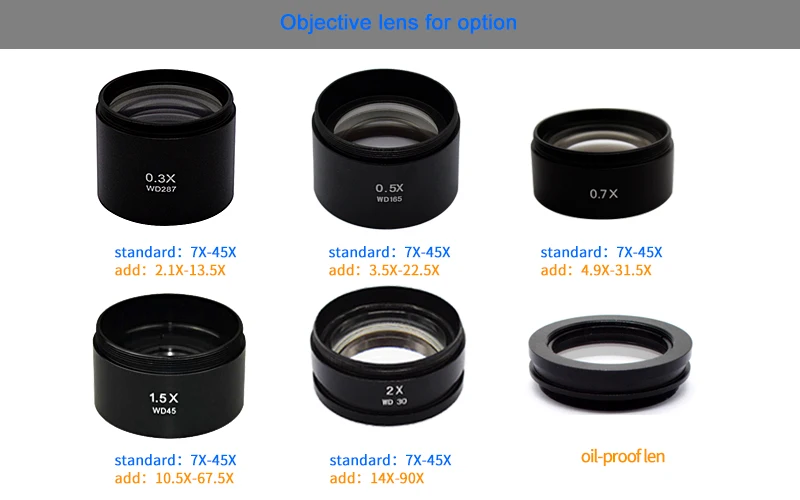

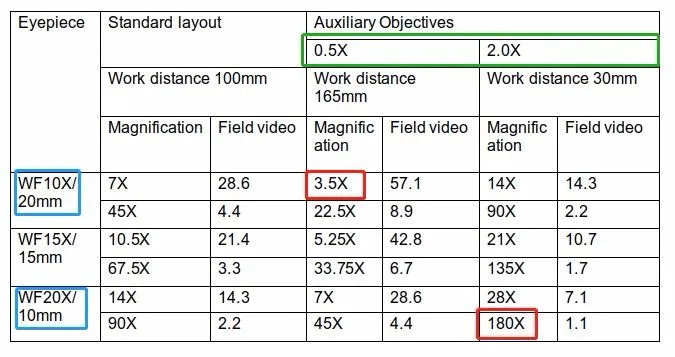

TIP :add 0.5X and 2x lens can extent to 3.5x-180x .and if you need to extend it to 3.5x-180x,just need 0.5X and 2x and 20x/10mm eyepiece.

We can provide unique appearance for customer option

Head: 45-degree inclined 360-degree swiveling trinocular simul-focal

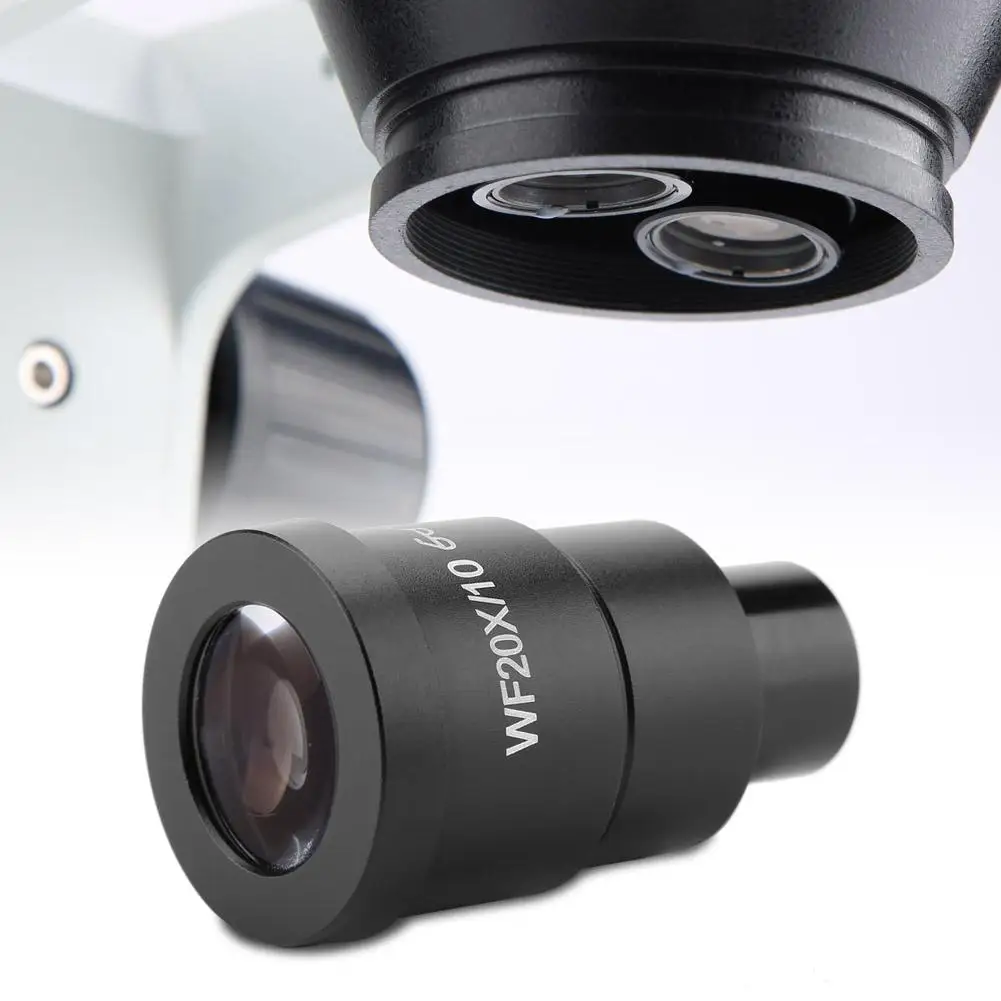

Eyepiece: 20mm super widefield high-eyepoint WF10X/20
Objective: 0.7-4.5X
Zoom Range: 6.5:1
Trinocular Port: 23mm photo port
Interpupillary Distance: 2-1/8" to 3"(54-76mm)
Field of View: 1-1/4" (33mm)
Working Distance: 4" (100mm)
Head Mounting Size: 3" (76mm) diameter
Accessory Mounting Size: 1-7/8" (48mm female thread) diameter
