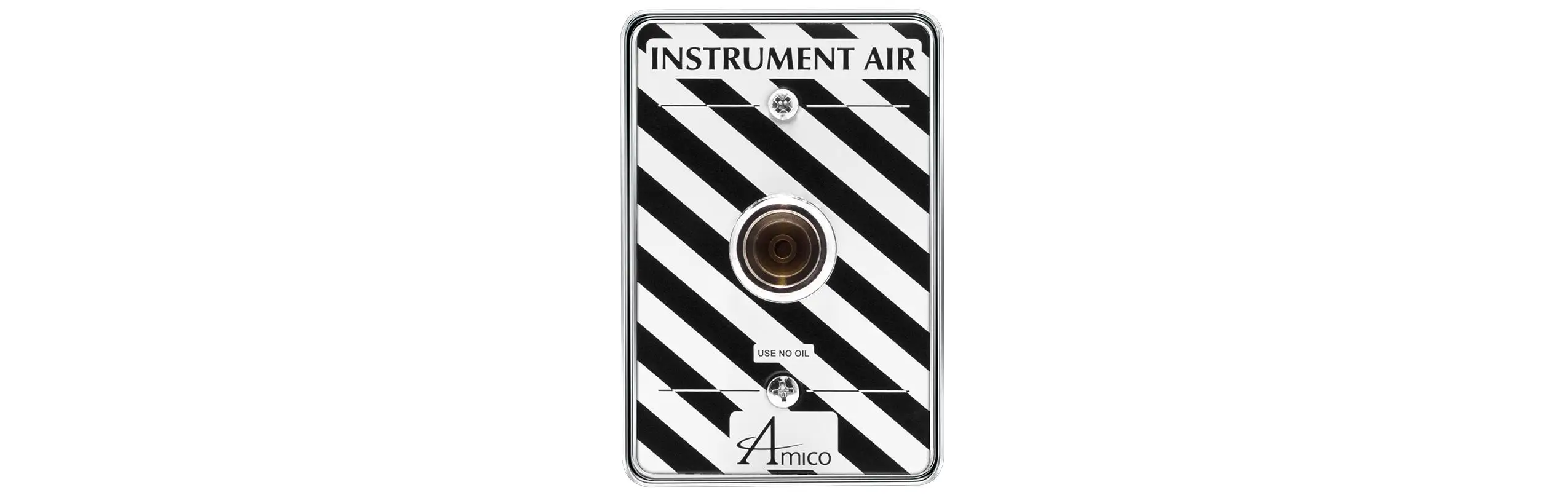

Instrumental Air DISS (ISO) Console Outlet

General Specifications:

• Outlets shall be manufactured with a 7-3/4" (197 mm) length type “K” 1/2" (12.7 mm) outside diameter (3/8" nominal) size copper inlet pipe stub which is silver brazed to the outlet body. The body shall be of 1-5/16" (33 mm) diameter, one piece brass construction. For positive pressure gas services, the outlet shall be equipped with a primary and secondary check valve and the secondary check valve shall be rated at a maximum of 200 psi (1,379 kPa) in the event the primary check valve is removed for maintenance. Outlet bodies shall be gas specific by indexing each gas service to a gas specific dual pin indexing arrangement on the respective identification module.


• A large color coded front plate shall be used for ease of gas identification and aesthetic appeal.


• With the back rough-in mounted, the outlet shall adjust up to 3/4" (19 mm) variation in mounting plate thickness.


• The latch-valve assembly shall be DISS type and only accept corresponding DISS type gas specific adapters.


• All M.R.I. outlets are manufactured from nonferrous materials.


• All outlets shall be cleaned and degreased for medical gas service, factory assembled and tested.


• The outlets are UL Listed and ETL Listed.

Features:

• • Flow rate exceeds the requirements of CSA


• • Accepts only DISS gas specific adapters


• • 100% pressure testing of each outlet and cleaned for medical gas service


• • Indexed to eliminate interchangeability of gas services


• • Up to 3/4" (19 mm) mounting plate thickness adjustment


• • 360° swivel inlet pipe for easy installation


• • Outlets are also available for M.R.I. use
