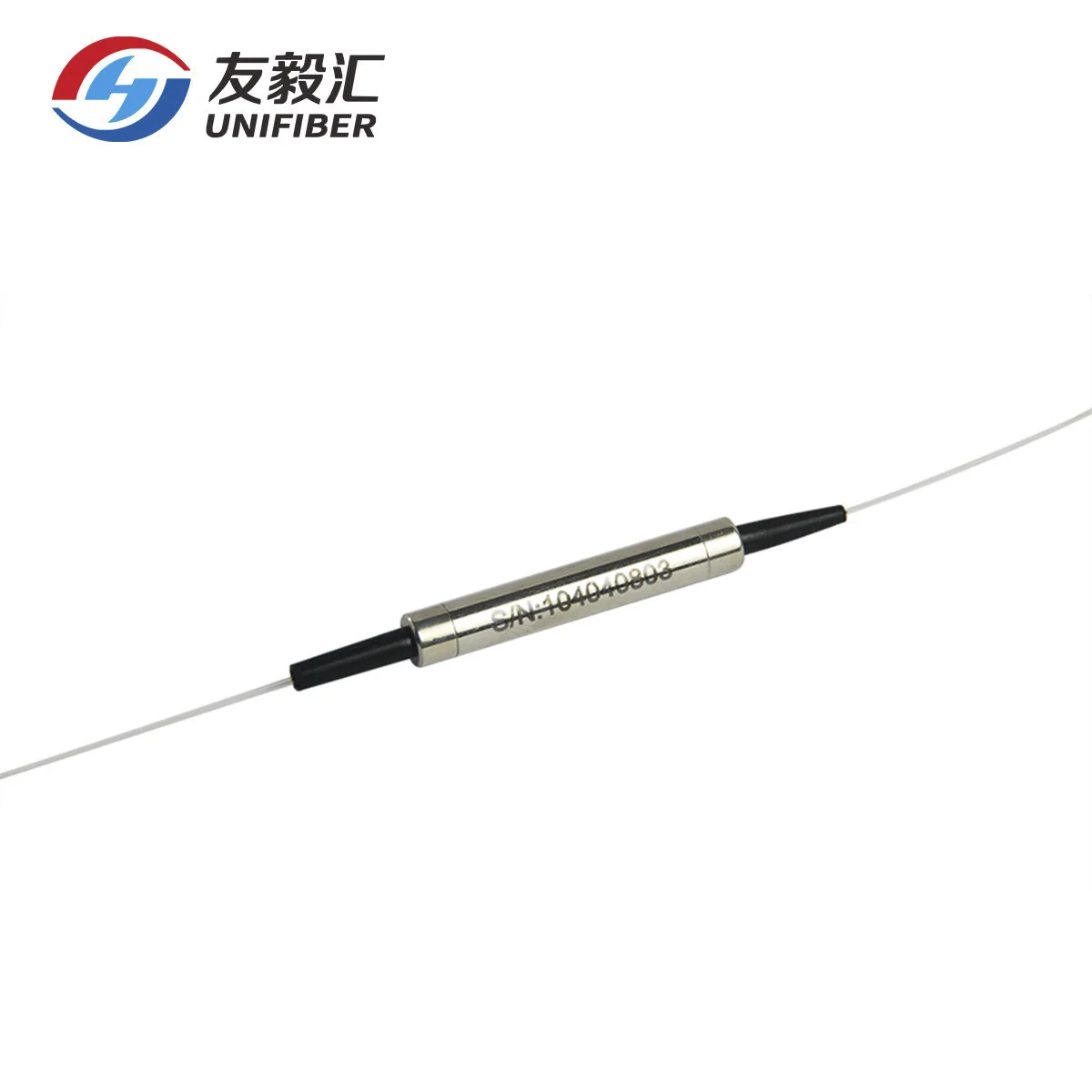

C/L Band Isolator Gain Flattening Filter (IGFF) Hybrid For EDFA or Raman Amplifier
- Category: >>>
- Supplier: Shenzhen Unifiber Technology Co. Ltd.
Share on (10000002909042):
Product Overview
Description
Product Description
IGFF for EDFA is a combination of Gain Flattening Filters and 1550 Isolator. The GFFI provide in-line compensation of spectral gain profile of EDFAs WITH excellent performance including high Isolation, Low PDL, and Low PMD. The Gain Flattening Filters provide in line compensation of the spectral gain profile of EDFAs. This device is used in high-power applications in DWDM systems.
Related Products
Features
Wide Operating Wavelength Range
Low insertion loss
Flat Spectral Gain
High stability and reliability
Epoxy free on optical path
Low insertion loss
Flat Spectral Gain
High stability and reliability
Epoxy free on optical path
Application
Raman amplifier
EDFA
EDFA
Specification
Parameter | Unit | Single Stage | Dual Stage | |||
Wavelength Range | C-band | nm | 1528~1565 | |||
L-band | nm | 1570~1610 | ||||
Insertion Loss | dB | < 1.0 | < 1.1 | |||
Peak to Peak Error Function | dB | < 0.8(Typ. 0.5) | ||||
Isolation | dB | > 30 | > 45 | |||
Polarization Dependent Loss | dB | < 0.1 | ||||
Return Loss (Min.) | dB | > 50 | ||||
Power Handling | mW | 300 | ||||
Operating Temperature | °C | 0 ~ +70 | ||||
Storage Temperature | °C | -40 ~ +85 | ||||
Fiber Type | - | Corning SMF-28 fiber | ||||
Package Dimensions | Ø5.5xL35mm, Ø3.0xL25mm | |||||
