Top quality Solar Power Air Conditioner Hybrid Ac/Dc Split Unit Air Conditioning System 9000Btu 12000Btu 18000Btu 24000Btu
- Category: >>>
- Supplier: Zhejiang Dongshuo New Energy Co. Ltd.
Share on (10000002967136):
Product Overview
Description
How does it works?

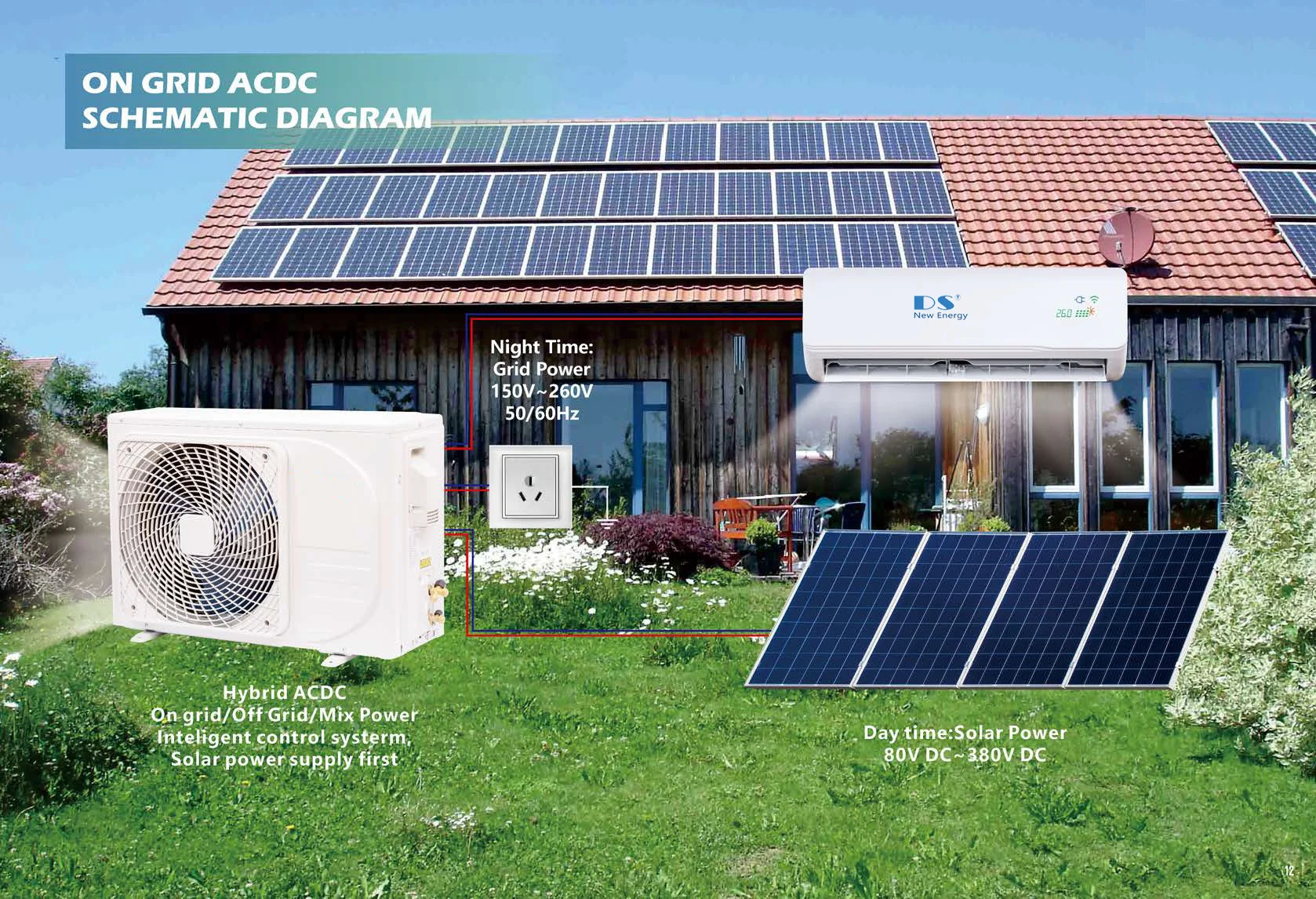

AC/DC dual power hybrid solar air conditioning system is a combination of DC solar power and AC grid power, with simple
plug-in-and-play, the power from solar DC power to supply indoor & outdoor fan motors and compressors with priority. When the solar DC power is insufficient, with equipped dualMPPT tracking device, the system will switch to AC grid power automatically, with close interaction without interruption A/C unit operating. Direct DC solar powered A/C unit is designed to work only by DC solar power, If need to keep the A/C unit working around the clock, GEL or FLP battery is required.
plug-in-and-play, the power from solar DC power to supply indoor & outdoor fan motors and compressors with priority. When the solar DC power is insufficient, with equipped dualMPPT tracking device, the system will switch to AC grid power automatically, with close interaction without interruption A/C unit operating. Direct DC solar powered A/C unit is designed to work only by DC solar power, If need to keep the A/C unit working around the clock, GEL or FLP battery is required.
Product Description

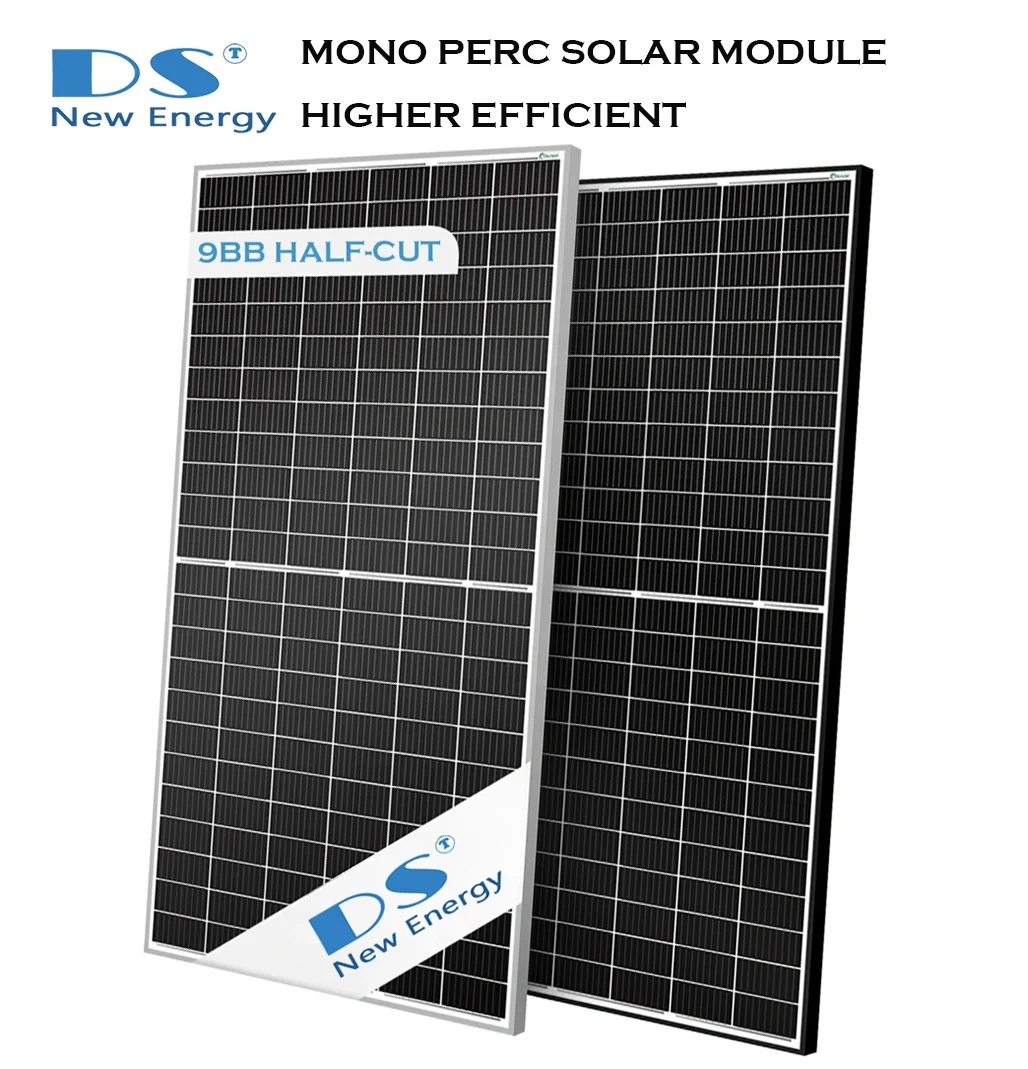

Mono PERC Solar Panels
▶Peak Power Watts: 450W
▶Module Efficiency(%): 20.4%
▶Module Dimensions:2101 × 1038× 35mm
▶Junction Box:IP 68 rated
▶Solar Cells:Mono PERC Half-cut 166×166mm
▶Frame:Silver Anodized Aluminium Alloy
▶Weight: 22.9KG▶Warranty：25 years
▶0~+5W positive power tolerance
▶PID Resistant, High salt and ammonia resistance
▶Withstands 5400Pa snow and 2400Pa wind loads
▶Compatible with 1000V and 1500V system voltage.
▶Module Efficiency(%): 20.4%
▶Module Dimensions:2101 × 1038× 35mm
▶Junction Box:IP 68 rated
▶Solar Cells:Mono PERC Half-cut 166×166mm
▶Frame:Silver Anodized Aluminium Alloy
▶Weight: 22.9KG▶Warranty：25 years
▶0~+5W positive power tolerance
▶PID Resistant, High salt and ammonia resistance
▶Withstands 5400Pa snow and 2400Pa wind loads
▶Compatible with 1000V and 1500V system voltage.

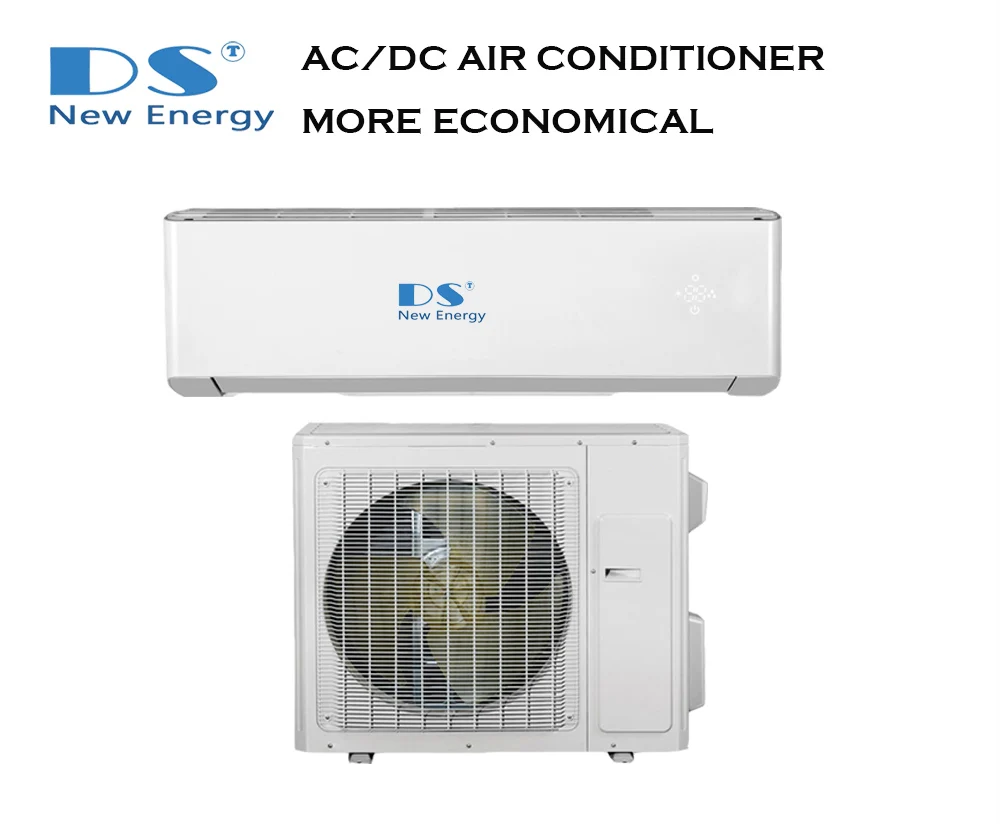

AC/DC Dual Power Air Conditioner
▶AC-DC intelligent switching // pure DC direct connecting
▶ECO low energy consumption // wifi connection
▶Wide operating temperature with range -10°C to 58°C
▶ECO-Friendly R410a environment protection refrigerant
▶APP smart control/ User-friendly
▶No inverter // No controller

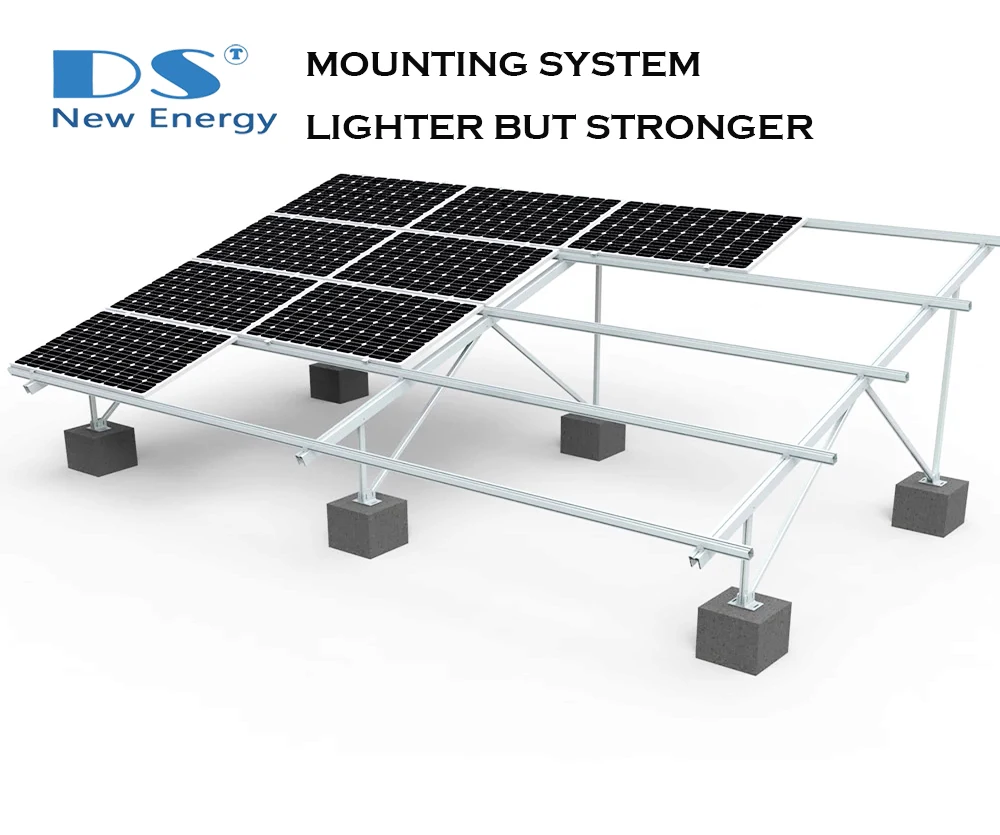

PV Mounting System
▶Residential Roof(Pitched Roof)
▶Commercial Roof(Flat roof & Workshop roof)▶Strictly machnical tested wind & snow
▶Simple installation exercise with high efficiency
▶Anodized aluminum & stainless steel material with high durability.
▶Angel adjustable
▶Residential Roof(Pitched Roof)
▶Commercial Roof(Flat roof & Workshop roof)▶Strictly machnical tested wind & snow
▶Simple installation exercise with high efficiency
▶Anodized aluminum & stainless steel material with high durability.
▶Angel adjustable

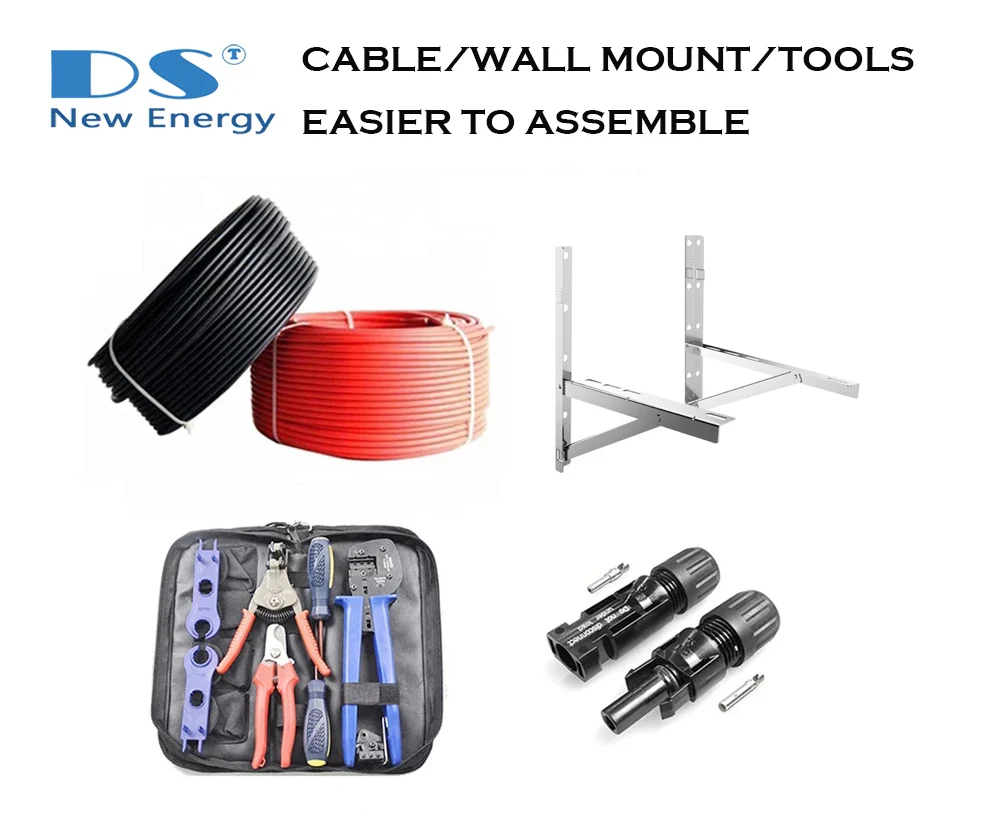

DC Cable & MC4 Connector & Tools
▶Cross Section: 4mm2, 6mm2 Optional
▶Rated Voltage: 600VDC()/1000VDC(TUV)
▶Rated Current: 55A,70A
▶Colors: Black, Red Optional.
▶Lifetime: 25 Years
▶MC4 compitable connectors
▶PV swift installation tool bag
▶Cross Section: 4mm2, 6mm2 Optional
▶Rated Voltage: 600VDC()/1000VDC(TUV)
▶Rated Current: 55A,70A
▶Colors: Black, Red Optional.
▶Lifetime: 25 Years
▶MC4 compitable connectors
▶PV swift installation tool bag
▶Wall mount with stainless steel 1.8mm to 2mm, weight holding more than 300kg.
All-in-one
AC/DC MODEL | AC POWER | DC POWER | Cooling Capacity | Application Area | Cooling Power Input | Heating Capacity | Heating Power Input | Net Weight indoor/outdoor |
DS-ACDCBLW-12K | 208V-240V 50-60HZ | 80V-380V | 12000BTU | 12-20m2 | 940W | 14000BTU | 1170W | 9/33.5KG |
DS-ACDCBLW-18K | 18000BTU | 20-30m2 | 1400W | 20800BTU | 1770W | 15/37KG | ||
DS-ACDCBLW-24K | 24000BTU | 30-42m2 | 1790W | 26600BTU | 2290W | 15/50KG |
DC MODEL | DC BATTERY | DC POWER | Cooling Capacity | Application Area | Cooling Power Input | Heating Capacity | Heating Power Input | Net Weight indoor/outdoor |
DS-DCBLW-09K | DC 48V | 80V-380V | 9000BTU | 8-12m2 | 680 | 9900BTU | 830W | 9/28KG |
DS-DCBLW-12K | 12000BTU | 12-20m2 | 980W | 13300BTU | 1130W | 9/32KG | ||
DS-DCBLW-18K | 18000BTU | 20-30m2 | 1450W | 18000BTU | 1400W | 15/36KG | ||
DS-DCBLW-24K | 24000BTU | 30-40m2 | 1840W | 24000BTU | 2050W | 15/51KG |
Certifications

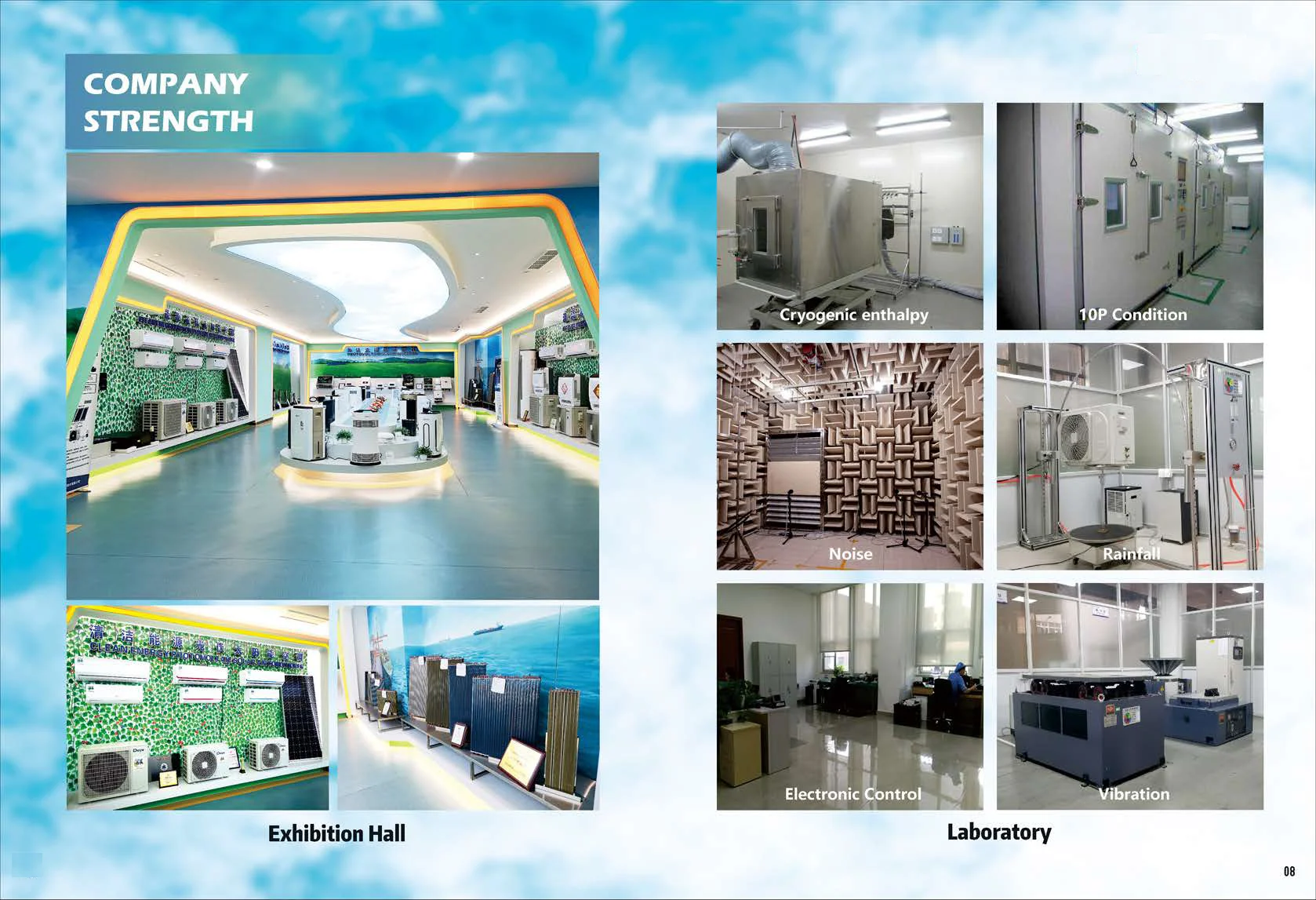

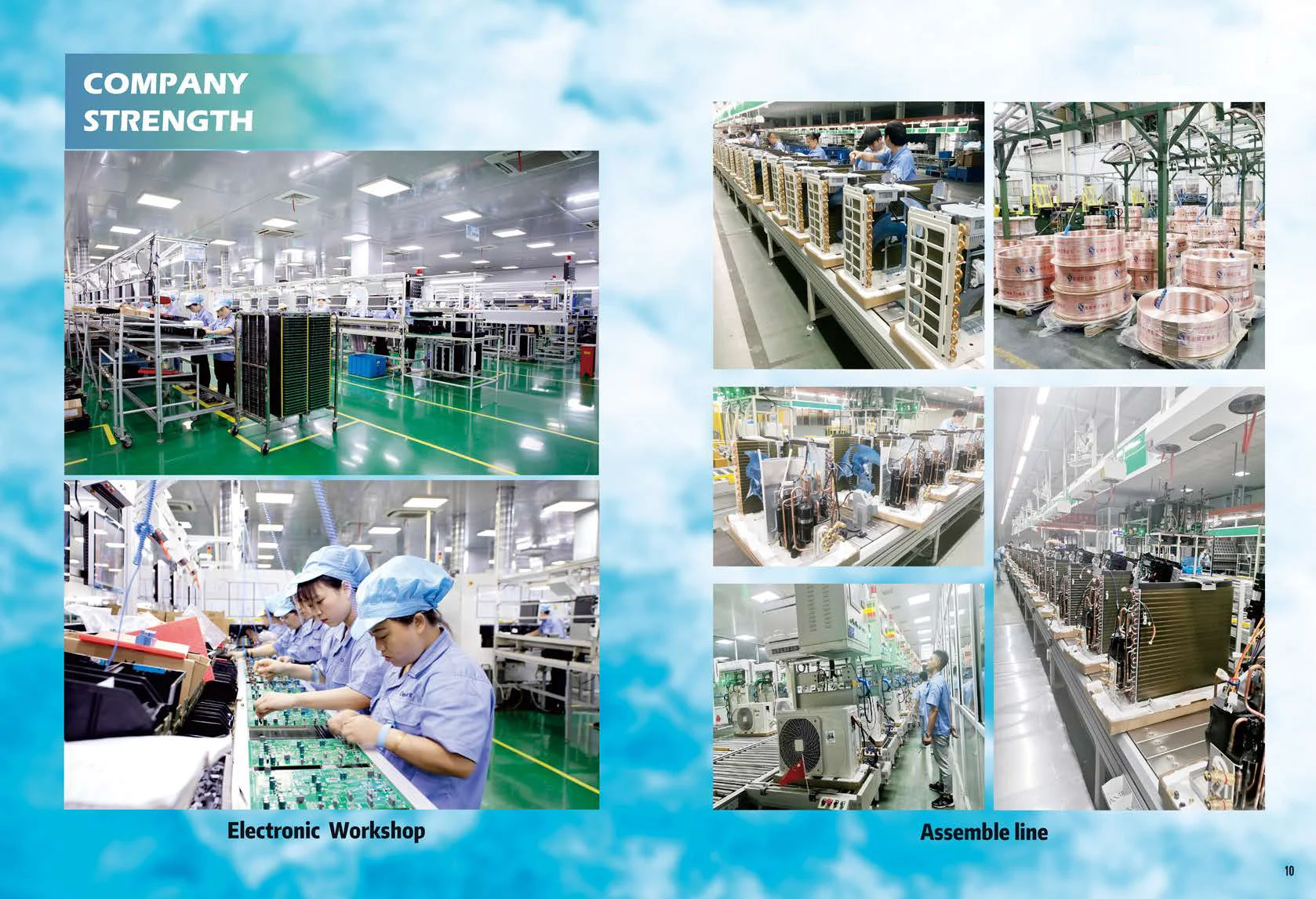

Workshop

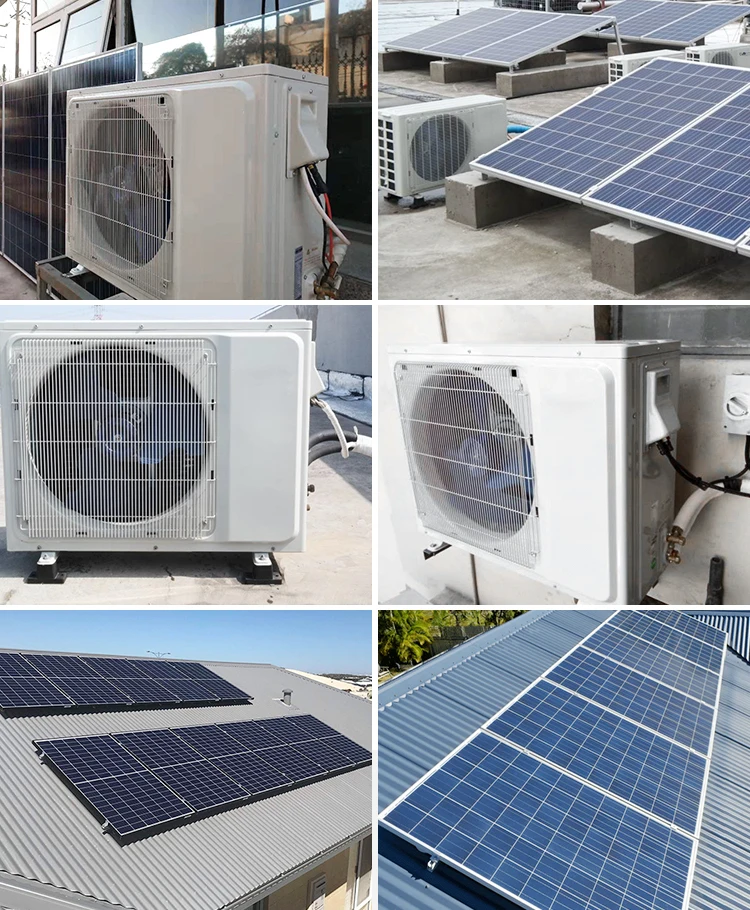

Project cases

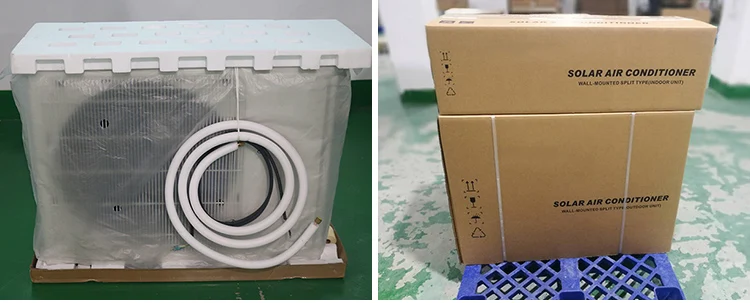

Packing & Delivery
