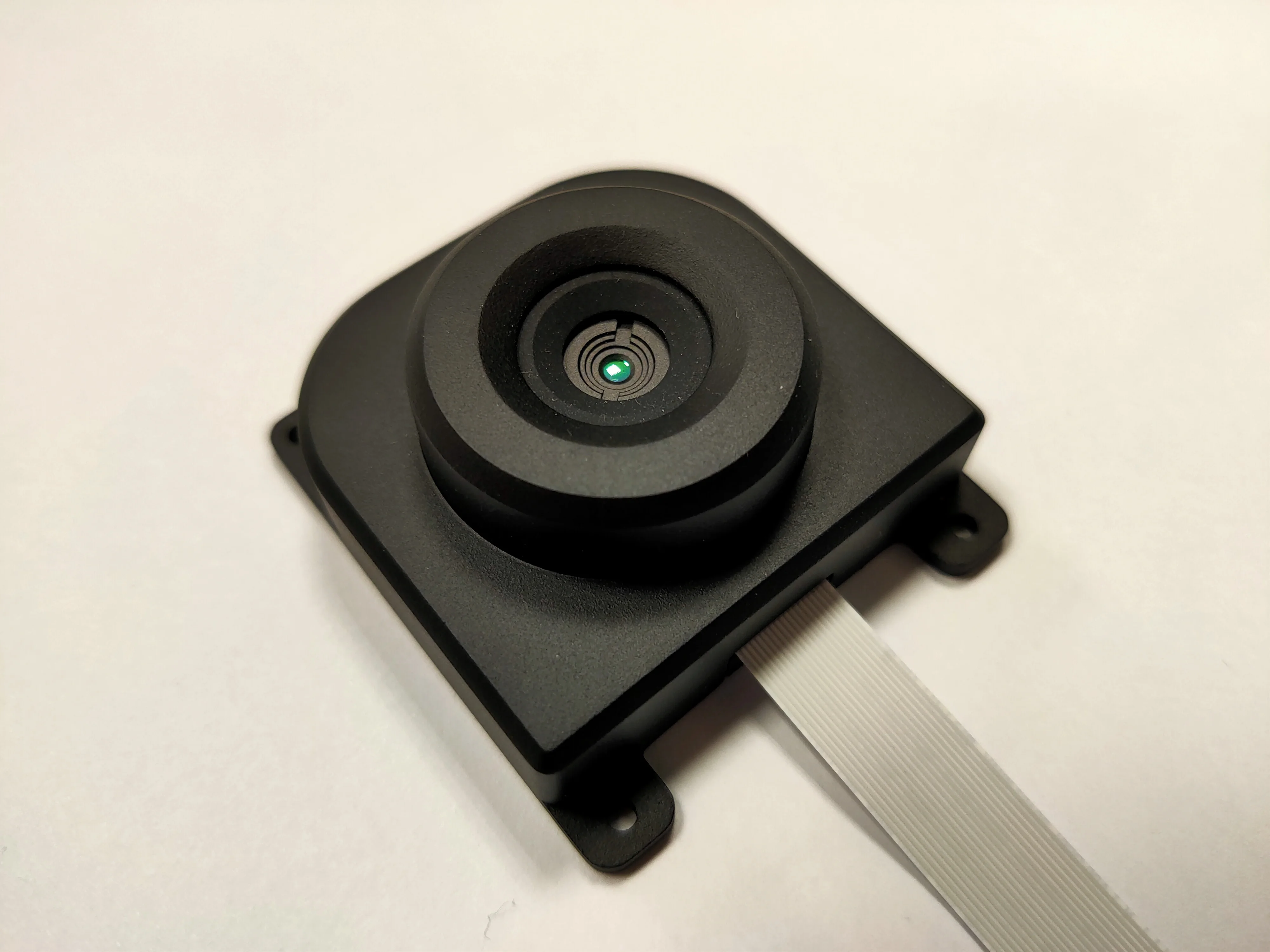

Celsius Fahrenheit Switching Customized IR Thermal Image Module
- Category: >>>
- Supplier: Abilliant Corporation
Share on (10000002987989):
Product Overview
Description
Products Description
TITAN
IR Thermal Image module
Thermal Image | Thermal Sensor: Lynred Resolution:80× 80 NETD:300mk Pixel Size:17 μm Wavelength: 8 μm~14 μm FOV:60° Report rate:30fps Accuracy:± 0.5°C / 20cm~100cm (Indoor Environment 25°C) Accurate Temperature Range:35°C~42°C Scene Dynamic Range:20°C~45°C Min Scale:0.1°C |
SW Function | High temperature warning/ignore setting High temperature areas ignore setting Thermal Image Rotate Celsius/ Fahrenheit switching |
I/O Port | Interface:USB 3.0 USB 3.0 Hub x1 , type C Power Consumption: DC 5V, 500mA |
Environment | Operating Temperature:5°C - 50°C Storage Temperature:-20°C - 60°C Operating Humidity:RH 80%(MAX) Storage Humidity:RH 90%(MAX) |
Others | Module Dimension:48.8x45x21 PCBA Dimension:40.4x70 mm Weight:416g |
