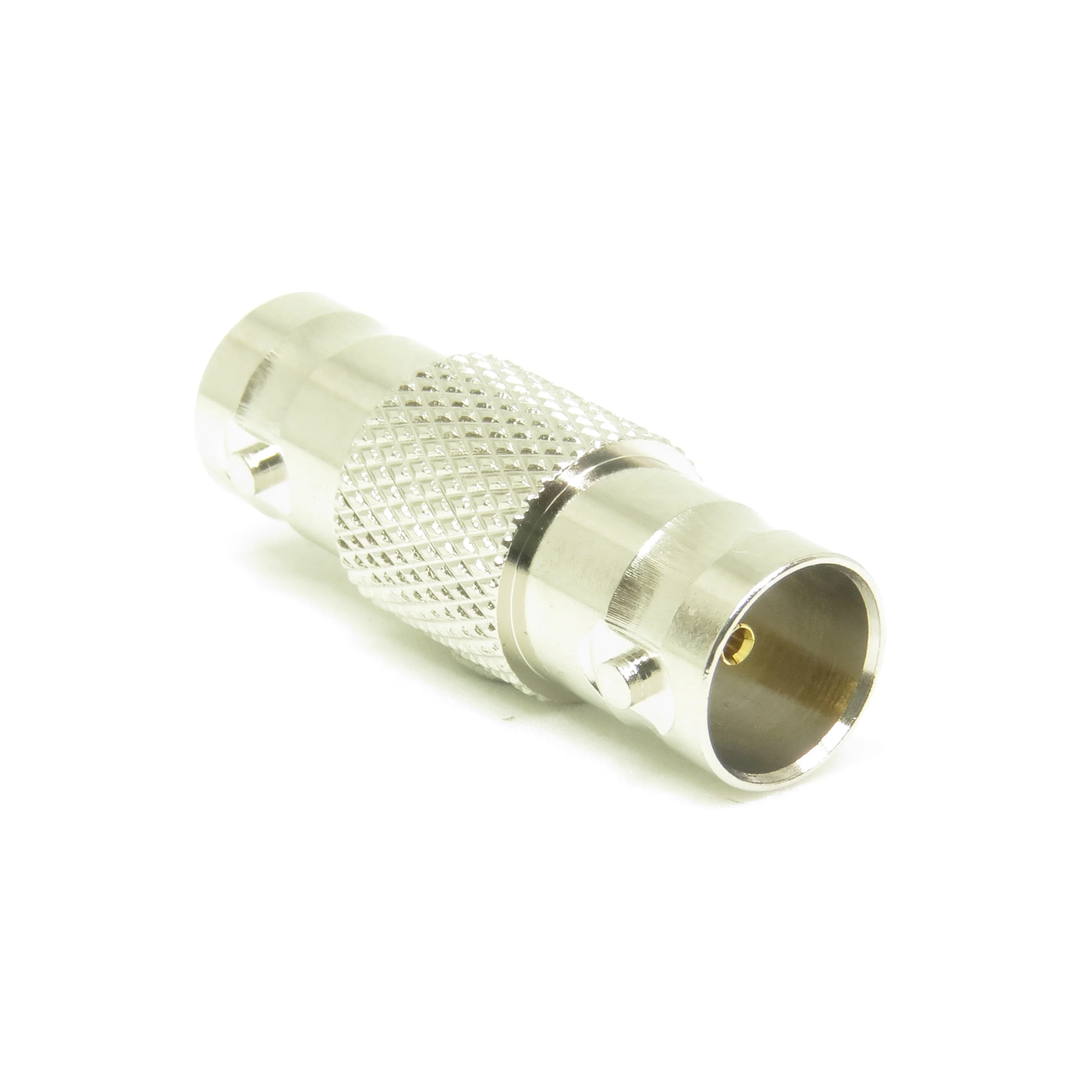

12G SDI 75 Ohm BNC Connector Female to Female Adapter

Product Overview

Description

12G SDI 75 Ohm BNC Connector Female Crimp for Belden 4794R

1. VSWR 1.25 max. DC to 12 GHz
2. ISO 9001 & IATF 16949 certified

3. RoHS & REACH compliant

4. Made in Taiwan





Features:

1. Bayonet coupling, small size and low cost.


2. 50Ω and 75Ω are available and intermateable


3. Various options for different applications

Applications:

1. Antennas


2. Broadcast


3. Radios


4. Telecom

Electronical Specifications

Impedance	50Ω	75Ω
Frequency Range	0-4 GHz	0-2 GHz
Working Voltage	500 VRMS max. at sea level	500 VRMS max. at sea level
Dielectric Withstanding Voltage	1500 VRMS min. at sea level	1500 VRMS min. at sea level
VSWR	Straight: 1.3 max.,  R/A: 1.5 max.	Straight: 1.3 max.,  R/A: 1.5 max.
Contact Resistance	Center Contact: 3 milliohm Max.	Center Contact: 3 milliohm Max.
	Outer Contact: 2 milliohm Max.	Outer Contact: 2 milliohm Max.
Insulator Resistance	5000 megaohms min.	5000 megaohms min.





Material Specifications

Parts Name		Material	Finish
Center Contact	Male	Brass	3u" Gold or Silver per requirement
	Female	BeCu or P. Bronze	3u" Gold or Silver per requirement
Body, Metal Parts		Brass	Nickel
Insulators		PTFE, Delrin, PBT	None
Clamp Gaskets		Silicone rubber	None
Crimp Ferrules		Annealed copper	Nickle or Silver per requirement



Note: Other Material/Finish is available on request
