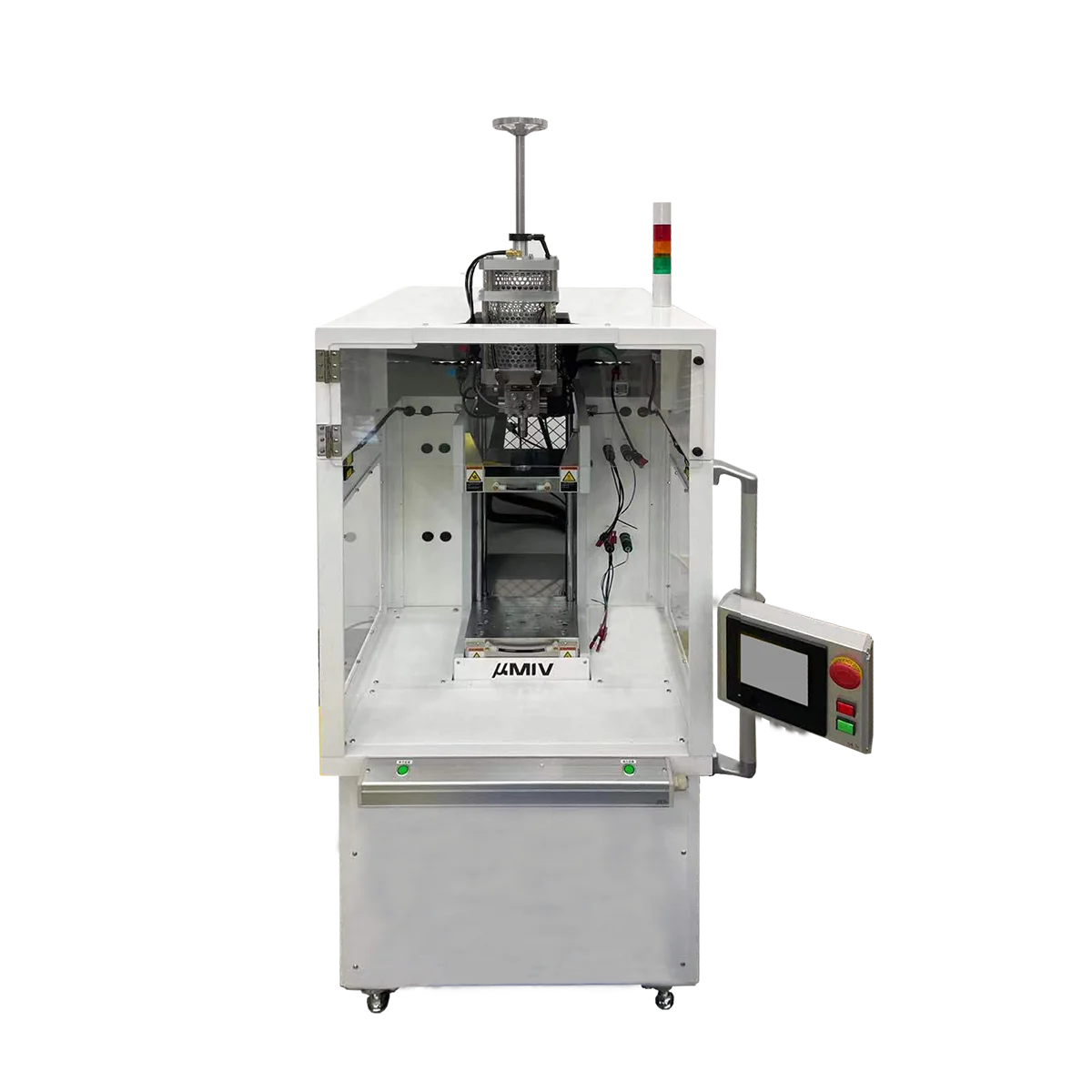

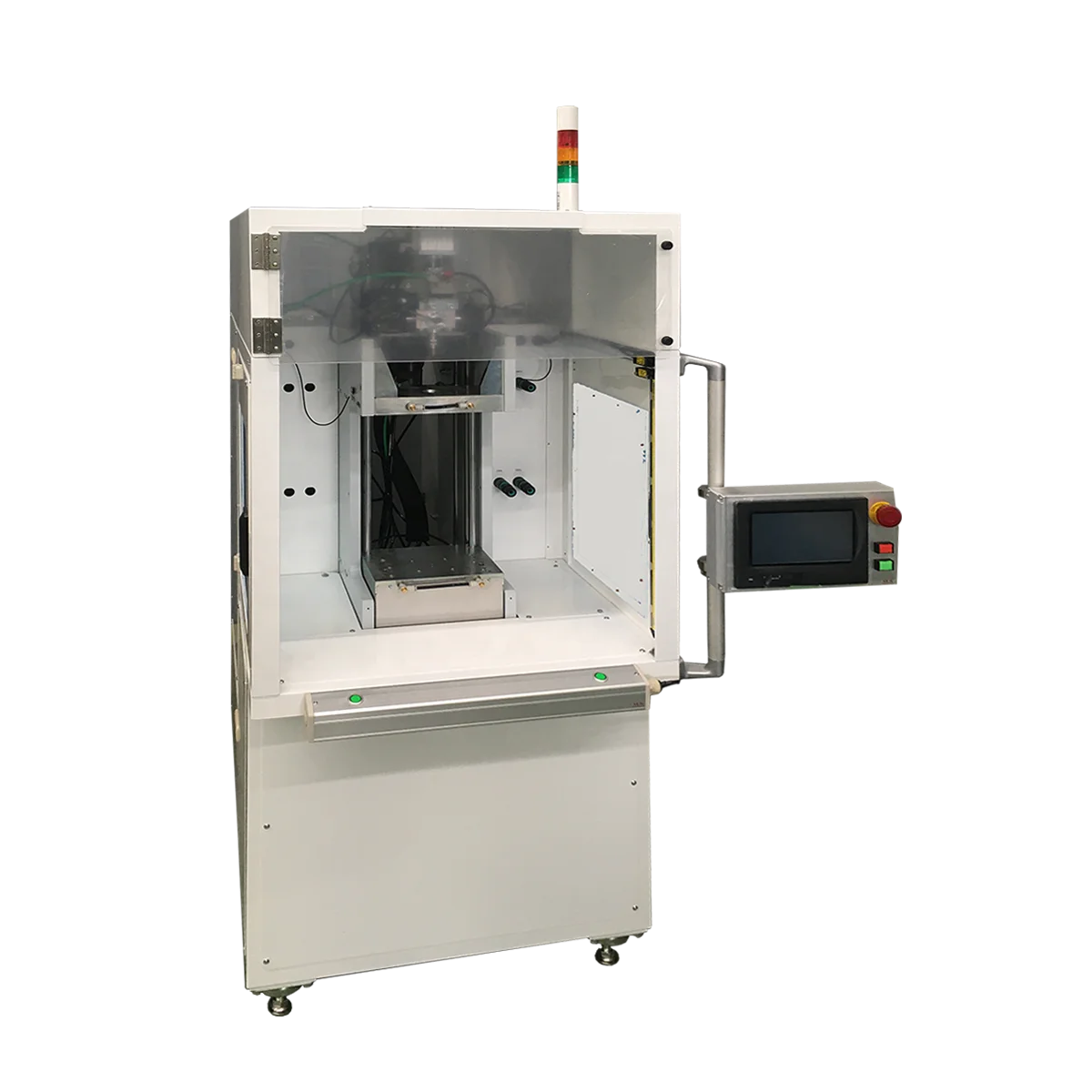

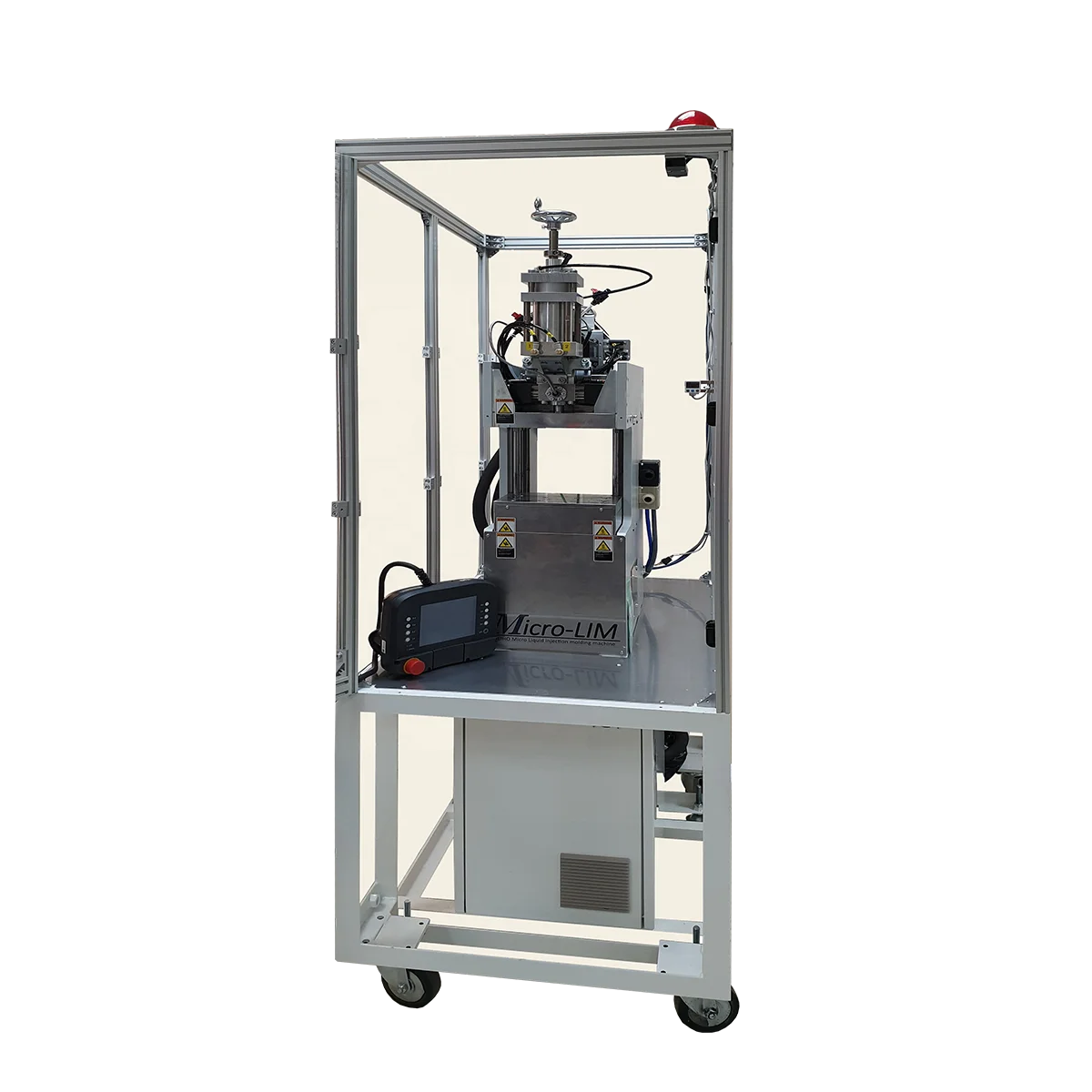

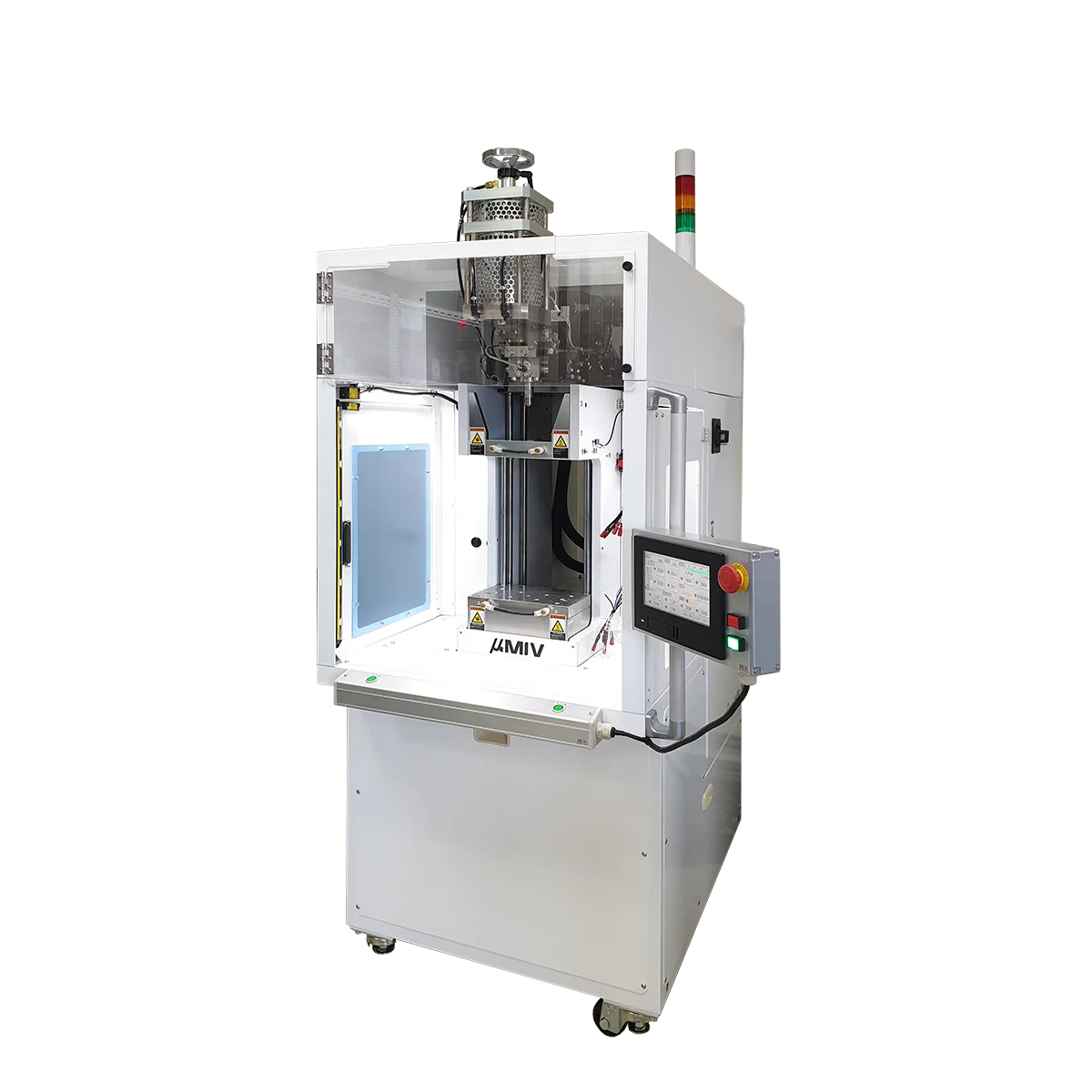

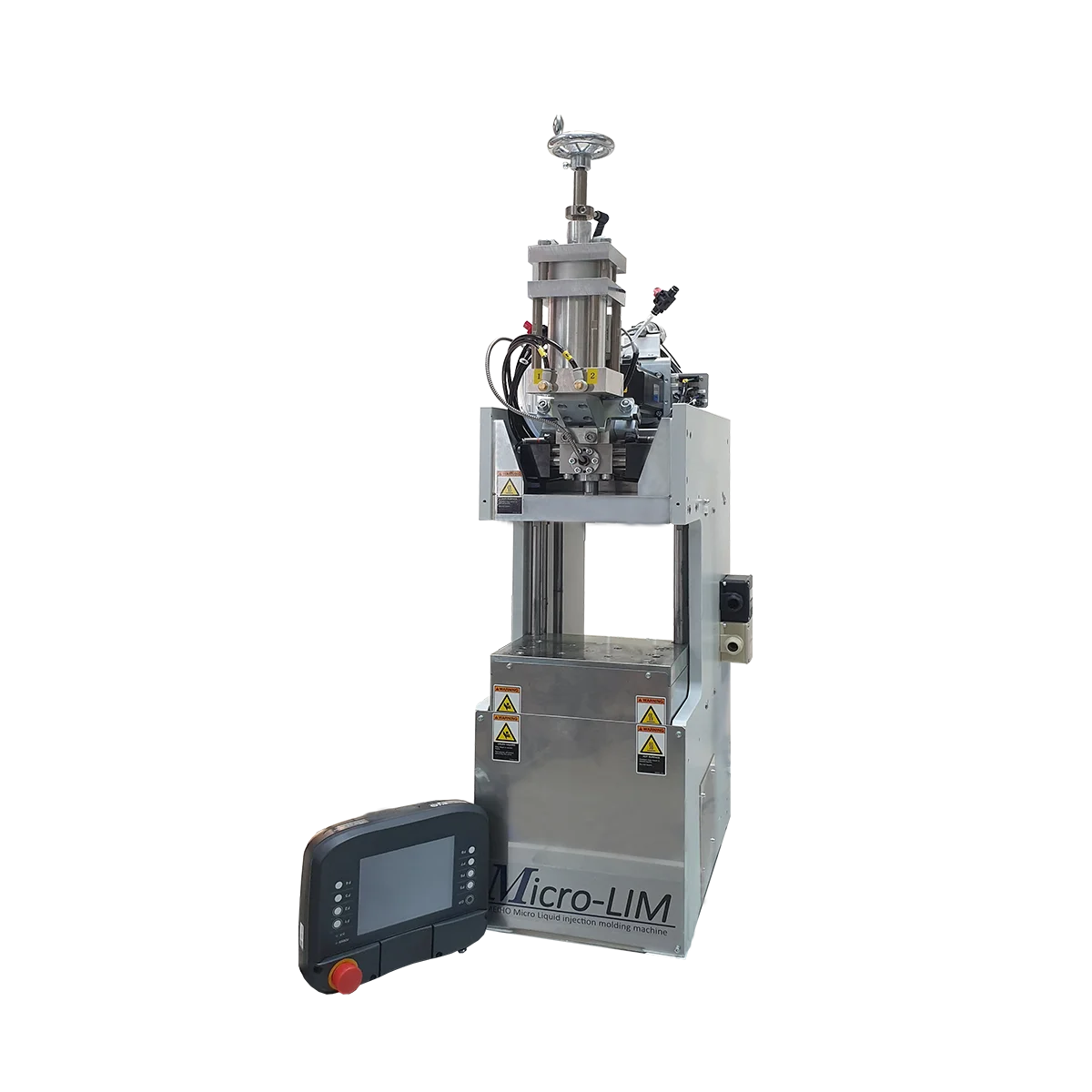

Epoxy Resin Plastic Vertical Injection Molding Machine
- Category: >>>
- Supplier: ANN TONG INDUSTRIAL CO. LTD.
Share on (10000003006142):
Product Overview
Description
Quick Details
| Port: | TAIWAN |
| Payment Terms: | L/C,T/T |
| Weight (KG): | 370 |
| After-sales Service Provided: | Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Online support |
| Clamping froce: | 2 Ton |
| Injection Mold: | Micro Injection Mold |
| Injection pressure: | 45 (MPa) |
| Warranty of core components: | 6 months |
| Power Supply: | 3-Phase, AC200V 20A |
| Injection Speed: | 5.09 (cm3/s) |
| Key Selling Points: | Easy to Operate |
| Local Service Location: | None |
| Style: | VERTICAL |
| Machinery Test Report: | Provided |
| Condition: | New |
| Place of Origin: | Japan |
| Warranty: | 1 Year |
| Machine Weight: | 370 (kg) (no included: electric box, special stand) |
| Machine Type: | Electric |
| Injection Weight (g): | 15 |
| Product type: | Miniature Parts |
| Showroom Location: | None |
| Material: | LSR, PDMS, EPOXY |
| Screw diameter (mm): | 17 |
| Power (kW): | 4.4 |
| Open Stroke(mm): | 45 |
| Injection Rate (g/s): | 5.1 |
| Ejector Stroke(mm): | 20 |
| Video outgoing-inspection: | Provided |
| Core Components: | Motor,Plunger |
| Applicable Industries: | Medical Treatment,MEMS,Semiconductor,Information & Communication Electronics |
| Marketing Type: | New Product 2020 |
| After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service |
| Theoretical Shot Volume(cm³): | 13.6 |
| Mold Dimensions: | W150(200) * L110 * H205 (mm) |
| Plastic Processed: | LSR |
| Machine Dimensiions: | W 648 * D920 * H1500 (mm) |
| Ejector Force(kN): | 5 |
| Packaging Detail: | Wooden case packing |
| Package Preview: | https://sc03.alicdn.com/kf/U590c4516a1b141469d8bf1323beec519W.jpg_640x640.jpg |
