Prefab Space Frame Steel Structure Petrol Station/Toll Gate Canopy Aluminium Composite Panel Gas Station Roofing
- Category: >>>
- Supplier: Jiangsu Andy Steel Structure Co. Ltd.
Share on (10000003014419):
Product Overview
Description
Product Description

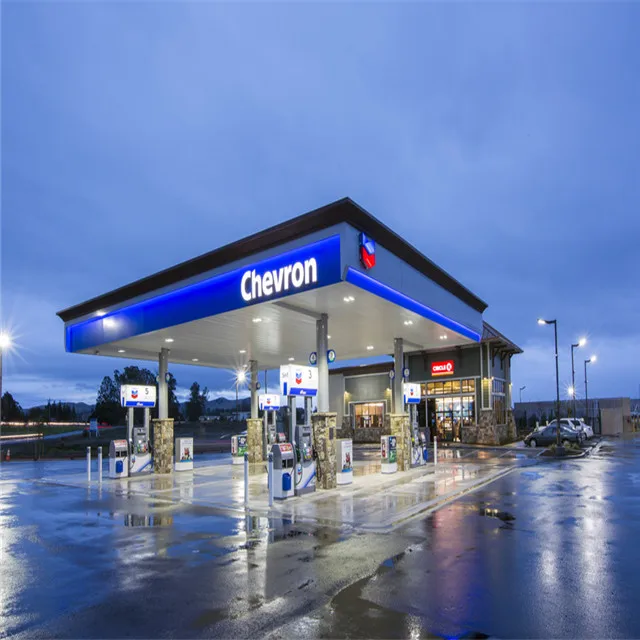

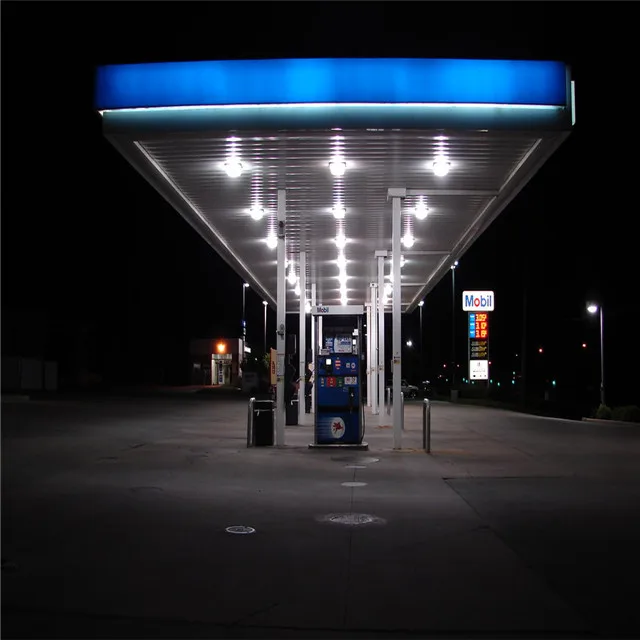

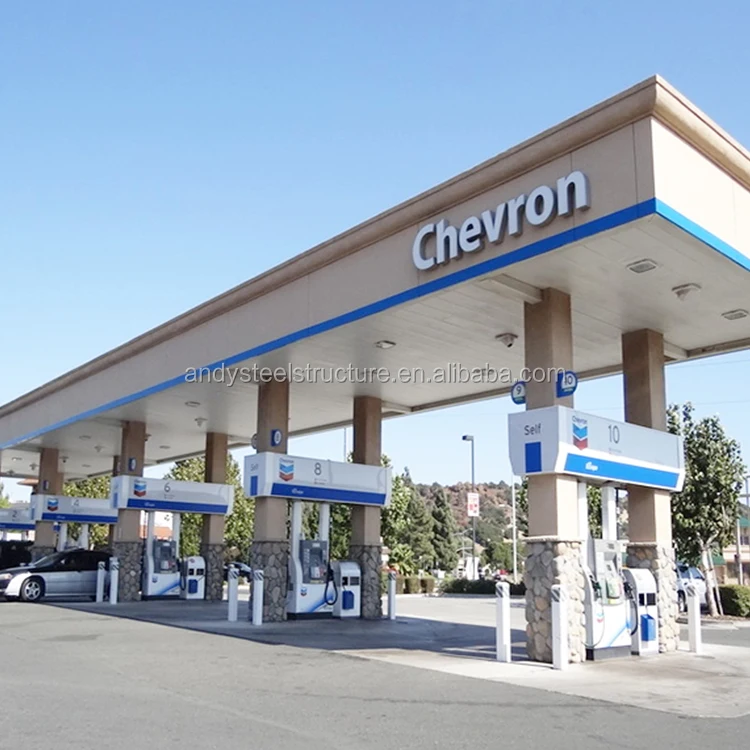

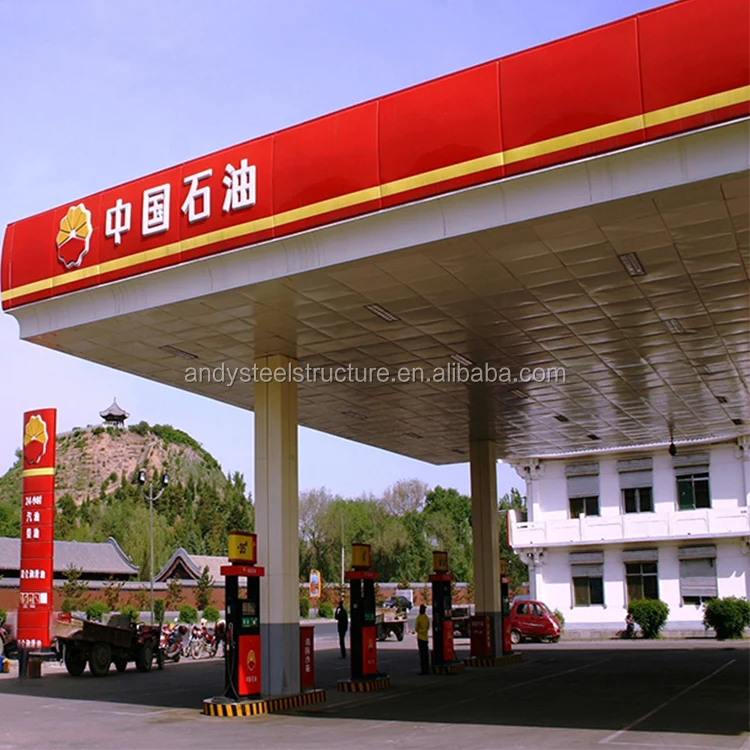

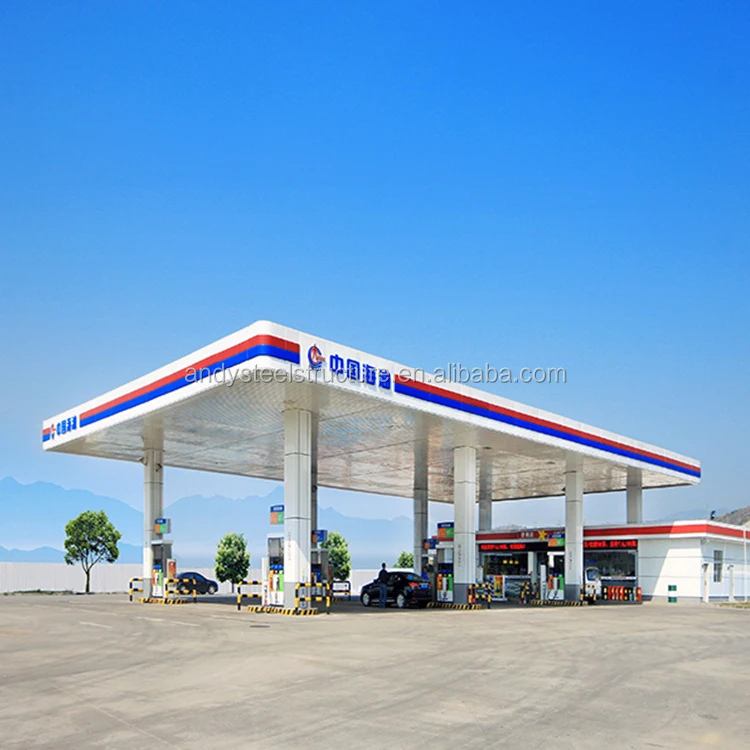

Prefab Space Frame Steel Structure Petrol Station/Toll Gate Canopy Aluminium Composite Panel Gas Station Roofing
Product Paramenters

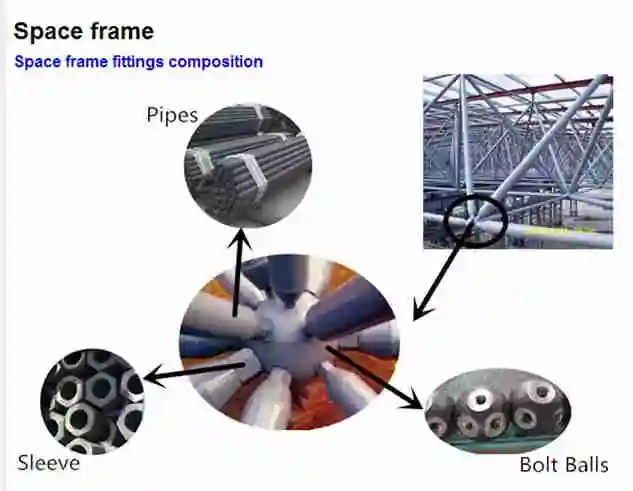

Design Details | Structure type: | Bolted ball jointed space frame |
Shape: | Any | |
Design code: | NSCP | |
Wind load | 2(200kph) | |
Earthquake load: | 4(Z=0.4) | |
Live load: | 50kg/sq.m | |
Main components | Dust load: | 10kg/sq.m |
Temperature: | +/-30°C | |
Snow load: | Anchor,ordinary,high strength bolt | |

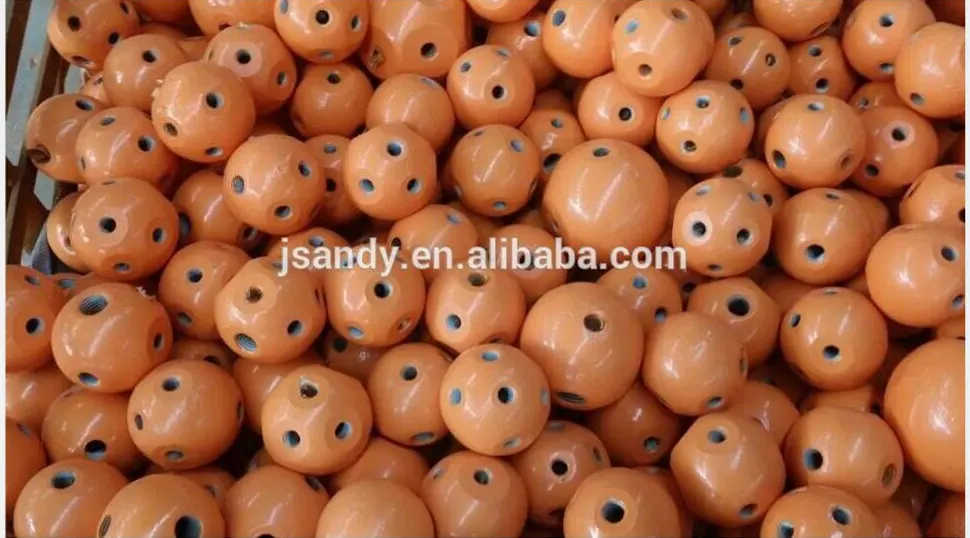

Bolt ball: | Steel #45, epoxy zinc primer with PU paint | |

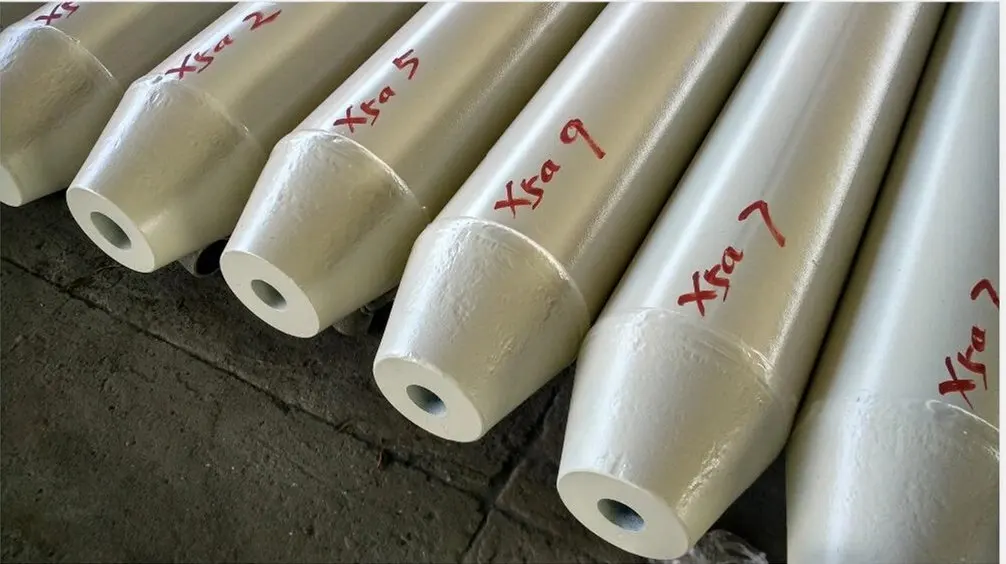

Tube: | Steel Q235, epoxy zinc primer with PU paint | |
Sleeve: | Steel Q235 & #45, galvanization | |
Roof & Wall panel: | Al Mg Mn Panel roofing, steel sheet |
1.Carbon structural steel: Q235B.
2.High-strength structural steel :Q345B
3.Special purpose steel t
ⅡQuality standard
1.Certificate: ISO9001:2008
2.Code for design of steel structure: GB 50017-2003
3.Technical code of cold-formed thin-wall steel structure: GB50018-2002
4.Load code for the design of building structures. GB 50009-2006
5.Construction quality acceptance of steel: GB50205-2001
6.Code for design, construction and acceptance of high strength for steel structure, JGJ82-2011
7.Technical specification for welding of steel structure building: JGJ 81-2002
8.Technical specification for steel Structures of tall buildings: (JGJ99-98)
Ⅲ. Structure Assembly
1.Steel Framework:
Component: H-Column, H-Beam & C/Z-Purlin
Connection of steel structure method: Welding, Bolted
2.Surface treatment: Painting, Galvanized
3.Roof &Wall: colored steel tiles or colored steel sandwich panel as per
request
4.Doors: Rolling or Pushing, as request
IV. Steel characteristics
1.Environmental protection
2.Higher reliability of steel work
3.Strong quakeproof
4.Higher degree of industrialization
5.Quick to be assembled accurately
6.Larger interior space
