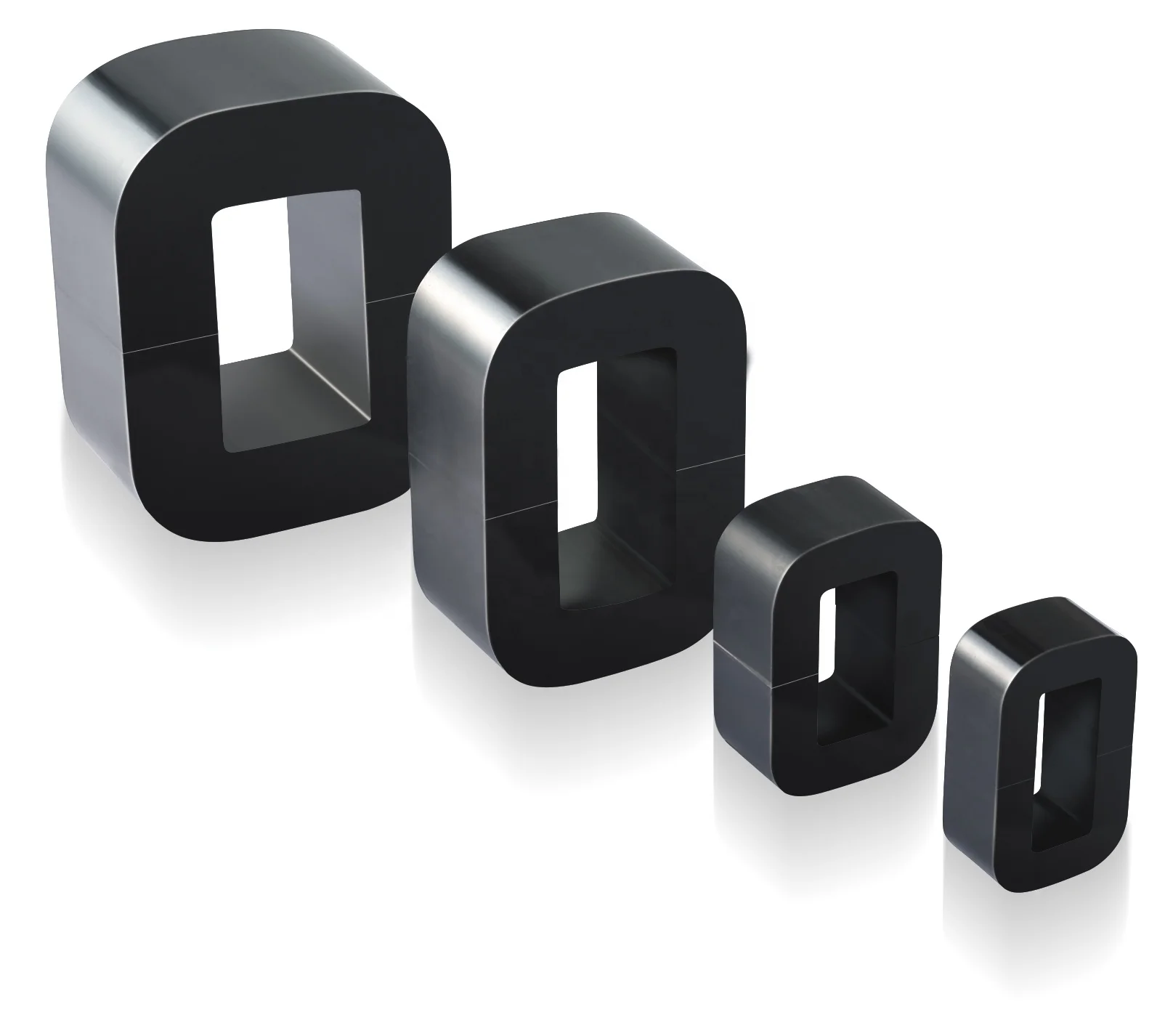

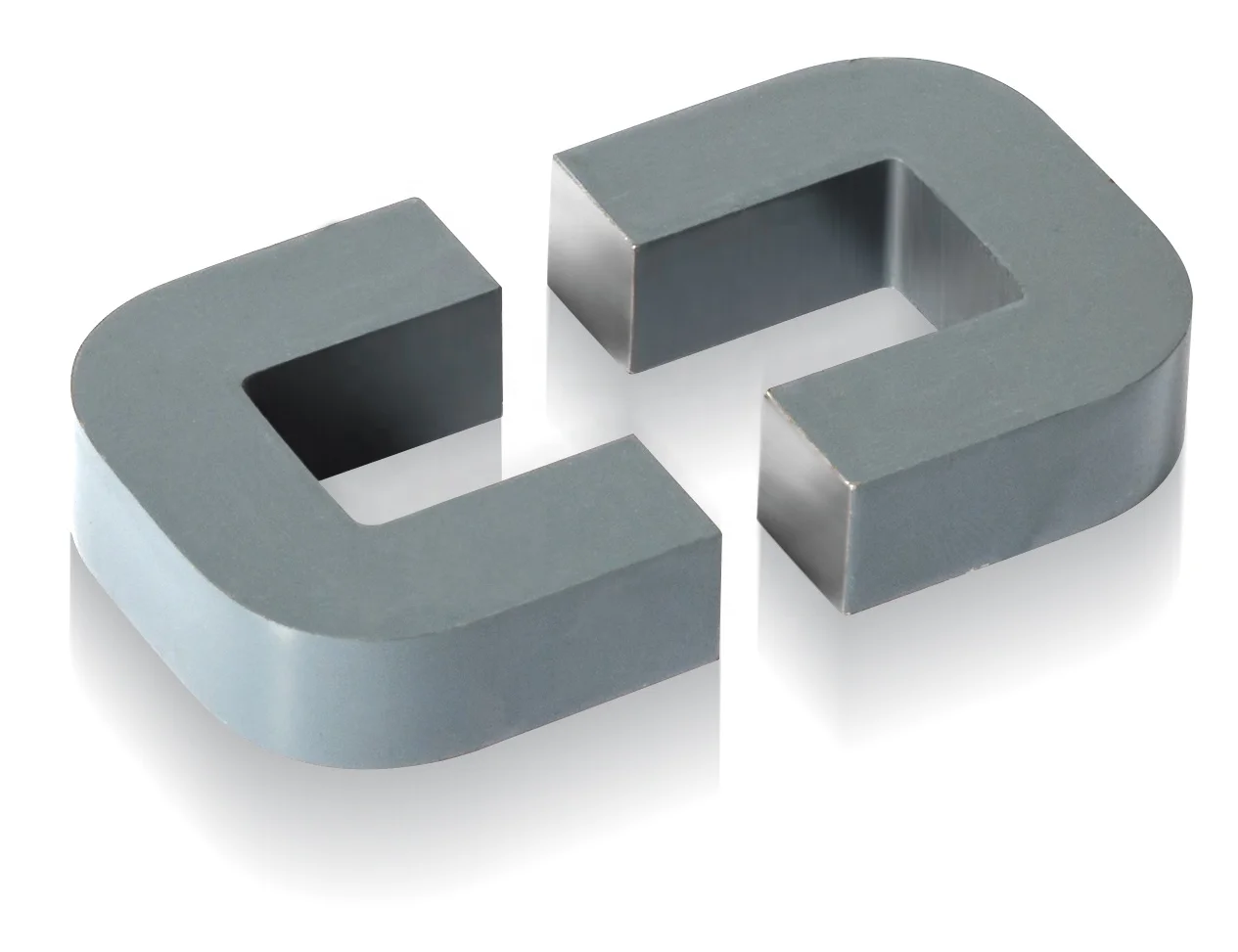

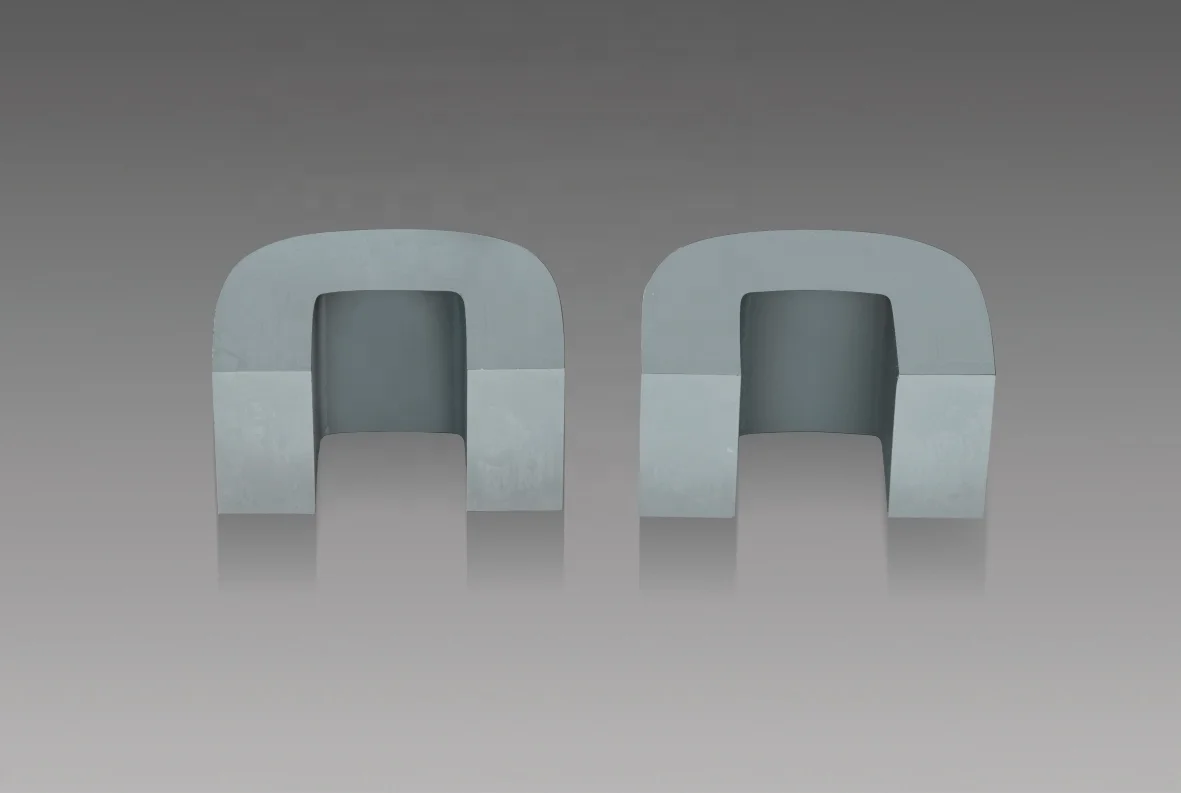

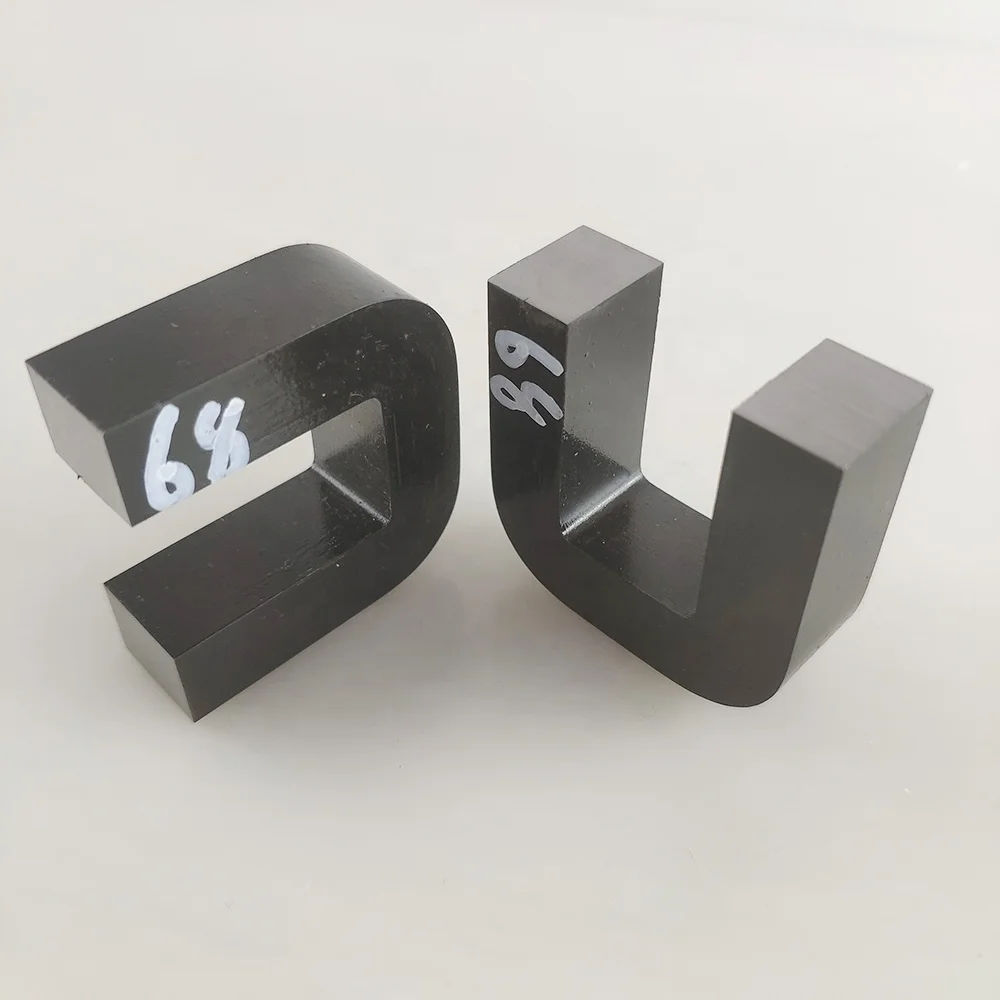

CD10 мм * 12,5 мм * 20 мм режущий сердечник для инструментного трансформатора 50 Гц
- Category: >>>
- Supplier: Wuxi Weibang Transformer Manufacture Co. Ltd.
Share on (10000003014849):
Product Overview
Description
CRGO Standard and Custom Wound Cores for
Electrical&Electronical Equipment

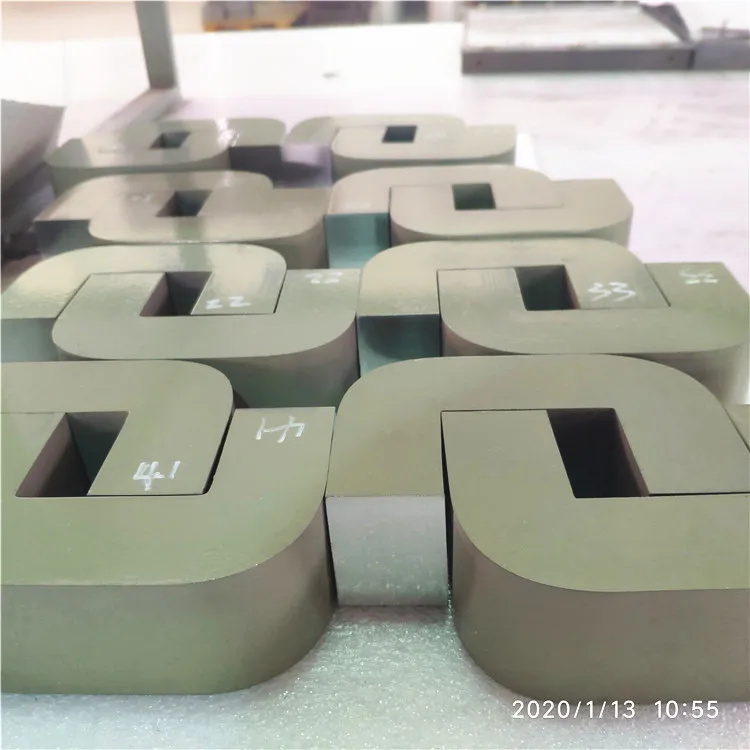

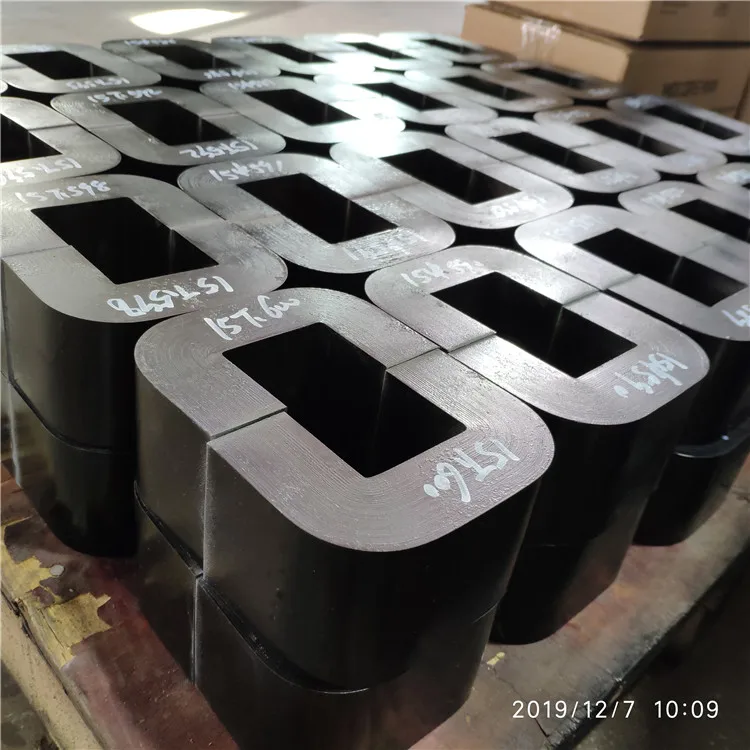

Detailed Images

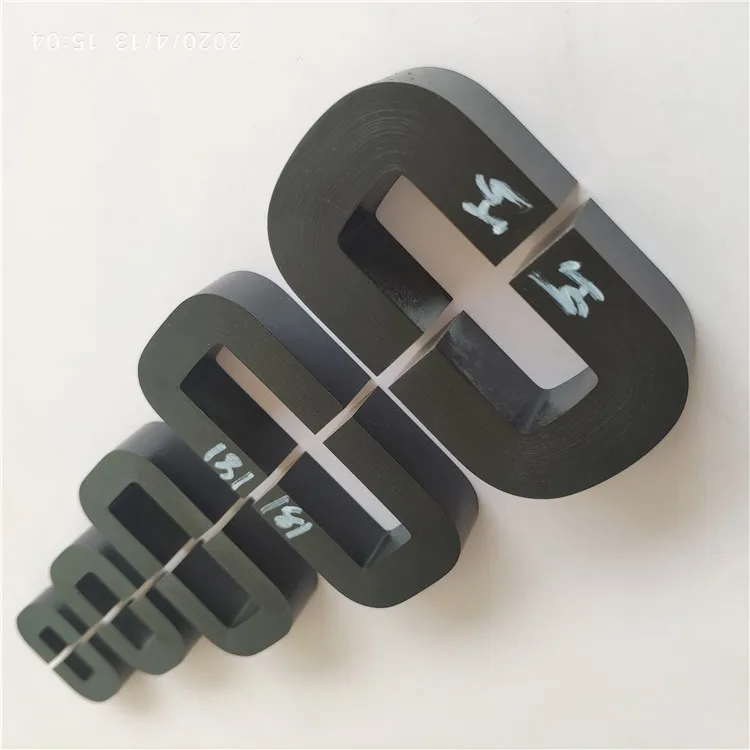

Cutting Surface
All cores have smooth surface to ensure the core's property, such as current loss, exciting voltage
Winding Planeness
An excellent exterior appearance, show the professional skills and the high precision of winding machines
Uniformity Size
The consistency of external dimensions is beneficial to assembly
Welding | Spot welding is firm and smooth, and does not weld through two layers |
Winding | winding is tight, the start and end of the sheet can not be turned up |
Planeness | surface unevenness is less than 0.1mm |
Fineness | No crystalline fine particles (no crystalline fine particles on the cut surface) |
Cut face | No obvious crack on the cutting face (no light transmission and peeling between layers) |
Surface | Visually without burrs, rust, or deformation (to control deformation within tolerances) |
Products | Do not contain Pb\\Cd\\Hg\\Cr\\PBBs\\PBDEs |

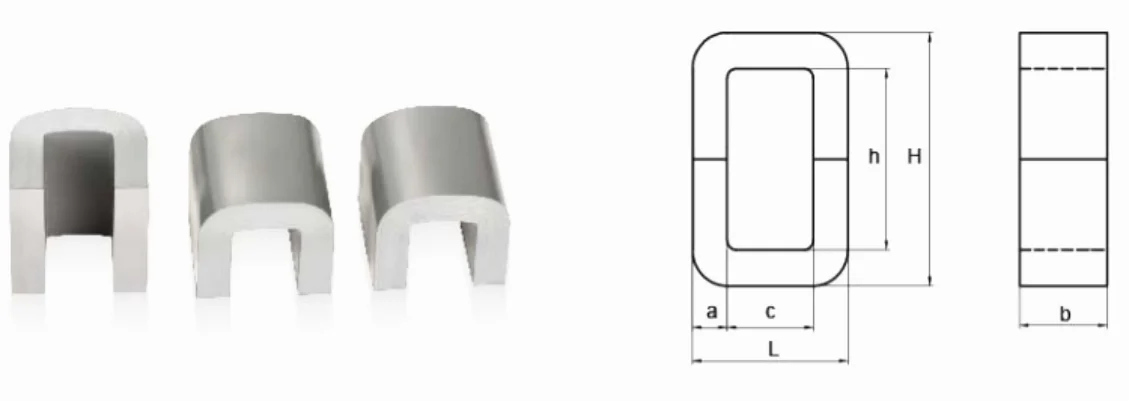

Technic

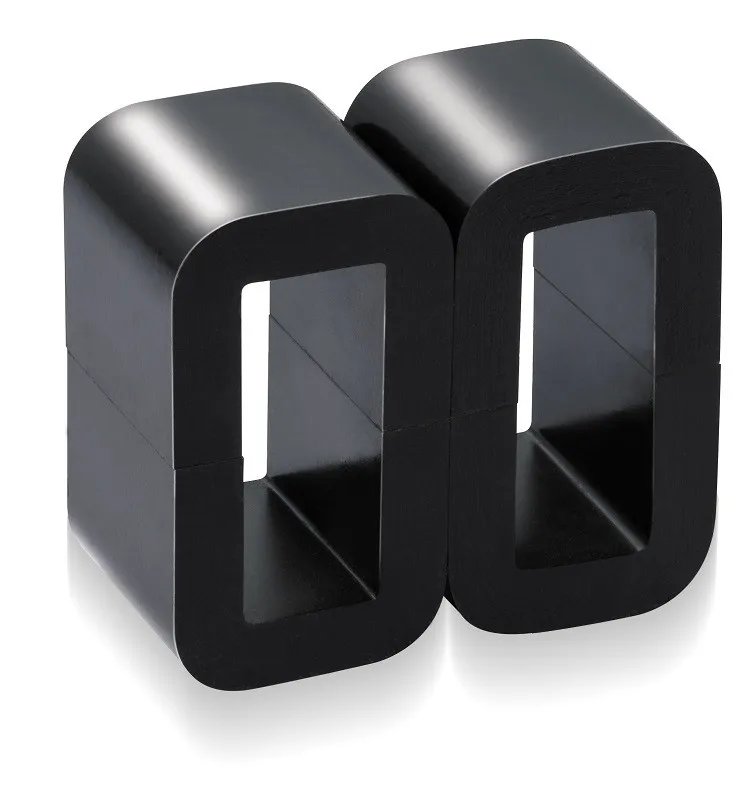

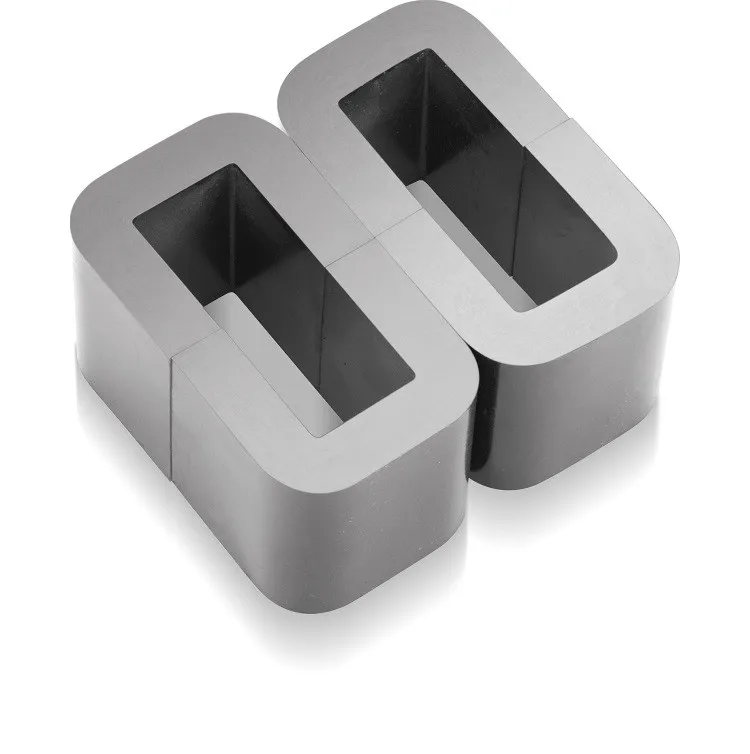

CRGO Tape Wound Cores
Wind one long continuous silicon steel tape tightly into a spiral
Advantage: no air gap, high magnetic performance, Automation
Application

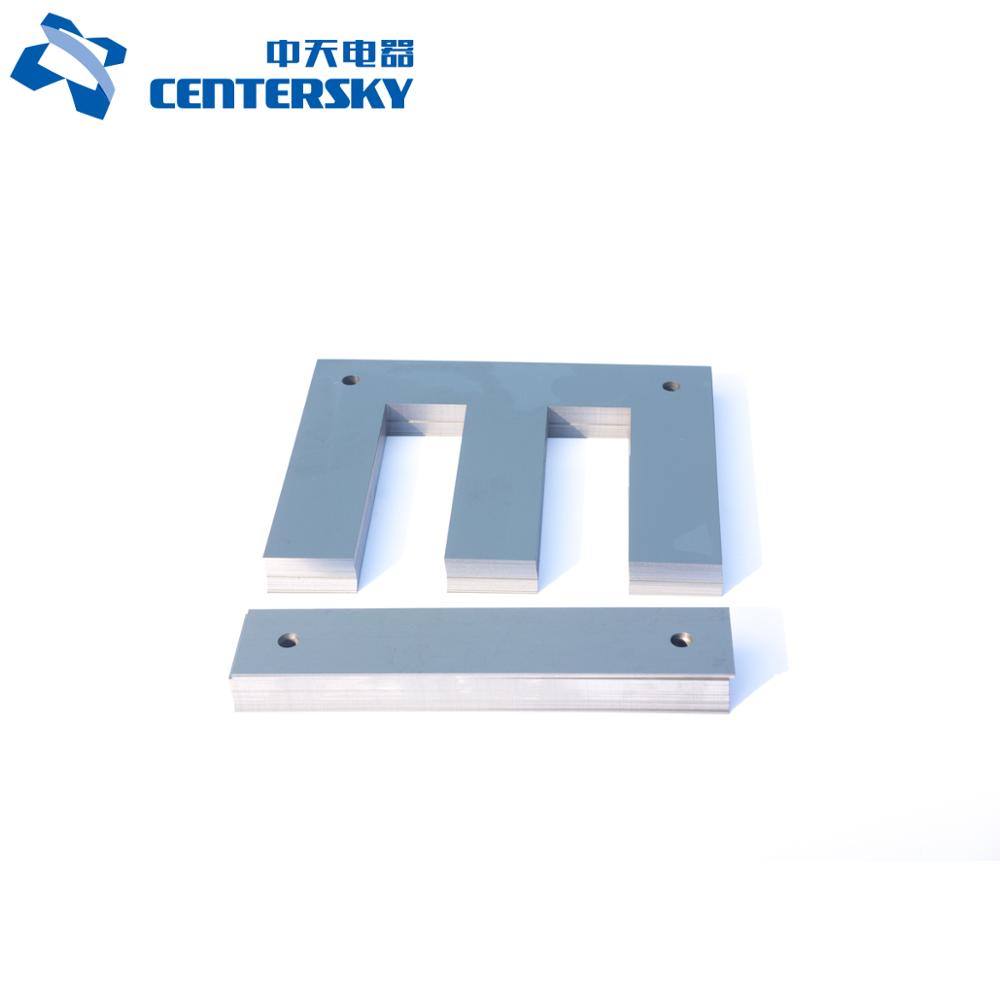

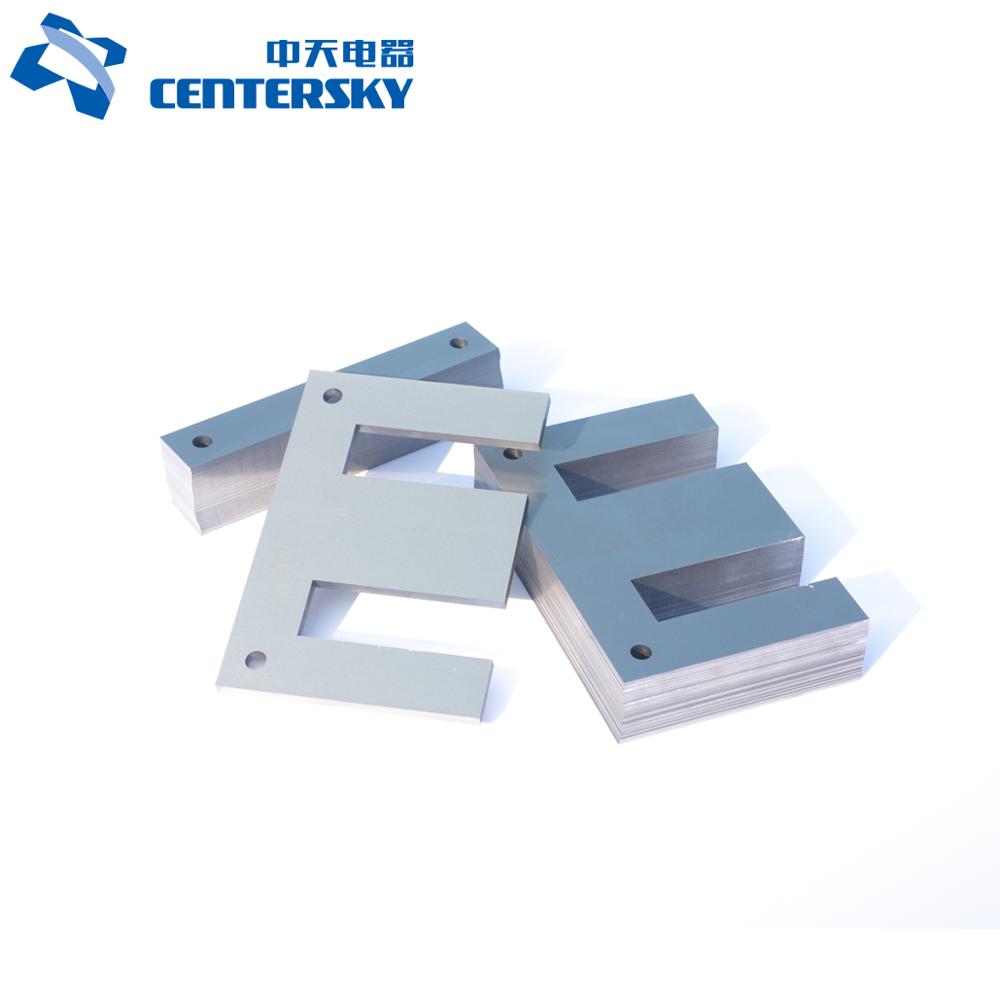

Recommend Products

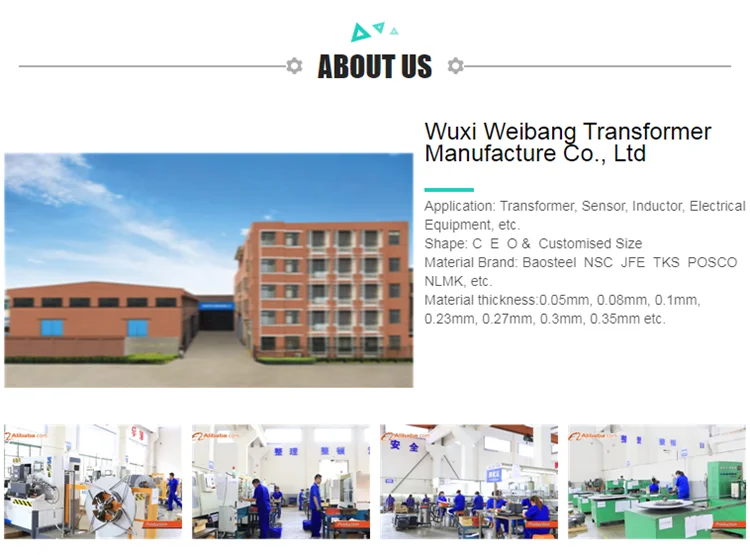

Company Introduction
Certificate
RoHS
The purpose of this standard is to eliminate harmful substances in electrical and electronic product, such as Pb\\Cd\\Hg\\Cr\\PBBs\\PBDEs.
As we know, there are harmful heavy metals in the process of producing electrical and electronic products.
Today, people all over the world are particularly concerned about environmental protection.
In order to adapt to this trend, what products Wuxi Weibang launched are all undertaken the RoHS standards, not only the materials used, but also the finished products.
Production Process

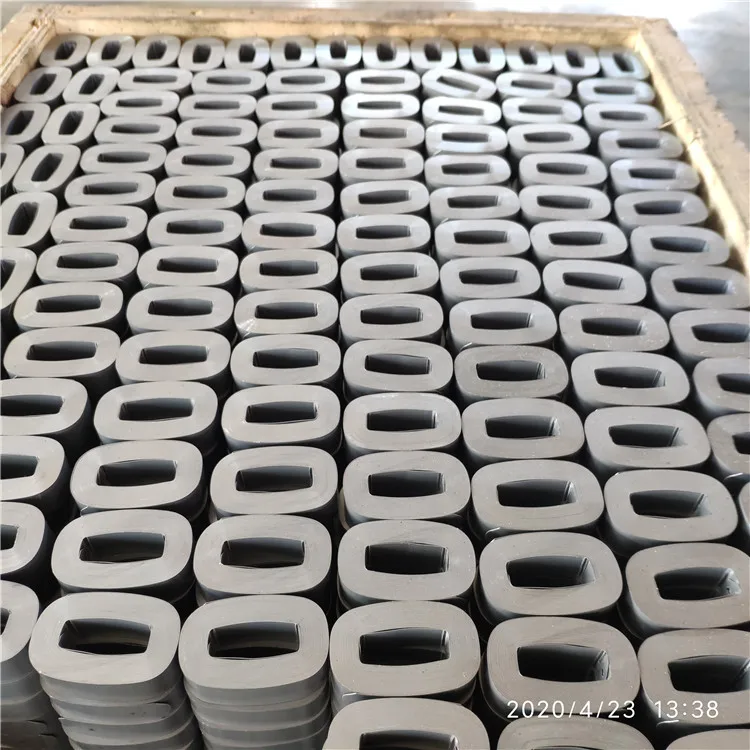

Packaging & Shipment & Payment
