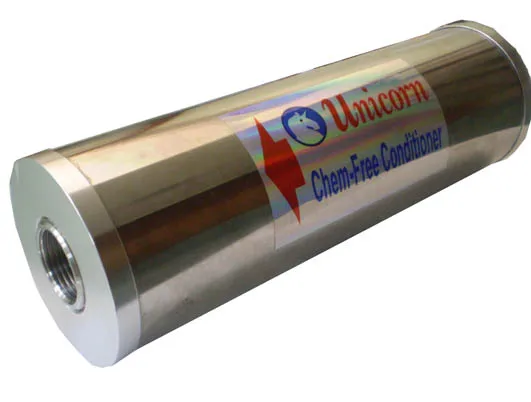

Taiwan Tech Water Conditioner Magnetic Water Treatment Chem Free
- Category: >>>
- Supplier: FRADOX GLOBAL CO. LTD.
Share on (10000003079149):
Product Overview
Description
Our Advantages
Application
Principle

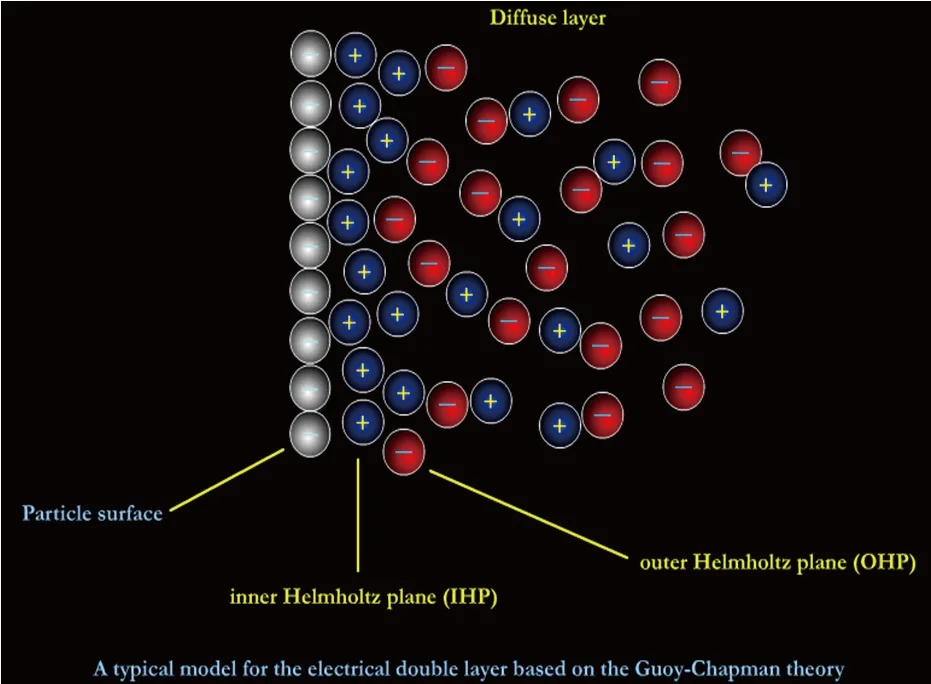

Chem-Free energy saving device produces a powerful energy field that creates a disturbance on the suspended charged particles in water flowing through the pipes (such as calcium ion, magnesium ion, silica, etc.), so that these particles, with silicon dioxide as core, will absorb calcium ion, magnesium ion or ferric oxide particles (Fe2O3) continuously, and form non-crystalline (aragonite) crystals that will precipitate and eventually discharged with water through blowdown.
Most of calcium or magnesium ions in water will form into amorphous sludge and cannot form calcite crystals with negatively charged ions,such as carbonate ion (CO) or sulfate (SO) on the surface of pipes.
The water treated by Chem-Free can be maintained at higher conductivity value. That means, allowing higher concentration of dissolved ions floating in suspension, without the formation of hard scale on the surface of equipment or piping. It can reduce boiler blowdown and save on energy cost.
Most of calcium or magnesium ions in water will form into amorphous sludge and cannot form calcite crystals with negatively charged ions,such as carbonate ion (CO) or sulfate (SO) on the surface of pipes.
The water treated by Chem-Free can be maintained at higher conductivity value. That means, allowing higher concentration of dissolved ions floating in suspension, without the formation of hard scale on the surface of equipment or piping. It can reduce boiler blowdown and save on energy cost.
Specification
item | 4000 | 10000 |
Material | Stainless steel shell | Stainless steel shell |
Weight | 2.8 KGS | 5.0 KGS |
Size | 1/2" | 1" |
Structure | Tube fitting | Tube fitting |
Inner tube operating temp. | 10~120 ℃ | 10~120 ℃ |
Outer tube operating temp. | 0~80 ℃ | 0~80 ℃ |
Inner tube operating pressure | Max 10 Kg/cm2 | Max 10 Kg/cm2 |
Flow rate | 3500L/H | 7000L/H |
Directional requirement | required | required |
Power requirement | No power required | No power required |
Overall Length | 240mm | 275mm |
Body diameter | 80mm | 85mm |
