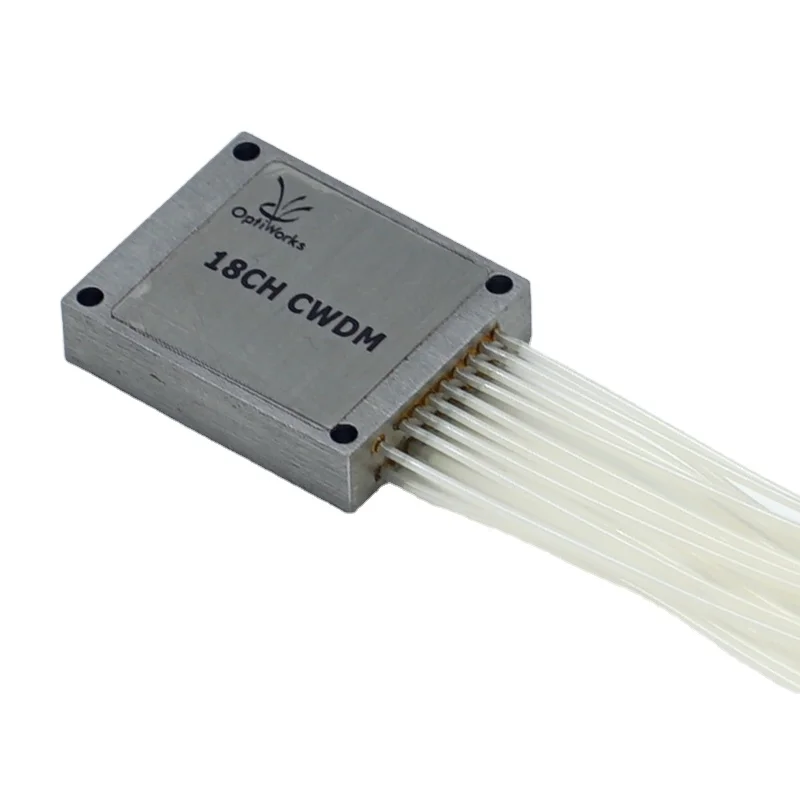

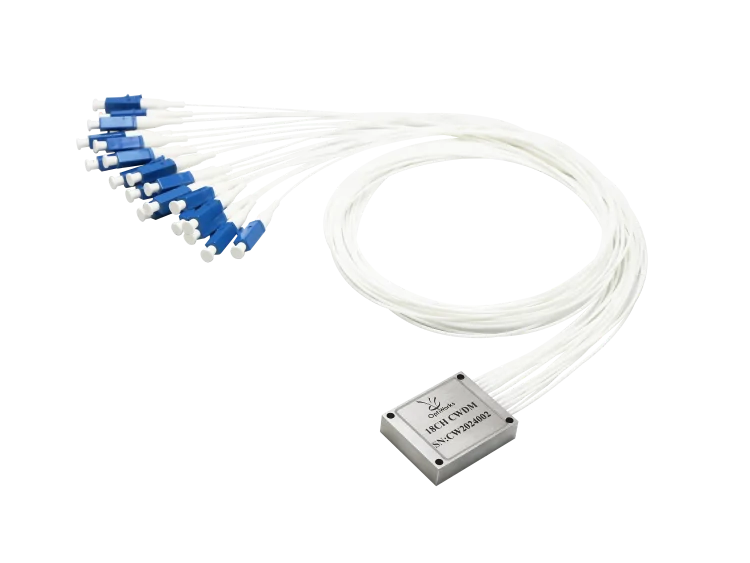

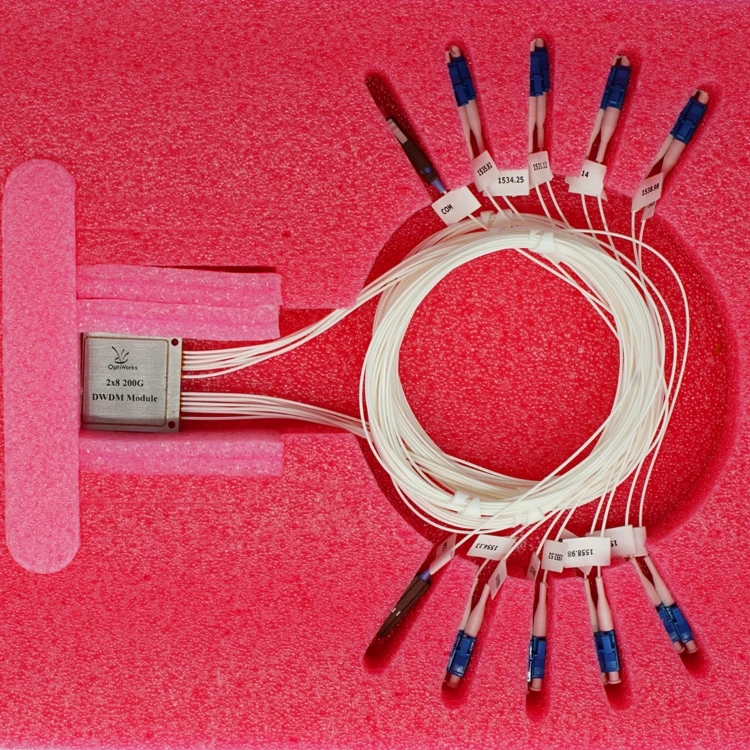

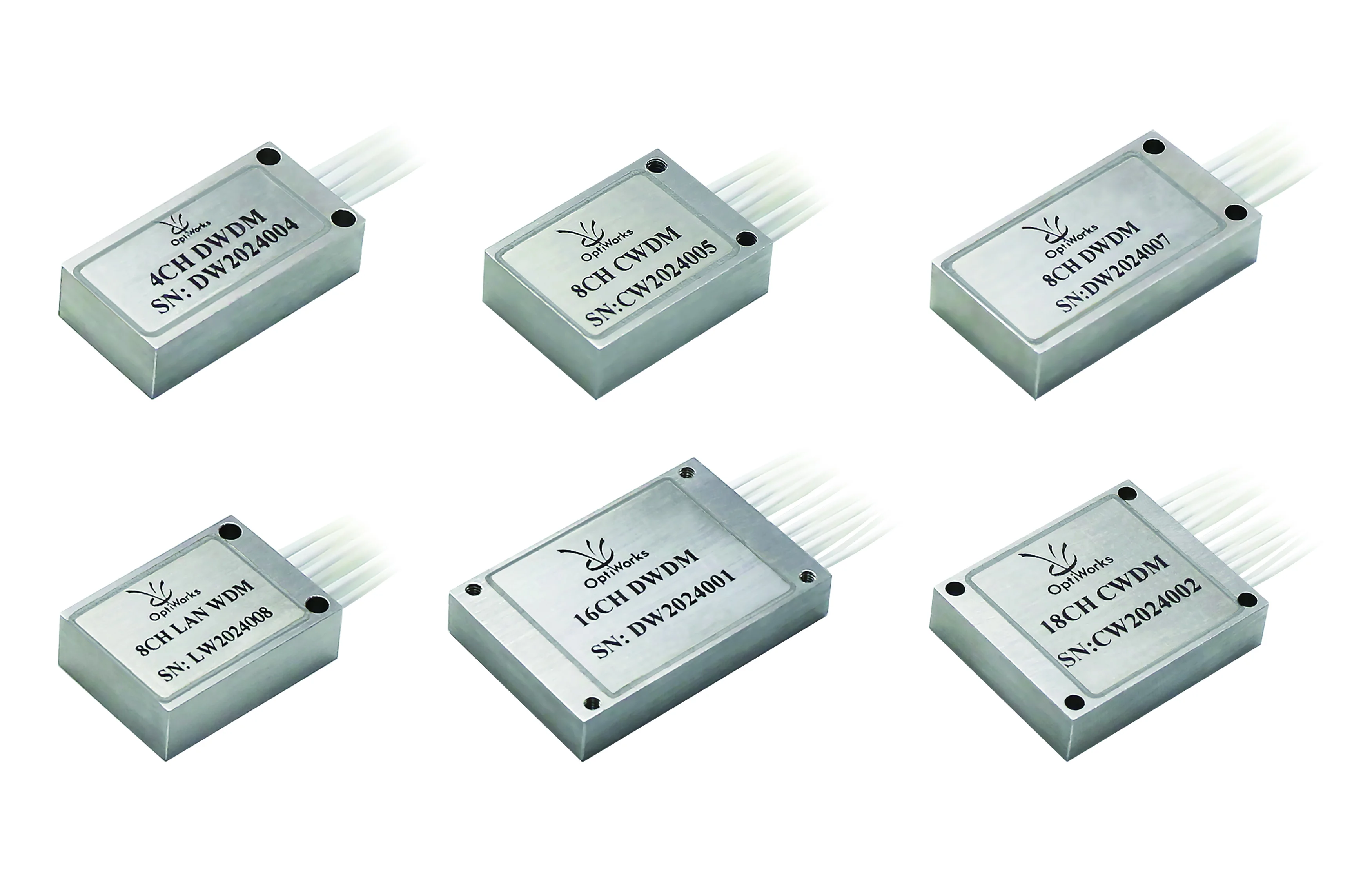

100G 16 каналов ультра компактный модуль волнового мультиплексора оптический мультиплексор демультиплексирование WDM
- Category: Fiber Optic Equipment >>>
- Supplier: Optiworks (Kunshan) Co. Ltd.
Share on (10000003234830):
Product Overview
Description
Product Description
♦ Standard ITU channel
♦ Stable performance
♦ Ultra-compact
♦ Ultra-low Insertion loss
♦ Stable at wide range of operating temperatures
♦ Ultra-low Insertion loss
♦ Stable at wide range of operating temperatures
Applications
♦ DWDM/CWDM System
♦ CATV networks
Specification
Parameter | Unit | 4 Channel | 8 Channel | 12 Channel | 16 Channel | |||
Insertion Loss | dB | ≤1.3 | ≤1.5 | ≤1.8 | ≤2.0 | |||
Ripple | dB | ≤0.3 | ≤0.5 | ≤0.5 | ≤0.5 | |||
Polarization Dependent Loss | dB | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | |||
Dimension | mm | 25x12.8x6.5 | 30x16x6.5 | 39x24x6.5 | 39x24x6.5 | |||
Channel Center Wavelengths | nm | ITU | ||||||
Channel Spacing | nm | 100G:0.8 200G:1.6 | ||||||
Isolation-Adjacent | dB | ≥30 | ||||||
Directivity | dB | ≥50 | ||||||
