MF5600 digital Air gas mass oxygen flow meter for hospital oxygen system
US $399.00-$466.00

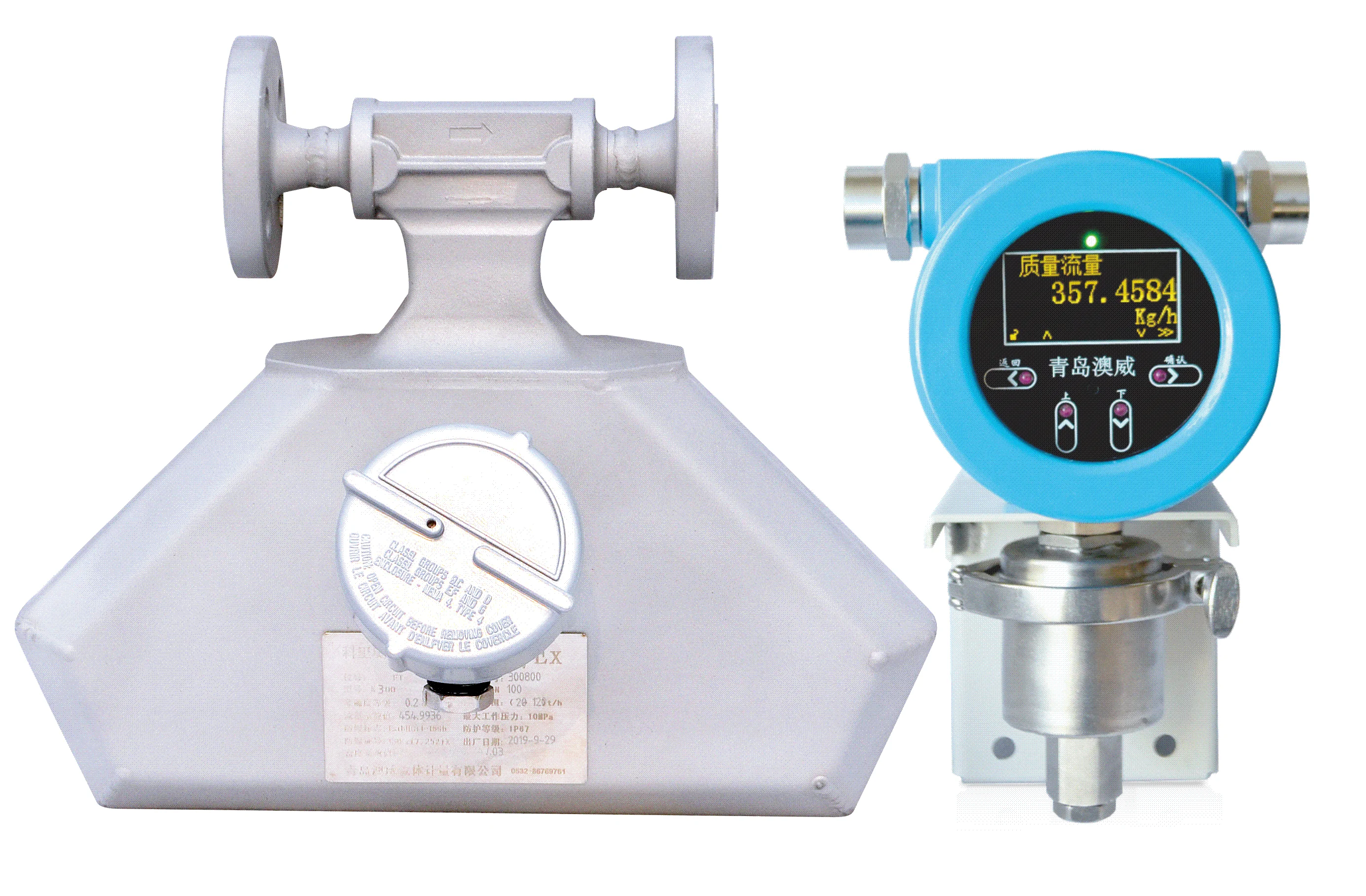

Расходомер Кориолиса с контролем партии
- Category: Flow Meters >>>
- Supplier: Qingdao Alptec Safety Equipment Co. Ltd.
Share on (10000003250116):
Product Overview
Description
Product Description

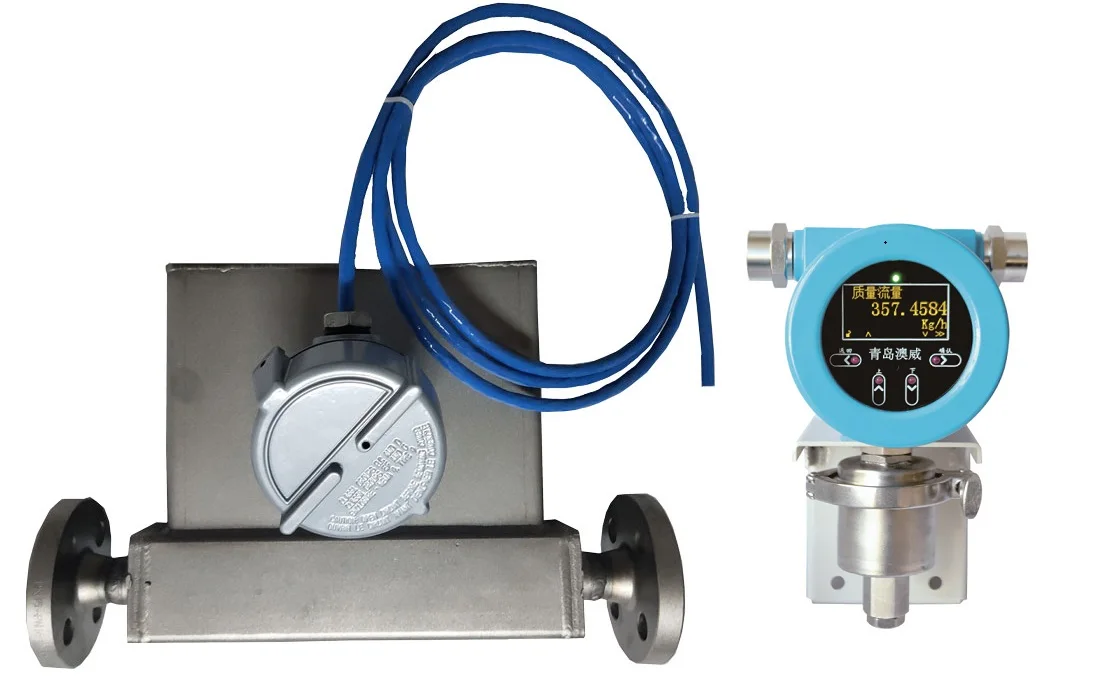

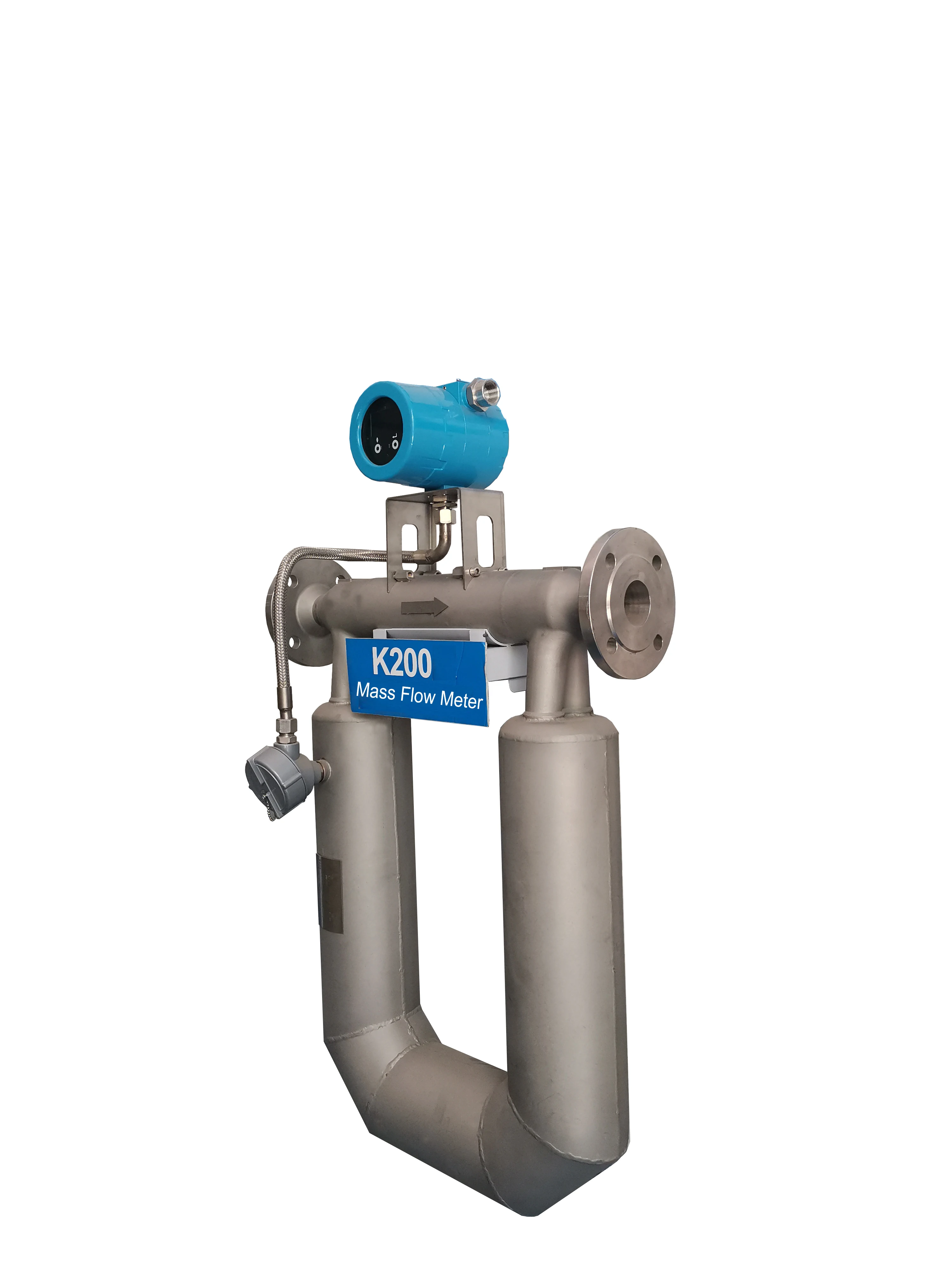

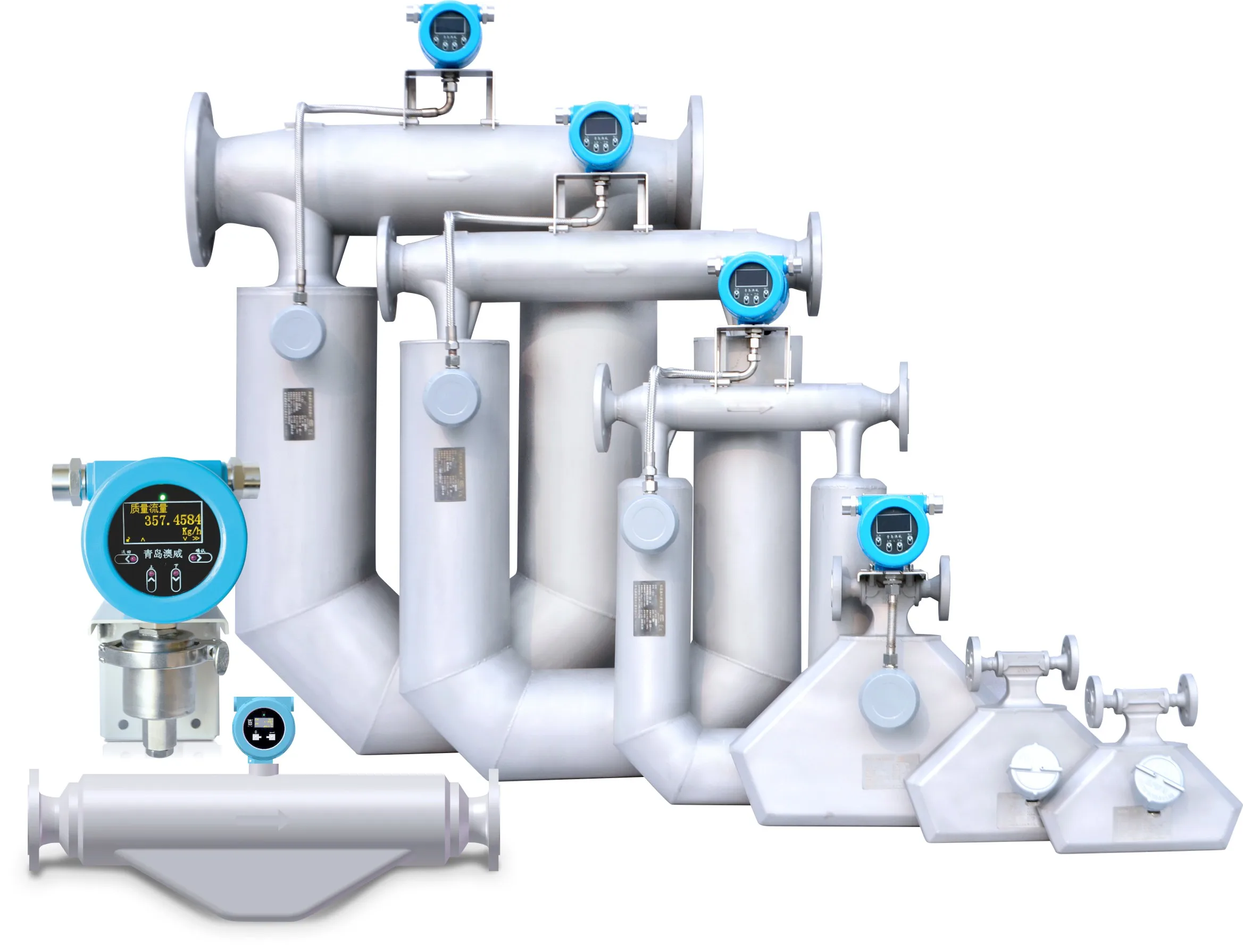

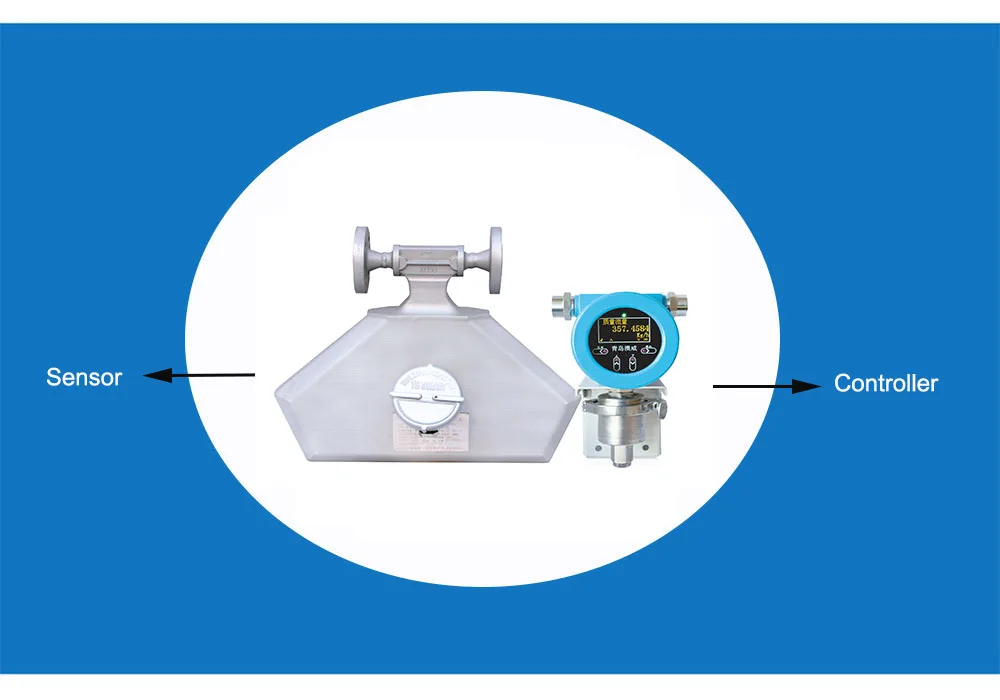

Batch control coriolis mass flow meter
The Coriolis Mass Flow Meter for Hydraulic Oil uses the Coriolis effect principle. By measuring the Coriolis force of fluid received in the tube, it can directly measure the mass flow of the fluid in the tube. The Coriolis force is only related to the mass and speed of the fluid. In principle, it eliminates the influence of temperature, pressure, fluid state, density and other parameters on the measurement accuracy, and directly obtains the accuracy flow value and density value of various media under complex environmental conditions. It doesn't need to go through the conversion of intermediate parameters, avoiding measurement errors due to the intermediate conversion, so as to realize the high-precision and accurate measurement.
Coriolis effect principle
Coriolis effect is a description of the deviation of a linear motion particle in a rotating system due to inertia relative to the linear motion of the rotating system.
The mass flow meter is a typical application of Coriolis Effect. It allows the measured fluid to pass through a measuring tube in vibration. The flow of fluid in the tube is equivalent to linear motion. The vibration of the measuring tube will produce an angular velocity. Because the vibration is driven by an applied electromagnetic field, it has a fixed frequency, so the Coriolis effect received by the fluid in the tube is only related to its mass and speed of motion, and the product of mass and speed of motion, that is, the flow velocity is the mass flow rate that needs to be measured, so by measuring the Coriolis effect of the fluid in the tube its mass flow can be obtained.
Coriolis effect is a description of the deviation of a linear motion particle in a rotating system due to inertia relative to the linear motion of the rotating system.
The mass flow meter is a typical application of Coriolis Effect. It allows the measured fluid to pass through a measuring tube in vibration. The flow of fluid in the tube is equivalent to linear motion. The vibration of the measuring tube will produce an angular velocity. Because the vibration is driven by an applied electromagnetic field, it has a fixed frequency, so the Coriolis effect received by the fluid in the tube is only related to its mass and speed of motion, and the product of mass and speed of motion, that is, the flow velocity is the mass flow rate that needs to be measured, so by measuring the Coriolis effect of the fluid in the tube its mass flow can be obtained.
Features & Benefits
1. High quality accuracy, measurement error is better than ± 0.1%;
2. High density accuracy, measurement error is better than ± 0.0005g / cm³;
3. High temperature accuracy, measurement error is better than ± 0.2 ºC;
4. Good zero-point stability to ensure long-term stable operation;
5. Fast response time, suitable for small batch and short time filling;
6. Wide range ratio, the range ratio can reach 20: 1;
7. Long service life, product design service life is 10 years;
8. More warning functions.
2. High density accuracy, measurement error is better than ± 0.0005g / cm³;
3. High temperature accuracy, measurement error is better than ± 0.2 ºC;
4. Good zero-point stability to ensure long-term stable operation;
5. Fast response time, suitable for small batch and short time filling;
6. Wide range ratio, the range ratio can reach 20: 1;
7. Long service life, product design service life is 10 years;
8. More warning functions.
Specification
Product name | Batch control coriolis mass flow meter |
Brand | Add Value |
Model | K100 |
Material | Tube:SS316L Shell:SS304 |
Input power | 85-265 VAC |
Output Signal | 4-20mA,Pulse,RS485 |
Process medium temperature | -40℃ to +80℃ |
Certificate | Chinese-Ex cert. |
MOQ | 10 sets |
Delivery time | 5 days after payment |
Payment | L/C T/T Western Union |
Package | Carton(diamensions:64cmX60cmX40cm) |

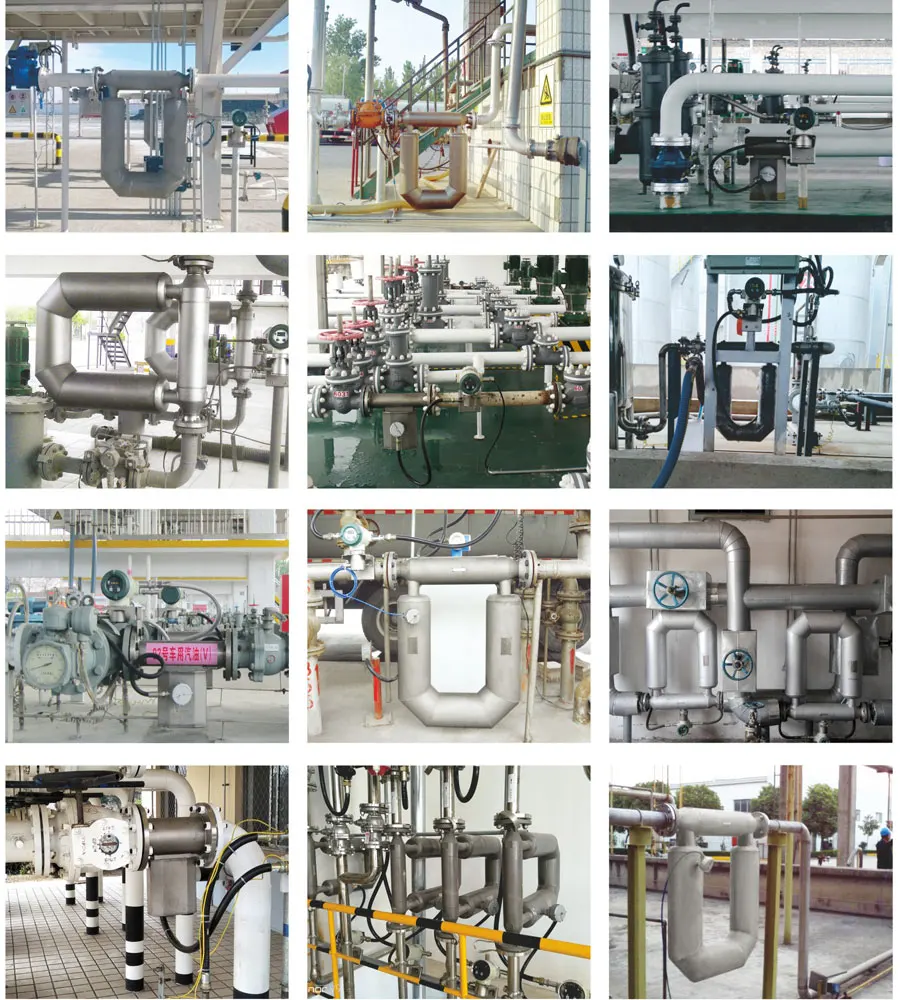

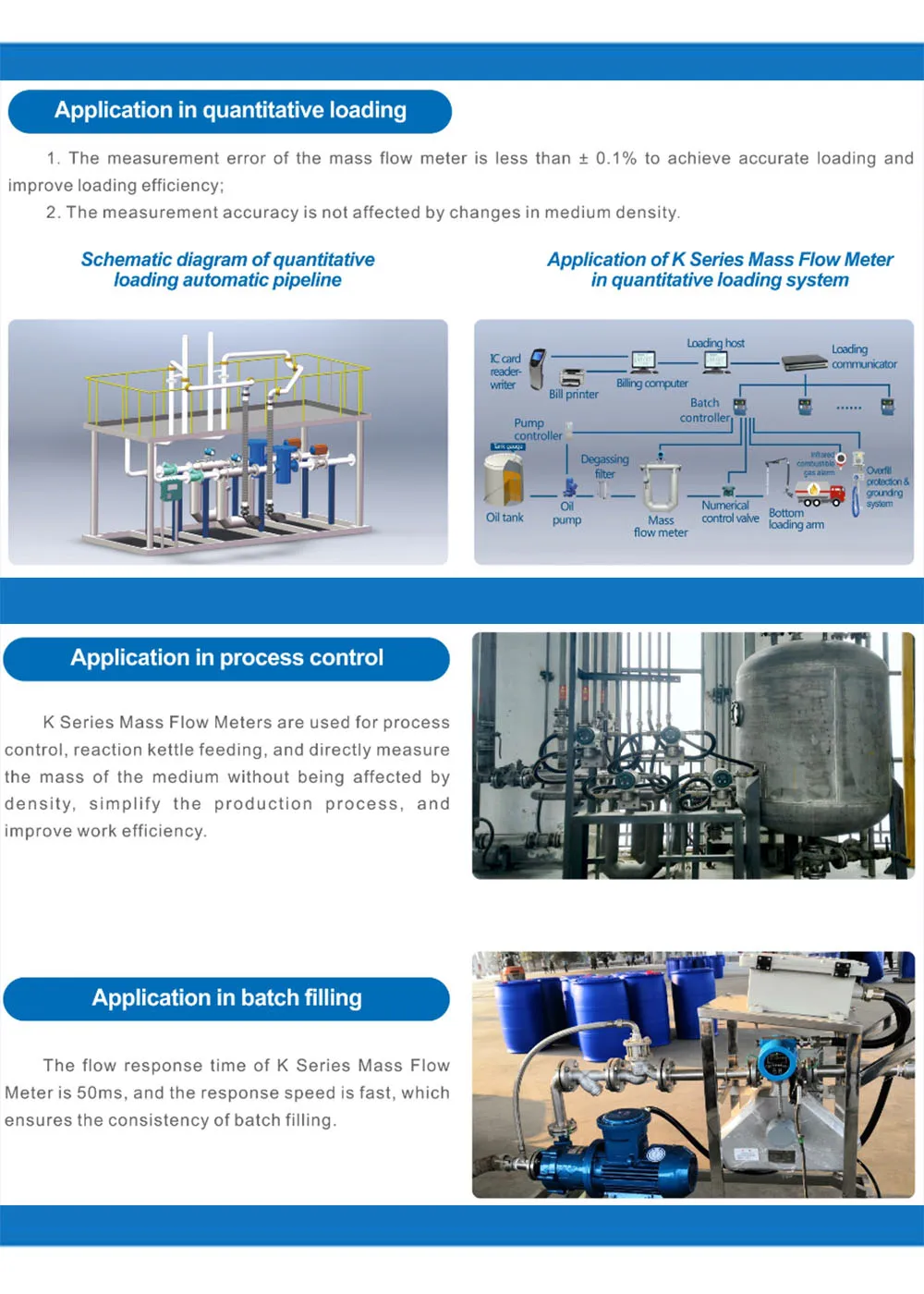

Application
1. In mass custody transfer
2. In standard volume (V20) handover
3. In ultra-low temperature media
4. In high temperature and high viscosity media
5. In quantitative loading system
6. In process control
7. In batch filling
8. In gas measurement
9. In oil field
10. In density measurement
11. In high-power equipment fuel detection
Coriolis flow meters can measure fluids such as alcohol, solvents, fruit solutions, fuels, crude oil, vegetable oils, silicon
oils, vinegar, beer, gases, and liquefied gases etc.
2. In standard volume (V20) handover
3. In ultra-low temperature media
4. In high temperature and high viscosity media
5. In quantitative loading system
6. In process control
7. In batch filling
8. In gas measurement
9. In oil field
10. In density measurement
11. In high-power equipment fuel detection
Coriolis flow meters can measure fluids such as alcohol, solvents, fruit solutions, fuels, crude oil, vegetable oils, silicon
oils, vinegar, beer, gases, and liquefied gases etc.
Certifications

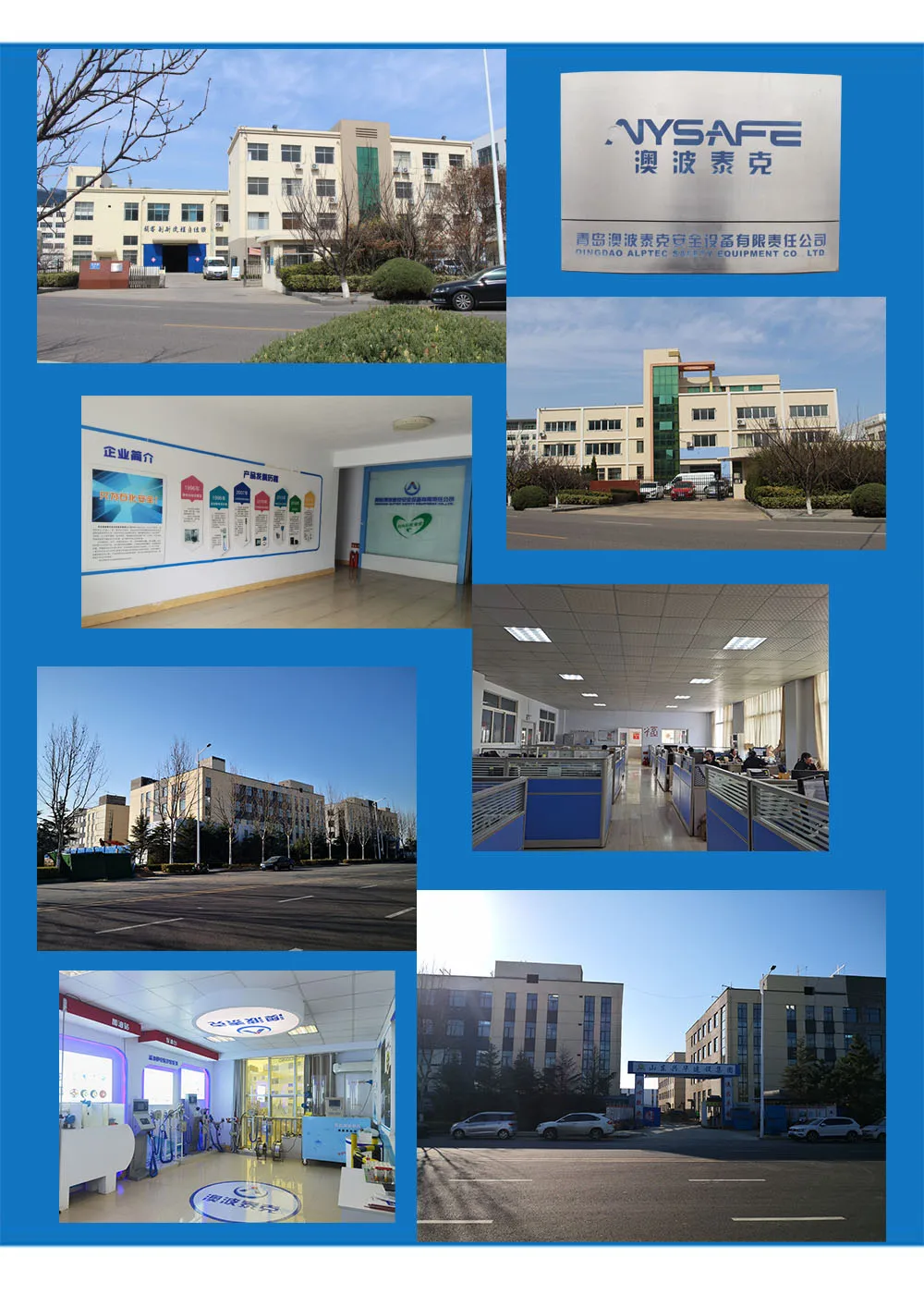

Company Profile
Qingdao Add Value Flow Metering Co., Ltd. is located in Qingdao Free Trade Zone. It is a high-tech enterprise integrating R & D, production, sales and service. Since its establishment, Qingdao Add Value has always focused on the research and development and manufacture of fluid metering products. We have independently developed two series of products including Coriolis Mass Flow Meters and Vibration Tube Liquid Density Meter on Line, and have obtained national invention patents. The company has advanced equipment, established a complete production inspection process, and certified by ISO9001 and ISO14001. Currently, the Qingdao Add Value products are installed in most cities across the country. And they are widely used in various occasions such as quantitative loading automation and chemical process quality control in Sinopec, PetroChina and many major refineries. Stable and accurate fluid metering services have won unanimous praise from customers.
Add Value is committed to innovation, with the business philosophy of "Stable performance creates excellent quality", focusing on the development of core competitiveness, and the original core technology perfectly solves the problem of zero drift, effectively ensuring the long-term stable operation of products, all products of the company are provided 12-month warranty.
We aspire to be your trusted supplier.
Add Value is committed to innovation, with the business philosophy of "Stable performance creates excellent quality", focusing on the development of core competitiveness, and the original core technology perfectly solves the problem of zero drift, effectively ensuring the long-term stable operation of products, all products of the company are provided 12-month warranty.
We aspire to be your trusted supplier.
Our Advantages
1. Sufficient Inventory;
2. Alptec is Sinopec and PetroChina's preferred brand and the supplier of big companies; such as BP, PPG, Total, Shell etc.;
3. We participate in international exhibitions every year and welcome customers to visit:
1). ADIPEC 1-4 November 2010 in UAE
2). STOC EXPO EUROPE 2012 in Rotterdam
3). NACS Show 2012 in Las Vegas
4). STOC EXPO Asia 2014 in Singapore
5). 16th Pakistan Oil & Gas Exhibition - POGEE 2018
6). STOC EXPO EUROPE 26-28 March 2019 in Rotterdam
7). OIL & GAS Thailand 09-11 October 2019
4. Excellence in the industry with over 26 years' experience;
5. Good reputation;
6. High quality guaranteed;
7. Competitive factory-direct sale price;
8. Prompt delivery;
9. Good after-sales service;
10. Accept urgent order.
2. Alptec is Sinopec and PetroChina's preferred brand and the supplier of big companies; such as BP, PPG, Total, Shell etc.;
3. We participate in international exhibitions every year and welcome customers to visit:
1). ADIPEC 1-4 November 2010 in UAE
2). STOC EXPO EUROPE 2012 in Rotterdam
3). NACS Show 2012 in Las Vegas
4). STOC EXPO Asia 2014 in Singapore
5). 16th Pakistan Oil & Gas Exhibition - POGEE 2018
6). STOC EXPO EUROPE 26-28 March 2019 in Rotterdam
7). OIL & GAS Thailand 09-11 October 2019
4. Excellence in the industry with over 26 years' experience;
5. Good reputation;
6. High quality guaranteed;
7. Competitive factory-direct sale price;
8. Prompt delivery;
9. Good after-sales service;
10. Accept urgent order.
Exhibitions and Customers
FAQ
Q1: How many workers in your factory?
A: 134.
Q2: Could you send me a sample before bulk order?
A: Sure.
Q3: What tests do you do during production?
A: Intermediate tests and finished product tests.
Q4: Is there MOQ for the Batch control coriolis mass flow meter?
A:10 units.
Q5: How soon can my order be shipped?
A: Usually 3 business days after payment.
A: 134.
Q2: Could you send me a sample before bulk order?
A: Sure.
Q3: What tests do you do during production?
A: Intermediate tests and finished product tests.
Q4: Is there MOQ for the Batch control coriolis mass flow meter?
A:10 units.
Q5: How soon can my order be shipped?
A: Usually 3 business days after payment.
We Recommend
M-40-1 1.5'' Diesel/Fuel/Gasoline 40MM Fuel Flow Meter Mechanical Flow Meter
US $750.00-$830.00

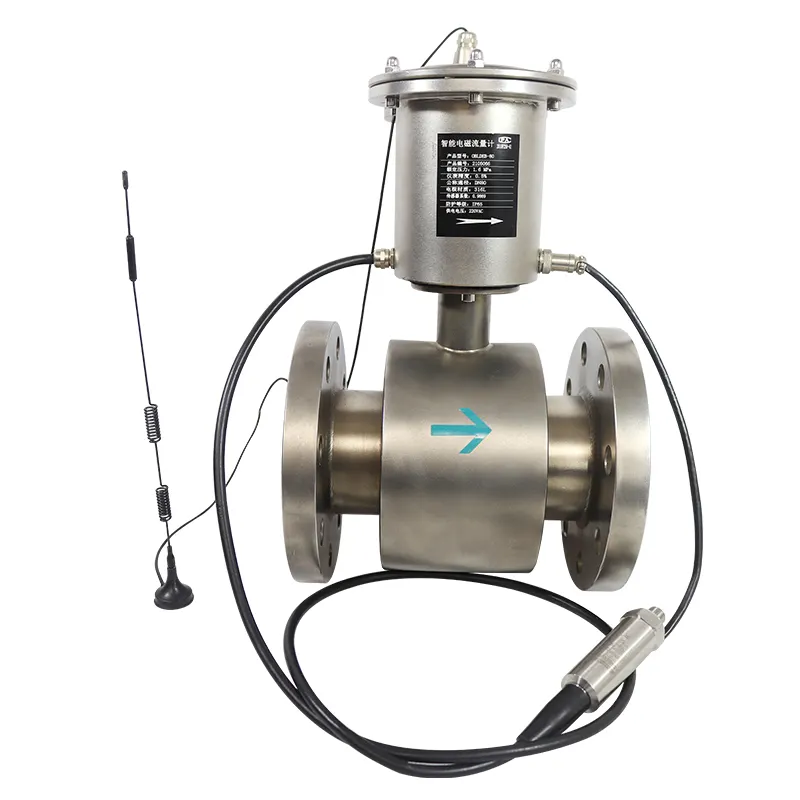

Rs485 Battery Operated Electromagnetic Flow Meter
