Professional Thermal and Night Vision Optics YJQR 54sd with high quality
- Category: >>>
- Supplier: Yunnan Yuanjin Optical Co. Ltd.
Share on (10000003314612):
Product Overview
Description
Products Description
Professional Thermal and Night Vision Optics YJQR-54sd
This product is adopted with uncooled infrared detectors, focal plane arrays, servo control, and a real-time digital image processing circuit independently developed and produced by our company. YJQR-54sd can work continuously during the day and night,
can penetrate fog, smoke, dust, and other particles. Moreover, it also can simultaneously complete search, reconnaissance, and aiming and shooting actions—the ideal assistant for anti-terrorism, law enforcement, anti-smuggling, and anti-narcotics.
can penetrate fog, smoke, dust, and other particles. Moreover, it also can simultaneously complete search, reconnaissance, and aiming and shooting actions—the ideal assistant for anti-terrorism, law enforcement, anti-smuggling, and anti-narcotics.
Features
* Advanced FPGA
* Image processing technology 384X288/640X480 (optional) high resolution 60Hz real-time imaging, fast movement without smear
* No block design, unique digital enhancement algorithm
* Professional telephoto germanium lens, 2x, 4x digital zoom
* White-hot/black hot/brown/iron red/rainbow, many colors are available
* Standardized interface, with crosshair, automatic adjustment of reticle color, deficient power consumption, can work
continuously for a long time
* Convenient and easy to operate buttons and digital menu
* 100-level brightness control, 100-level contrast control
* Manual and fully automatic image enhancement mode can find the target in an extremely harsh environment
* 1024X768 high-resolution OLED eyepiece system
* High system reliability, strong anti-fall, and anti-seismic ability
* Strict and reliable waterproof performance, suitable for all-weather indoor and outdoor
* Advanced FPGA
* Image processing technology 384X288/640X480 (optional) high resolution 60Hz real-time imaging, fast movement without smear
* No block design, unique digital enhancement algorithm
* Professional telephoto germanium lens, 2x, 4x digital zoom
* White-hot/black hot/brown/iron red/rainbow, many colors are available
* Standardized interface, with crosshair, automatic adjustment of reticle color, deficient power consumption, can work
continuously for a long time
* Convenient and easy to operate buttons and digital menu
* 100-level brightness control, 100-level contrast control
* Manual and fully automatic image enhancement mode can find the target in an extremely harsh environment
* 1024X768 high-resolution OLED eyepiece system
* High system reliability, strong anti-fall, and anti-seismic ability
* Strict and reliable waterproof performance, suitable for all-weather indoor and outdoor

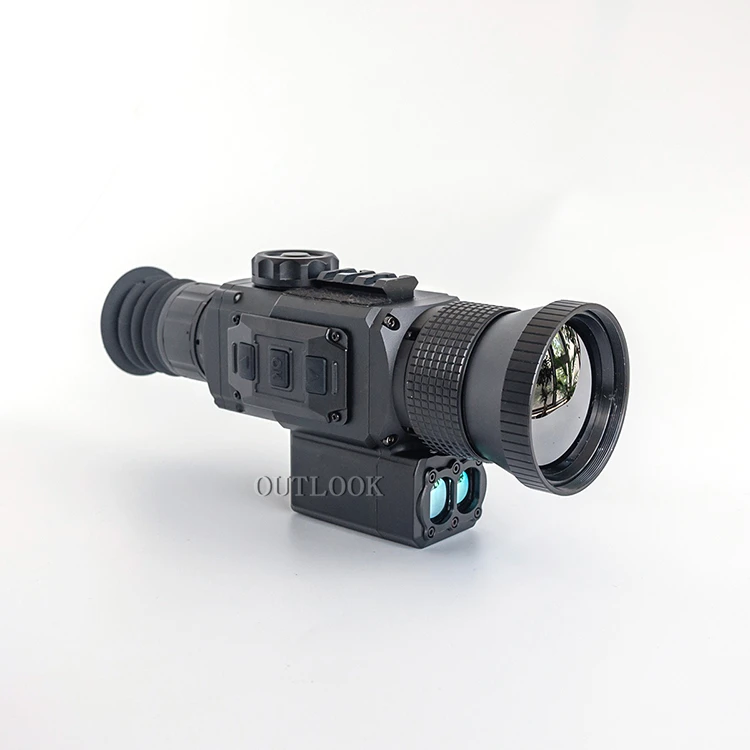

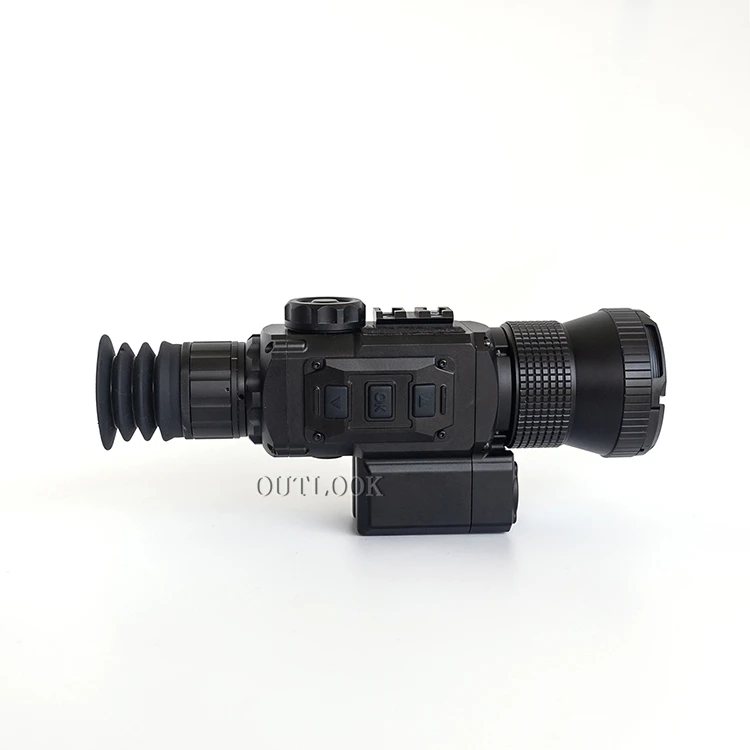

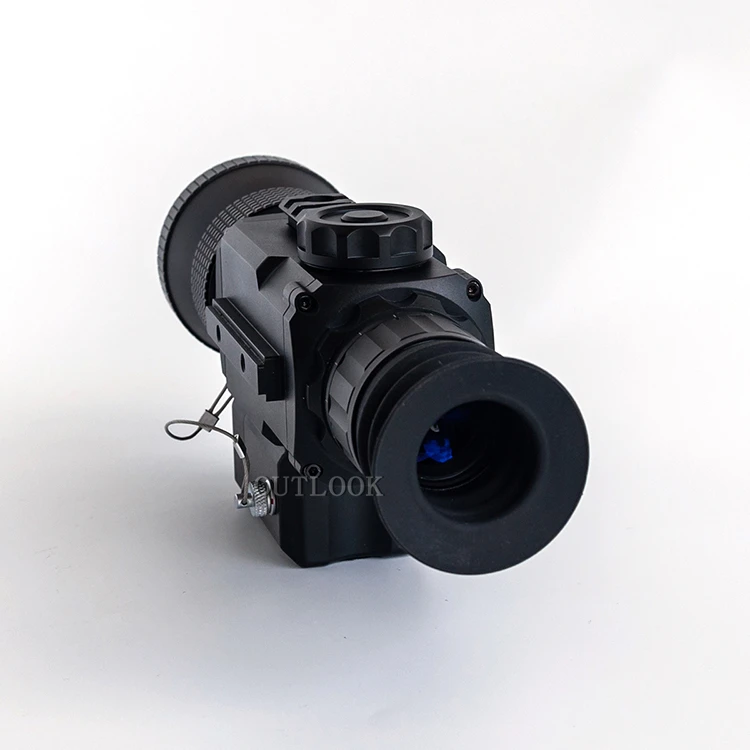

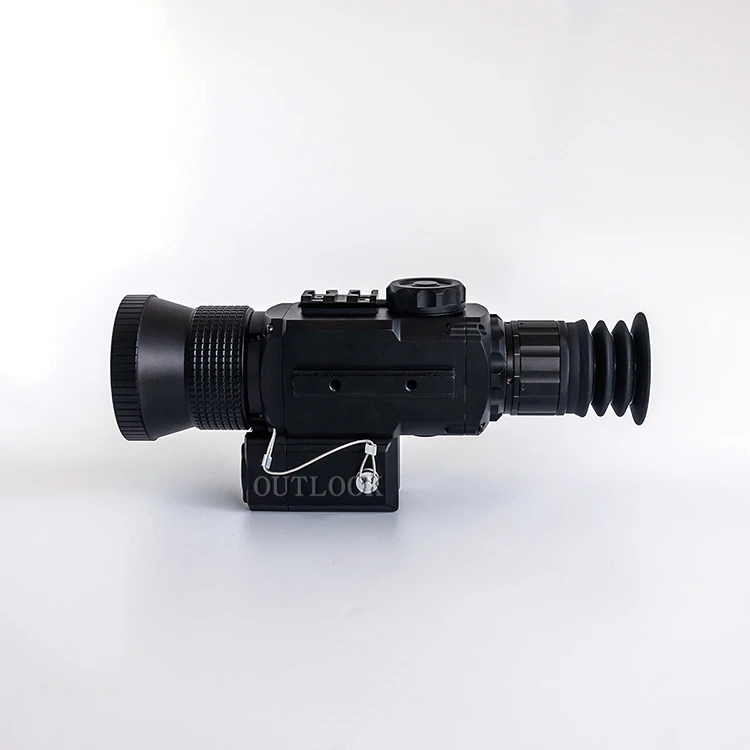

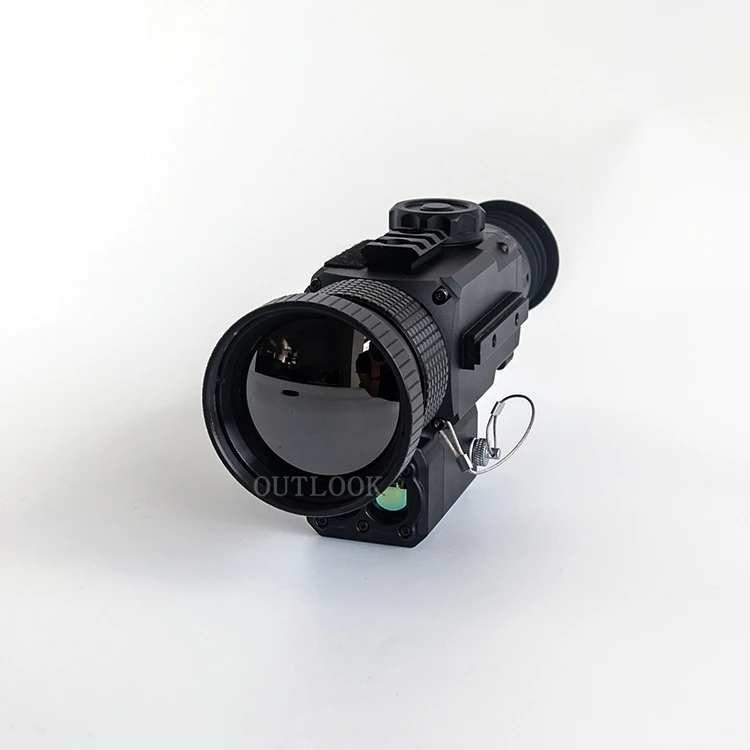

Product details Images
The best product
100% quality guarantee
HD monocular
Easy to carry
Modern design
Product Paramenters
Technical parameter
Detector type VOX uncooled focal plane
Pixel 384*288,17um
Sensitivity ≤40mk f/1, 300K, 60Hz
Spectral range 8～14μm
Lens selection Germanium metal manual focusing lens, coated with hard carbon
Detector type VOX uncooled focal plane
Pixel 384*288,17um
Sensitivity ≤40mk f/1, 300K, 60Hz
Spectral range 8～14μm
Lens selection Germanium metal manual focusing lens, coated with hard carbon
and anti-reflective coating
Focal length 54mm
Field of view 10°(H) x 7°(V)
Spatial resolution 0.33mrad
F# 1.0
Focus range 10 meters-infinity
Eyepiece Full glass diopter eyepiece
Focus Manual
Laser Ranging In vivo
Ranging distance 8-1200M
Camera and video function YES
Video output RS170 CCIR/ PAL composite video (60HZ)
Display 0.55"OLED /1024x768 pixels
Image polarity White hot, black hot, brown, red hot, iron red, rainbow
Electronic zoom 1X-2X-4X
Crosshair Built-in movable crosshair to aim at the target
Battery Type 3.7V rechargeable lithium battery, 3200mAhx1
Power consumption 1.2W
Environment
Operating temperature -10℃～ +45℃
Storage temperature -30℃～ +60℃
Shockproof Anti-vibration drop 1 meter
Physical parameter
Shell material Aviation aluminum alloy
Weight 750g (without lens)
Dimensions 200mm (L)x Φ55 mm
Focal length 54mm
Field of view 10°(H) x 7°(V)
Spatial resolution 0.33mrad
F# 1.0
Focus range 10 meters-infinity
Eyepiece Full glass diopter eyepiece
Focus Manual
Laser Ranging In vivo
Ranging distance 8-1200M
Camera and video function YES
Video output RS170 CCIR/ PAL composite video (60HZ)
Display 0.55"OLED /1024x768 pixels
Image polarity White hot, black hot, brown, red hot, iron red, rainbow
Electronic zoom 1X-2X-4X
Crosshair Built-in movable crosshair to aim at the target
Battery Type 3.7V rechargeable lithium battery, 3200mAhx1
Power consumption 1.2W
Environment
Operating temperature -10℃～ +45℃
Storage temperature -30℃～ +60℃
Shockproof Anti-vibration drop 1 meter
Physical parameter
Shell material Aviation aluminum alloy
Weight 750g (without lens)
Dimensions 200mm (L)x Φ55 mm

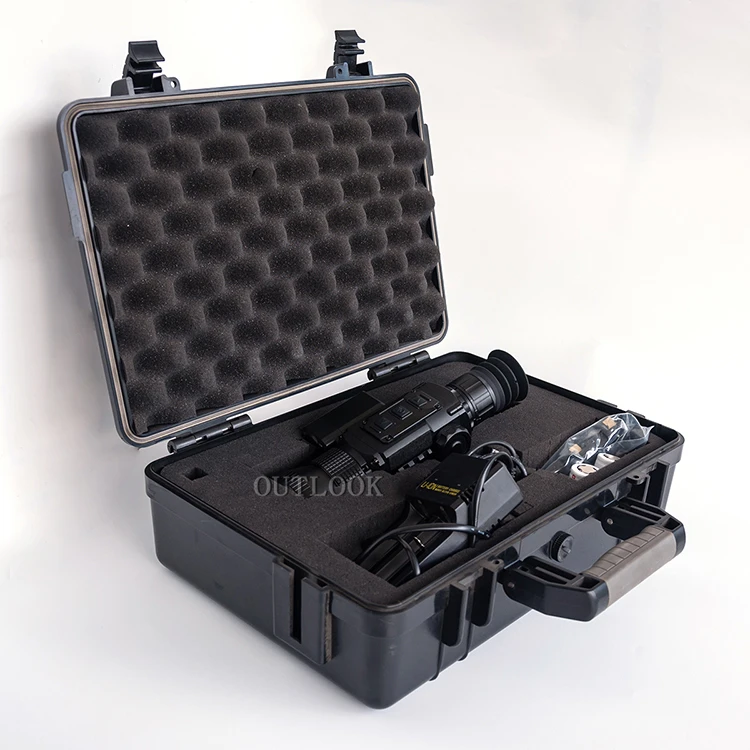

Product Packaging & Delivery
Box, Carton
*Strong carton packaging
*Suitable for long distance travel
* Good resistance to moisture and shocks.
*Land /ocean/ air-shipping Customized to your needs.
Customer Services
Fast sample arrangement | OK |
Sample Charges return | OK |
OEM and Logo | OK |
On time Delivery | OK |
Reflex able payment | OK |
24h consulting and after-sale service | OK |
Packages tracking & arrival reminding | OK |
The quality-related compensation | OK |
Company Profile
***Established in 2005, Yunnan Yuanjin Optical Instruments Co., Ltd has her root in a long-established military optical instruments factory with nearly 80 years' industry know-how.
***We Our line of business covers the main optical instruments ranges, including binocular, monocular, night vision, military binocular, spotting scope, range finder, microscope, eyepieces & objectives and other related accessories. Our worldwide business market includes North America, Europe, Australia, South Africa, Southeast Asia and the Middle East.
***We uphold four core values when cooperating with our business partners, namely, cooperation, efficiency, reliability
and cooperation. We strive to ensure strong production capacity, strict quality control, prompt delivery and sincere after-sales service, providing our customers with military-standard products featuring advanced technique and care-free shopping experience.
FAQ
1. who are we?
We are based in Yunnan, China, start from 2009,sell to North America(40.00%),Western Europe(20.00%),Southeast
Asia(15.00%),Oceania(10.00%),Eastern Europe(5.00%),South America(5.00%),South Asia(3.00%),Africa(2.00%). There are total about
101-200 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
telescope,binocular,monocular,night vision,optical instrument
4. why should you buy from us not from other suppliers?
Based on a long-established military optical instrument factory , we provide our customers with decades of industry know-how,
prompt delivery, large output and military-standard products with advanced technique.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,French
We are based in Yunnan, China, start from 2009,sell to North America(40.00%),Western Europe(20.00%),Southeast
Asia(15.00%),Oceania(10.00%),Eastern Europe(5.00%),South America(5.00%),South Asia(3.00%),Africa(2.00%). There are total about
101-200 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
telescope,binocular,monocular,night vision,optical instrument
4. why should you buy from us not from other suppliers?
Based on a long-established military optical instrument factory , we provide our customers with decades of industry know-how,
prompt delivery, large output and military-standard products with advanced technique.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,French
The latest company's international certificate
