Product Overview
Description
Specs
Acoustic & Electrical Specifications
Frequency Range
Mic Inputs: 20 Hz – 20 kHz, -3dB at 20 Hz (high-pass filter)
Monitor Outputs: 20 Hz – 20 kHz better than ±0.5dB
Input Impedance
600Ω (Mic Preamplifiers)
Equivalent Noise
–125dBA (A-Weighted, measured as per IEC651)
Maximum Output Level
+3dBu (Monitor Outputs)
Headphone Output Power
Max output power at 1% THD: 32Ω –> 220mW | 300Ω –> 31mW
Dynamic Range
100 dBA (Mic Preamplifiers)
Gain Range
0dB – 55dB (Mic Preamplifiers)
Power Requirements
External DC power supply 12 - 15v DC, 1A
Output Connection
USB-C, 1/4” Balanced TRS STEREO (Monitor Outputs)
Computer Connectivity
USB
Bit Depth
24-Bit
Sample Rates
48 kHz
Storage
microSD™ card slot, 512MB internal memory for storing sounds for programmable pads
OS Requirements
macOS 10.11
Windows 10
Windows 10
Mechanical Specifications
Colour
Black
Weight (g)
1980g
Dimensions (mm)
350 x 275 x 82
Packed Weight (g)
2850
Package Dimensions (L x W x H, mm)
412 x 338 x 127
Box Contains

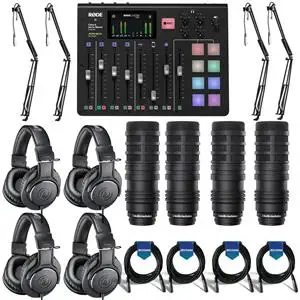

1 x RØDECaster Pro
