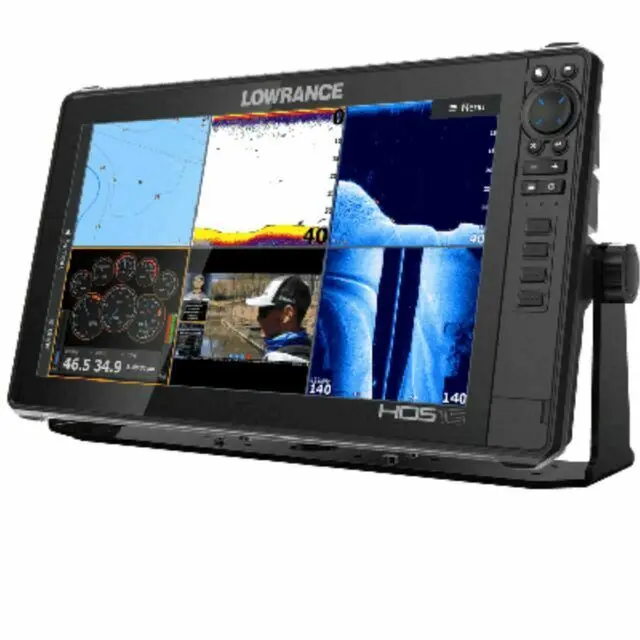

Lowrance 000 14433 001 HDS Live 16 Fishfinder

Features

• Active Imaging 3-in-1 Transducer required (not included)


• NEW! Active Imaging 3-in-1 (CHIRP/SideScan/DownScan)


• Active Imaging 2-in-1 ready


• LiveSight™ real-time sonar compatible


• Smartphone notifications


• C-MAP Genesis Live onscreen mapping


• StructureScan® 3D with Active Imaging enhancements - Coming Fall 2018


• High-performance quad-core processor


• FishReveal Smart Target View


• Full high-definition HDS SolarMAX HD multi-touch screen with the widest range of viewing angles — viewable even through polarized sunglasses


• Preloaded high-detail C-MAP® US Enhanced charts with 1-foot contours on 4,000-plus lakes


• C-MAP Easy Routing, Navionics Autorouting capability


• Dual-Channel CHIRP — dual sonar-range coverage from the same transducer


• Live Network Sonar — cover more water and mark fish targets more clearly from a network of CHIRP sonar transducers


• Wireless and Blue tooth connectivity


• Heat Map feature allows anglers to see trends in water temperature changes to quickly target key fishing areas


• Enhanced Surface Clarity lets you see more fish targets near the surface


• Quick Access Control Bar provides one—touch access to system controls


• Built-in CHIRP and Broadband Sounder


• SmartSteer™ control for Xi5 Trolling Motor and Outboard Pilot


• Radar and SonicHub 2 audio server connectivity


• NMEA 2000® engine support


• Optional mapping upgrades include C-MAP, Navionics and more

Specifications

• Resolution: 1920 x 1080


• Brightness: > 1200 nits


• Type: 16" IPS


• Touch Screen: Multi-Touch


• Viewing Angle: 80° top/bottom, 80° left/right


• Supply Voltage: 12 V DC (10 - 17 V DC min - max)


• Power Consumption - MAX: 67.62 W (4.9 A at 13.8 V DC)


• Recommended Fuse: 6.5 A


• Operating Temp Range: -15°C to +55°C (5°F to 131°F)


• Storage Temp Range: -20°C to +60°C (4°F to 140°F)


• Waterproof Rating: IPX6 and IPX7


• NMEA 2000: 1 port (Micro-C)


• NMEA 0183: 1 port (In Power Cable)


• Ethernet: 2 ports


• HDMI Video In: 1 port


• Analog Video In: 1 port (optional cable)


• USB: 1 port (USB-A 5V DC, 1.5A)


• Card Slots: 2 slots microSD


• Wireless: Built-in 802.11 b/g/n
