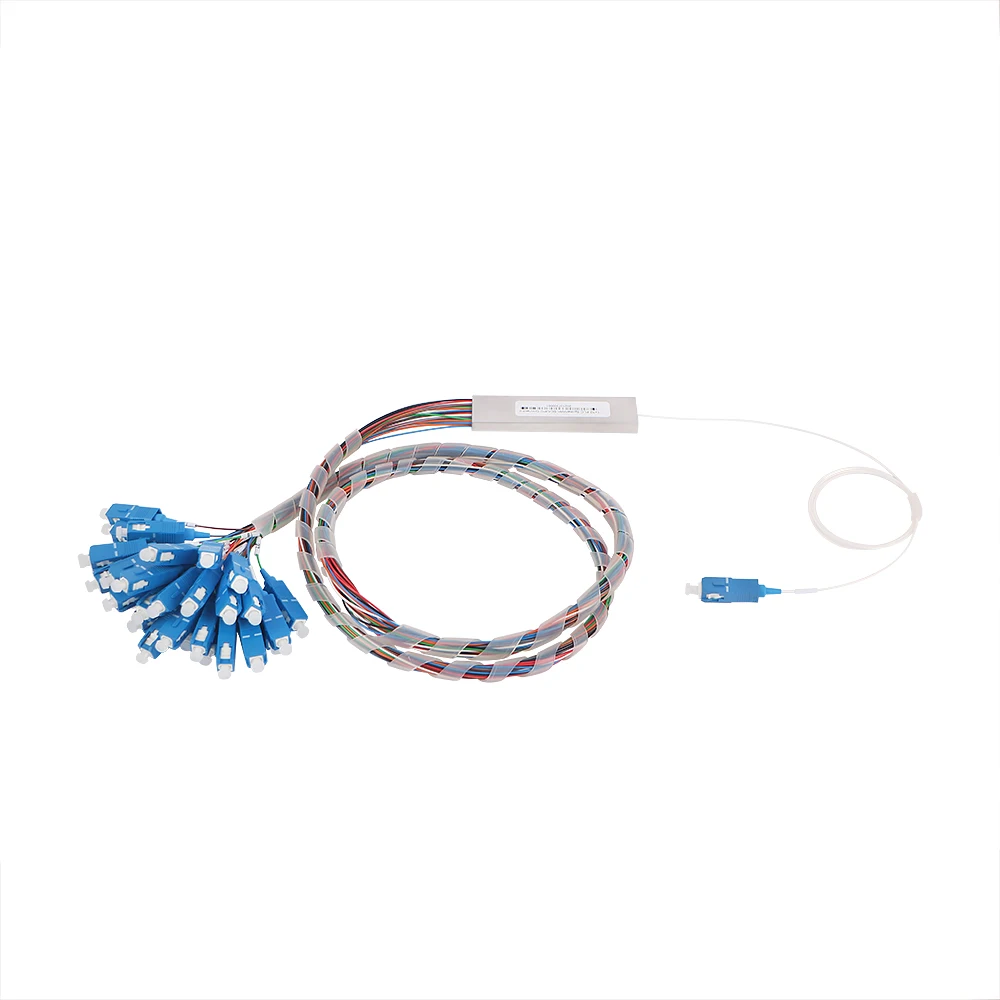

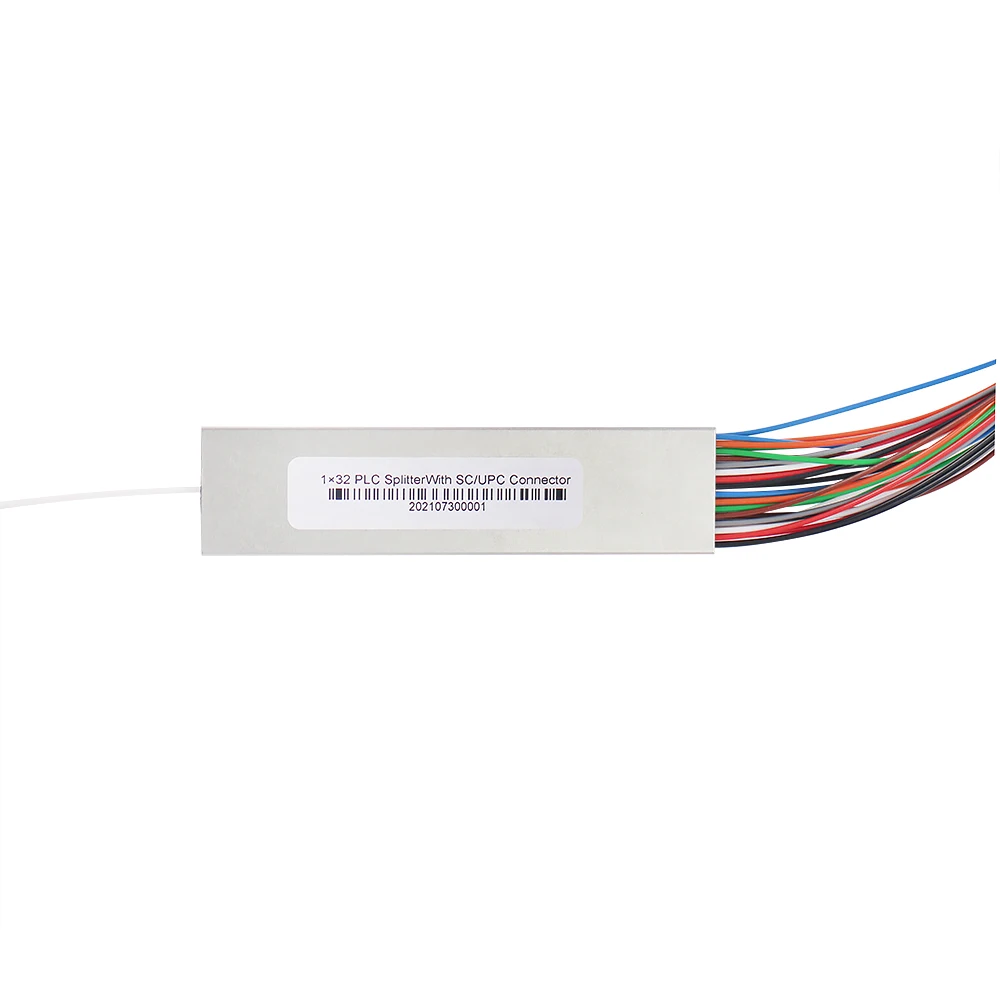

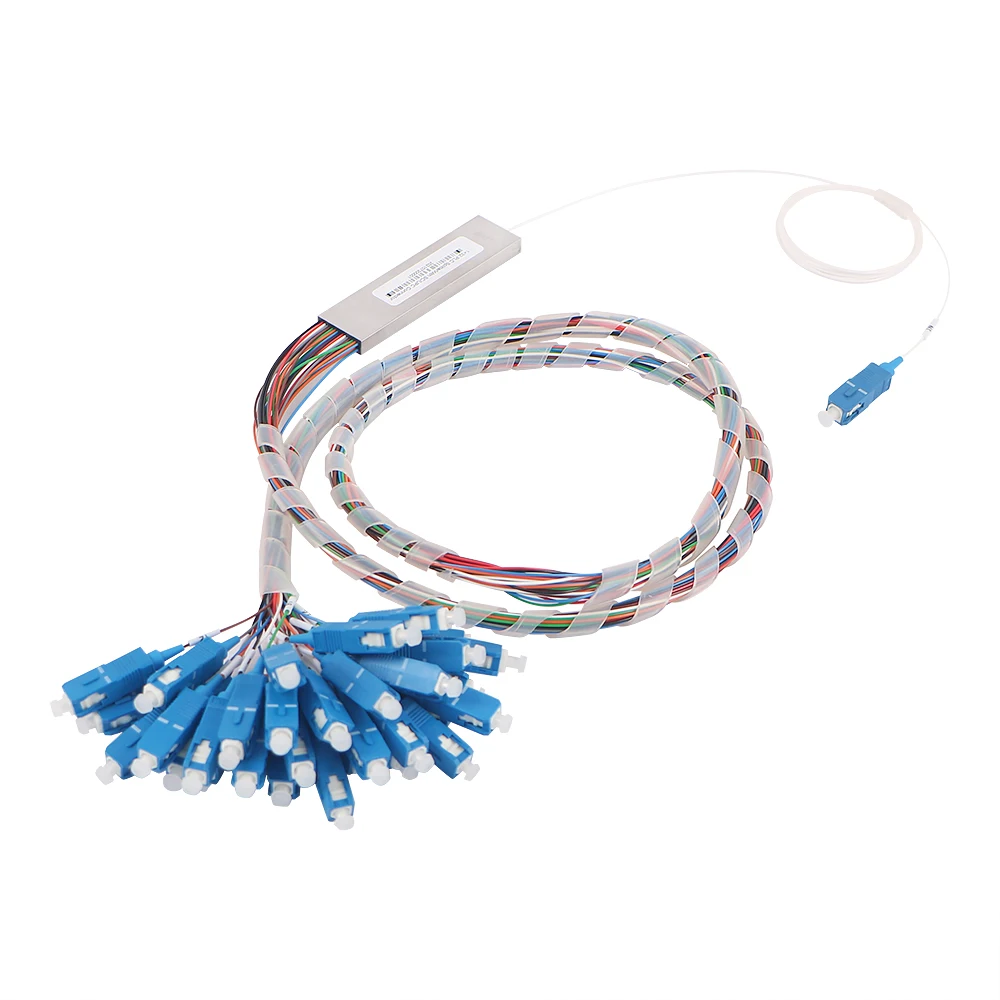

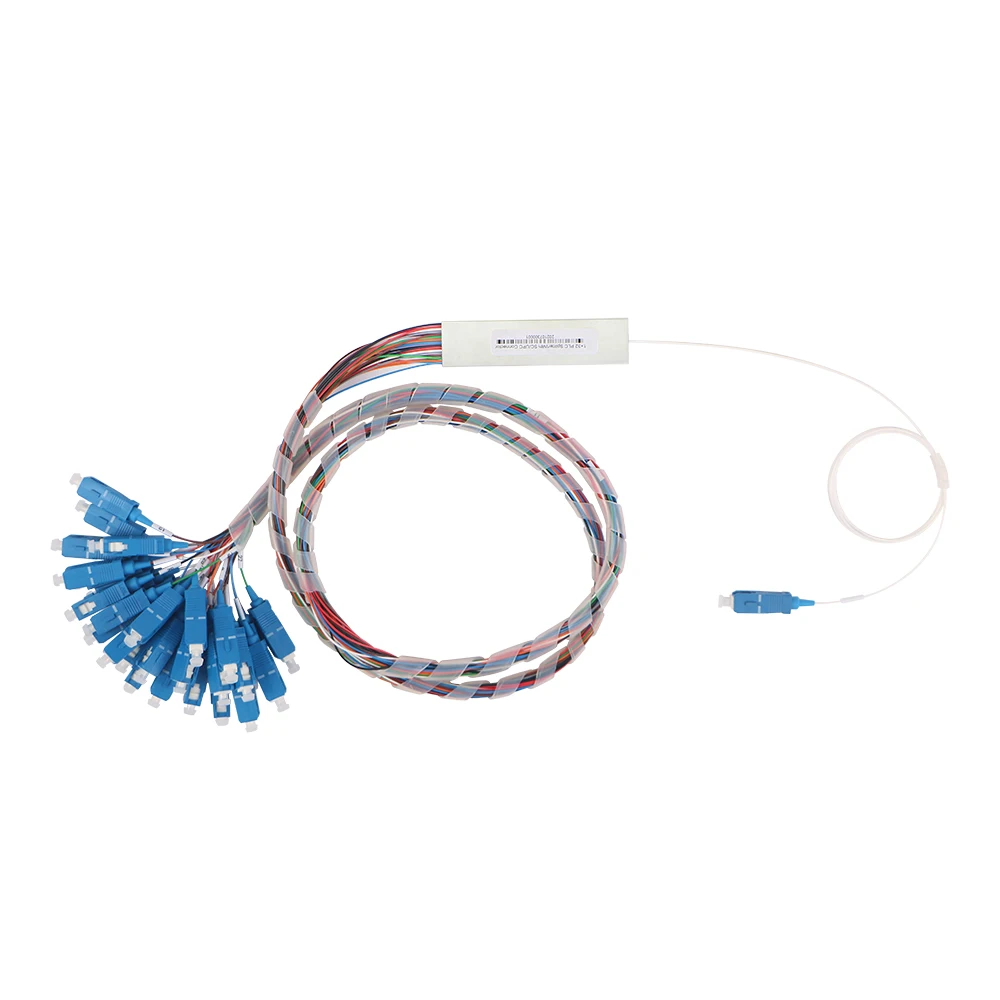

1*32 Steel Mini Tube Type PLC Splitter For CATV Network & FTTxSystem & Passive Optical Networks
- Category: >>>
- Supplier: Fiber Cable Solution Technology Co. Ltd.
Share on (10000003526143):
Product Overview
Description
Product Specifications
MODEL | SPECIFICATION | ||||||||||||||||
Operating Wavelength (nm) | 1260 ~ 1650 | ||||||||||||||||
Type | 1x4 | 1x8 | 1x16 | 1x32 | 2x4 | 2x8 | 2x16 | 2x32 | 1x64 | ||||||||
Insertion Loss (dB) Max. | 7.3 | 10.8 | 13.9 | 17.0 | 7.8 | 11.2 | 14.5 | 17.8 | 20.5 | ||||||||
Uniformity (dB) Max. | <0.8 | <1.0 | <1.2 | <1.5 | <1.0 | <1.5 | <1.5 | <2.0 | <2.5 | ||||||||
PDL(dB)Max. | <0.2 | <0.2 | <0.3 | <0.3 | <0.3 | <0.3 | <0.4 | <0.4 | <0.3 | ||||||||
Directivity (dB) Min | 55 | ||||||||||||||||
Return Loss (dB) Min | 50 | ||||||||||||||||
Operating Temperature (°C) | -40~ +85 | ||||||||||||||||
Storage Temperature (°C) | -40 ~ +85 | ||||||||||||||||
Fiber length | 1m or custom length | ||||||||||||||||
Fiber Type | ITU G652.D/G657.A Fiber | ||||||||||||||||
Connector Type | Custom specified | ||||||||||||||||
Product Application
1.FTTx System
2.CATV Networks
3. Passive Optical Networks (PON)
4. Local Area Networks (LAN)
5. Test Equipments
2.CATV Networks
3. Passive Optical Networks (PON)
4. Local Area Networks (LAN)
5. Test Equipments
Ordering Information
PLC | Port Type | Cable Type | Fiber Length | Connector Type | Package Style |
PLC Splitter | 1*4 1*8 1*16 1*32 1*64 2*32 Others Specify | 0.25mm Bare fiber Ribbon Fiber Fan-out with 0.9mm Loose Tube 2.0mm Cable 3.0mm Cable | 1 meter 2 meter 3 meter Others specify | FC/APC FC/PC SC/APC SC/PC ST/UPC LC/APC Others Specify | Stainless steel sleeve Plastic Module 19’’ 1U Rack Mount Others Specify |
