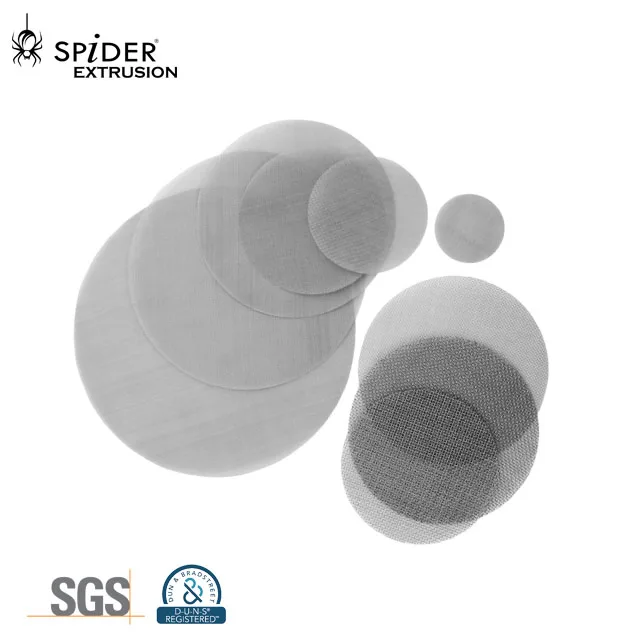

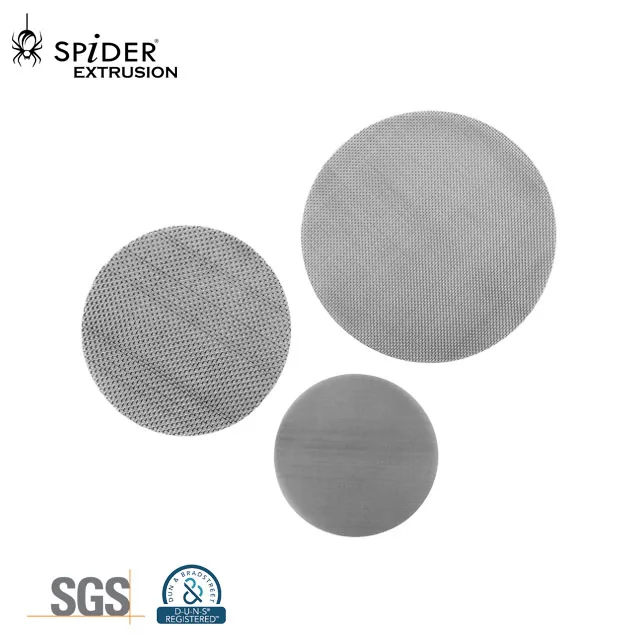

Простая/саржевая круглая сетка из нержавеющей стали для экструзионной машины

Product Overview

Description

Common Weave Types:

Wire sizes and openings range widely, due to such variety we offer many different weaves. Weave Types are often dictated by the mesh count and wire diameter specifications being used for the product.



The two most common types are:

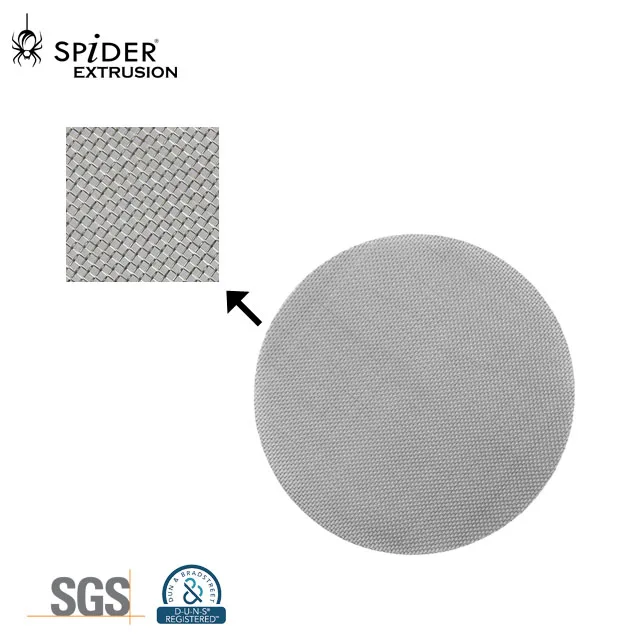

1. Plain Square Weave
The most common weave, with the same diameter warp and shute wires woven in a simple over and under pattern.  It produces screens with the same mesh count in both directions.

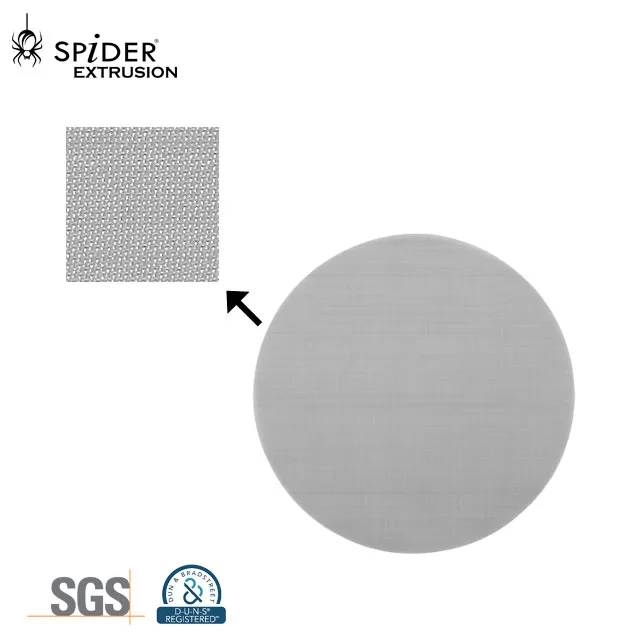

2. Twill Square Weave
Each shute wire typically passes over two warp wires and under two, producing square openings.  Twill weave can be made from larger-diameter wires than would be possible in a plain square weave to obtain greater strength, density, or corrosion resistance.





3. Other Types: Plain Dutch Weave, Twill Dutch Weave, Reverse Dutch Weave, Twist Weave, Double Twist Weave, etc.



We can choose the best weaving method according to your needs,

please Tell Us Your Thoughts.



Mesh Count (m)	Diameter (mm)	Aperture (mm)	Mesh Count (m)	Diameter (mm)	Aperture (mm)
10	≈0.8	≈1.94	100	≈0.1	≈0.15
16	≈0.45	≈1.13	120	≈0.08	≈0.13
20	≈0.4	≈0.87	150	≈0.06	≈0.1
24	≈0.19	≈0.7	165	≈0.05	≈0.1
30	≈0.25	≈0.596	180	≈0.05	≈0.09
35	≈0.25	≈0.478	200	≈0.05	≈0.08
40	≈0.17	≈0.465	250	≈0.04	≈0.06
50	≈0.17	≈0.338	300	≈0.04	≈0.045
60	≈0.12	≈0.3	325	≈0.035	≈0.04
80	≈0.12	≈0.2	350	≈0.03	≈0.04
80	≈0.14	≈0.16	400	≈0.03	≈0.034





If you are interested in the products, please contact us!

You can find us on Alibaba.com or website, E-mail, and instant messaging software.



Specifications Required Upon Ordering:

1. Material


2. Wave


3. Diameter(d)


4. Aperture (a): the distance between two parallel wires (in millimeter)


5. Mesh Count (m): the number of mesh holes within one inch.


6. Pitch (p): the distance between the centers of two adjacent wires (in millimeter).


7. Width & length


8. Quantity


9. Edge Treatment
