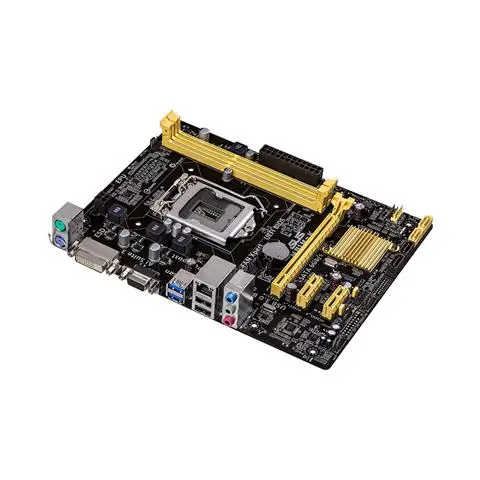

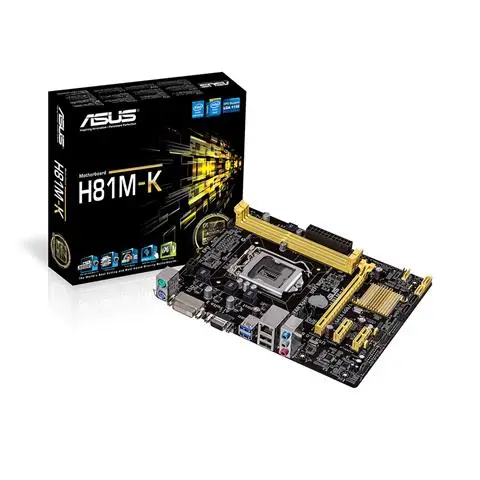

Used Asus H81M K desktop Motherboard Socket 1150 Core i7/i5/i3/Pentium/Celeron for H81 Motherboard
- Category: >>>
- Supplier: Shenzhen Hezhong Jiecheng IOT Technology Co. Ltd.
Share on (10000003600293):
Product Overview
Description
Product Description
Product Name | Used Asus H81M-K Motherboard |
MOQ | 1PCS |
Payment | T/T Bank Transfer, Western Union, MoneyGram |
Delivery time | Within 1-3 days |

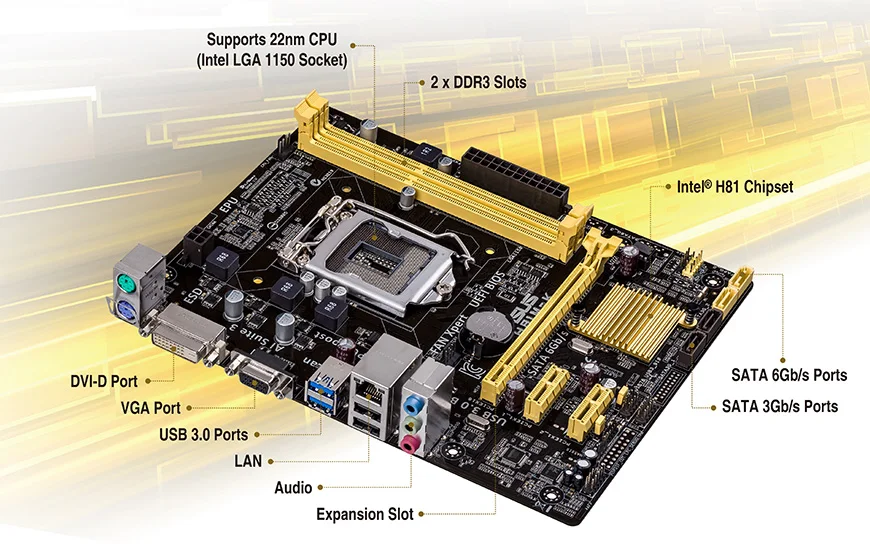

H81 series of popular M-ATX motherboards, using UEFI Chinese graphical BIOS enhanced version, integrated display performance and USB 3.0 port
UEFI Chinese Graphical BIOS Enhanced Edition-Brand new features, brand new interface
USB 3.0 acceleration (support USAP protocol)-faster data transfer under WIN 8
Smart Butler 3rd Generation-ASUS Secrets Integrated Control Center
Speed up integrated display-improved integrated display performance!
UEFI Chinese Graphical BIOS Enhanced Edition-Brand new features, brand new interface
USB 3.0 acceleration (support USAP protocol)-faster data transfer under WIN 8
Smart Butler 3rd Generation-ASUS Secrets Integrated Control Center
Speed up integrated display-improved integrated display performance!
CPU
Support Intel® Socket 1150 4th generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® processors
Support Intel® 22 nm processor
Support Intel® Turbo Boost 2.0 technology
*Please visit www.asus.com.cn for the latest processor support list.
* Whether to support Intel® Turbo Boost 2.0 technology depends on the processor type.
chipset
Support Intel® H81
RAM
2 x DIMM memory slots, capacity up to 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered memory
Dual channel memory architecture
Support Intel® Extreme Memory Profile (XMP) technology
*The support function for Hyper DIMM is determined by the physical characteristics of the CPU.
* Please visit www.asus.com.cn or refer to the user manual for the memory qualified supplier support list (QVL).
* Due to chipset limitations, DDR3 1600 MHz and higher memory modules can operate at the default value of DDR3 1600 MHz in XMP mode.
Graphic display
Integrated graphics processor
Support display output: DVI/RGB interface
-Support DVI: display resolution up to 1920 x 1200 @ 60 Hz
-Support RGB: display resolution up to 1920 x 1200 @ 60 Hz
Shared video memory up to: 1024 MB
Support Intel® InTru™ 3D, Quick Sync Video, Clear Video HD technology, Insider™
Expansion slot
1 x PCIe x16 expansion card slot
2 x PCIe 2.0 x1 expansion card slot
Storage function (depending on shipment)
Intel® H81 Chipset:
2 x SATA 6Gb/s ports, yellow
2 x SATA 3Gb/s ports, dark brown,
Support Intel® Rapid Response Technology, Intel® Smart Connect Technology *1
Internet function
Realtek® 8111G, 1 x Gigabit LAN
Sound effect
Realtek® ALC 887 8-channel high-definition audio codec*2
-Support: Audio interface detection (Jack-detection), custom front panel audio jack function
USB interface
Intel® H81 Chipset:
2 x USB 3.0/2.0 ports (2 on the rear panel, blue)
Intel® H81 Chipset:
6 x USB 2.0 ports (2 in the rear panel, black, 4 in the center of the motherboard)
other functions
ASUS EPU intelligent energy-saving processor:
-EPU
ASUS features:
-Jixian speed up
-Ai Charger charging technology
-ASUS Surge Protection
-AI Suite 3 (Smart Butler 3rd Generation)
-UEFI Chinese graphical BIOS (EZ mode), with a friendly graphical user interface.
-Disk Unlocker
-USB 3.0 acceleration
-Network Intelligent Management Center
ASUS silent cooling solution:
-ASUS fanless design: aesthetic heat sink
-ASUS Fan Master
ASUS EZ DIY:
-ASUS CrashFree BIOS 3
-ASUS EZ Flash 2
ASUS Q-Design:
-ASUS Q-Slot
Operating system support
Windows® 8
Windows® 7

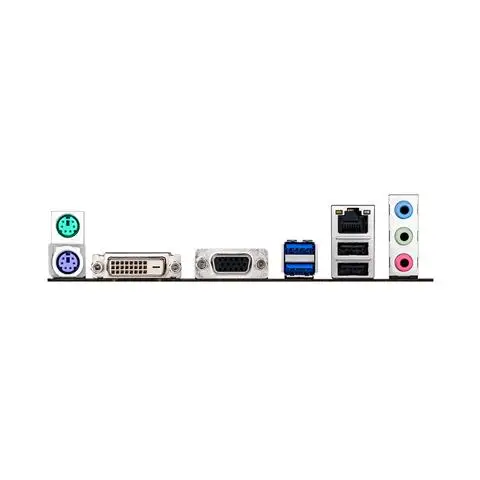

Backplane I/O interface
1 x PS/2 keyboard interface (purple)
1 x PS/2 mouse port (green)
1 x DVI interface
1 x D-Sub interface
1 x LAN (RJ45) port
2 x USB 3.1 Gen 1 port (blue)
2 x USB 2.0 ports
3 x audio jack
Internal I/O interface
2 x USB 2.0 ports, expandable 4 sets of external USB 2.0 ports
2 x SATA 6Gb/s device connection sockets
2 x SATA 3Gb/s device connection sockets
1 x CPU fan power socket (1 x 4-pin)
1 x chassis fan connector (1 x 4 -pin)
1 x S/PDIF_Out digital audio connector header
1 x 24-pin EATX motherboard power socket
1 x 4-pin ATX 12V motherboard power socket
1 x front panel audio interface (AAFP)
1 x internal speaker interface
1 x front panel interface
1 x Clear CMOS jumper
Accessories
manual
I/O baffle
2 x SATA 6.0Gb/s data cable
BIOS
64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, Favorites, Quick Notes, History, F12 screenshot, F3 shortcut key function and ASUS DRAM SPD (Serial Presence Detect) memory information
Management software
WfM 2.0, DMI 2.0, WOL by PME, PXE
CD-ROM
driver
ASUS app
ASUS Online Update Program
Anti-virus software (OEM version)
Dimensions
uATX type
8.9 inches x 6.9 inches (22.6 cm x 17.5 cm)
Support Intel® Socket 1150 4th generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® processors
Support Intel® 22 nm processor
Support Intel® Turbo Boost 2.0 technology
*Please visit www.asus.com.cn for the latest processor support list.
* Whether to support Intel® Turbo Boost 2.0 technology depends on the processor type.
chipset
Support Intel® H81
RAM
2 x DIMM memory slots, capacity up to 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered memory
Dual channel memory architecture
Support Intel® Extreme Memory Profile (XMP) technology
*The support function for Hyper DIMM is determined by the physical characteristics of the CPU.
* Please visit www.asus.com.cn or refer to the user manual for the memory qualified supplier support list (QVL).
* Due to chipset limitations, DDR3 1600 MHz and higher memory modules can operate at the default value of DDR3 1600 MHz in XMP mode.
Graphic display
Integrated graphics processor
Support display output: DVI/RGB interface
-Support DVI: display resolution up to 1920 x 1200 @ 60 Hz
-Support RGB: display resolution up to 1920 x 1200 @ 60 Hz
Shared video memory up to: 1024 MB
Support Intel® InTru™ 3D, Quick Sync Video, Clear Video HD technology, Insider™
Expansion slot
1 x PCIe x16 expansion card slot
2 x PCIe 2.0 x1 expansion card slot
Storage function (depending on shipment)
Intel® H81 Chipset:
2 x SATA 6Gb/s ports, yellow
2 x SATA 3Gb/s ports, dark brown,
Support Intel® Rapid Response Technology, Intel® Smart Connect Technology *1
Internet function
Realtek® 8111G, 1 x Gigabit LAN
Sound effect
Realtek® ALC 887 8-channel high-definition audio codec*2
-Support: Audio interface detection (Jack-detection), custom front panel audio jack function
USB interface
Intel® H81 Chipset:
2 x USB 3.0/2.0 ports (2 on the rear panel, blue)
Intel® H81 Chipset:
6 x USB 2.0 ports (2 in the rear panel, black, 4 in the center of the motherboard)
other functions
ASUS EPU intelligent energy-saving processor:
-EPU
ASUS features:
-Jixian speed up
-Ai Charger charging technology
-ASUS Surge Protection
-AI Suite 3 (Smart Butler 3rd Generation)
-UEFI Chinese graphical BIOS (EZ mode), with a friendly graphical user interface.
-Disk Unlocker
-USB 3.0 acceleration
-Network Intelligent Management Center
ASUS silent cooling solution:
-ASUS fanless design: aesthetic heat sink
-ASUS Fan Master
ASUS EZ DIY:
-ASUS CrashFree BIOS 3
-ASUS EZ Flash 2
ASUS Q-Design:
-ASUS Q-Slot
Operating system support
Windows® 8
Windows® 7
Backplane I/O interface
1 x PS/2 keyboard interface (purple)
1 x PS/2 mouse port (green)
1 x DVI interface
1 x D-Sub interface
1 x LAN (RJ45) port
2 x USB 3.1 Gen 1 port (blue)
2 x USB 2.0 ports
3 x audio jack
Internal I/O interface
2 x USB 2.0 ports, expandable 4 sets of external USB 2.0 ports
2 x SATA 6Gb/s device connection sockets
2 x SATA 3Gb/s device connection sockets
1 x CPU fan power socket (1 x 4-pin)
1 x chassis fan connector (1 x 4 -pin)
1 x S/PDIF_Out digital audio connector header
1 x 24-pin EATX motherboard power socket
1 x 4-pin ATX 12V motherboard power socket
1 x front panel audio interface (AAFP)
1 x internal speaker interface
1 x front panel interface
1 x Clear CMOS jumper
Accessories
manual
I/O baffle
2 x SATA 6.0Gb/s data cable
BIOS
64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, Favorites, Quick Notes, History, F12 screenshot, F3 shortcut key function and ASUS DRAM SPD (Serial Presence Detect) memory information
Management software
WfM 2.0, DMI 2.0, WOL by PME, PXE
CD-ROM
driver
ASUS app
ASUS Online Update Program
Anti-virus software (OEM version)
Dimensions
uATX type
8.9 inches x 6.9 inches (22.6 cm x 17.5 cm)
