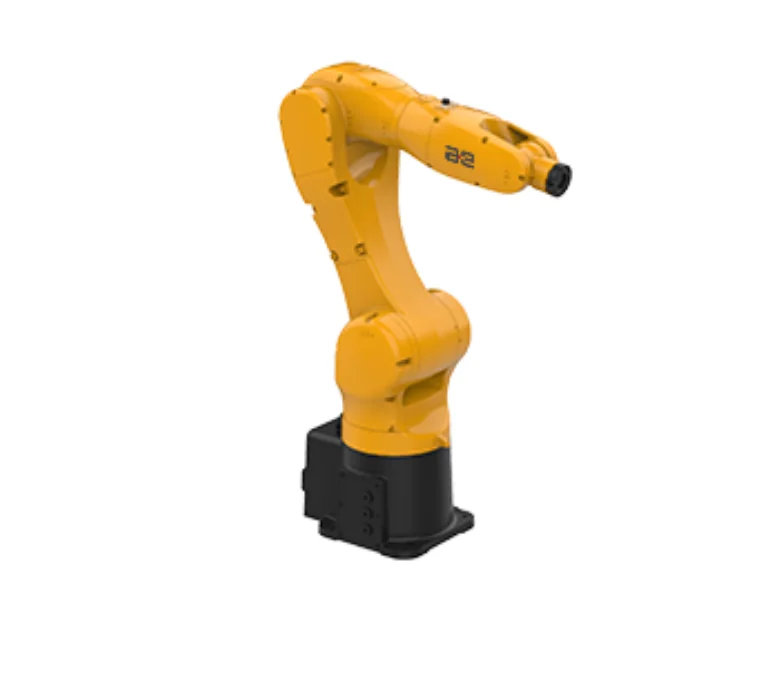

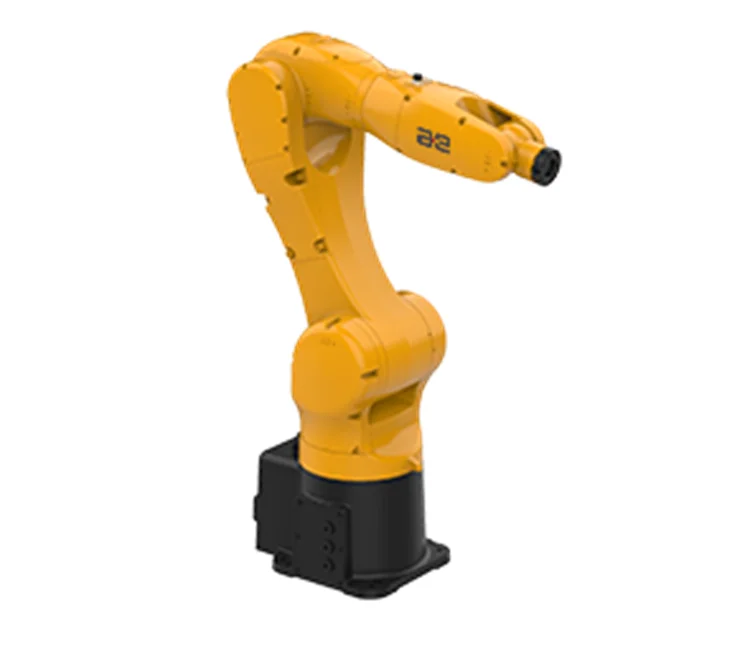

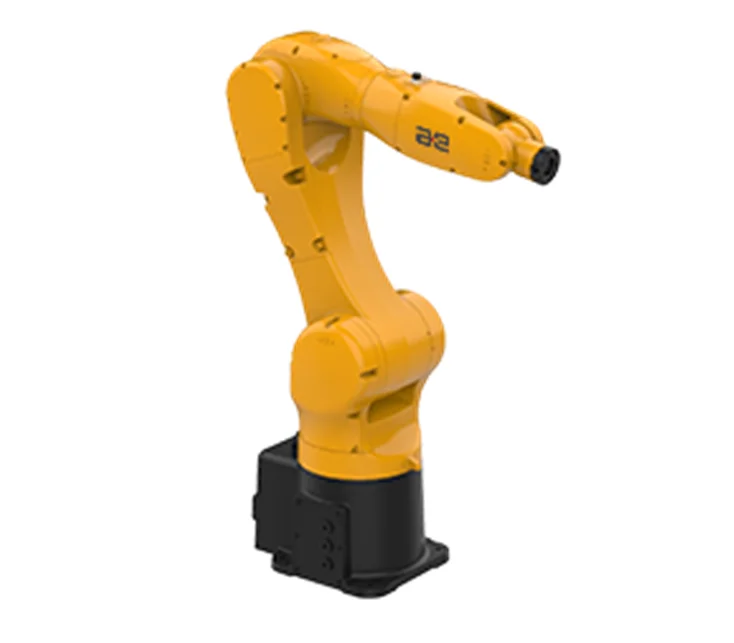

Welding robot arm AE AIR 7L B arm reach 920mm robot collaborative servo motor for robot arm
- Category: >>>
- Supplier: Ae Robotics Co. Ltd.
Share on (10000003646103):
Product Overview
Description
Product Overview

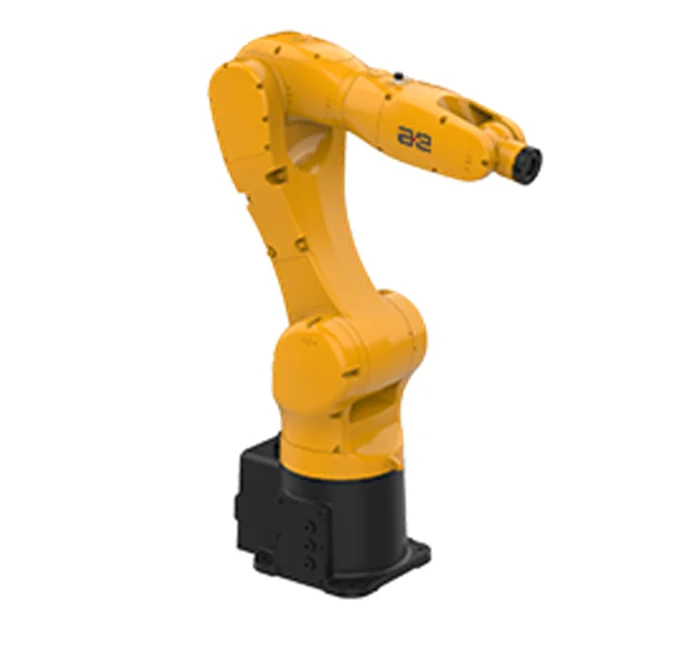

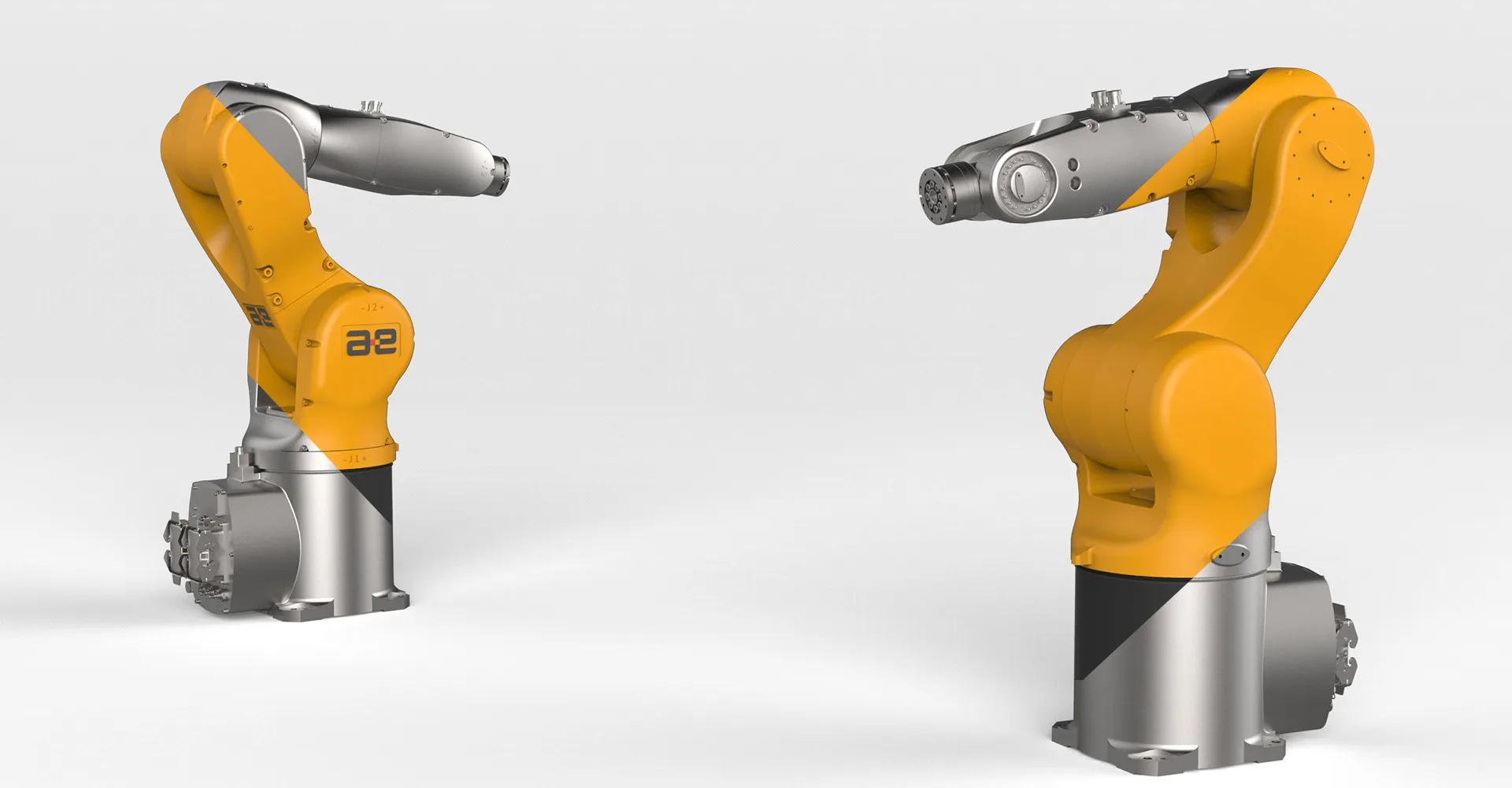

AIR7L-B 7kg payload 6-axis industrial robot
AIR7L-B is 7kg payload compact industrial robot. It is the smallest robot in AE robot family.
In AE robotics family there are 3kg,7kg,8kg,10kg,20kg,50kg and 165kg payload robot.
Use Japan nabtesco RV gearbox reducer and China No.1 Leaderdrive harmonic gearbox reducer.
The robot each joint communicate by high speed bus EtherCAT.
Products Description
Type | AIR7L-B | |||
Axes | 6 | |||
Payload | 7Kg | |||
Manipulator | Weight | 53Kg | ||
Weight: | Reach | 920mm | ||
Positioning accuracy | Position repeatability | ±0.02mm | ||
Ingress Protection | IP67 | |||
Mounting | Mounting | Floor/ wall/ ceiling | ||

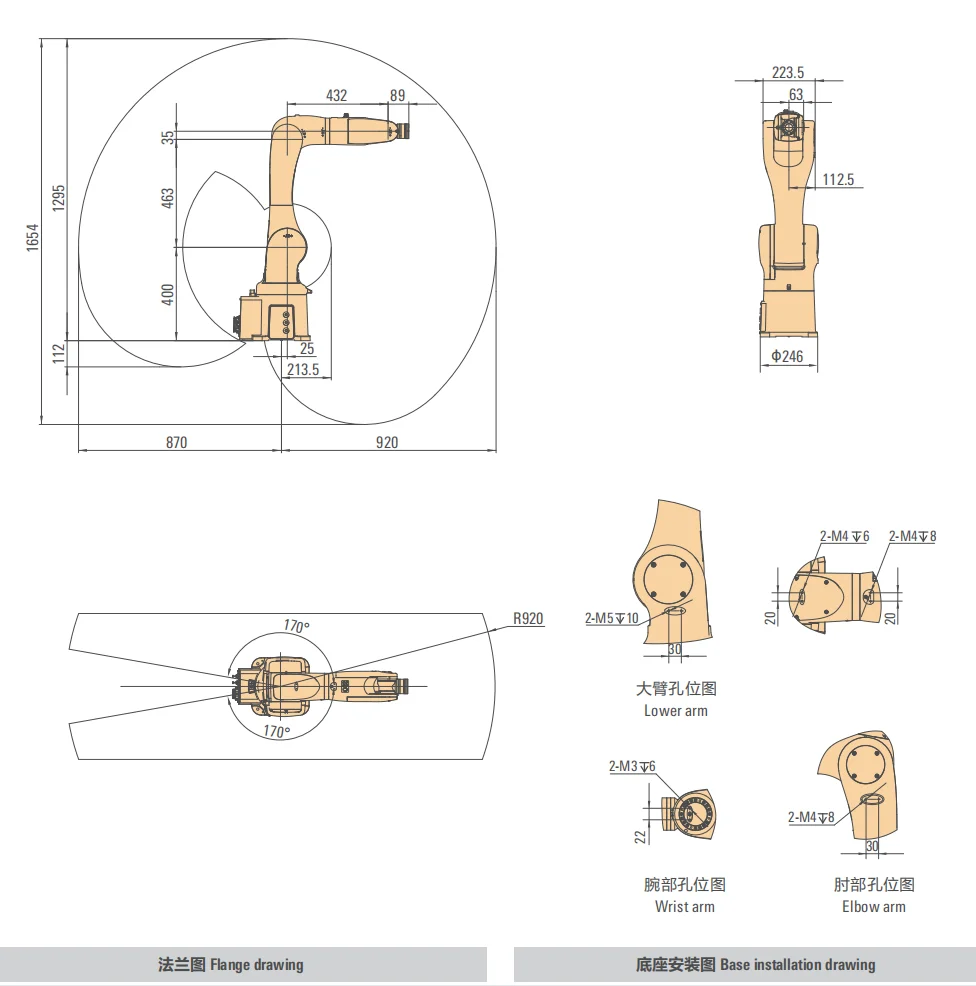

Working range | Axis 1 rotation | -170°/+170° | ||
Materials | Axis 2 arm | -100°/+135° | ||
Ambient humidity | Axis 3 arm | -120°/+156° | ||
Ambient temperature | Axis 4 wrist | -200°/+200° | ||
IP Classification | Axis 5 bend | -135°/+135° | ||
Programming | Axis 6 turn | -360°/+360° | ||
Rotation rate | Axis 1 rotation | 380°/s | ||
Motor Type | Axis 2 arm | 320°/s | ||
Installation orientation | Axis 3 arm | 390°/s | ||
Axis 4 wrist | 490°/s | |||
Axis 5 bend | 565°/s | |||
Axis 6 turn | 815°/s | |||

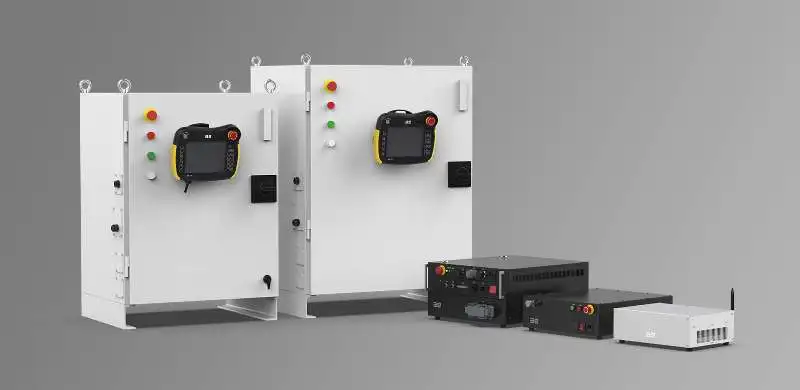

Controllers | inCube20 | |||
If the mechanical limit is removed, the working range can reach -180° /+180° | ||||
Product packaging
Similar Products
AIR10-A
AIR8-A
AIR50-A

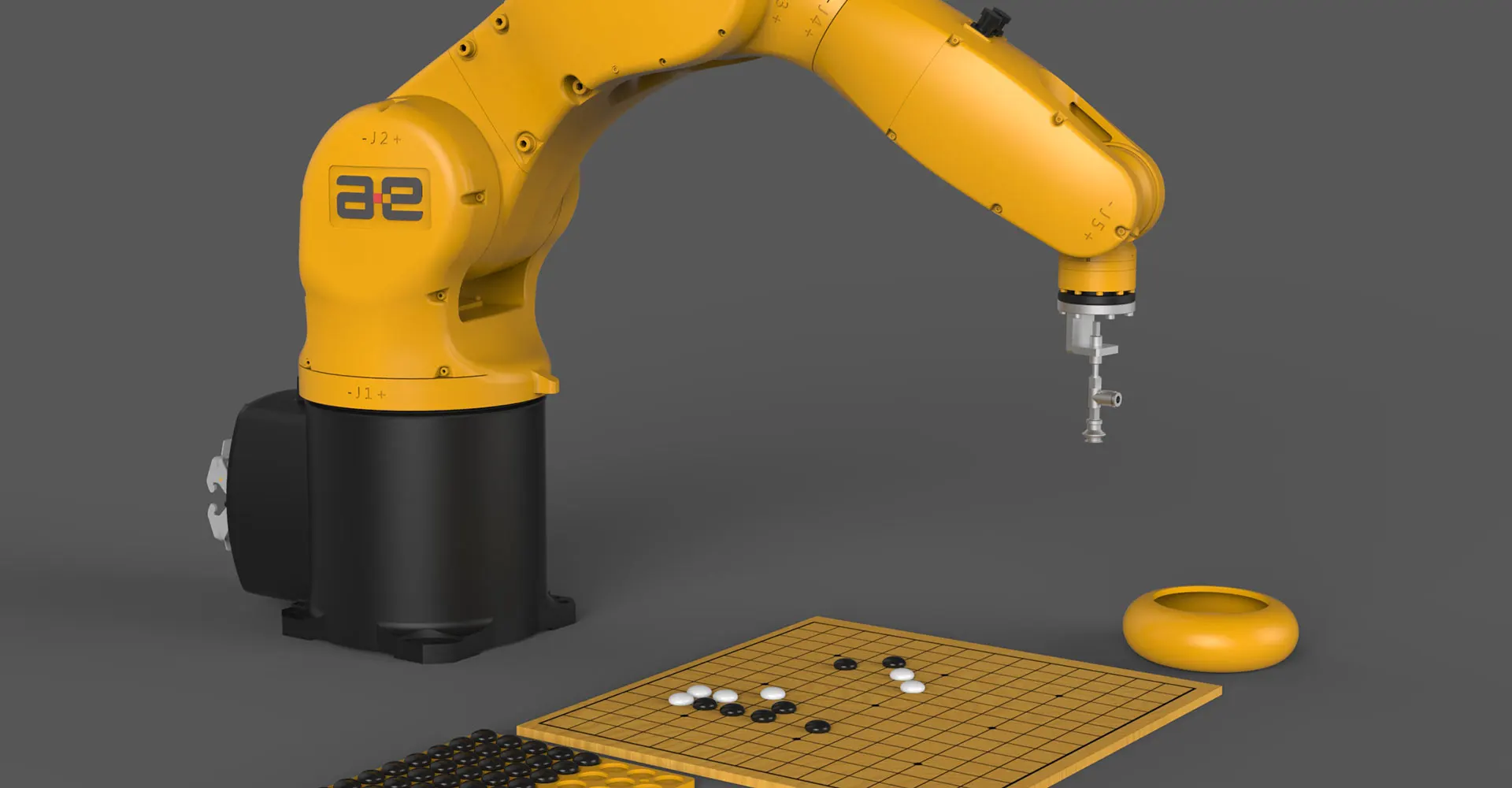

Application
Contact Us
AE Robotics Co., Ltd
Email: info@automationar.com
Sales Manger: Eric
P&W：+86 135 1097 8730
P&W：+86 135 1097 8730
Tele：0755-82598262
Company Profile
AE Robotics Co., Ltd
We are an one-stop robot provider in China.Providing high cost effective robot and cobot.we are distributor of ABB,KUKA,KAWASAKI EPSON etc. and sell robot whole world. we provide customer one stop serivce, help customer customzied robotics tools.
Trust is first, Providing the best Pre-sale service and after-sale service is very important for customer. Hope we can make win-win and long-term business.
FAQ
Q1：How long time delivery time
A1：7~10workding days
Q2: What brand of gearbox
A1： J1~J3 is Japan nabtesco RV reducer, J4~J6 is Leaderdrive Harmonic reducer
Q3: How to program
A3: Teaching pendant english interface,
Q4:How many Digital interface
A4: User Digtial input and output 16/16
Q5：What is warranty
A5: 12month
Q2: What brand of gearbox
A1： J1~J3 is Japan nabtesco RV reducer, J4~J6 is Leaderdrive Harmonic reducer
Q3: How to program
A3: Teaching pendant english interface,
Q4:How many Digital interface
A4: User Digtial input and output 16/16
Q5：What is warranty
A5: 12month
