USB RFID 125KHz Dual Decoding(ASK & FSK) Read Module RS232 UART
- Category: >>>
- Supplier: PONGEE INDUSTRIES CO. LTD.
Share on (10000003732499):
Product Overview
Description
Introduction
PIEH-14SN is 125KHz EM ASK & HC FSK reading module which supports USB & UART output. Only requests DC4.5~5.4V input, USB type module is power supplied via USB cable. Compact design with mounting holes suitable for various integrations such as portable products.
It can provide easy ID filing by USB keyboard emulator without any driver (plug & play) and no request of external power supply.
We provide complete software/Hardware support and shorten schedule of RFID product development, OEM/ODM service is available.
Features
lWith indicating power & status LED.
lWith buzzer for sound warning.
lCompact size.
lWith 4 fixed holes around the corner.
Specifications
RFID frequency | 125KHz ASK & FSK | |
Applicable cards | EM4001, EM4100, EM 4102, TEMIC 5557(ISO1785) or compatible, HC | |
Reading range | Card (T:1.8mm) | Max.7cm |
Card (T:0.8mm) | Max.4cm | |
Output format | USB, RS-232, UART(TTL) | |
Power input | 5V DC | |
Transmission spec. | 9,600 bps N, 8, 1 | |
Standby / Working current | 25.9mA±10% @ 5 VDC / 31.8mA±10% @ 5 VDC | |
Dimensions(L) ×(W) ×(H) mm/inch | 64 x 37.5 / 2.5 x 1.5 | |
Operating temperature | -10℃~70℃ | |
Storage temperature | -20℃~85℃ | |

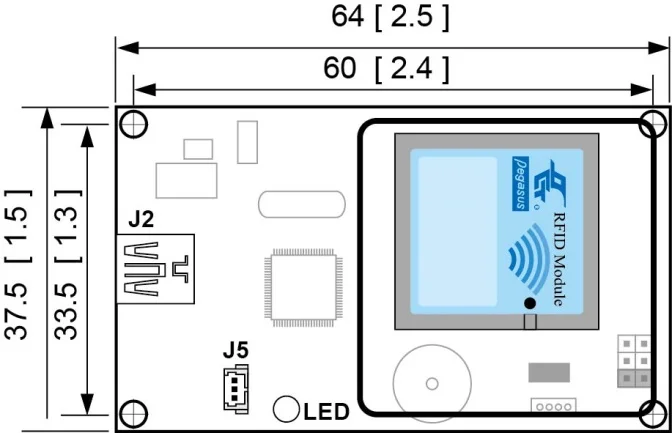

Dimension: Unit: mm[inch]
How to order
PIEH-14R2D01 | 125KHz Dual Decoding(EM ASK & HC FSK) , RS-232, 8 digit, Decimal, 3bytes |
PIEH-14R2D02 | 125KHz Dual Decoding(EM ASK & HC FSK), RS-232, 10 digit, Decimal, 3bytes |
PIEH-14R2D03 | 125KHz Dual Decoding(EM ASK & HC FSK), RS-232, 8 digit, Decimal, 4bytes |
PIEH-14R2D04 | 125KHz Dual Decoding(EM ASK & HC FSK), RS-232, 10 digit, Decimal, 4bytes |
PIEH-14R2H01 | 125KHz Dual Decoding(EM ASK & HC FSK), RS-232, 8 digit, Hexadecimal |
PIEH-14R2H02 | 125KHz Dual Decoding(EM ASK & HC FSK), RS-232, 10 digit, Hexadecimal |
PIEH-14U1TD01 | 125KHz Dual Decoding(EM ASK & HC FSK), USB, UART(TTL), 8 digit, Decimal, 3bytes |
PIEH-14U1TD02 | 125KHz Dual Decoding(EM ASK & HC FSK), USB, UART(TTL), 10 digit, Decimal, 3bytes |
PIEH-14U1TD03 | 125KHz Dual Decoding(EM ASK & HC FSK), USB, UART(TTL), 8 digit, Decimal, 4bytes |
PIEH-14U1TD04 | 125KHz Dual Decoding(EM ASK & HC FSK), USB, UART(TTL), 10 digit, Decimal, 4bytes |
PIEH-14U1TH01 | 125KHz Dual Decoding(EM ASK & HC FSK), USB, UART(TTL), 8 digit, Hexadecimal |
PIEH-14U1TH02 | 125KHz Dual Decoding(EM ASK & HC FSK), USB, UART(TTL), 10 digit, Hexadecimal |
We reserve the right to change the specification without prior notice or obligation!
